ആമുഖം
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Efperfect 52-Inch Industrial Ceiling Fan with Light. Please read this manual thoroughly before installation and retain it for future reference.
പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
- ഇൻസ്റ്റാളേഷൻ അല്ലെങ്കിൽ സർവീസ് ചെയ്യുന്നതിന് മുമ്പ് സർക്യൂട്ട് ബ്രേക്കറിൽ എല്ലായ്പ്പോഴും വൈദ്യുതി വിച്ഛേദിക്കുക.
- എല്ലാ വൈദ്യുത കണക്ഷനുകളും പ്രാദേശിക കോഡുകളും ഓർഡിനൻസുകളും പാലിക്കുന്നുണ്ടെന്ന് ഉറപ്പാക്കുക.
- നിങ്ങൾക്ക് ഇലക്ട്രിക്കൽ വയറിംഗിൽ പരിചയമില്ലെങ്കിൽ യോഗ്യതയുള്ള ഒരു ഇലക്ട്രീഷ്യനെ സമീപിക്കുക.
- ഫാനിന്റെ ഭാരം താങ്ങാൻ കഴിയുന്ന ഒരു സീലിംഗ് ജോയിസ്റ്റിലോ സപ്പോർട്ട് ഘടനയിലോ ഫാൻ ഘടിപ്പിക്കുക.
- ജോലി ചെയ്യുമ്പോൾ കൈകൾ ഫാൻ ബ്ലേഡുകളിൽ നിന്ന് അകറ്റി നിർത്തുക.
പാക്കേജ് ഉള്ളടക്കം
ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:
- സീലിംഗ് ഫാൻ യൂണിറ്റ് (മോട്ടോർ, ബ്ലേഡുകൾ, ലൈറ്റ് കിറ്റ്)
- റിമോട്ട് കൺട്രോൾ
- 2 Downrods (4-inch and 8-inch)
- മൌണ്ടിംഗ് ഹാർഡ്വെയർ
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ

ചിത്രം: പൊട്ടിത്തെറിച്ചു view of the ceiling fan components, showing the durable canopy, genuine walnut blades, A-grade IP plating black metal cage, E26 light sockets, and the noise-free reversible copper motor. Two downrods (4-inch and 8-inch) are also depicted.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
പ്രൊഫഷണൽ ഇൻസ്റ്റാളേഷൻ ശുപാർശ ചെയ്യുന്നു. തുടരുന്നതിന് മുമ്പ് സർക്യൂട്ട് ബ്രേക്കറിൽ വൈദ്യുതി വിച്ഛേദിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
- മൗണ്ടിംഗ് ബ്രാക്കറ്റ് ഇൻസ്റ്റലേഷൻ: Secure the mounting bracket to a ceiling joist or a fan-rated outlet box. Ensure it is firmly attached to support the fan's weight.
- ഡൗൺറോഡ് അസംബ്ലി: Select the appropriate downrod (4-inch or 8-inch) for your ceiling height. Feed the electrical wires through the downrod and attach it to the fan motor assembly.
- വയറിംഗ് കണക്ഷനുകൾ: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the original manual. Ensure all connections are secure.
- മേലാപ്പ് ഇൻസ്റ്റാളേഷൻ: Carefully lift the fan assembly and hang it on the mounting bracket. Secure the canopy to cover the wiring connections.
- ബ്ലേഡ് അറ്റാച്ച്മെൻ്റ്: Attach the five wood blades to the motor housing using the provided screws. Ensure all blades are securely fastened.
- ലൈറ്റ് കിറ്റ് ഇൻസ്റ്റാളേഷൻ: Install the metal cage light kit. The fan requires five E26 base bulbs (not included). Compatible bulb types include LED, incandescent, CFL, RGB, and Halogen. If using dimmable bulbs, ensure your wall switch is compatible with a dimmer.

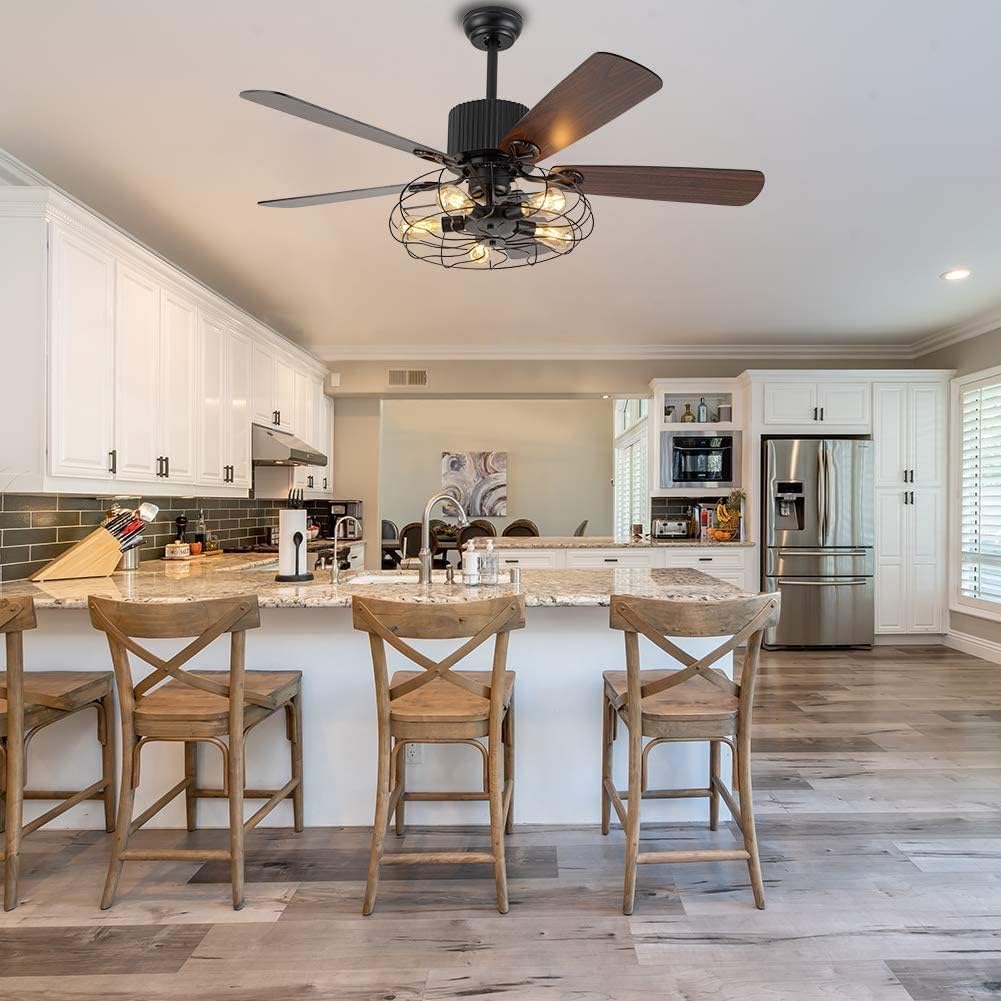

Image: The Efperfect 52-Inch Industrial Ceiling Fan with Light, showcasing its five dark wood blades and metal cage light fixture with five exposed bulbs, installed on a ceiling.

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the E26 light sockets inside the metal cage of the ceiling fan, showing the bulb bases.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The fan is operated using the included remote control. Ensure batteries are installed in the remote control.

Image: The remote control for the Efperfect ceiling fan, with buttons labeled for 3-speed control, light on/off, fan off, and timing off (1H, 2H, 4H, 8H).
- ഫാൻ സ്പീഡ് നിയന്ത്രണം: Use the speed buttons (Low, Mid, High) on the remote to adjust the fan's rotation speed.
- പ്രകാശ നിയന്ത്രണം: Press the "Light on/off" button to turn the light fixture on or off.
- ടൈമർ പ്രവർത്തനം: Set the fan to automatically turn off after 1, 2, 4, or 8 hours using the timer buttons.
- വിപരീത പ്രവർത്തനം: The fan features a reversible motor suitable for all seasons. A switch on the motor housing (or a button on the remote, if applicable to this model) controls the direction of blade rotation. In warm weather, blades should rotate counter-clockwise to create a downdraft. In cool weather, blades should rotate clockwise to create an updraft, circulating warm air.
Video: Demonstration of the Efperfect 52-Inch Industrial Ceiling Fan with Light in operation, showing the fan blades rotating and the lights turning on and off. This video highlights the fan's functionality and aesthetic in a room setting.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: ഫാൻ വൃത്തിയാക്കാൻ, മൃദുവായ, ഡി തുണി ഉപയോഗിച്ച് തുടയ്ക്കുക.amp തുണി. അബ്രാസീവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്. വൃത്തിയാക്കുന്നതിന് മുമ്പ് പവർ ഓഫ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
- ബൾബ് മാറ്റിസ്ഥാപിക്കൽ: When replacing bulbs, ensure the power is off. Use E26 medium base bulbs, up to 36 watts total for the light kit.
- ബ്ലേഡ് ബാലൻസ്: If the fan wobbles, check that all blade screws are tight and that blades are not bent or damaged.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഫാൻ പ്രവർത്തിക്കുന്നില്ല | No power; loose wiring; remote control issues. | Check circuit breaker. Ensure all wiring connections are secure. Verify remote control batteries and pairing. |
| വിളക്കുകൾ തെളിയുന്നില്ല | Bulbs not installed or faulty; loose wiring; remote control issue. | Install or replace bulbs. Check light kit wiring. Verify remote control functionality. |
| ഫാൻ അമിതമായി ആടുന്നു | അയഞ്ഞ ബ്ലേഡുകൾ അല്ലെങ്കിൽ മൗണ്ടിംഗ് ഹാർഡ്വെയർ; അസന്തുലിതമായ ബ്ലേഡുകൾ. | Ensure all blade screws and mounting hardware are tight. Use a balancing kit if necessary. |
| ഫാനിലെ വായുസഞ്ചാരം ദുർബലമാണ് | Incorrect blade rotation direction; fan speed setting too low. | Check the reverse switch on the motor housing and adjust for seasonal airflow. Increase fan speed using the remote control. |
| ഓപ്പറേഷൻ സമയത്ത് ശബ്ദം | Loose screws; motor issue. | Tighten all screws. If noise persists, contact customer support. The motor is designed for quiet operation. |
ഉൽപ്പന്ന സവിശേഷതകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | Efperfect |
| മോഡൽ നമ്പർ | 639846963981 |
| ഉൽപ്പന്ന അളവുകൾ | 52"L x 52"W x 20"H |
| ഇനത്തിൻ്റെ ഭാരം | 24.5 പൗണ്ട് |
| നിറം | കറുപ്പ് |
| മെറ്റീരിയൽ | Metal, Walnut wood, Copper |
| ശൈലി | ഇൻഡസ്ട്രിയൽ, വിൻtage |
| പവർ ഉറവിടം | ഹാർഡ്വെയർ |
| വാല്യംtage | 110 വോൾട്ട് |
| ബ്ലേഡുകളുടെ എണ്ണം | 5 |
| പ്രകാശ സ്രോതസ്സ് തരം | Incandescent or LED (E26) |
| ബൾബ് ബേസ് | E26 മീഡിയം |
| പ്രകാശ സ്രോതസ്സുകളുടെ എണ്ണം | 5 |
| വാട്ട്tagഇ (ലൈറ്റ് കിറ്റ്) | 36 watts (total) |
| നിയന്ത്രണ രീതി | റിമോട്ട് കൺട്രോൾ |
| പ്രത്യേക സവിശേഷതകൾ | Reverse function, 3 Speeds, Timer |
| ഇൻഡോർ/ഔട്ട്ഡോർ ഉപയോഗം | ഇൻഡോർ |

Image: A diagram illustrating the dimensions of the 52-inch ceiling fan, including its width, height, and the lengths of the included 4-inch and 8-inch downrods.
വാറൻ്റി വിവരങ്ങൾ
Efperfect provides the following warranty for this product:
- നിർമ്മാതാവിന്റെ വൈകല്യങ്ങൾ: വാങ്ങിയ തീയതി മുതൽ 60 ദിവസം.
- Unsatisfied Return/Replacement: വാങ്ങിയ തീയതി മുതൽ 30 ദിവസം.
- മോട്ടോർ ഗ്യാരണ്ടി: Life-time motor guarantee.
വാറൻ്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിൻ്റെ തെളിവ് സൂക്ഷിക്കുക.
ഉപഭോക്തൃ പിന്തുണ
For technical assistance, warranty claims, or any questions regarding your Efperfect ceiling fan, please contact our customer support team. Refer to the contact information provided with your purchase documentation or visit the official Efperfect webസൈറ്റ്.
നിർമ്മാതാവ്: പ്രഭാവം
We are committed to your 100% satisfaction.
