Ranger Design FTH-16 Service Van Shelving Package for Ford Transit High Roof - User Manual

1. ആമുഖം

This manual provides detailed instructions for the proper installation, safe operation, and routine maintenance of the Ranger Design FTH-16 Service Van Shelving Package. This steel shelving system is specifically designed for compatibility with Ford Transit High Roof vehicles, offering an organized and efficient storage solution for commercial use.

1.1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

• അസംബ്ലി ആവശ്യമാണ്: This product requires assembly. Follow all instructions carefully to ensure correct installation and to prevent injury.
• ഭാരമുള്ള ഇനം: The shelving package is a heavy item. It is recommended that installation be performed by trained professionals or with adequate assistance to prevent injury.
• സുരക്ഷിത ഇൻസ്റ്റാളേഷൻ: Ensure all components are securely fastened to the vehicle's structure as per the installation guide to prevent movement during transit.
• ഭാരം പരിധി: Adhere to the specified weight limits for each shelf and the overall system to maintain structural integrity and vehicle safety.

2. ഘടകങ്ങളുടെ പട്ടിക

The FTH-16 Service Van Shelving Package includes the following primary components. Refer to the diagram below for visual identification.

ചിത്രം 2.1: പൊട്ടിത്തെറിച്ചു view of the FTH-16 shelving package components. This diagram illustrates the various parts included in the package, such as shelving units, drawers, bins, and hooks, along with their respective part numbers and dimensions.

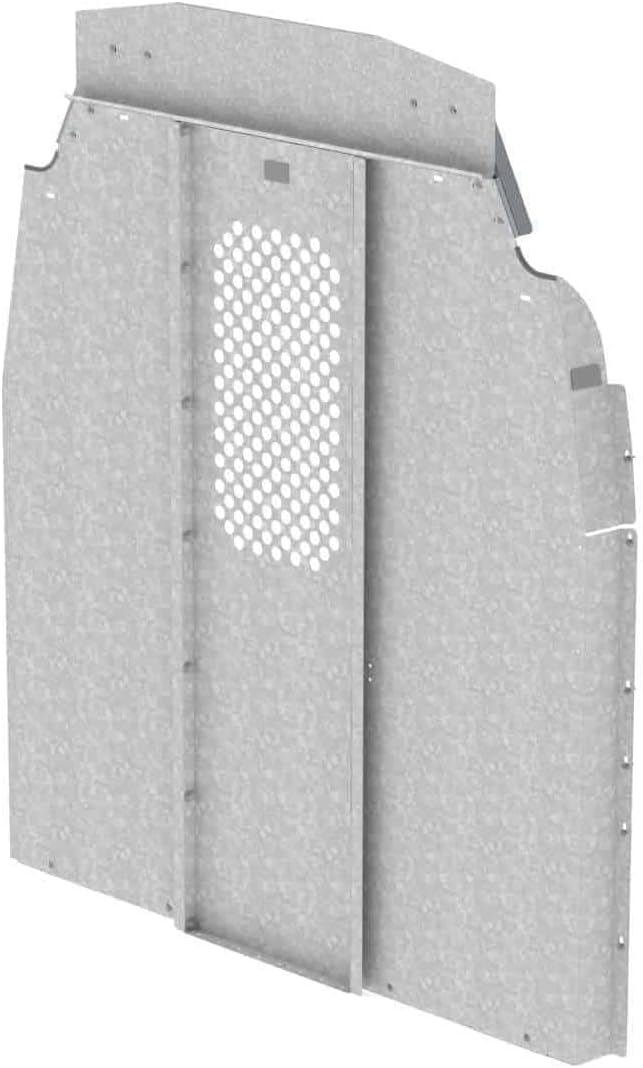

Figure 2.2: Steel Partition (C20-FTH). This image shows the robust steel partition designed to separate the cargo area from the driver's cabin.

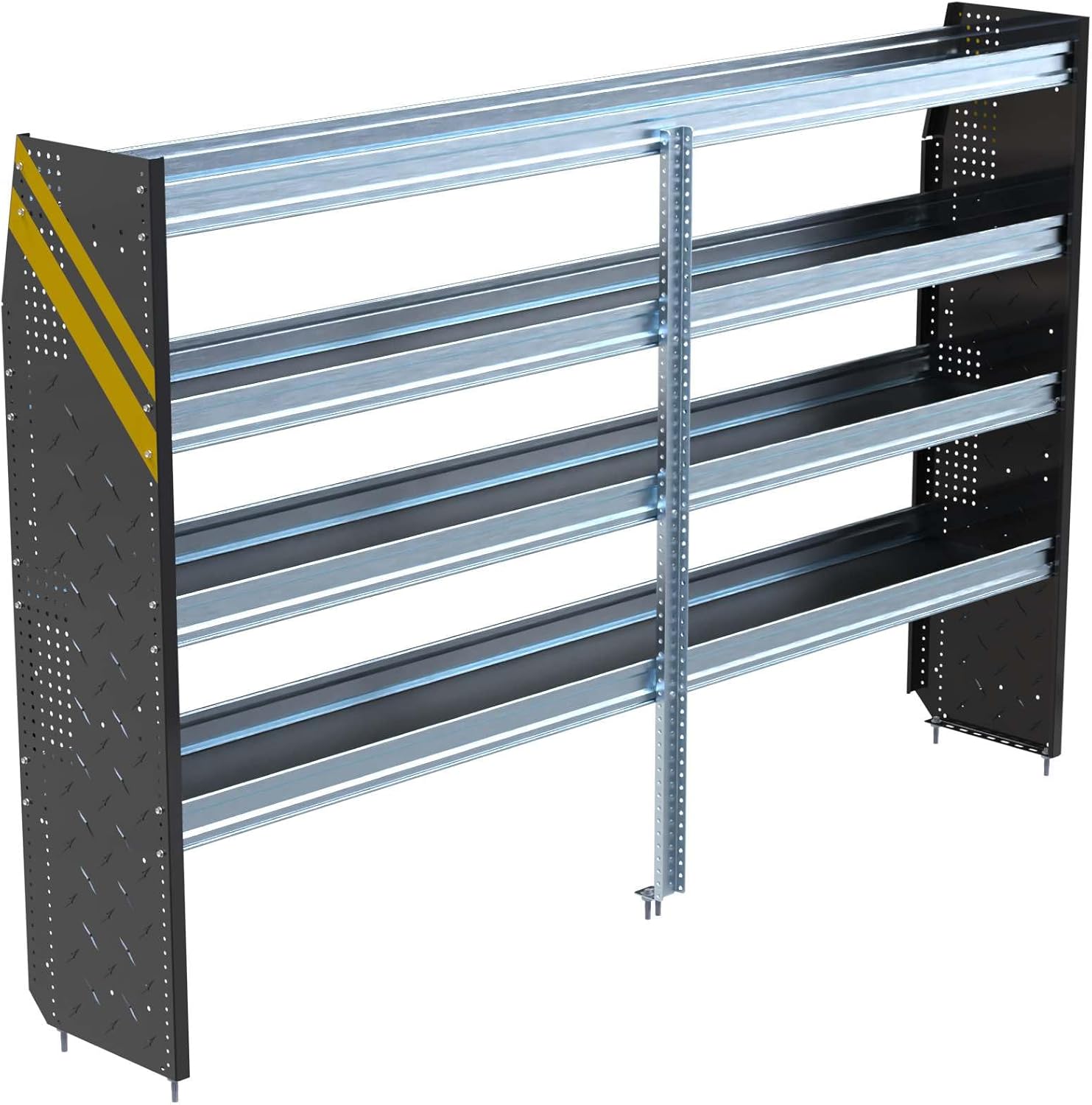

Figure 2.3: Steel Shelving Unit (N5-RS60-4 or N5-RS96-4). A view of one of the durable steel shelving units, featuring multiple levels for organized storage.

Figure 2.4: Compact 2-Drawer Unit (X50-B). This image displays the secure two-drawer unit, ideal for storing smaller tools and components.

Figure 2.5: 14" Deep Plastic Bin (62-UI114). A robust plastic bin designed for efficient organization of parts.

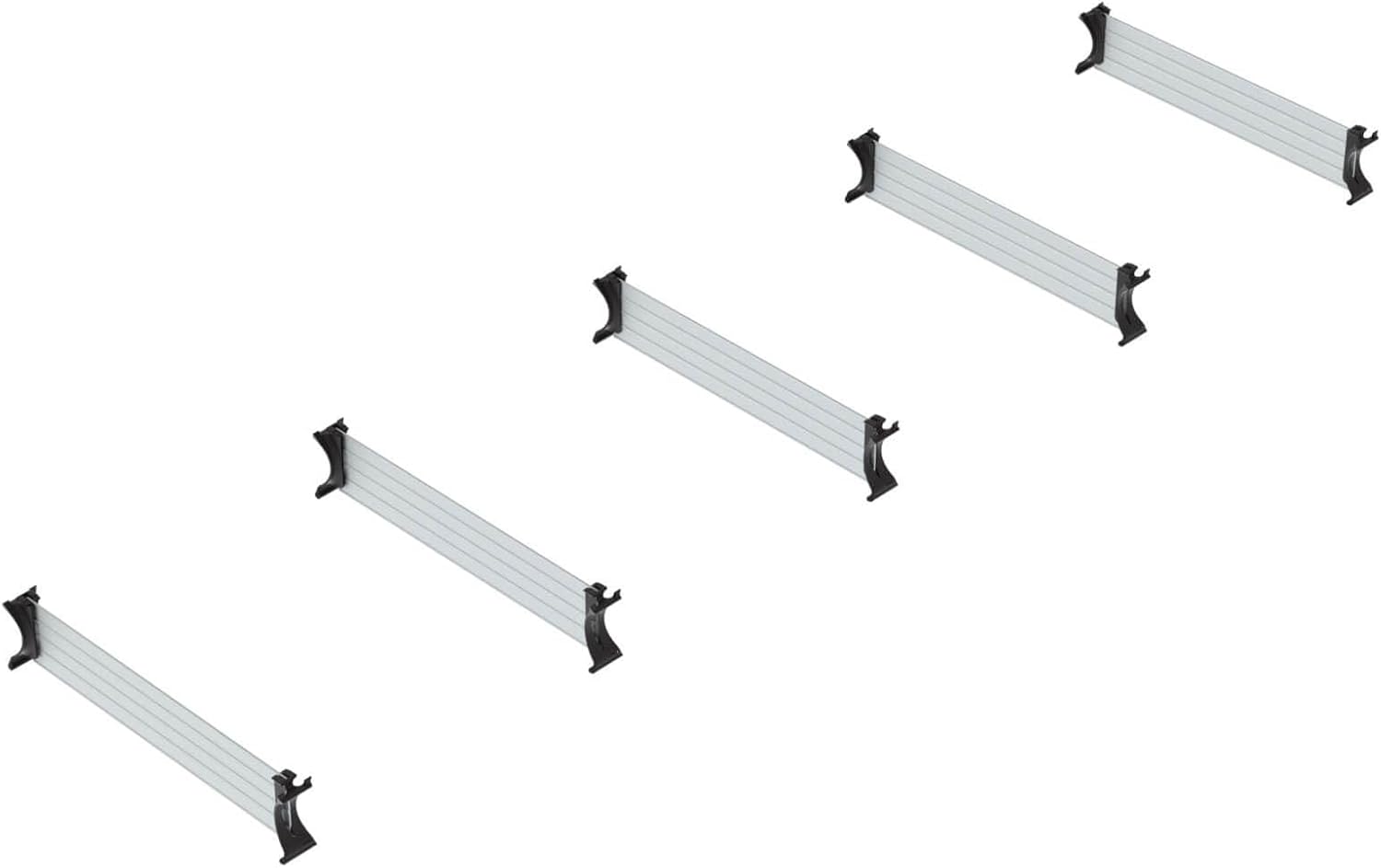

Figure 2.6: Shelf Dividers (62-UDR14). A set of dividers used to compartmentalize shelves for better organization.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Ranger Design FTH-16 shelving package is designed for a precise fit within Ford Transit High Roof vans. Due to the weight and complexity, professional installation is highly recommended. Always refer to the detailed installation guide provided with your product for specific, step-by-step instructions and safety precautions.

3.1 പൊതുവായ ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ (സംഗ്രഹം)

1. വാഹനം തയ്യാറാക്കൽ: Clear the cargo area of the Ford Transit High Roof van. Ensure the floor and walls are clean and free from obstructions.
2. പാർട്ടീഷൻ ഇൻസ്റ്റാളേഷൻ: Install the steel partition (C20-FTH) behind the driver's cabin, securing it according to the detailed instructions. This provides a safety barrier.
3. Shelving Unit Placement: Position the larger (N5-RS96-4) and smaller (N5-RS60-4) steel shelving units within the cargo area. These units are engineered for specific locations within the van.
4. Securing Shelving Units: Fasten the shelving units to the van's interior structure using the provided hardware. Ensure all anchor points are robust and secure to prevent movement during vehicle operation.
5. Drawer Unit Integration: Install the compact 2-drawer units (X50-B) into their designated slots within the shelving system.
6. ആക്സസറി ഇൻസ്റ്റാളേഷൻ: Attach plastic bins (62-UI114), shelf dividers (62-UDR14), and hooks (6070, 6072) as desired for customized organization.
7. അന്തിമ പരിശോധന: Verify that all components are tightly secured and that there are no loose parts. Check for any potential rattling.

Figure 3.1: Fully installed FTH-16 shelving package. This image shows the complete shelving system integrated into the cargo area of a Ford Transit High Roof van, demonstrating the layout and capacity.

ചിത്രം 3.2: ഒന്നിലധികം views of the installed shelving. This composite image provides different perspectives of the shelving system within the van, highlighting its comprehensive integration.

4. പ്രവർത്തനവും ഉപയോഗവും

The Ranger Design FTH-16 shelving system is designed to maximize the utility of your Ford Transit High Roof van's cargo space, providing organized and accessible storage for tools and equipment.

4.1 Organizing Your Workspace

• Shelf Utilization: Use the multiple shelves for larger items, equipment cases, or bulk supplies. Arrange items by frequency of use or category for efficient access.
• Drawer Units: The compact 2-drawer units are ideal for small parts, fasteners, and hand tools, keeping them secure and easily retrievable.
• Plastic Bins and Dividers: Utilize the 14" deep plastic bins with dividers for organizing smaller components, preventing them from shifting during transit.
• കൊളുത്തുകൾ: The included hooks can be used for hanging cables, hoses, or other items, keeping them off the floor and readily available.

4.2 Loading and Securing Items

• തുല്യ ഭാര വിതരണം: Distribute weight evenly across the shelves and within the van to maintain vehicle stability.
• Secure Loose Items: Always ensure all items on shelves, in bins, and in drawers are properly secured to prevent movement, damage, or injury during driving. Consider using bungee cords or cargo nets for larger items on shelves.
• പ്രവേശനം: Plan your layout to ensure easy access to frequently used tools and materials.

5. പരിപാലനം

Regular maintenance ensures the longevity and continued safe operation of your Ranger Design FTH-16 shelving package.

5.1 വൃത്തിയാക്കൽ

• പൊതുവായ ശുചീകരണം: പരസ്യം ഉപയോഗിച്ച് സ്റ്റീൽ പ്രതലങ്ങൾ തുടയ്ക്കുകamp ആവശ്യാനുസരണം തുണിയും വീര്യം കുറഞ്ഞ ഡിറ്റർജന്റും ഉപയോഗിക്കുക. ഫിനിഷിന് കേടുവരുത്തുന്ന അബ്രാസീവ് ക്ലീനറുകൾ ഒഴിവാക്കുക.
• പ്ലാസ്റ്റിക് ഘടകങ്ങൾ: Plastic bins and dividers can be washed with soap and water.
• ഉണക്കൽ: Ensure all components are thoroughly dry after cleaning to prevent rust on steel parts.

5.2 പരിശോധന

• ഫാസ്റ്റനർ പരിശോധന: Periodically inspect all bolts, screws, and mounting hardware for tightness. Re-tighten any that are loose to prevent rattling and ensure structural integrity.
• Component Condition: Check shelves, drawers, and bins for signs of wear, damage, or deformation. Replace any damaged components immediately.
• നാശം: Inspect steel components for any signs of rust or corrosion, especially in areas exposed to moisture. Address minor rust with appropriate rust treatment and paint.

6. പ്രശ്‌നപരിഹാരം

This section addresses common issues that may arise during the use of your shelving package.

6.1 പൊതുവായ പ്രശ്നങ്ങൾ

• കിലുങ്ങുന്ന ശബ്ദം:
  • കാരണം: Loose fasteners or unsecured items.
  • പരിഹാരം: Inspect all mounting bolts and shelf fasteners. Tighten any that are loose. Ensure all tools and equipment stored on the shelves or in bins are properly secured and not free to move.
• Difficulty with Drawer Operation:
  • കാരണം: Obstruction in drawer slides or excessive weight.
  • പരിഹാരം: Check for any debris or objects obstructing the drawer slides. Ensure the drawer is not overloaded beyond its capacity.
• Shelf Instability:
  • കാരണം: Improper installation or loose connections.
  • പരിഹാരം: Re-check all installation points and fasteners for the affected shelf. Ensure it is correctly seated and secured according to the installation guide.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റി വിവരങ്ങൾ

This Ranger Design product is covered by a manufacturer's warranty. For specific details regarding warranty coverage, duration, and claims procedures, please refer to the warranty documentation included with your purchase or contact Ranger Design customer support directly.

9. ഉപഭോക്തൃ പിന്തുണ

For technical assistance, replacement parts, or any questions regarding the Ranger Design FTH-16 Service Van Shelving Package, please contact Ranger Design customer support. Contact information can typically be found on the manufacturer's webസൈറ്റ് അല്ലെങ്കിൽ പാക്കേജിംഗ് മെറ്റീരിയലുകളിൽ.
