INCLAKE Snatch Block (Max 9.6 Ton / 21,000 LBS) Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The INCLAKE Snatch Block is a heavy-duty winch pulley designed to assist in vehicle recovery and other heavy-duty pulling applications. It increases the pulling power of a winch and allows for changes in pulling direction, making recovery operations more efficient and safer.

പ്രധാന സവിശേഷതകൾ:

• Increases winch pulling power.
• Constructed from high-tensile strength steel with an epoxy grade finish for durability.
• Features a heavy-duty dowel bearing with a grease fitting for smooth operation and maintenance.
• Swivels open to easily accept winch lines without disassembly.
• Maximum capacity: 21,000 pounds (9.6 tons).
• Dimensions: Approximately 9.1 inches x 4.9 inches.
• Compatible with ropes up to 0.6 inches (15mm) in diameter.

ചിത്രം 1.1: മുൻഭാഗം view of the INCLAKE Snatch Block. This image displays the robust yellow construction and the INCLAKE branding on the side plate.

Image 1.2: Detailed dimensions of the INCLAKE Snatch Block. This image provides measurements for length, width, and thickness, along with maximum load, rated load, and maximum rope diameter specifications.

2 സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety during any recovery operation. Failure to follow safety guidelines can result in serious injury or property damage.

• ഉപകരണങ്ങൾ പരിശോധിക്കുക: Before each use, thoroughly inspect the snatch block, winch line, shackles, and anchor points for any signs of wear, damage, or corrosion. Do not use damaged equipment.
• Understand Load Limits: Never exceed the maximum rated capacity of the snatch block (21,000 lbs / 9.6 tons) or any other component in your recovery system.
• സംരക്ഷണ ഗിയർ ധരിക്കുക: Always wear heavy-duty gloves and eye protection.
• പ്രദേശം മായ്‌ക്കുക: Ensure all bystanders are at a safe distance, outside the potential path of a snapping line or flying debris.
• Use a Winch Damper: ഒരു വിഞ്ച് സ്ഥാപിക്കുക damper blanket or heavy jacket over the winch line to absorb energy in case of a line failure.
• Secure Anchor Points: Use only strong, reliable anchor points such as tree trunks (with a tree trunk protector), rock sliders, or other vehicles. Avoid attaching directly to bumpers or suspension components not designed for recovery.
• സുഗമമായ പ്രവർത്തനം: Apply power smoothly and gradually. Avoid sudden jerks or shock loading.
• ലൂബ്രിക്കേഷൻ: Ensure the snatch block is properly lubricated before use.

3. സജ്ജീകരണവും തയ്യാറെടുപ്പും

Proper setup is crucial for effective and safe operation of the snatch block.

1. Inspect the Snatch Block: Check the pulley wheel for smooth rotation and ensure there are no cracks or deformities in the housing. Verify the grease fitting is intact.
2. Lubricate (if necessary): If the pulley feels stiff or has not been lubricated recently, apply grease through the grease fitting.
3. Open the Snatch Block: The INCLAKE Snatch Block is designed to swivel open. Locate the pivot pin and open the side plate to allow the winch line to be inserted.

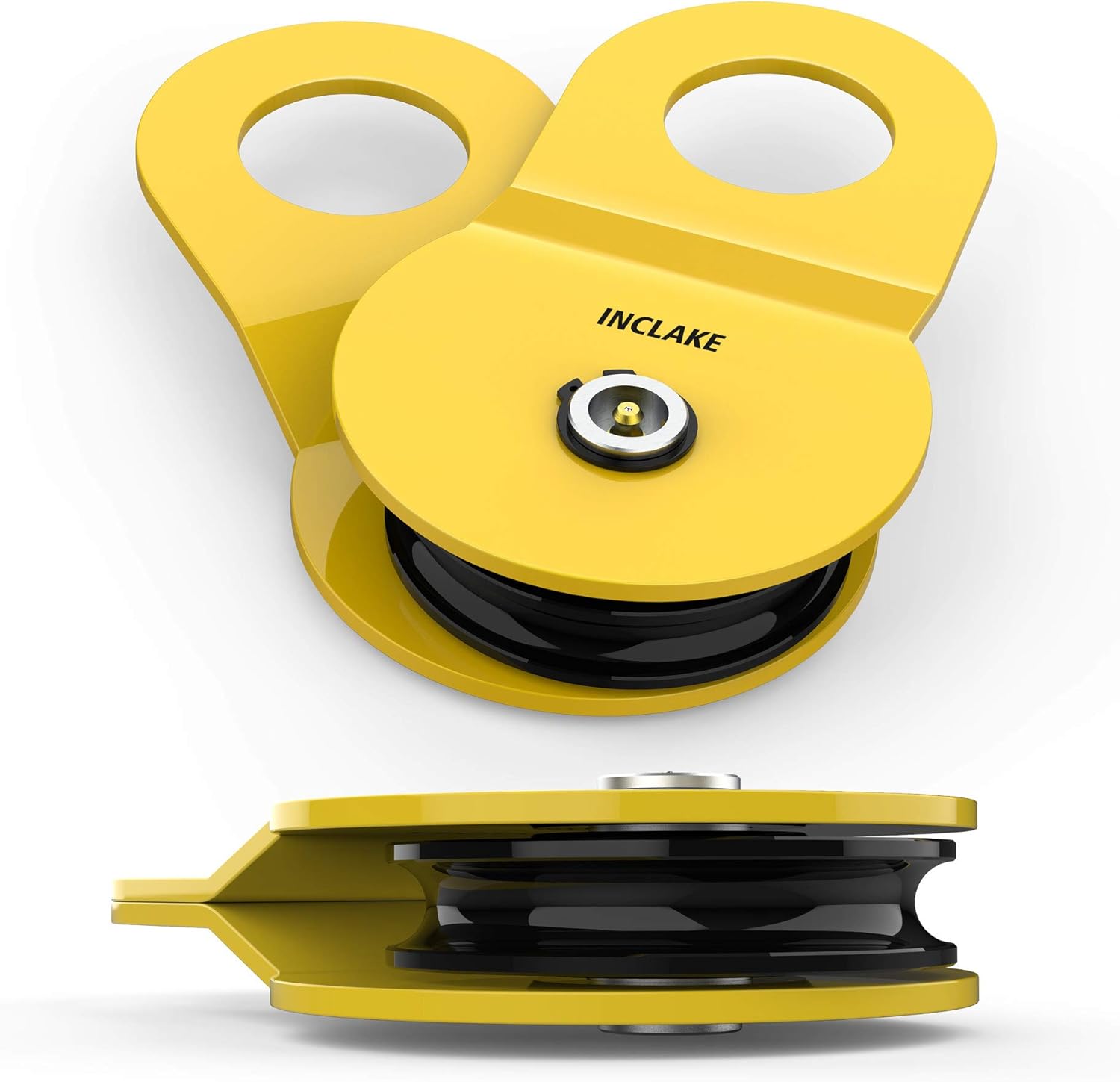

   ചിത്രം 3.1: Views of the snatch block in both closed and open positions. This illustrates how the block pivots to accept a winch line.
4. Insert Winch Line: Route the winch line around the pulley wheel. Ensure the line sits correctly within the groove.
5. Close the Snatch Block: Close the side plate and secure the pivot pin. Ensure it is fully locked and cannot accidentally open during operation.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The snatch block can be used in various recovery scenarios to multiply pulling force or change the direction of pull.

4.1. Single Line Pull (Doubling Winch Power)

This configuration effectively halves the load on your winch, increasing its pulling capacity. It is ideal for heavy recovery situations.

1. Identify Anchor Point: Select a strong, stable anchor point (e.g., a tree, another vehicle, or a rock).
2. Secure Anchor: If using a tree, wrap a tree trunk protector around it. Attach a rated D-shackle to the tree trunk protector.
3. Attach Snatch Block: Connect the snatch block to the D-shackle at the anchor point.
4. Route Winch Line: Pull the winch line out from your vehicle's winch, through the snatch block, and back to your vehicle.
5. Secure Winch Line to Vehicle: Attach the end of the winch line to a rated recovery point on your vehicle using another D-shackle.
6. സുരക്ഷാ മുൻകരുതലുകൾ: ഒരു വിഞ്ച് സ്ഥാപിക്കുക damper blanket over the winch line. Ensure all personnel are clear of the recovery area.
7. Initiate Recovery: Begin winching slowly and smoothly. Monitor all connections and the winch line for any issues.

Image 4.1: Diagram illustrating a single line recovery setup using one snatch block to double the winch's pulling power. Components shown include anchor point, tree trunk protector, rated D-shackle, snatch block, winch damper blanket, and the winching vehicle.

4.2. Changing Direction (Offset Pull)

When a direct line of pull is not possible due to obstacles, a snatch block can be used to redirect the winch line.

1. Identify Anchor Point: Choose a strong anchor point that allows for a clear line of pull around the obstacle.
2. Secure Anchor: Use a tree trunk protector and a rated D-shackle to secure the anchor point.
3. Attach Snatch Block: Connect the snatch block to the D-shackle at the chosen anchor point.
4. Route Winch Line: Pull the winch line from your vehicle's winch, through the snatch block, and directly to the stuck vehicle's recovery point.
5. Secure Winch Line to Stuck Vehicle: Attach the end of the winch line to a rated recovery point on the stuck vehicle using a D-shackle.
6. സുരക്ഷാ മുൻകരുതലുകൾ: ഒരു വിഞ്ച് സ്ഥാപിക്കുക damper blanket over the winch line. Ensure all personnel are clear of the recovery area.
7. Initiate Recovery: Begin winching slowly and smoothly, ensuring the line is not rubbing against any sharp edges.

Image 4.2: Diagram demonstrating how to use a snatch block to avoid obstacles during a vehicle recovery. The winch line is routed through a snatch block attached to an anchor point (tree) to pull the vehicle around a bend.

5. പരിപാലനം

Regular maintenance ensures the longevity and safe operation of your INCLAKE Snatch Block.

• ലൂബ്രിക്കേഷൻ: The snatch block is equipped with a grease fitting. Periodically apply a suitable grease (e.g., marine-grade or general-purpose chassis grease) to the fitting using a grease gun. This ensures the pulley wheel rotates freely and reduces wear.


  ചിത്രം 5.1: ക്ലോസ്-അപ്പ് view of the lubricating oil injection hole (grease fitting) on the snatch block. This highlights the point where grease should be applied for smooth operation.

• വൃത്തിയാക്കൽ: After use, especially in muddy or sandy conditions, clean the snatch block thoroughly with water to remove dirt and debris. Allow it to dry completely before storage.
• പരിശോധന: Regularly inspect the snatch block for any signs of damage, such as cracks, bends, excessive wear on the pulley groove, or corrosion. Pay close attention to the pivot pin and locking mechanism.
• സംഭരണം: Store the snatch block in a clean, dry place, away from direct sunlight and harsh chemicals.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your snatch block, consider the following:

• Pulley Not Rotating Smoothly:
  • Check for debris lodged in the pulley mechanism. Clean thoroughly.
  • Apply grease to the grease fitting.
  • Inspect for damage or deformation of the pulley wheel or axle.
• Snatch Block Not Opening/Closing:
  • Ensure the pivot pin is free of dirt or rust. Clean and lubricate if necessary.
  • Check for any physical damage preventing the plates from aligning.
• പ്രവർത്തന സമയത്ത് അസാധാരണമായ ശബ്ദങ്ങൾ:
  • This often indicates a lack of lubrication or the presence of foreign objects. Stop operation, inspect, clean, and lubricate.
  • Could also indicate excessive wear on the bearing or pulley.

If problems persist or if you observe significant damage, discontinue use and contact customer support.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support regarding your INCLAKE Snatch Block, please refer to the product packaging or contact INCLAKE customer service directly. Contact details are typically available on the manufacturer's official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ പോയിന്റ് വഴി.

When contacting support, please have your product model number (10T) and purchase details ready.
