Mount-It! MI-203T Tilting TV Wall Mount Bracket Instruction Manual

1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage, serious injury, or death. If you do not understand these instructions or have doubts about the safety of the installation, please contact a qualified installer or Mount-It! customer support.

• ഭാരം ശേഷി: പരമാവധി ഭാരം ശേഷി കവിയരുത് 44 പൗണ്ട് (20 കി.ഗ്രാം). This mount is designed for displays weighing up to 44 lbs. Exceeding this limit may result in instability and potential failure.
• മൗണ്ടിംഗ് ഉപരിതലം: The wall or mounting surface must be capable of supporting the combined weight of the mount and the display. Ensure the wall structure is sound and appropriate for the chosen mounting method.
• ഉപകരണങ്ങളും ഹാർഡ്‌വെയറും: Use only the tools and hardware specified in this manual. Ensure all screws are tightened securely but do not overtighten.
• കുട്ടികളും വളർത്തുമൃഗങ്ങളും: Keep children and pets away from the installation area during the mounting process.
• പതിവ് പരിശോധന: Periodically check the mount for any signs of damage, loose parts, or instability.

2. പാക്കേജ് ഉള്ളടക്കം

Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or defective, please contact Mount-It! customer support.

• വാൾ പ്ലേറ്റ്
• TV Bracket (VESA Plate)
• Mounting Hardware (various screws, anchors, and washers for TV and wall attachment)

Image: Main components of the Mount-It! MI-203T Tilting TV Wall Mount Bracket.

3. ഉൽപ്പന്ന സവിശേഷതകൾ

4 ഇൻസ്റ്റാളേഷന് മുമ്പ്

Before beginning installation, ensure your TV or monitor meets the following requirements:

• VESA അനുയോജ്യത: Check the back of your TV/monitor for four threaded mounting holes. Measure the horizontal and vertical distance between these holes. This mount supports VESA patterns of 75x75mm (3"x3") ഒപ്പം 100x100mm (4"x4").
• സ്ക്രീൻ വലിപ്പം: This mount is designed for screens between 24, 32 ഇഞ്ച്, and some up to 40 inches, provided they meet VESA and weight requirements.
• ഭാരം: The weight of your TV/monitor must not exceed 44 പൗണ്ട് (20 കി.ഗ്രാം).

Image: Visual guide for checking VESA mounting hole patterns on your display. The mount fits 3"x3" (75x75mm) or 4"x4" (100x100mm) patterns.

Wall Type Considerations: This mount is suitable for installation on:

• വുഡ് സ്റ്റഡ്സ്
• കോൺക്രീറ്റ് ഭിത്തികൾ
• ഇഷ്ടിക ചുവരുകൾ

മുന്നറിയിപ്പ്: Do NOT mount on drywall alone. Drywall cannot support the weight of the mount and your display.

Image: The mount supports TVs from 13" to 32" with VESA 75x75 or 100x100, and a maximum weight of 44 lbs.

5. ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ

സുരക്ഷിതമായ ഇൻസ്റ്റാളേഷനായി ഈ ഘട്ടങ്ങൾ പാലിക്കുക:

1. ടിവി ബ്രാക്കറ്റ് ഘടിപ്പിക്കുക: Secure the VESA plate (TV bracket) to the back of your TV or monitor using the appropriate screws from the hardware kit. Ensure it is centered and firmly attached.
2. Mark Wall Position: Hold the wall plate against the wall at your desired mounting height. Use a level to ensure it is perfectly horizontal. Mark the pilot hole locations with a pencil.
3. വാൾ പ്ലേറ്റ് ഇൻസ്റ്റാൾ ചെയ്യുക: Drill pilot holes at the marked locations. For wood studs, drill directly into the center of the stud. For concrete or brick walls, use a masonry drill bit and insert the provided wall anchors before securing the wall plate with screws. Ensure the wall plate is firmly attached to the wall.
4. മൌണ്ട് ടിവി: Carefully lift your TV/monitor (it is recommended to have assistance) and hook the attached VESA plate onto the installed wall plate.
5. സുരക്ഷിത ടിവി: Locate the quick-release security screw on the bottom of the wall plate. Tighten this screw to lock the TV/monitor onto the wall plate, preventing accidental dislodgement.

Image: Step-by-step visual guide for installing the wall mount: 1. Attach wall bracket to wall. 2. Attach VESA plate to TV. 3. Mount TV onto wall bracket.

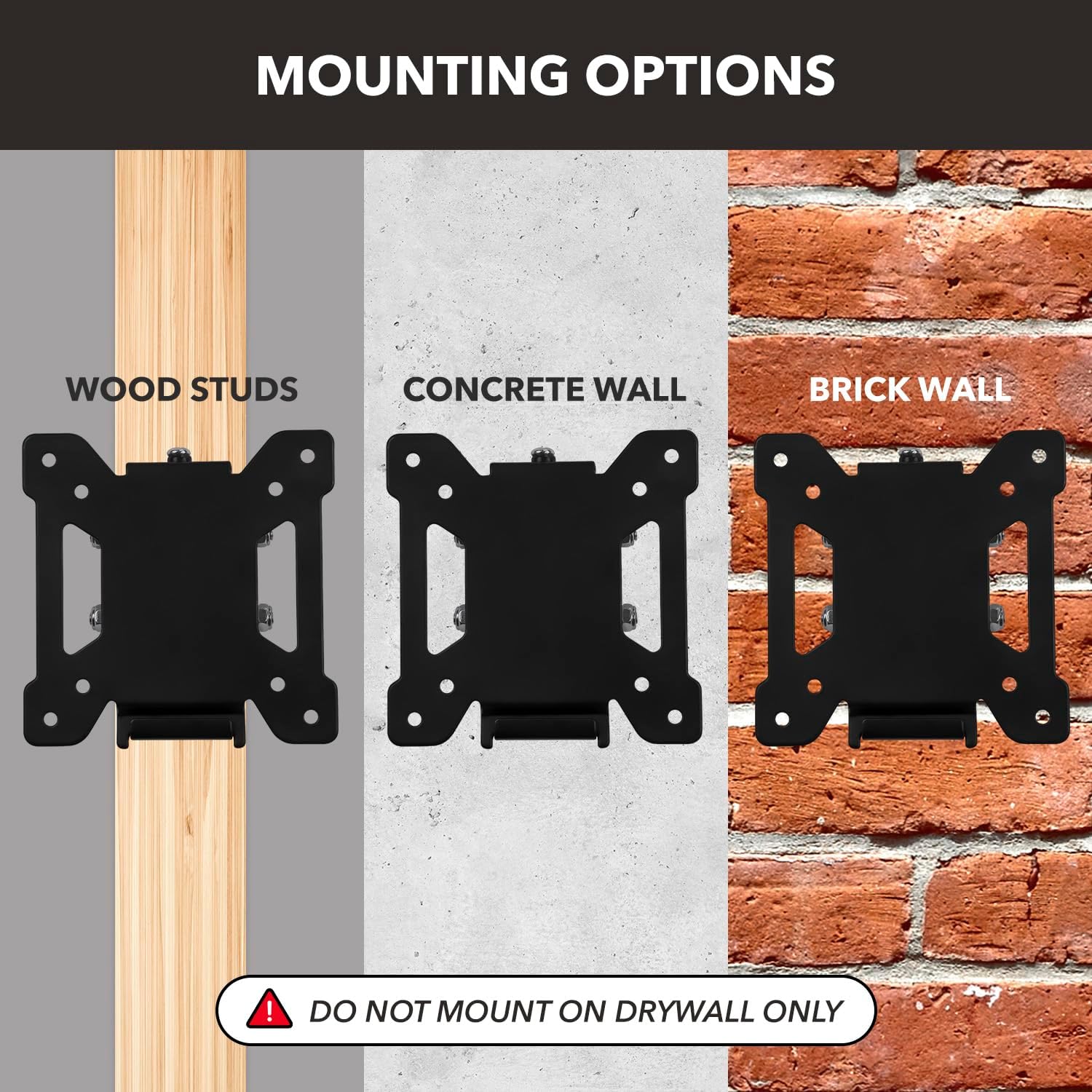

Image: Illustration of suitable mounting surfaces including wood studs, concrete walls, and brick walls. A warning indicates not to mount on drywall alone.

6. ഓപ്പറേഷൻ

The Mount-It! MI-203T features a tilting mechanism to optimize your viewഅനുഭവം.

• ടിൽറ്റിംഗ് ക്രമീകരണം: To adjust the tilt angle, gently push or pull the top or bottom edge of your TV/monitor. The mount allows for a tilt range of +10° (upwards) to -15° (downwards).
• തിളക്കം കുറയ്ക്കൽ: Utilize the tilt function to reduce glare from lights or windows, providing a more comfortable viewing ആംഗിൾ.

Image: The mount allows for tilting the screen up to +10 degrees and down to -15 degrees to reduce glare and improve viewകോണുകൾ.

7. പരിപാലനം

To ensure the longevity and safe operation of your Mount-It! MI-203T wall mount, perform the following maintenance:

• പതിവ് പരിശോധനകൾ: Periodically (e.g., every 3-6 months) inspect all mounting screws and connections to ensure they remain tight and secure.
• വൃത്തിയാക്കൽ: Clean the mount with a soft, dry cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
• നാശനഷ്ട പരിശോധന: If you notice any signs of damage, wear, or corrosion, discontinue use and contact Mount-It! customer support for assistance.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Mount-It! MI-203T wall mount, refer to the following common solutions:

• ടിവി നിലവാരമില്ലാത്തതാണ്:
  പരിഹാരം: Ensure the wall plate was installed horizontally using a level. If not, you may need to re-adjust the wall plate. Check that the TV bracket is properly seated on the wall plate.
• TV is difficult to tilt or does not hold its position:
  പരിഹാരം: The tilt mechanism relies on friction. Ensure the tilt adjustment screws (if present and accessible) are not excessively tight or loose. Adjust as needed to achieve desired tension.
• മൗണ്ട് അസ്ഥിരമോ ഇളകുന്നതോ ആയി തോന്നുന്നു:
  പരിഹാരം: Immediately remove the TV from the mount. Re-check all wall mounting hardware to ensure it is securely fastened to a suitable wall structure (wood stud, concrete, or brick). Verify that the TV's weight does not exceed the 44 lbs capacity. If the issue persists, consult a professional installer.
• നഷ്ടപ്പെട്ട ഭാഗങ്ങൾ അല്ലെങ്കിൽ കേടായ ഘടകങ്ങൾ:
  പരിഹാരം: Do not proceed with installation. Contact Mount-It! customer support for replacement parts.

9. വാറൻ്റിയും പിന്തുണയും

For specific warranty information, product registration, or technical support, please visit the official Mount-It! website or contact their customer service department directly. Contact details are typically provided in the product packaging or on the manufacturer's webസൈറ്റ്.
