ജോബി ടെലിപോഡ് മൊബൈൽ ട്രൈപോഡ് ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖവും അവസാനവുംview

The JOBY TelePod Mobile Tripod is a versatile, all-in-one support system designed for mobile content creators. It seamlessly transforms between a handheld grip, an extended monopod or selfie stick, an elevated stand, and a stable tripod. Its compact and lightweight design makes it an ideal companion for capturing photos and videos with smartphones, small 360 cameras, or other compatible devices.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• ബഹുമുഖ പ്രവർത്തനം: Works as a selfie stick, monopod, elevated stand, or tripod.
• GripTight One Mount: Supplied with a secure mount specifically designed for mobile vlogging and selfie use.
• ഉപകരണ അനുയോജ്യത: Supports devices up to 0.7 lbs (325g), covering the entire smartphone market and fitting small 360 cameras or phones with 360 camera attachments.
• Integrated Ball Head: Allows for precise positioning and angle adjustments.
• ബ്ലൂടൂത്ത് റിമോട്ട്: Includes a detachable Bluetooth remote for convenient photo and video capture.

3. സജ്ജീകരണം

Follow these steps to set up your JOBY TelePod Mobile Tripod:

1. കാലുകൾ വിടർത്തുക: Hold the main body of the TelePod and gently spread the three legs outwards until they are fully extended and stable. The legs are designed to provide a stable base when used as a tripod or elevated stand.
2. ഫോൺ മൗണ്ട് ഘടിപ്പിക്കുക: The TelePod comes with a GripTight One Mount. This mount can be screwed onto the 1/4"-20 standard tripod screw at the top of the ball head. Ensure it is securely tightened.
3. നിങ്ങളുടെ സ്മാർട്ട്ഫോൺ ഇടുക: Gently pull apart the spring-loaded jaws of the GripTight One Mount and carefully insert your smartphone. Ensure the phone is centered and securely gripped by the rubber pads to prevent slipping.
4. Adjust the Ball Head: Loosen the locking knob on the ball head to adjust the angle and orientation of your device. Tighten the knob firmly once the desired position is achieved.
5. ബ്ലൂടൂത്ത് റിമോട്ട് ജോടിയാക്കുക: The detachable Bluetooth remote is located on one of the tripod legs. Slide it out. Turn on your smartphone's Bluetooth and search for available devices. Select 'JOBY' or 'TelePod Remote' from the list to pair. Once paired, you can use the remote to trigger your phone's camera shutter.

Figure 3.1: The JOBY TelePod Mobile Tripod in its compact, folded state, ready for transport.

ചിത്രം 3.2: ഒരു ക്ലോസ്-അപ്പ് view of the GripTight One Mount, showing its spring-loaded mechanism for securing a smartphone.

4 ഓപ്പറേറ്റിംഗ് മോഡുകൾ

The JOBY TelePod Mobile Tripod offers multiple operating modes to suit various shooting scenarios:

4.1. Handheld Grip Mode

With the legs folded together, the TelePod acts as a comfortable handheld grip, perfect for stable vlogging or capturing dynamic shots on the go.

Figure 4.1: The TelePod in handheld grip mode, ideal for vlogging and on-the-go shooting.

4.2. Monopod / Selfie Stick Mode

Extend the telescoping pole while keeping the legs folded to use the TelePod as a monopod or selfie stick. This mode is excellent for overhead shots, wider angles, or group selfies.

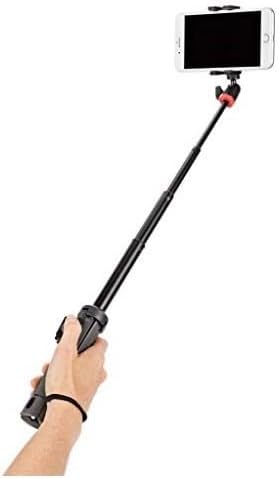

Figure 4.2: The TelePod fully extended, functioning as a selfie stick or monopod.

Figure 4.3: A user demonstrating the extended selfie stick mode for capturing a wider perspective.

4.3. Elevated Stand Mode

With the legs extended for stability and the telescoping pole extended upwards, the TelePod becomes an elevated stand. This is useful for video calls, streaming, or capturing content from a higher vantagഇ പോയിന്റ്.

Figure 4.4: The TelePod with legs extended and pole telescoped, serving as an elevated stand.

4.4. Tripod Mode

Fully extend the legs and keep the telescoping pole retracted or slightly extended for a stable tabletop or ground-level tripod. This mode is ideal for steady shots, time-lapses, or hands-free viewing.

Figure 4.5: The TelePod in its classic tripod configuration, providing a stable base for your device.

5. ബ്ലൂടൂത്ത് റിമോട്ട് കൺട്രോൾ

The JOBY TelePod Mobile Tripod includes a detachable Bluetooth remote for convenient wireless control of your device's camera shutter. This allows you to capture photos and start/stop video recording without touching your phone, reducing camera shake and enabling remote operation.

5.1. ജോടിയാക്കുന്നതിനുള്ള നിർദ്ദേശങ്ങൾ

1. Ensure the Bluetooth remote is turned on and has sufficient battery power.
2. Slide the remote out from its slot on the tripod leg.
3. Turn on the remote (usually by pressing and holding the button until an indicator light flashes).
4. നിങ്ങളുടെ സ്മാർട്ട്ഫോണിൽ ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കുക.
5. ഇതിനായി തിരയുക new devices and select 'JOBY' or 'TelePod Remote' to pair.
6. Once paired, the indicator light on the remote will change (e.g., solid blue).

5.2. ഓപ്പറേഷൻ

Once paired, open your smartphone's camera app. Press the button on the Bluetooth remote to trigger the shutter for photos or to start/stop video recording (functionality may vary slightly depending on your phone's camera app).

Figure 5.1: The compact and detachable Bluetooth remote control for wireless camera operation.

6. പരിപാലനം

To ensure the longevity and optimal performance of your JOBY TelePod Mobile Tripod, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Wipe down the tripod with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials that could damage the finish or components.
• സംഭരണം: Store the TelePod in a cool, dry place away from direct sunlight and extreme temperatures. Ensure it is clean and dry before storing.
• ഓവർലോഡിംഗ് ഒഴിവാക്കുക: Do not exceed the maximum weight capacity of 0.7 lbs (325g) to prevent damage to the ball head or legs.
• ശ്രദ്ധയോടെ കൈകാര്യം ചെയ്യുക: While durable, avoid dropping the TelePod or subjecting it to excessive force, especially when extending or retracting the pole.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your JOBY TelePod Mobile Tripod, refer to the following common problems and solutions:

• പ്രശ്നം: Bluetooth remote does not pair with smartphone.
  പരിഹാരം:
  • Ensure the remote is turned on and has sufficient battery power.
  • Make sure Bluetooth is enabled on your smartphone and it's discoverable.
  • Try unpairing and re-pairing the remote from your phone's Bluetooth settings.
  • Restart both the remote and your smartphone.
• പ്രശ്നം: Phone mount does not hold the phone securely.
  പരിഹാരം:
  • Ensure the phone is centered within the mount's jaws.
  • Check if the rubber pads on the mount are clean and free from debris.
  • Verify that your phone's weight does not exceed the 0.7 lbs (325g) capacity.
• പ്രശ്നം: Tripod feels unstable.
  പരിഹാരം:
  • Ensure all three legs are fully extended and locked into position.
  • ട്രൈപോഡ് ഒരു പരന്നതും സ്ഥിരതയുള്ളതുമായ പ്രതലത്തിൽ വയ്ക്കുക.
  • Avoid extending the telescoping pole too high, especially with heavier devices, as this can affect stability.
  • Ensure the ball head is securely tightened after positioning your device.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

The JOBY TelePod Mobile Tripod (Model JB01550-BWW) comes with a JOBY 1 Year Warranty. For warranty claims, technical support, or further assistance, please refer to the official Joby webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക. വാറന്റി സാധൂകരണത്തിനായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
