KwikSafety Cobra Web 10FT Single-Leg Self-Retracting Lifeline Instruction Manual

1. ആമുഖം

This manual provides essential instructions for the safe and proper use, installation, maintenance, and inspection of the KwikSafety Cobra Web 10FT Single-Leg Self-Retracting Lifeline. This device is designed to provide reliable fall protection in various work environments. Adherence to these instructions is critical for user safety and product longevity.

The KwikSafety Cobra Web Self-Retracting Lifeline is a Class 1 retractable safety lanyard, compliant with ANSI and OSHA standards, engineered to prevent falls by automatically extending and retracting with the user's movement, minimizing free fall distance and arresting falls quickly.

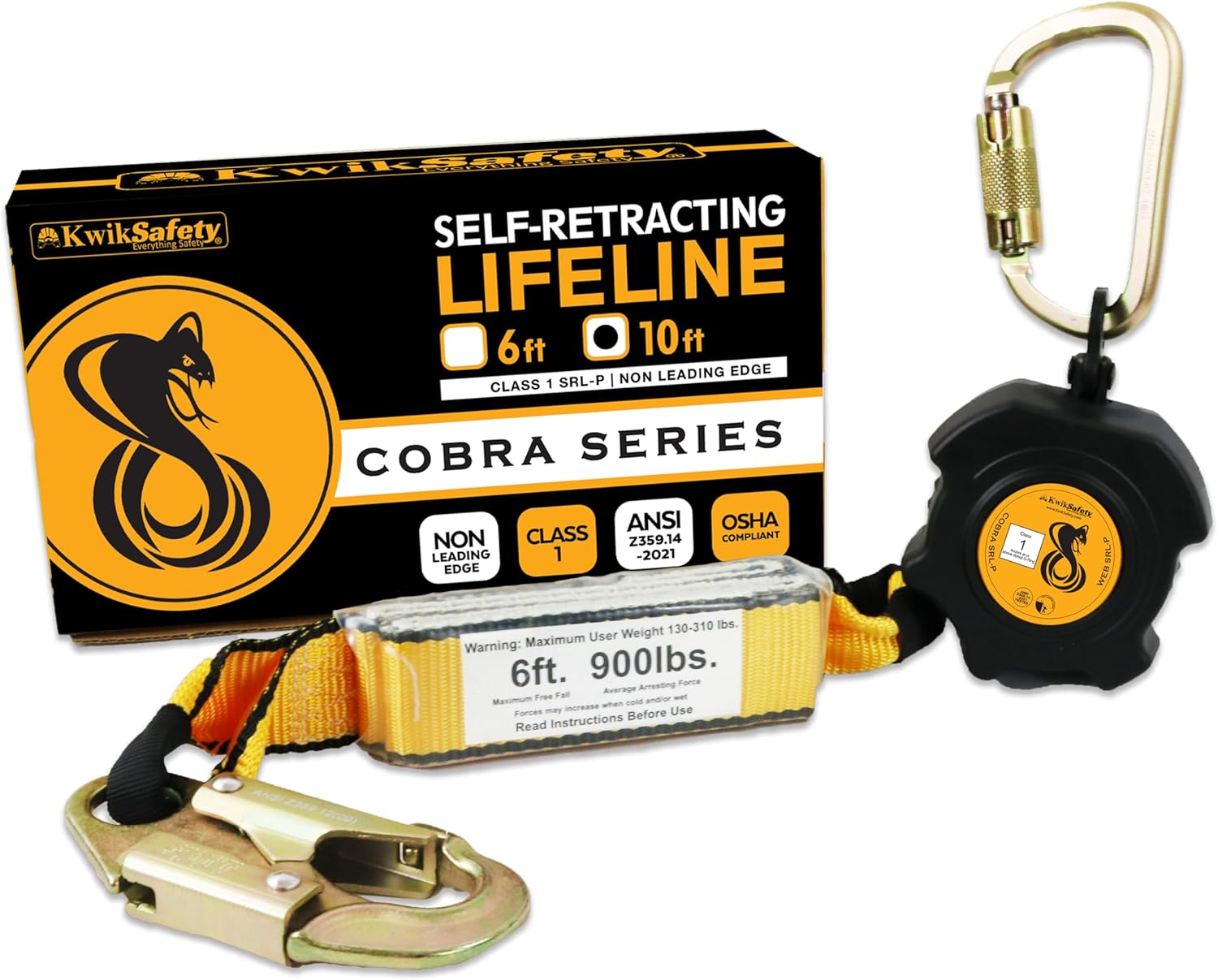

Image 1.1: KwikSafety Cobra Web 10FT Single-Leg Self-Retracting Lifeline, showing the housing, webbing, snap hook, and carabiner.

2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

WARNING: Failure to follow all instructions and warnings can result in serious injury or death. This equipment must only be used by trained and competent persons.

• Always inspect the lifeline before each use.
• Ensure all connections are secure and compatible with other fall protection components.
• Do not use if any damage or excessive wear is observed.
• This device is designed for single-user fall arrest.
• The maximum user weight capacity is 130-310 lbs (including tools and clothing).
• This product is compliant with ANSI Z359.14-2021 and OSHA regulations.

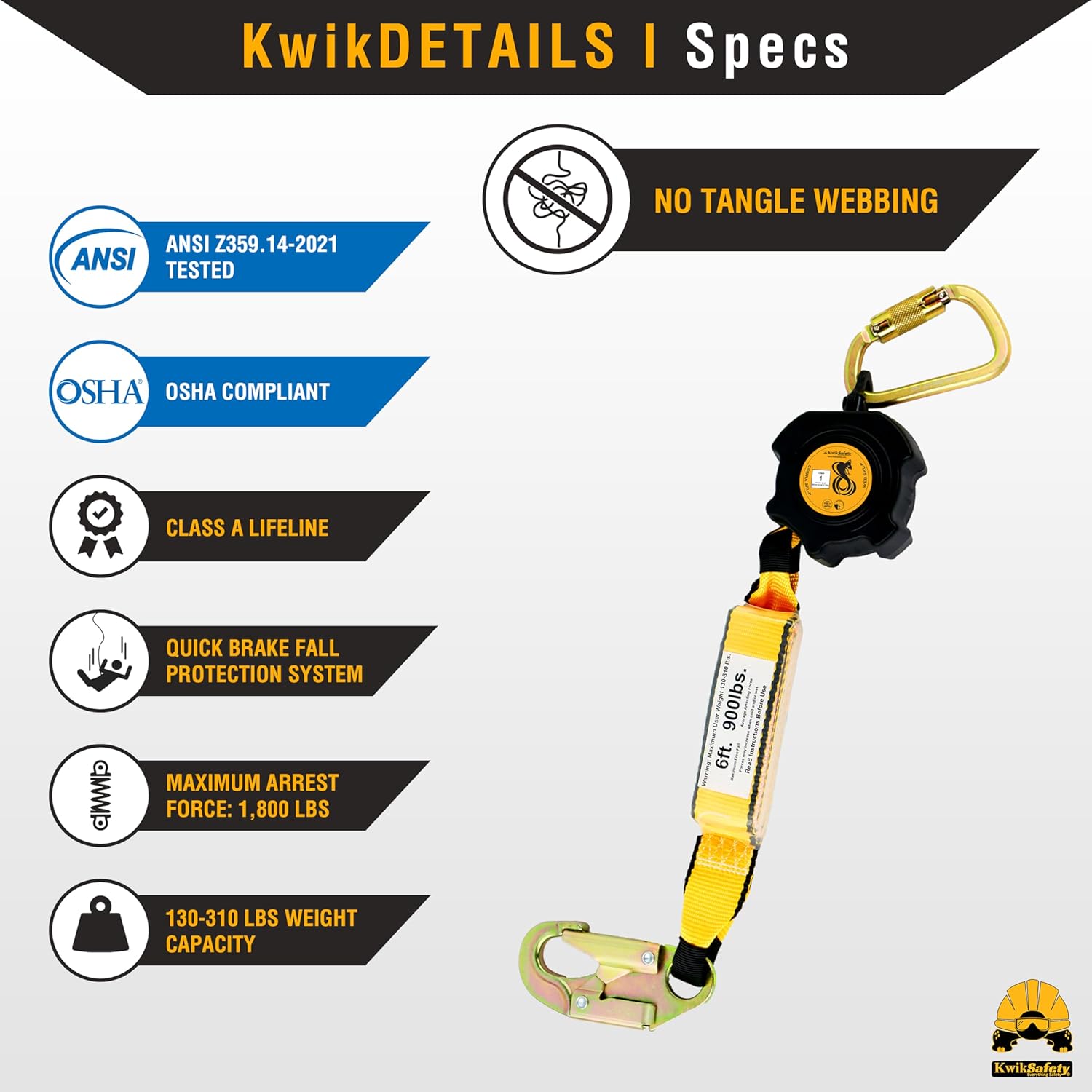

Image 2.1: Visual representation of the lifeline's compliance with ANSI Z359.14-2021 and OSHA, highlighting features like Class A Lifeline, Quick Brake Fall Protection System, Maximum Arrest Force, and Weight Capacity.

3. ഉൽപ്പന്ന ഘടകങ്ങൾ

The KwikSafety Cobra Web Self-Retracting Lifeline consists of the following key components:

1. Swivel Top with Twist Lock Carabiner: A heavy-duty steel carabiner with a swivel top for easy attachment to an anchor point and to prevent lifeline twisting.
2. Lightweight Durable Housing: A robust polymer casing that protects the internal retraction mechanism and webബിംഗ്.
3. പ്രീമിയം Webബിംഗ്: A durable 3/4-inch polyester webbing line that extends and retracts, designed for no entanglement.
4. External Shock Absorber: A component designed to deploy upon fall arrest, reducing the impact forces on the user.
5. Steel Locking Snap Hook: A self-locking snap hook for secure attachment to a harness D-ring, with a gate strength of 3,600 lbs.

Image 3.1: Detailed diagram illustrating the numbered components of the Cobra Web Self-Retracting Lifeline, including the swivel top, housing, webbing, shock absorber, and snap hook.

4. സജ്ജീകരണവും കണക്ഷനും

Proper setup is crucial for effective fall protection. Follow these steps to connect your self-retracting lifeline:

1. ഉപകരണങ്ങൾ പരിശോധിക്കുക: Before each use, thoroughly inspect the lifeline, harness, and anchor point for any signs of damage, wear, or malfunction. Ensure all labels are legible.
2. ആങ്കറുമായി ബന്ധിപ്പിക്കുക: Attach the swivel top carabiner of the lifeline to a suitable anchor point. The anchor point must be capable of supporting 5,000 lbs (22.2 kN) per attached lifeline. Ensure the carabiner gate is fully closed and locked.
3. ഹാർനെസിലേക്ക് ബന്ധിപ്പിക്കുക: Attach the steel locking snap hook of the lifeline to the dorsal D-ring of your full-body harness. Ensure the snap hook gate is fully closed and locked.
4. കണക്ഷനുകൾ പരിശോധിക്കുക: Double-check all connections to ensure they are secure and properly engaged.
5. ക്ലിയറൻസ് ആവശ്യകതകൾ: Ensure adequate fall clearance below the work area. Refer to the fall distance diagram in Section 5 for guidance.

ചിത്രം 4.1: ഒരു ക്ലോസപ്പ് view of the KwikSafety Cobra Web Lifeline connected to a worker's harness, demonstrating proper attachment.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once properly connected, the self-retracting lifeline allows for freedom of movement while maintaining constant tension on the webbing. This minimizes slack and reduces the potential for tripping hazards.

• പ്രസ്ഥാനം: Move freely within the working area. The lifeline will automatically extend and retract with your movements.
• വീഴ്ച അറസ്റ്റ്: In the event of a fall, the quick brake system will engage, arresting the fall within inches. The external shock absorber will deploy to dissipate energy and reduce impact forces on the body.
• Post-Fall Procedure: After a fall, the lifeline must be immediately removed from service and inspected by a competent person. Do not reuse a lifeline that has arrested a fall.

Fall Distance Diagram

Understanding fall distance is critical for ensuring adequate clearance below the work area. The diagram below illustrates the components of total fall distance:

Image 5.1: Diagram illustrating fall distance components: deceleration distance, height of harness dorsal D-ring from worker's feet, safety factor, and required distance from anchorage.

For the 10FT Single-Leg SRL, the average arresting force is 900 lbs. Ensure the total required clearance is maintained to prevent striking lower levels or obstructions.

6. പരിപാലനവും പരിശോധനയും

Regular maintenance and inspection are vital for the continued safe operation of your lifeline.

Pre-Use Inspection (Daily)

• Check the housing for cracks, dents, or deformation.
• പരിശോധിക്കുക webbing for cuts, fraying, burns, chemical damage, or excessive wear.
• Verify that the snap hook and carabiner operate smoothly, and their gates close and lock securely. Check for corrosion or deformation.
• Ensure the shock absorber pack is intact and has not been deployed.
• Confirm all labels are present and legible.

Periodic Inspection (Competent Person)

A competent person must perform a thorough inspection at least every six months, or more frequently depending on use and environmental conditions. Records of these inspections should be maintained.

വൃത്തിയാക്കലും സംഭരണവും

• Clean the lifeline with mild soap and water, then rinse thoroughly and allow to air dry completely away from direct sunlight or heat.
• Store the lifeline in a cool, dry, clean area, away from direct sunlight, corrosive chemicals, and extreme temperatures.
• Do not store in a manner that could cause damage or entanglement.

7. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your KwikSafety Cobra Web Self-Retracting Lifeline, refer to the following common problems and solutions:

• Lifeline not retracting or extending smoothly: Check for obstructions in the webbing path or damage to the housing. Ensure the webbing is not twisted or tangled. If the issue persists, remove from service.
• Snap hook or carabiner not closing/locking: Inspect for debris, damage, or corrosion. Clean if necessary. If damaged, remove from service.
• Lifeline has arrested a fall: Immediately remove the device from service. It must not be reused.
• Visible damage to any component: Remove the device from service immediately.

For any issues not listed here, or if a problem cannot be resolved, contact KwikSafety customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റി വിവരങ്ങൾ

KwikSafety products are manufactured to high standards. For specific warranty details, please refer to the warranty information provided with your product packaging or visit the official KwikSafety website. Generally, warranties cover defects in materials and workmanship under normal use and service. Damage resulting from misuse, abuse, alteration, or improper maintenance is typically not covered.

10. ഉപഭോക്തൃ പിന്തുണ

For further assistance, technical support, or to report any issues, please contact KwikSafety customer service. You can find more information and contact details on the official KwikSafety webസൈറ്റ്:

Visit the KwikSafety Store on Amazon

Always ensure you are using genuine KwikSafety replacement parts if any are needed.
