New Direction Tackle S9pro 3+1 Set

New Direction Tackle S9pro Bite Alarm System

User Manual for Model: S9pro 3+1 Set

ആമുഖം

Welcome to the New Direction Tackle S9pro Bite Alarm System. This comprehensive manual provides detailed instructions for setting up, operating, and maintaining your S9pro bite alarms and receiver. Designed for modern anglers, the S9pro system offers advanced features such as remote control, smartphone app integration, Smart Link connectivity, and a convenient nightlight function. Please read this manual thoroughly to ensure optimal performance and longevity of your equipment.

പാക്കേജ് ഉള്ളടക്കം

Upon opening your New Direction Tackle S9pro Bite Alarm System, please verify that all the following components are included:

  • 3x S9pro Bite Alarms
  • 1x S9r Receiver with Display and Antenna
  • 1x EVA Hard Case
  • 3x USB-C Charging Cables
  • 1x ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
Contents of the S9pro Bite Alarm Set in an EVA hard case
Image: The S9pro Bite Alarm set neatly packed in its durable EVA hard case, showing the three bite alarms, receiver, and charging cables.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The S9pro system consists of individual bite alarms and a central receiver, designed for seamless communication and ease of use during fishing. Each component is built with durability and functionality in mind.

New Direction Tackle S9pro Bite Alarms and S9r Receiver
Image: The S9pro bite alarms (red, green, blue LEDs) and the S9r receiver with its display and antenna.
മുന്നിലും വശത്തും view of the S9r Receiver
Image: Detailed front and side views of the S9r receiver, highlighting its compact design and extendable antenna.

പ്രധാന ഘടകങ്ങൾ:

  • S9pro Bite Alarms: Compact units with adjustable sensitivity, volume, and tone. Features a bright LED indicator and a nightlight function.
  • S9r Receiver: The central unit that receives signals from the bite alarms. It features a clear display for monitoring alarm status, battery levels, and settings. Allows remote control of alarm functions.
  • USB-C ചാർജിംഗ്: Both alarms and receiver are rechargeable via USB-C, offering convenience and environmental benefits.

സജ്ജമാക്കുക

  1. പ്രാരംഭ ചാർജ്: Before first use, fully charge all S9pro bite alarms and the S9r receiver using the provided USB-C cables. The 500 mAh battery in each unit provides several weeks of use on a single charge.
  2. പവർ ഓൺ:
    • For S9pro Bite Alarms: Press and hold the power button located on the front of the alarm until the LED illuminates.
    • For S9r Receiver: Press and hold the power button on the side until the display activates.
  3. Pairing Alarms with Receiver:

    The alarms and receiver are typically pre-paired. If re-pairing is necessary or for adding new alarms:

    • Put the S9r receiver into pairing mode (refer to the receiver's on-screen menu for specific instructions).
    • Activate the bite alarm you wish to pair. The receiver will detect and link with the alarm.
  4. ഇൻസ്റ്റലേഷൻ: Securely attach the S9pro bite alarms to your rod pod or bank sticks. Ensure they are stable and provide a clear path for the fishing line.
S9pro Bite Alarm with snag bars installed on a rod pod
Image: An S9pro bite alarm with optional snag bars, securely mounted on a rod pod, ready for use.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

ക്രമീകരണങ്ങൾ ക്രമീകരിക്കുന്നു:

The S9pro system allows for comprehensive adjustment of volume, tone, and sensitivity directly from the S9r receiver or via the smartphone app.

  • വോളിയം: Adjustable from 0 (silent) to 7 levels (0-100dB).
  • ടോൺ: Multiple sound colours are available for a personalized sound experience.
  • സംവേദനക്ഷമത: Adjustable in 10 levels, from 4mm line pull-off to 88mm, allowing precise detection for various fishing conditions.

To adjust settings via the S9r Receiver:

  1. Navigate the receiver's menu using the directional buttons.
  2. Select the specific alarm you wish to adjust.
  3. Choose the setting (Volume, Tone, Sensitivity) and modify its value. The receiver's display provides clear, text-based menu navigation.
S9r Receiver display showing alarm settings
Image: Close-up of the S9r receiver's display, showing current settings and battery status for a connected alarm.

Smart Link & App Control

The S9pro system features advanced connectivity options, enhancing your fishing experience.

സ്മാർട്ട്ഫോൺ ആപ്പ് നിയന്ത്രണം:

Download the official New Direction Tackle app from your device's app store. The app provides an intuitive interface to change all bite alarm settings with ease. This is particularly useful for quick adjustments without needing to interact directly with the receiver's smaller screen.

Smartphone app controlling S9pro bite alarms
Image: A smartphone displaying the New Direction Tackle app interface, showing real-time settings and control options for multiple bite alarms.

Smart Link Connectivity:

Smart Link allows your S9pro bite alarms to connect with other New Direction Tackle devices, creating a synchronized fishing ecosystem. Compatible devices include:

  • ND Head Torches
  • ബിവി ലൈറ്റ്
  • Air Light Sounder
  • സ്മാർട്ട് വാച്ച്
  • And many other compatible devices.

This integration provides enhanced alerts and convenience, such as your head torch illuminating when a bite occurs.

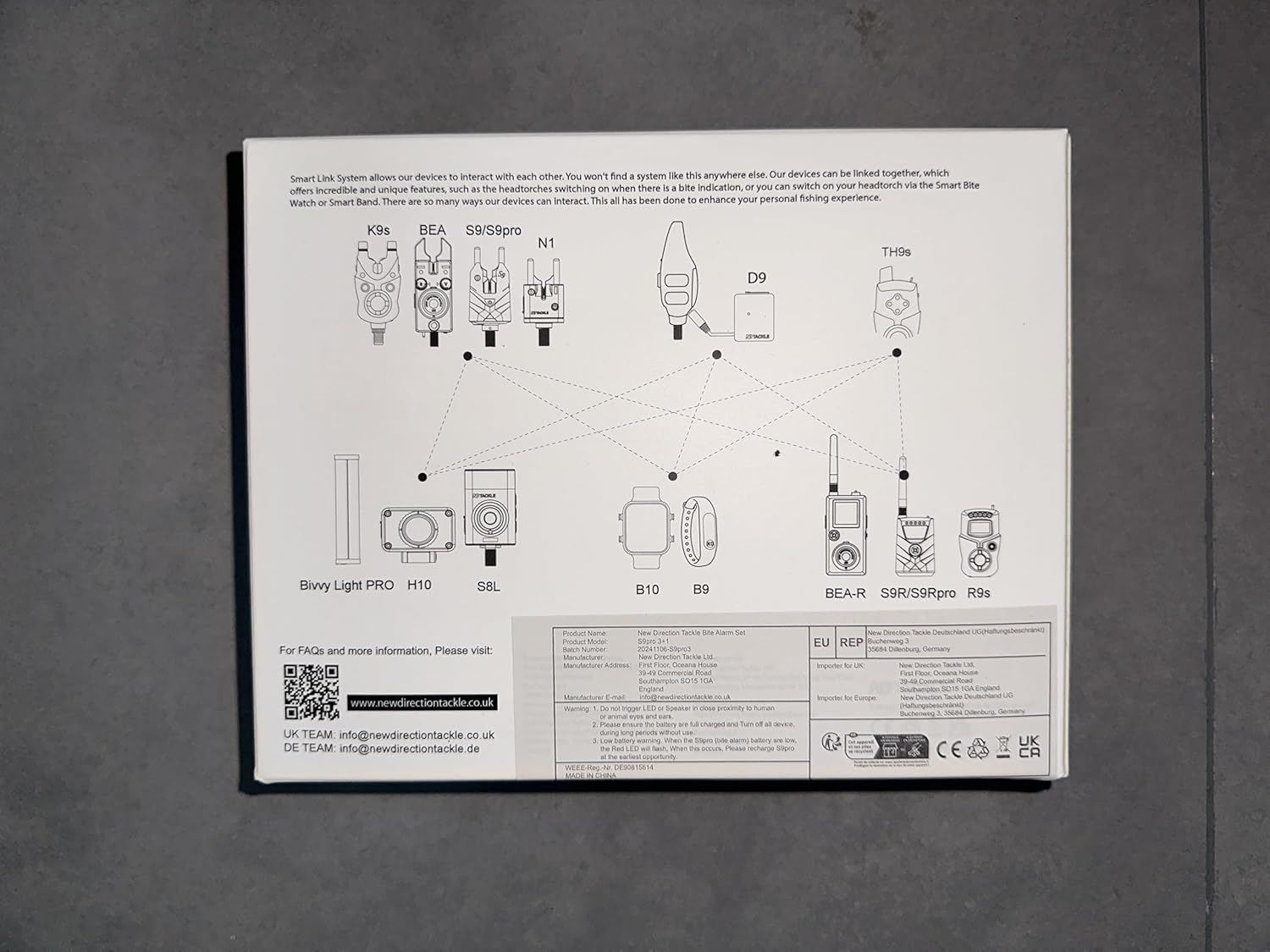

Diagram illustrating Smart Link connectivity between New Direction Tackle devices
Image: A diagram showing the interconnectedness of various New Direction Tackle products via Smart Link, including bite alarms, receiver, head torch, bivvy light, and smartwatch.

നൈറ്റ്‌ലൈറ്റ് സവിശേഷത

The S9pro bite alarms include a nightlight function, providing a constant orientation light during low-light conditions. This feature is available in the Pro version and can be activated via the S9r receiver.

  • സജീവമാക്കൽ: Access the nightlight setting through the S9r receiver's menu.
  • പ്രവർത്തനക്ഷമത: Once activated, the LED on the bite alarm will light up permanently in its set color, offering visibility to your rod setup in the dark.
Fishing rods with S9pro alarms showing blue nightlight
Image: Fishing rods equipped with S9pro alarms, illuminated by their blue nightlight feature at dusk.

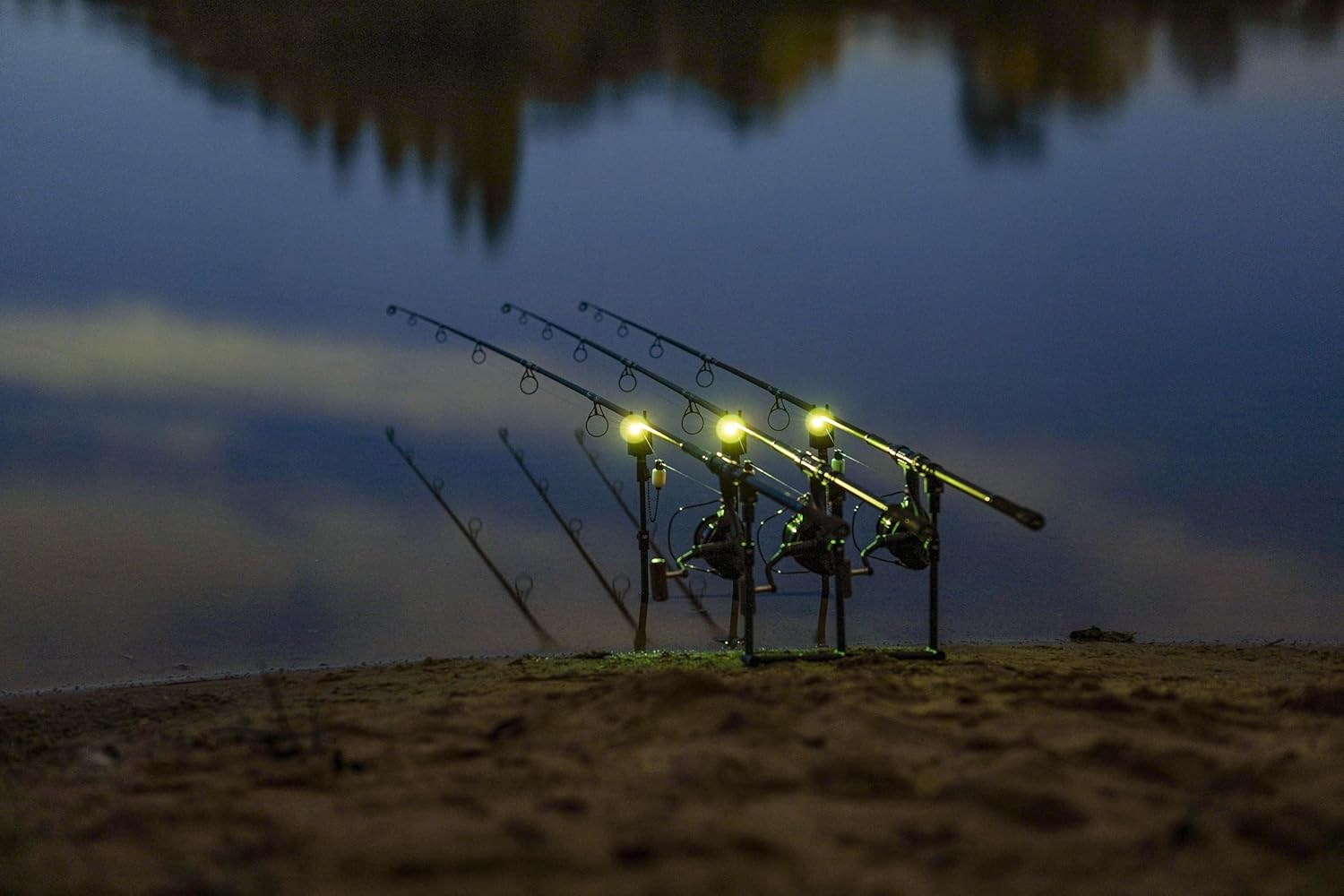

Fishing rods with S9pro alarms showing yellow nightlight
Image: Fishing rods equipped with S9pro alarms, illuminated by their yellow nightlight feature at dusk.

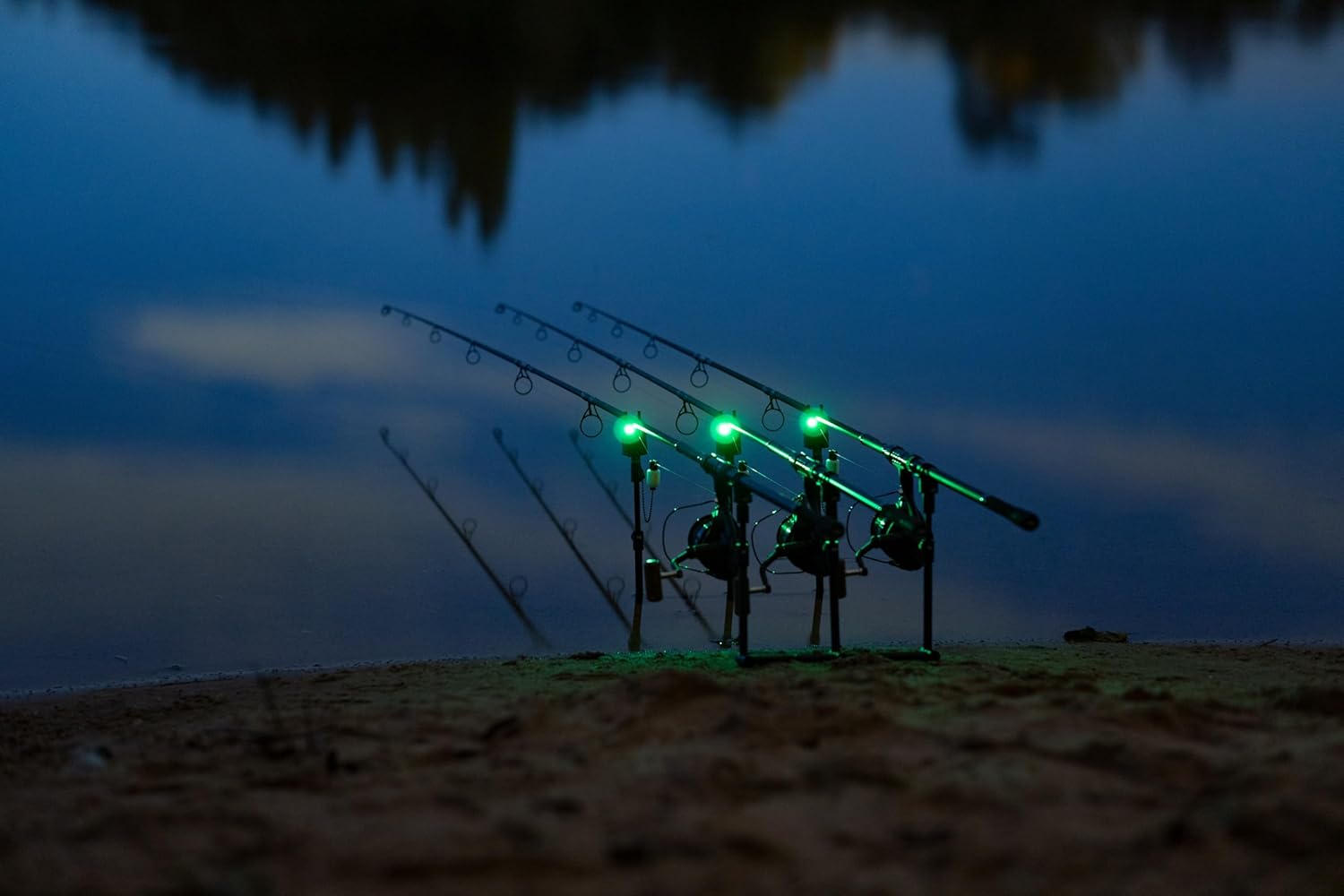

Fishing rods with S9pro alarms showing green nightlight
Image: Fishing rods equipped with S9pro alarms, illuminated by their green nightlight feature at dusk.

ചാർജിംഗ്

Both the S9pro bite alarms and the S9r receiver are equipped with internal rechargeable Lithium Ion batteries, offering long-lasting performance and convenient charging.

  • ചാർജിംഗ് പോർട്ട്: Each unit features a USB-C port for charging.
  • ബാറ്ററി ലൈഫ്: The 500 mAh battery in each unit is designed to last for several weeks on a single charge, depending on usage.
  • ചാർജിംഗ് പ്രക്രിയ: Connect the provided USB-C cable to the charging port on the device and to a standard USB power source (e.g., wall adapter, power bank, computer USB port). An indicator light will typically show charging status.
Close-up of the USB-C charging port on an S9pro bite alarm
ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the USB-C charging port located on the side of an S9pro bite alarm, protected by a rubber cover.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter any issues with your S9pro Bite Alarm System, please refer to the following common solutions:

പ്രശ്നം സാധ്യമായ കാരണം / പരിഹാരം
Alarms not connecting to receiver.
  • Ensure both alarm and receiver are powered on and fully charged.
  • Perform the pairing process again as described in the "Setup" section.
  • Check for obstructions or excessive range (maximum range is 150 meters).
App connectivity issues (e.g., app not connecting to receiver).
  • നിങ്ങളുടെ സ്മാർട്ട്ഫോണിൽ ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
  • Verify the S9r receiver is powered on and within range.
  • Update the New Direction Tackle app to the latest version from your app store.
  • Restart both the app and the receiver.
Receiver display is difficult to read or navigate.
  • Consider using the smartphone app for easier and more visual control of settings.
  • Ensure the display is clean and free from glare.
ചെറിയ ബാറ്ററി ലൈഫ്.
  • Ensure units are fully charged before use.
  • Reduce usage of power-intensive features like continuous nightlight if not needed.
  • Battery performance can degrade over time; consider contacting support if issues persist after several years of use.
Receiver antenna seems flimsy or gets in the way.
  • Handle the receiver with care, especially the antenna.
  • When not in use, retract the antenna if possible or store the receiver in its protective case.

സ്പെസിഫിക്കേഷനുകൾ

ഫീച്ചർ വിശദാംശങ്ങൾ
ഉൽപ്പന്ന മോഡൽ S9pro 3+1 Set
ബ്രാൻഡ് പുതിയ ദിശ ടാക്കിൾ
ബാറ്ററി തരം റീചാർജ് ചെയ്യാവുന്ന ലിഥിയം അയോൺ (ഉൾപ്പെടുത്തിയിരിക്കുന്നു)
ബാറ്ററി ശേഷി 500 mAh (per unit)
ചാർജിംഗ് പോർട്ട് USB-C
വോളിയം ലെവലുകൾ 0-7 (0-100dB)
സെൻസിറ്റിവിറ്റി ലെവലുകൾ 10 levels (4mm to 88mm line pull-off)
വയർലെസ് ശ്രേണി 150 meters and more (line of sight)
പാക്കേജ് അളവുകൾ 23 x 19.8 x 7.1 സെ.മീ
പാക്കേജ് ഭാരം 629 ഗ്രാം
ASIN B07JX74PTP
ആദ്യ തീയതി ലഭ്യമാണ് 22 ഒക്ടോബർ 2018

വാറൻ്റി & പിന്തുണ

New Direction Tackle products are manufactured to high standards. For information regarding warranty coverage, product support, or service, please refer to the official New Direction Tackle webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക.

ഉദ്യോഗസ്ഥൻ Webസൈറ്റ്: www.newdirectiontackle.co.uk

ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ:

When contacting support, please have your product model (S9pro 3+1 Set) and ASIN (B07JX74PTP) ready for faster assistance.
