1. ആമുഖം
This manual provides essential information for the safe and effective use of your SOAIY LED Night Light with Motion Sensor, Model SY-MLB-199. This energy-saving plug-in light is designed to provide illumination in dark areas such as hallways, staircases, and children's rooms, activating automatically when motion is detected.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The SOAIY LED Night Light features an integrated passive infrared (PIR) motion sensor and a photocell (daylight sensor) to ensure efficient operation. It provides a warm white light output.
ചിത്രം 2.1: മുന്നിലും പിന്നിലും view of the SOAIY LED Night Light. The front shows the motion sensor, and the back displays the plug and product specifications.
3 സാങ്കേതിക സവിശേഷതകൾ
- മോഡൽ: SY-MLB-199
- വൈദ്യുതി വിതരണം: 220V, 50Hz (via wall socket)
- സെൻസർ തരം: Passive Infrared (PIR) Motion Sensor, Photocell (Daylight Sensor)
- PIR ശ്രേണി: ഏകദേശം 3 മീറ്റർ (10 അടി)
- PIR കണ്ടെത്തൽ ആംഗിൾ: 120 ° തിരശ്ചീന / 50 ° ലംബ
- പ്രകാശ ദൈർഘ്യം: Approximately 20 seconds (after last detected motion)
- വൈദ്യുതി ഉപഭോഗം: പരമാവധി. 1.0 വാട്ട്
- പ്രകാശ സ്രോതസ്സ്: 8 LEDs (rated for 50,000 hours)
- ഇളം നിറം: Warm White (2800K-3300K)
- സ്വിച്ച് മോഡുകൾ: ഓട്ടോ / ഓൺ / ഓഫ്
- അളവുകൾ: 65mm x 65mm x 65mm (ഏകദേശം 2.5 x 2.5 x 2.5 ഇഞ്ച്)
- മെറ്റീരിയൽ: പ്ലാസ്റ്റിക്
ചിത്രം 3.1: Technical drawing illustrating the dimensions of the SOAIY LED Night Light.
4. സജ്ജീകരണം
- അൺപാക്ക്: രാത്രി വിളക്ക് അതിന്റെ പാക്കേജിംഗിൽ നിന്ന് ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
- ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Choose a standard wall socket in the desired area. Ensure the location allows for optimal motion detection and is not obstructed.
- പ്ലഗ് ഇൻ: Insert the night light directly into a 220V wall socket. No additional wiring or batteries are required.
ചിത്രം 4.1: The SOAIY LED Night Light plugged into a wall socket, ready for operation.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The night light features a three-position switch for different operating modes:

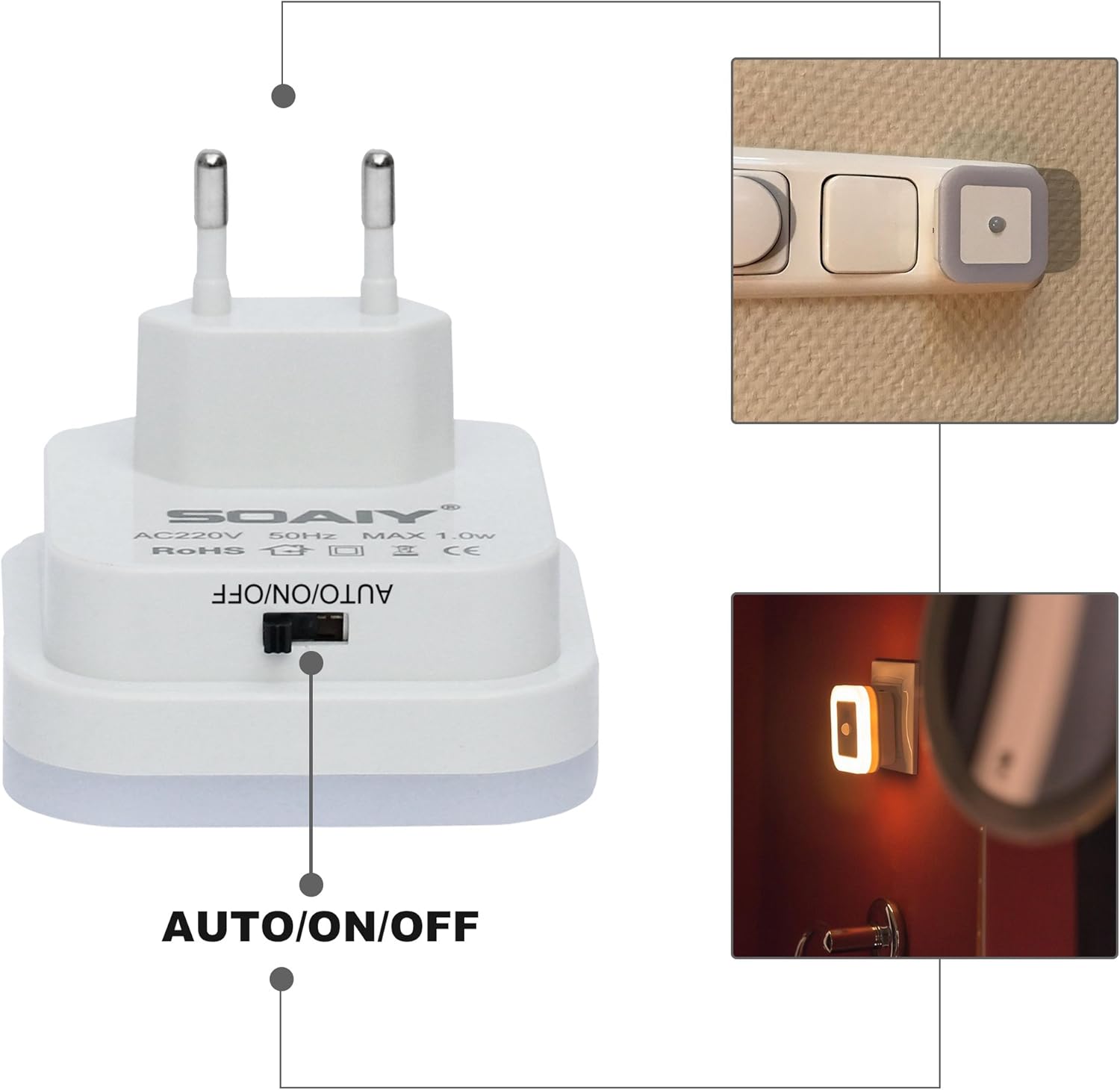

ചിത്രം 5.1: ക്ലോസ് അപ്പ് view of the AUTO/ON/OFF switch located on the side of the night light.
- ഓട്ടോ മോഡ്:
- In this mode, the integrated photocell sensor detects ambient light levels. The light will only activate when it is dark.
- Once darkness is detected, the PIR motion sensor becomes active. The light will turn on when motion is detected within its 3-meter, 120-degree range.
- The light will automatically turn off approximately 20 seconds after the last detected motion.
- ഓൺ മോഡിൽ:
- In this mode, the night light provides continuous illumination, regardless of ambient light conditions or motion detection.
- ഓഫ് മോഡ്:
- The night light is completely off and will not consume power.
ചിത്രം 5.2: Diagram explaining the sensitive motion and light sensor operation, including detection range and auto-off duration.
6. പരിപാലനം
The SOAIY LED Night Light requires minimal maintenance.
- വൃത്തിയാക്കൽ: Disconnect the night light from the power outlet before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners or solvents.
- LED ആയുസ്സ്: The integrated LEDs have a long lifespan of approximately 50,000 hours and are not user-replaceable.
7. പ്രശ്നപരിഹാരം
- Problem: The night light does not turn on.
- പവർ പരിശോധിക്കുക: Ensure the night light is securely plugged into a working wall socket.
- Check Switch Position: Verify the switch is set to ഓട്ടോ or ON.
- Ambient Light (AUTO mode): In AUTO mode, the light will not activate if the room is sufficiently bright. Test in a dark environment.
- Motion Detection (AUTO mode): Ensure there is motion within the sensor's range (3 meters, 120 degrees).
- Problem: The night light turns off too quickly or stays on too long (in AUTO mode).
- പ്രകാശ ദൈർഘ്യം: The light is designed to stay on for approximately 20 seconds after the last detected motion. This duration is fixed and cannot be adjusted.
- തുടർച്ചയായ ചലനം: If motion is continuously detected, the light will remain on.
- Problem: The motion sensor is not detecting movement reliably.
- തടസ്സങ്ങൾ: Ensure there are no objects blocking the sensor's field of view.
- പ്ലേസ്മെൻ്റ്: Reposition the night light to optimize the detection area. Avoid placing it near heat sources or air vents that could cause false triggers.
8. പിന്തുണ
For any issues or inquiries regarding your SOAIY LED Night Light, please contact our customer support. Your satisfaction is important to us, and we are ready to assist with any problems or comments you may have.
