Elitech ILD-100H HVAC Refrigerant Leak Detector User Manual

1. ആമുഖവും അവസാനവുംview

The Elitech ILD-100H is an advanced HVAC refrigerant leak detector designed for precise and efficient detection of various halogenated refrigerants. Utilizing a heated diode sensor, it offers enhanced accuracy and reliability compared to traditional sensors. This manual provides detailed instructions for the proper setup, operation, maintenance, and troubleshooting of your ILD-100H detector, ensuring optimal performance and longevity.

This device is suitable for detecting a wide range of refrigerants, including CFCs, HFCs, HCFCs, HCs, HFOs, and mixed refrigerants such as R11, R22, R404a, R410a, R600a, R1234yf, and various blends like AZ-50, HP62, and MP39. It boasts an immediate response time, making leak detection quick and effective.

2 പ്രധാന സവിശേഷതകൾ

• Heated Diode Sensor: Provides superior accuracy for all halogenated refrigerants, ensuring reliable detection results.
• TFT സ്ക്രീൻ: The innovative TFT screen offers clear and easy-to-read information, including sensitivity levels, leakage alerts, and battery status, enhancing operational clarity.
• ഉയർന്ന സംവേദനക്ഷമത: Features adjustable sensitivity with High, Medium, and Low levels. The maximum sensitivity reaches up to 0.1 oz/yr, allowing for the detection of even minute leaks.
• ദ്രുത പ്രവർത്തനം: Equipped with two intuitive buttons on the front panel for rapid adjustment of sensitivity and direct muting of the buzzer, simplifying user interaction.
• Broad Refrigerant Compatibility: Capable of detecting all types of halogenated refrigerants, including HFCs (R134a, R410A, R407C, R417A, R404A, R507, R23, R508A, R508B, R152A, R32), HCFCs (R22, R123, R124, R141b, R142b, R402A, R402B, R408A, R409A), CFCs (R11, R12, R13, R502, R503), PFCs (PFC-14, PFC-116, PFC-218), and HFOs (R-1234yf), as well as HCs (R50, R170, R290, R600, R600A, R1150, R1270).

ചിത്രം 2.1: ഓവർview of Elitech ILD-100H key features.

3. ഉൽപ്പന്ന ഘടകങ്ങളും അളവുകളും

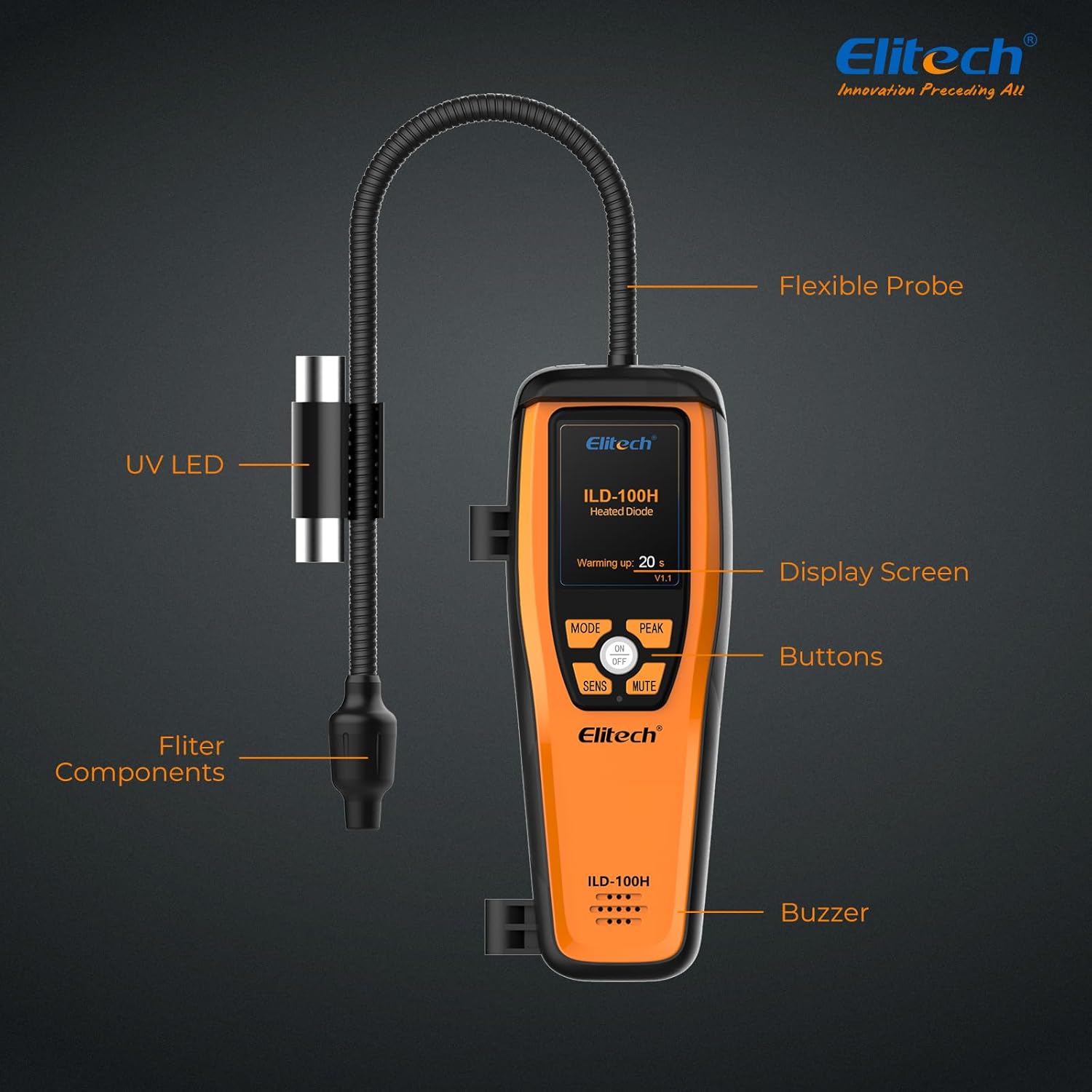

Figure 3.1: Labeled components of the Elitech ILD-100H.

Figure 3.2: Physical dimensions and key performance specifications.

4. സജ്ജീകരണം

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the Elitech ILD-100H and all accessories from the packaging. Inspect for any signs of damage.
2. ബാറ്ററി ചാർജിംഗ്: The device includes a Lithium Metal battery. Before first use, ensure the battery is fully charged. Connect the appropriate charging cable (not specified in data, assume standard USB-C based on reviews) to the device and a power source. The TFT screen will indicate charging status.
3. Sensor Preparation: Ensure the flexible probe and filter components are securely attached. The heated diode sensor requires a brief warm-up period after powering on.

Figure 4.1: Elitech ILD-100H ready for setup.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ: Press the 'ON/OFF' button to power on the device. The TFT screen will illuminate and display a warm-up countdown.
2. ചൂടാക്കുക: Allow the device to complete its warm-up cycle (typically 20 seconds as seen in image). This ensures the heated diode sensor reaches optimal operating temperature for accurate detection.
3. സംവേദനക്ഷമത തിരഞ്ഞെടുക്കുക: Use the 'SENS' button to cycle through the sensitivity levels: High (H), Medium (M), and Low (L). Higher sensitivity is recommended for detecting smaller leaks or for initial scanning.
4. ചോർച്ച കണ്ടെത്തൽ: Slowly move the flexible probe around suspected leak areas. The device will provide visual alerts on the TFT screen (e.g., bar graph, curve display) and an audible alarm when a leak is detected. The intensity of the alarm and display will increase with higher leak concentrations.
5. Pinpoint vs. Curve Display: The TFT screen offers two display modes. The 'Pinpoint Display' helps in finding the exact leak location, while the 'Curve Display' assists in quickly identifying the general leak area.
6. Mute Buzzer: Press the 'MUTE' button to silence the audible alarm if needed.
7. പവർ ഓഫ്: Press and hold the 'ON/OFF' button to power off the device after use.

Figure 5.1: Understanding the Pinpoint and Curve Display modes for leak identification.

Figure 5.2: The ILD-100H's capability to detect a wide range of halogenated refrigerants.

6. പരിപാലനം

• വൃത്തിയാക്കൽ: Regularly wipe the exterior of the device with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Sensor and Filter Maintenance: The device features filter components (as shown in Figure 3.1). Refer to the full user manual (PDF link provided in product data) for specific instructions on cleaning or replacing the sensor and filter to maintain optimal performance.
• സംഭരണം: Store the detector in a cool, dry place away from direct sunlight and extreme temperatures when not in use.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Elitech ILD-100H, consider the following common troubleshooting steps:

• ഉപകരണം പവർ ചെയ്യുന്നില്ല: Ensure the battery is fully charged. If the issue persists, try connecting the charger to confirm power supply.
• Inaccurate Readings/No Detection: Check the sensor and filter for any obstructions or damage. Ensure the device has completed its warm-up cycle. Adjust sensitivity settings to a higher level if necessary.
• Erratic Behavior: Ensure the device is not exposed to strong electromagnetic interference. Try restarting the device.

For persistent issues or complex problems, please refer to the comprehensive user manual or contact Elitech customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

The Elitech ILD-100H Refrigerant Leak Detector comes with a 1 വർഷത്തെ വാറൻ്റി വാങ്ങിയ തീയതി മുതൽ.

For any technical assistance, product inquiries, or warranty claims, Elitech offers 7x24 customer services. Please refer to the official Elitech website or the full user manual for contact details.

You can also download the complete user manual in PDF format for more detailed information: ഉപയോക്തൃ മാനുവൽ (PDF) ഡൗൺലോഡ് ചെയ്യുക
