1. ആമുഖം
This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your Walker Edison Portsmouth Classic 2 Glass Door TV Stand. Please read through this manual carefully before beginning assembly or use to ensure proper setup and longevity of your product.
Figure 1: Walker Edison Portsmouth Classic 2 Glass Door TV Stand
The Walker Edison Portsmouth Classic 2 Glass Door TV Stand is designed to accommodate TVs up to 80 inches, featuring a traditional farmhouse style with modern functionality. It includes two window pane glass doors, three adjustable shelves, and an open center cubby for versatile storage and display.
Figure 2: TV Stand in a typical living room setup
2 സുരക്ഷാ വിവരങ്ങൾ
WARNING: Proposition 65 Warning: www.P65Warnings.ca.gov
Always ensure the TV stand is placed on a stable, level surface. Do not exceed the maximum weight limit of 250 pounds. Keep small parts and packaging materials away from children during assembly. Always follow assembly instructions carefully to prevent injury or damage to the product.
3 ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ
The following components are typically included with your TV stand:
- Frame components (Engineered Wood)
- Hardware pack (screws, dowels, cam bolts, etc.)
- കാലുകൾ
- Glass doors with hinges
- ക്രമീകരിക്കാവുന്ന ഷെൽഫുകൾ
- Assembly instructions (detailed step-by-step guide)
4. സജ്ജീകരണവും അസംബ്ലിയും
Assembly is required for this TV stand. It is recommended to have two people for assembly to ensure stability and ease of construction. Lay out all pieces before starting and ensure good lighting. Follow the clear, step-by-step instructions provided in the included installation manual.
For detailed assembly instructions, please refer to the official Installation Manual PDF: ഇൻസ്റ്റലേഷൻ മാനുവൽ (PDF) ഡൗൺലോഡ് ചെയ്യുക
സഹായകരമായ നുറുങ്ങ്: Some users have found that applying a small amount of wood glue to the wooden dowels during assembly can enhance the overall sturdiness of the unit, especially if a television will be placed on top.
ചിത്രം 3: ഉൽപ്പന്ന അളവുകൾ

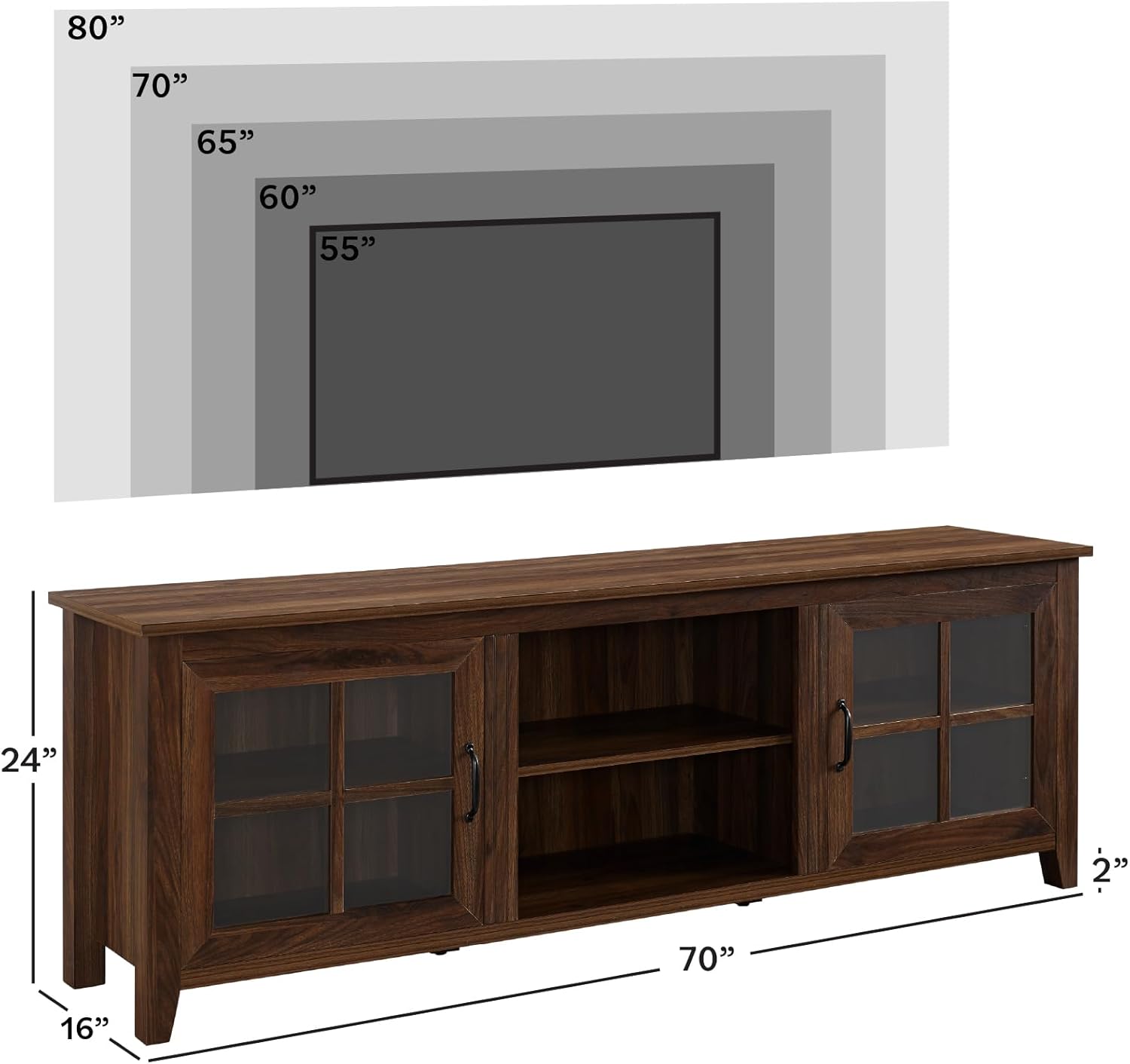

Figure 4: TV Size Compatibility
അസംബ്ലി കഴിഞ്ഞുview വീഡിയോ
വീഡിയോ 1: ഒരു സംക്ഷിപ്ത വിവരണംview of the Walker Edison Classic 2-Glass Door 70 Inch TV Stand, highlighting its features and design.
5. Operating Your TV Stand
ക്രമീകരിക്കാവുന്ന ഷെൽഫുകൾ
The TV stand features three adjustable shelves behind the glass doors, allowing you to customize the storage space to fit your media components, books, or decorative items. To adjust a shelf, simply remove it from its current position and reinsert it into the desired shelf pin holes.
കോർഡ് മാനേജ്മെന്റ്
Integrated cut-outs on the back panel of the TV stand provide convenient cord management. These openings allow you to easily route and organize cables from your electronic devices, keeping your entertainment area tidy and clutter-free.
Figure 5: Cord Management Features
6. പരിചരണവും പരിപാലനവും
To maintain the appearance and longevity of your TV stand, wipe it with a dry cloth regularly. Avoid using harsh chemicals or abrasive cleaners, as these can damage the wood finish. For spills, wipe immediately with a soft, damp തുണി പിന്നീട് നന്നായി ഉണക്കുക.
7. പ്രശ്നപരിഹാരം
വാതിൽ വിന്യാസ പ്രശ്നങ്ങൾ
If the glass doors do not sit correctly or appear misaligned after assembly, adjustments can be made using the hinges. The hinges have slotted holes for vertical adjustment of the main attachment points. Additionally, there are typically two adjustment screws on each hinge that allow for further fine-tuning of the door's position (in/out and side-to-side). Refer to the detailed hinge adjustment section in your assembly manual for specific instructions.
8 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | വാക്കർ എഡിസൺ |
| മോഡൽ നമ്പർ | W70CSGDDW |
| നിറം | ഇരുണ്ട വാൽനട്ട് |
| ഉൽപ്പന്ന അളവുകൾ | 16"D x 70"W x 24"H |
| ഇനത്തിൻ്റെ ഭാരം | 91 പൗണ്ട് |
| ഭാര പരിധി | 250 പൗണ്ട് |
| മെറ്റീരിയൽ | എഞ്ചിനീയറിംഗ് വുഡ് |
| വാതിൽ ശൈലി | Flat Panel with Glass |
| ഷെൽഫുകളുടെ എണ്ണം | 6 (3 ക്രമീകരിക്കാവുന്നത്) |
| അസംബ്ലി ആവശ്യമാണ് | അതെ |
| പ്രത്യേക ഫീച്ചർ | Space Saving, Cord Management |
9. വാറൻ്റി വിവരങ്ങൾ
This product comes with a 30-day limited manufacturer warranty. Please retain your proof of purchase for warranty claims. For any issues covered under warranty, contact Walker Edison customer support within 30 days of delivery.
10. ഉപഭോക്തൃ പിന്തുണ
Should you have any questions, require assistance with assembly, or need replacement parts, please contact Walker Edison customer support:
- ഫോൺ: 1-801-433-3008
- ഇമെയിൽ: service@walkeredison.com
Replacement parts are available. Please contact Walker Edison within 30 days of delivery for any part-related inquiries.
Figure 6: Customer Support Contact Information
