Walfront ESP-WROOM-32 Test Burn Board Instruction Manual

ആമുഖം

This manual provides comprehensive instructions for the Walfront ESP-WROOM-32 Test Burn Board. This device is a small batch burn fixture designed for efficient testing and programming of ESP-WROOM-32 minimum system development modules. Please read this manual thoroughly before use to ensure proper operation and longevity of the product.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Walfront ESP-WROOM-32 Test Burn Board is engineered for reliability and ease of use in development and production environments. It features a robust design and clear pinout for various ESP-WROOM-32 modules.

പ്രധാന സവിശേഷതകൾ:

• അപേക്ഷ: Suitable for burning test boards of ESP-WROOM-32 modules.
• IO Port Visibility: All IO ports are equipped with LEDs, allowing the board to function as a minimum system board or for small batch burning with the fixture.
• ഉയർന്ന നിലവാരമുള്ള നിർമ്മാണം: Manufactured with precision electronic components to ensure durability and stable performance.
• Reliable Contact: Designed for good contact performance, ensuring stable operation during testing and programming.

പാക്കേജ് ഉള്ളടക്കം:

• 1 x Walfront ESP-WROOM-32 Test Burn Board

ചിത്രം 1: മുകളിൽ നിന്ന് താഴേക്ക് view of the Walfront ESP-WROOM-32 Test Burn Board, highlighting its pin headers and control buttons.

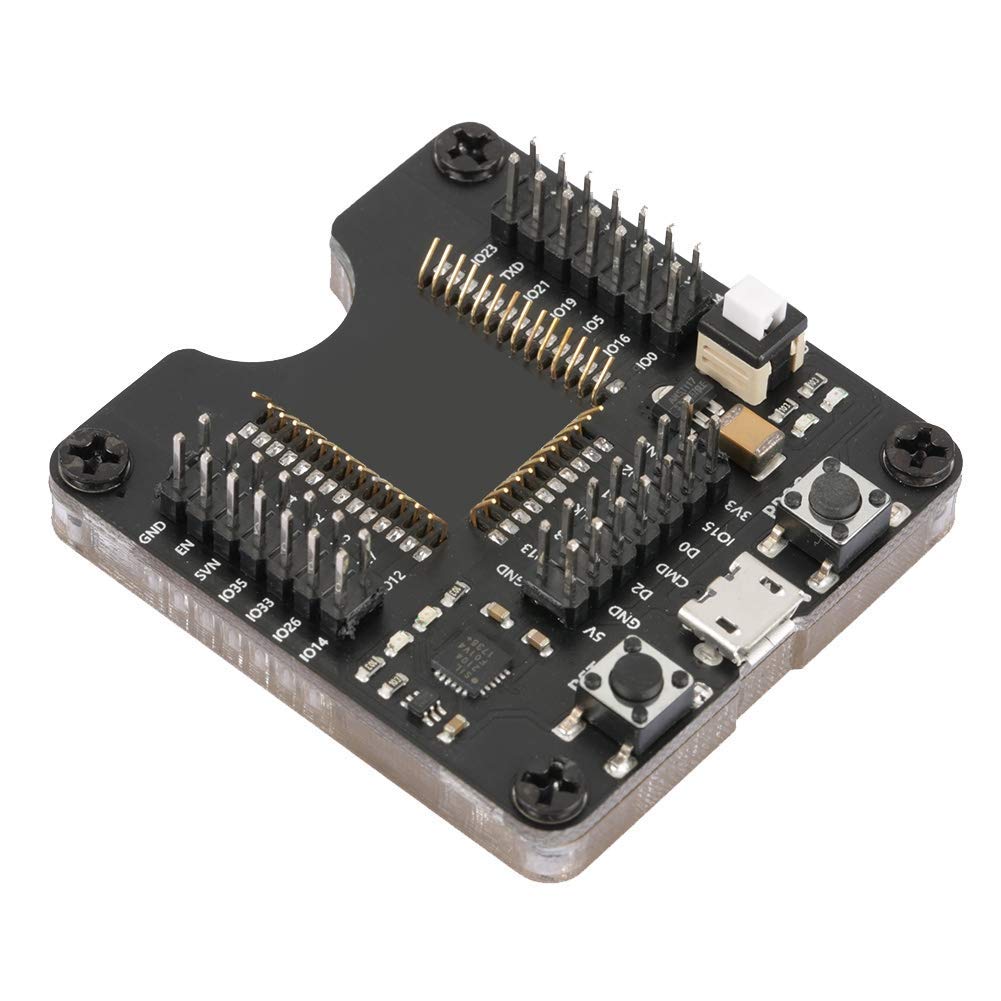

ചിത്രം 2: കോണാകൃതിയിലുള്ളത് view of the burn board, illustrating the clear acrylic base and the central slot for the ESP-WROOM-32 module.

Figure 3: Dimensions of the Walfront ESP-WROOM-32 Test Burn Board, measuring 4.5 cm by 5 cm.

സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

1. Unpack the Burn Fixture: Carefully remove the Walfront ESP-WROOM-32 Test Burn Board from its packaging. Inspect for any visible damage.
2. Identify Module Slot: Locate the central slot on the burn board designed for the ESP-WROOM-32 module. Note the surrounding pin headers and their labels (e.g., GND, 3V3, IO pins).
3. Insert ESP-WROOM-32 Module: Gently align your ESP-WROOM-32 module with the pin headers in the central slot. Ensure all pins are correctly seated into the spring-loaded contacts. Apply even pressure to avoid bending pins.
4. കമ്പ്യൂട്ടറുമായി ബന്ധിപ്പിക്കുക: Connect the burn fixture to your computer using a standard Micro USB cable. The board will draw power from the USB connection.
5. ഡ്രൈവറുകൾ ഇൻസ്റ്റാൾ ചെയ്യുക: If your operating system does not automatically recognize the device, you may need to install specific USB-to-serial drivers (e.g., Silicon Labs CP210x drivers) for proper communication. Refer to your computer's device manager to confirm driver installation.

Figure 4: The burn board connected via Micro USB, ready for module insertion and programming.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the burn fixture is set up and connected, you can proceed with programming your ESP-WROOM-32 module.

1. Verify Module Seating: Double-check that the ESP-WROOM-32 module is securely and correctly seated in the burn fixture's slot. Good contact is essential for stable operation.
2. Launch Programming Software: Open your preferred Integrated Development Environment (IDE) or flashing tool (e.g., Arduino IDE, ESP-IDF, esptool.py).
3. Select Serial Port: In your software, select the serial (COM) port corresponding to the connected burn fixture. This port should appear after successful driver installation.
4. Prepare for Flashing:
   • അമർത്തിപ്പിടിക്കുക PROG button (Program button).
   • പിടിക്കുമ്പോൾ PROG, briefly press and release the ആർഎസ്ടി button (Reset button).
   • റിലീസ് ചെയ്യുക PROG button. The module is now in programming mode.
5. Initiate Flashing: Start the flashing or burning process from your software. The IO port LEDs on the burn board may indicate data transmission activity.
6. പൂർത്തീകരണം: Once the flashing process is complete, disconnect the burn fixture from your computer. The ESP-WROOM-32 module can then be carefully removed.

Figure 5: Detail of the RST (Reset) and PROG (Program) buttons, and the Micro USB port for connection.

Figure 6: The spring-loaded pins ensure good contact with the ESP-WROOM-32 module for stable operation.

മെയിൻ്റനൻസ്

To ensure the longevity and optimal performance of your Walfront ESP-WROOM-32 Test Burn Board, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Keep the board clean and free from dust and debris. Use a soft, dry cloth or a brush to gently clean the surface. Avoid using liquids or abrasive cleaners.
• സംഭരണം: Store the burn fixture in a dry, cool environment, away from direct sunlight and extreme temperatures.
• കൈകാര്യം ചെയ്യൽ: Handle the board with care. Avoid dropping it or subjecting it to excessive force, which could damage the delicate electronic components or the spring-loaded pins.
• Pin Inspection: Periodically inspect the spring-loaded pins for any signs of bending or damage. Bent pins can lead to poor contact and unreliable operation.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues while using the Walfront ESP-WROOM-32 Test Burn Board, refer to the following common problems and solutions:

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, technical assistance, or customer support regarding your Walfront ESP-WROOM-32 Test Burn Board, please refer to the product packaging or contact Walfront customer service directly. Keep your purchase receipt for warranty claims.
