ആമുഖം
This manual provides instructions for the Proxicast ANT-124-SMA-2PK 4G/LTE External Magnetic Loaded Coil Antenna. This antenna is designed to enhance signal strength and data speeds for compatible 4G/LTE routers, modems, and hotspots equipped with SMA connectors. Proper installation and placement are crucial for optimal performance.
പ്രധാന സവിശേഷതകൾ
- Boosts signal strength and data speeds on AT&T, Verizon, T-Mobile, Bell, Telus, Rogers, Telcel, Movistar, and most other cellular carriers.
- Offers longer range and enhanced throughput as a high-gain direct replacement antenna.
- Allows flexible positioning for maximum signal reception, suitable for vending machines, ATMs, kiosks, M2M, IoT, or desktop use.
- Compatible with any 3G/4G/LTE router, modem, or hotspot with an SMA jack.
- Includes a 6.5~8 dBi 12.6-inch omni-directional loaded coil whip antenna on a 1.75-inch magnetic mounting base, plus a 10 ft coax cable with an SMA male connector.
- Supports 4G only. For 4G + 5G support, refer to models ANT-124-95G-2PK or ANT-124-WAV-2PK.
- Not intended for use on moving vehicles.
പാക്കേജ് ഉള്ളടക്കം
- 2 x Proxicast 6.5~8 dBi 4G/LTE External Magnetic Loaded Coil Antennas (ANT-124-SMA-2PK)
സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
1. ആന്റിനകളെ ബന്ധിപ്പിക്കുന്നു
The Proxicast ANT-124-SMA-2PK antennas feature SMA male connectors for easy attachment to compatible 4G/LTE routers, modems, or hotspots. Ensure your device has SMA female ports for connection.
- Locate the external antenna ports on your 4G/LTE device. These are typically labeled or covered by small plugs.
- Carefully align the SMA male connector of the antenna with the device's port.
- Gently screw the connector onto the port. Tighten fully by hand only. Do not use tools, as over-tightening can damage the connectors.
- If using two antennas for MIMO (Multiple-Input Multiple-Output) compatible modems, connect both antennas to their respective ports.
Image: Two Proxicast 4G/LTE magnetic antennas, ready for connection.
ചിത്രം: വിശദമായത് view of the SMA Male connector on the antenna cable.
Image: Proxicast antennas connected to a compatible 4G/LTE router.
2. Antenna Placement
The antennas feature a magnetic mounting base for flexible placement. Optimal placement is critical for maximizing signal reception.
- The magnetic base allows for easy attachment to any suitable metal surface.
- Orient the antenna vertically for best performance.
- Position the antenna near an outside wall and as high as possible to minimize obstructions.
- If your modem supports MIMO, use two identical antennas spaced approximately 22 inches apart for optimal performance.

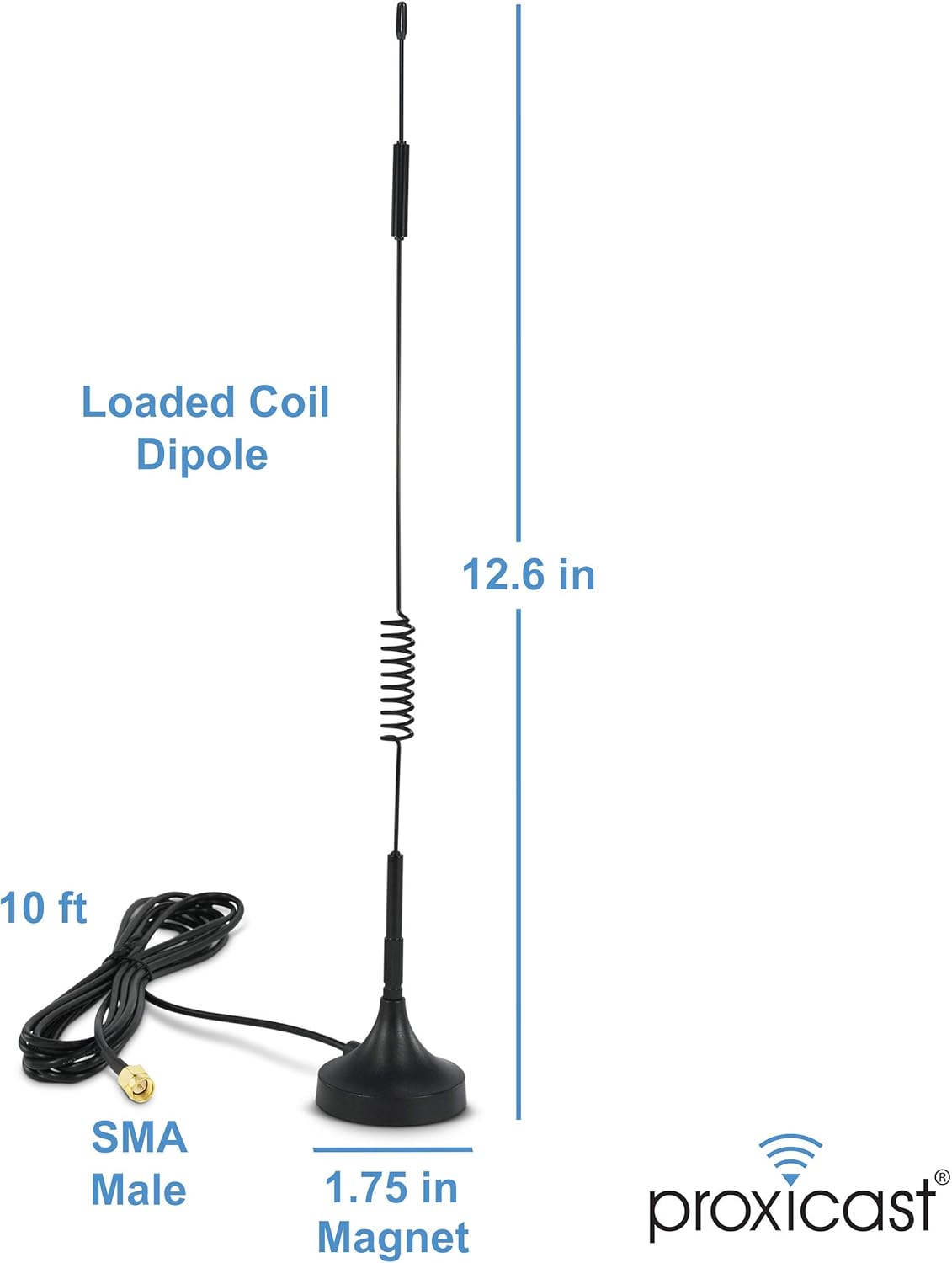

Image: Proxicast antenna showing its dimensions and magnetic base.
Image: Comparison illustrating the 1.75-inch magnetic base of the Proxicast antenna.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once connected and properly positioned, the Proxicast ANT-124-SMA-2PK antenna will passively enhance the reception of 4G/LTE cellular signals for your compatible device. The antenna is omni-directional, meaning it receives signals from all directions. To find the strongest signal, you may need to experiment with the antenna's exact placement and orientation.
- After connecting, monitor your device's signal strength indicator.
- Slightly rotate the antenna on its vertical axis to identify the position that yields the strongest signal.
- The antenna is designed to work with 4G networks. It does not support 5G.
പ്രധാനപ്പെട്ട പ്ലെയ്സ്മെൻ്റ് മാർഗ്ഗനിർദ്ദേശങ്ങൾ
- ഓറിയൻ്റേഷൻ: Always orient the antenna vertically.
- സ്ഥാനം: Position the antenna near an outside wall and as high as possible to minimize signal obstruction.
- ഇടപെടൽ ഒഴിവാക്കുക: Keep the antenna away from potential sources of interference such as:
- CRT / ടിവികൾ
- ലൈറ്റിംഗ് ഫർണിച്ചറുകൾ
- റേഡിയോകൾ
- മൈക്രോവേവ്
- മറ്റ് വയർലെസ് ഉപകരണങ്ങൾ
- വലിയ ലംബ ലോഹം അല്ലെങ്കിൽ കോൺക്രീറ്റ് വസ്തുക്കൾ
- ലോ-ഇ അല്ലെങ്കിൽ ടിൻഡ് / കോട്ടിഡ് വിൻഡോകൾ
- MIMO Setup: If your modem supports MIMO, use two identical antennas spaced approximately 22 inches apart for optimal performance.
- ഔട്ട്ഡോർ ഉപയോഗം: This antenna is not intended for permanent outdoor use unless properly weather-sealed.
- വാഹന ഉപയോഗം: This antenna is not intended for use on moving vehicles.
സാങ്കേതിക സവിശേഷതകൾ
| സ്പെസിഫിക്കേഷൻ | മൂല്യം |
|---|---|
| ഉൽപ്പന്ന അളവുകൾ | 1.75 x 1.75 x 12.5 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 3 ഔൺസ് |
| ഇനം മോഡൽ നമ്പർ | ANT-124-SMA-2PK |
| ആൻ്റിന തരം | External Magnetic Loaded Coil Antenna - SMA |
| ബ്രാൻഡ് | പ്രോക്സികാസ്റ്റ് |
| ചാനലുകളുടെ എണ്ണം | 1 |
| പ്രതിരോധം | 50 ഓം |
| പരമാവധി പരിധി | 52800 അടി |
| യു.പി.സി | 617237751355 |
| നിർമ്മാതാവ് | പ്രോക്സികാസ്റ്റ് |
| ആദ്യ തീയതി ലഭ്യമാണ് | സെപ്റ്റംബർ 9, 2016 |
ട്രബിൾഷൂട്ടിംഗ്
- സിഗ്നൽ മെച്ചപ്പെടുത്തലില്ല: Ensure the antennas are securely connected to your device's SMA ports. Experiment with different vertical orientations and positions to find the optimal signal. Verify that there are no major obstructions between the antenna and the nearest cell tower.
- അയഞ്ഞ കണക്ഷൻ: Always hand-tighten the SMA connectors. If connections become loose, re-tighten them by hand.
- ഉപകരണ അനുയോജ്യത: Confirm your router, modem, or hotspot is compatible with external SMA antennas and supports 4G/LTE frequencies.
- MIMO Setup: If using two antennas for MIMO, ensure they are spaced approximately 22 inches apart.
വാറൻ്റിയും പിന്തുണയും
For warranty information, technical support, or further assistance with your Proxicast ANT-124-SMA-2PK antenna, please refer to the official Proxicast webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
