Inkbird ITC-308-WIFI Thermostat Instruction Manual

1. ആമുഖം

The Inkbird ITC-308-WIFI is a digital temperature controller designed for precise temperature management in various applications. This device features dual relays for simultaneous heating and cooling control, Wi-Fi connectivity for remote monitoring and parameter setting via a smartphone application, and an NTC stainless steel probe for accurate temperature measurement. It is ideal for environments requiring stable temperature control, such as terrariums, incubators, brewing setups, and plant greenhouses.

The Inkbird ITC-308-WIFI thermostat connected to a terrarium, demonstrating its use as a smart temperature controller.

This image illustrates the versatility of the Inkbird ITC-308-WIFI thermostat, showing its application in diverse environments such as greenhouses, brewing setups, cheese aging rooms, and reptile habitats.

2 സുരക്ഷാ വിവരങ്ങൾ

• ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും ശ്രദ്ധാപൂർവ്വം വായിക്കുക.
• Ensure the device is connected to a power source that matches its voltage requirements (100~240VAC, 50Hz/60Hz).
• Do not exceed the maximum total power output of 1100W/110V or 2200W/220V for connected heating and cooling devices.
• Keep the device and probe away from water unless the probe is specifically designed for immersion (IP68 rated NTC probe is water-resistant).
• ഉപകരണം ഡിസ്അസംബ്ലിംഗ് ചെയ്യുകയോ പരിഷ്കരിക്കുകയോ ചെയ്യരുത്. എല്ലാ സേവനങ്ങളും യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥരെ ഏൽപ്പിക്കുക.
• Unplug the device from the power outlet before cleaning or performing any maintenance.

3. പാക്കേജ് ഉള്ളടക്കം

The Inkbird ITC-308-WIFI package typically includes the following items:

• Inkbird ITC-308-WIFI Thermostat
• NTC Temperature Sensor (2m, IP68 Stainless Steel Probe)
• ഉപയോക്തൃ മാനുവൽ

4. ഉൽപ്പന്ന സവിശേഷതകൾ

• വൈഫൈ കണക്റ്റിവിറ്റി: Connects to a 2.4 GHz Wi-Fi network for remote control and monitoring via the InkbirdSmart or Inkbird Pro app.
• ഡ്യുവൽ റിലേ ഔട്ട്പുട്ട്: Features two outlets for simultaneous connection of heating and cooling devices.
• താപനില പരിധി: Measures temperatures from -40°C to 100°C (-40°F to 212°F) with 0.1°C accuracy.
• താപനില യൂണിറ്റ് സ്വിച്ച്: Easily switch between Celsius (°C) and Fahrenheit (°F) display.
• ഉയർന്ന/താഴ്ന്ന താപനില അലാറങ്ങൾ: Configurable alarms notify you via the app if the temperature exceeds preset maximum or minimum limits.
• Probe Error Alarm: Alerts you if the temperature probe malfunctions.
• താപനില കാലിബ്രേഷൻ: Allows for fine-tuning of temperature readings for enhanced accuracy.
• Refrigeration Compressor Delay Protection: Protects cooling equipment by providing a delay before restarting the compressor.
• പ്ലഗ് ആൻഡ് പ്ലേ ഡിസൈൻ: സജ്ജീകരിക്കാനും ഉപയോഗിക്കാനും എളുപ്പമാണ്.

The thermostat supports both cooling and heating functions simultaneously, as depicted by a refrigerator for cooling and a radiator for heating.

The device provides instant temperature alarms, sending notifications to your smartphone when the temperature exceeds preset limits.

5. സജ്ജീകരണം

5.1 അപ്ലിക്കേഷൻ ഇൻസ്റ്റാളേഷൻ

Download the 'InkbirdSmart' or 'Inkbird Pro' application from your smartphone's app store (available for iOS and Android).

5.2 വൈഫൈ കണക്ഷൻ

1. Plug the ITC-308-WIFI into a power outlet.
2. Open the Inkbird app and follow the on-screen instructions to add a new device.
3. On the ITC-308-WIFI, press and hold the 'WiFi' button until the Wi-Fi indicator light blinks rapidly.
4. Confirm the indicator light is blinking rapidly in the app and proceed with the connection.
5. Enter your 2.4 GHz Wi-Fi network password when prompted. The device will connect to your network.
6. Once connected, the device will appear in your app, allowing you to monitor and control it remotely.

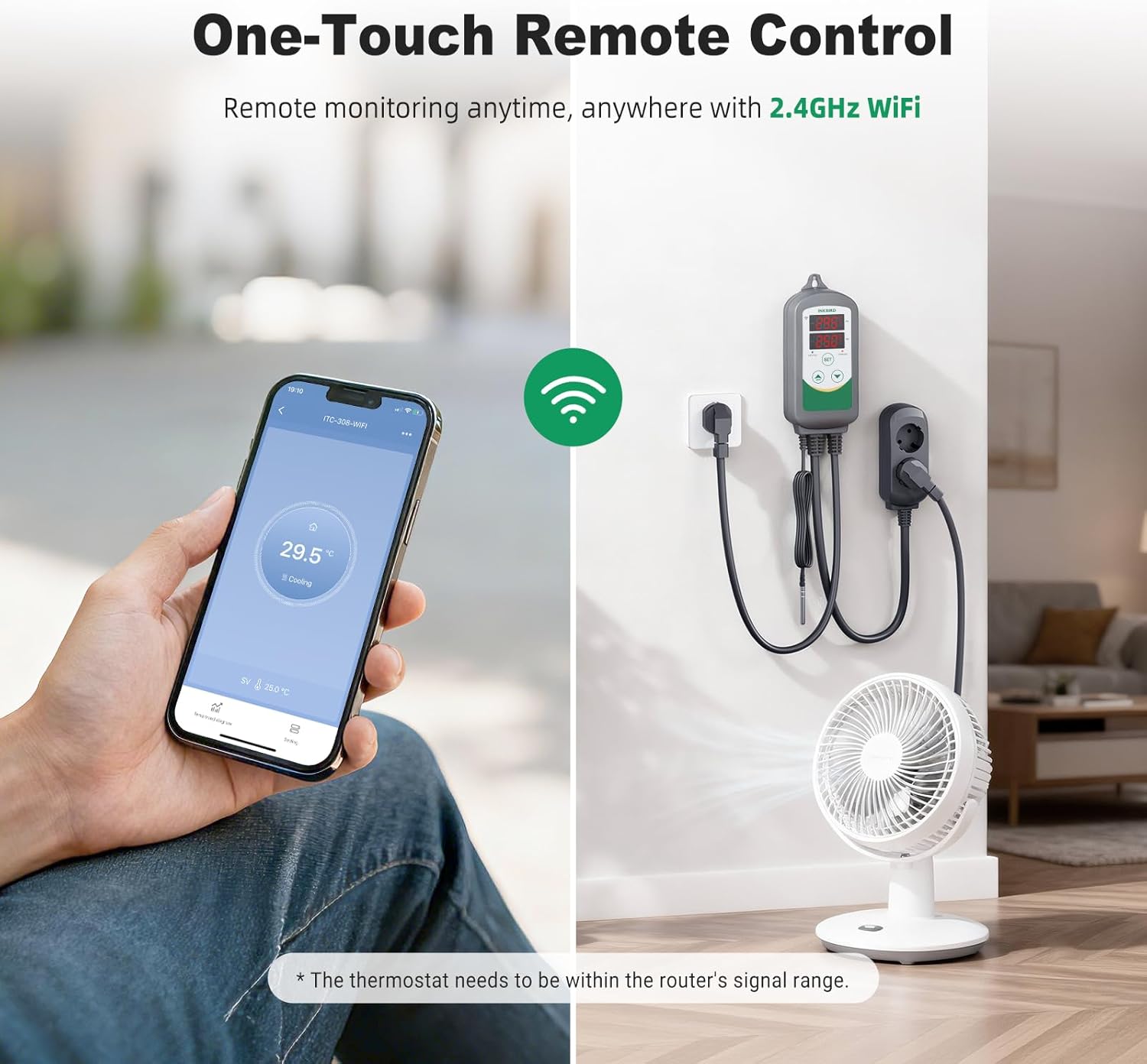

Remote monitoring and control are possible via the Inkbird app on a smartphone, allowing users to check and adjust settings from anywhere with a 2.4GHz Wi-Fi connection.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The ITC-308-WIFI allows for precise control of heating and cooling devices. Parameters can be set directly on the device or through the Inkbird app.

6.1 Key Parameters

• TS (Target Temperature): The desired temperature you want to maintain.
• HD (Heating Difference): The temperature difference below TS at which the heating device will activate.
• CD (Cooling Difference): The temperature difference above TS at which the cooling device will activate.

6.2 താപനില പാരാമീറ്ററുകൾ ക്രമീകരിക്കുന്നു

To set the parameters, use the 'SET' button and arrow keys on the device, or adjust them directly within the Inkbird app. For example, to maintain a target temperature (TS) of 16°C with a heating difference (HD) of 2°C and a cooling difference (CD) of 3°C:

• Set TS = 16°C.
• Set HD = 2°C. The heater will turn on if the temperature drops to 14°C (TS - HD) and turn off when it reaches 16°C.
• Set CD = 3°C. The cooler will turn on if the temperature rises to 19°C (TS + CD) and turn off when it reaches 16°C.

This diagram illustrates how to set the target temperature (TS), heating difference (HD), and cooling difference (CD) to maintain a desired temperature range. For example, to maintain 16°C within a range of 14°C to 19°C, set TS=16, HD=2, and CD=3.

6.3 മറ്റ് ക്രമീകരണങ്ങൾ

• താപനില യൂണിറ്റ് സ്വിച്ച്: Change the display unit between Celsius and Fahrenheit in the app settings.
• താപനില കാലിബ്രേഷൻ: Adjust the temperature reading if there is a known discrepancy with a reference thermometer.
• Refrigeration Delay: Set a delay time (e.g., 0-10 minutes) to prevent rapid cycling of the compressor, which can extend its lifespan.
• High/Low Temperature Alarm Limits: Define the upper and lower temperature thresholds that will trigger an alarm notification.

7. പരിപാലനം

• ഉപകരണം വൃത്തിയാക്കുന്നു: Wipe the main unit with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water.
• പ്രോബ് കെയർ: Regularly inspect the NTC probe for any signs of damage or corrosion. Clean the probe gently if necessary, ensuring it is free from debris that could affect readings.
• സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ: Check the Inkbird app periodically for firmware updates to ensure optimal performance and access to new features.

8. പ്രശ്‌നപരിഹാരം

• ഉപകരണം പവർ ചെയ്യുന്നില്ല: Ensure the device is securely plugged into a functional power outlet. Check the power cord for any damage.
• തെറ്റായ താപനില വായനകൾ: Verify the NTC probe is correctly connected and positioned. Check for any physical damage to the probe. Perform a temperature calibration if a consistent offset is observed.
• Wi-Fi കണക്ഷൻ പ്രശ്നങ്ങൾ: Ensure your Wi-Fi network is 2.4 GHz. Check that the device is within range of your Wi-Fi router. Restart the device and attempt to reconnect via the app.
• Heating/Cooling Device Not Activating: Check the power connection of the heating/cooling device to the thermostat. Verify that the TS, HD, and CD parameters are set correctly and that the current temperature is outside the set range.
• Alarm Triggering Frequently: Review your high and low temperature alarm limits (HH/LL) in the app to ensure they are appropriate for your application.
• Probe Error Alarm: If a probe error alarm occurs, check the probe connection. If the issue persists, the probe may need replacement.

9 സ്പെസിഫിക്കേഷനുകൾ

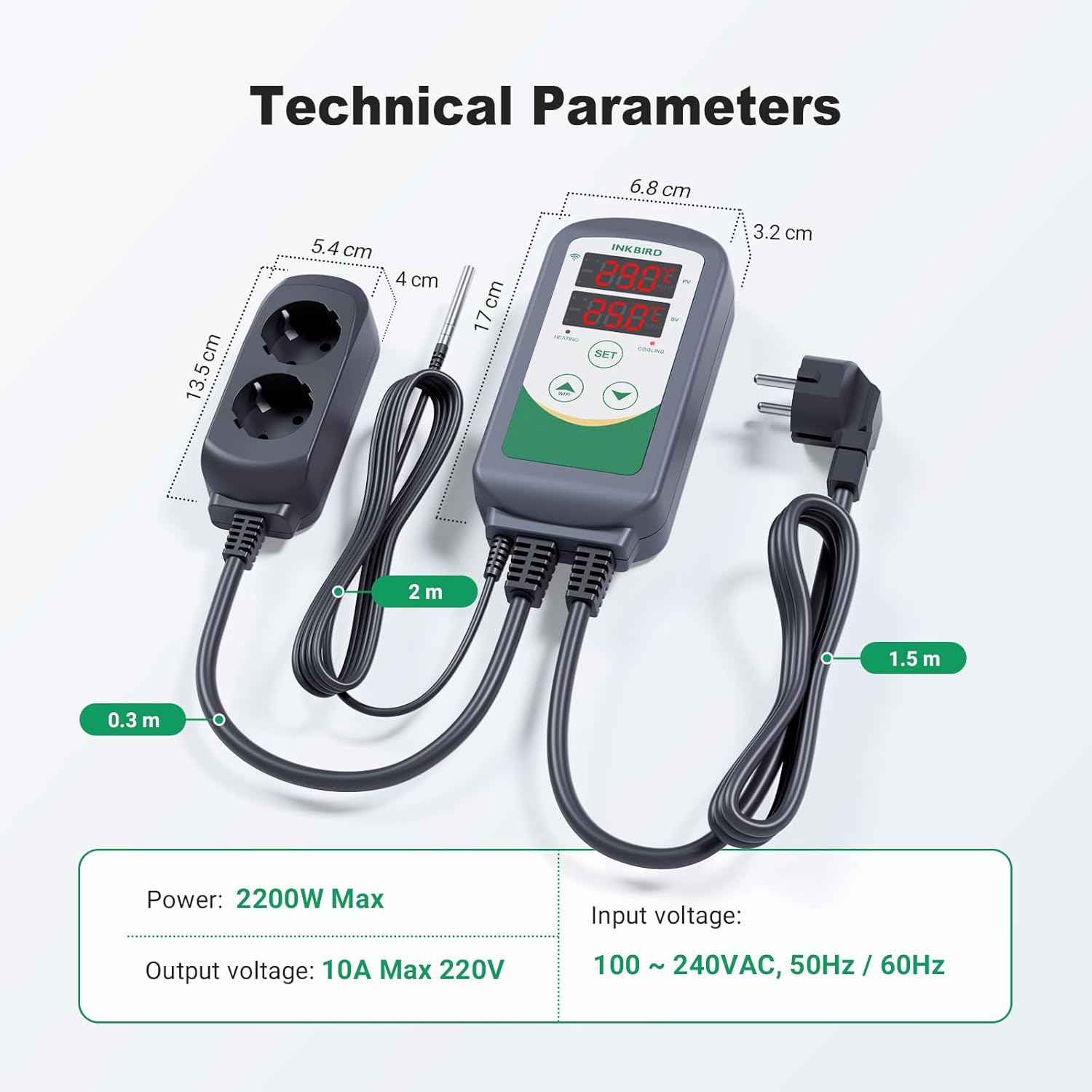

A visual representation of the thermostat's dimensions and electrical specifications, including maximum power (2200W), output voltage (10A Max 220V), and input voltage (100~240VAC, 50Hz/60Hz).

10. വാറൻ്റിയും പിന്തുണയും

Inkbird products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact details provided in your product packaging or visit the official Inkbird webവാറന്റി ക്ലെയിമുകൾക്കുള്ള വാങ്ങലിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
