Aputure Amaran MC RGBWW Mini LED Light Instruction Manual

ആമുഖം

The Aputure Amaran MC is a versatile RGBWW Mini LED Light designed for filmmakers and photographers. This compact and portable lighting solution offers full color control, various lighting effects, and convenient operation via on-board controls or the Sidus Link mobile application. Its magnetic mounting capabilities and 1/4"-20 screw mount provide flexible placement options for any creative setup.

ബോക്സിൽ എന്താണുള്ളത്

• Aputure MC Light x1
• യുഎസ്ബി ടൈപ്പ്-സി ചാർജിംഗ് കേബിൾ x1
• Silicone Rubber Diffuser x1
• Adhesive Mounting Tape x2
• Aputure Carrying Bag x1

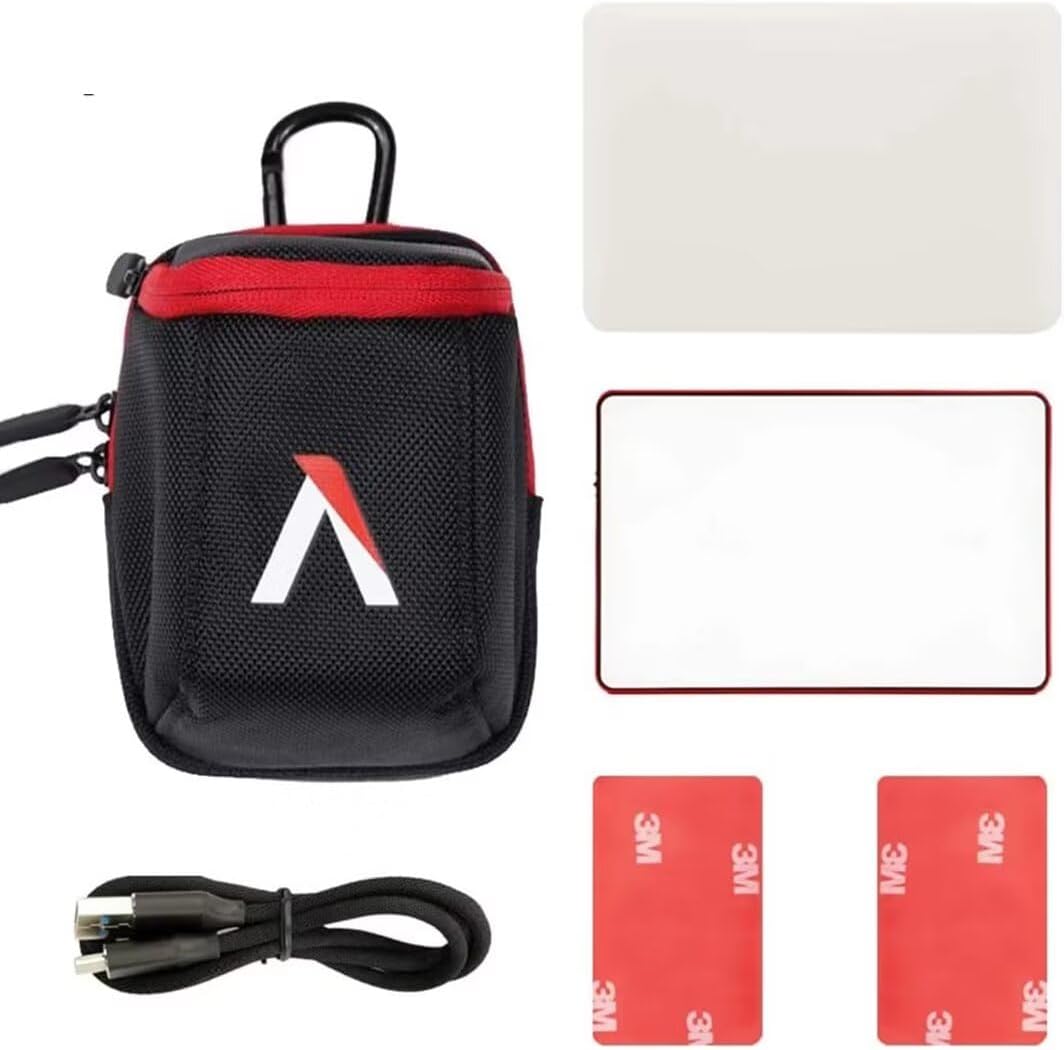

Image: The Aputure Amaran MC light is shown alongside its included accessories: a USB Type-C charging cable, a silicone rubber diffuser, two adhesive mounting tapes, and a branded carrying bag.

ഉൽപ്പന്നം കഴിഞ്ഞുview

ശാരീരിക സവിശേഷതകൾ

• OLED സ്ക്രീൻ: Displays current settings such as intensity, color temperature, and battery status.
• വൈദ്യുതി സ്വിച്ച്: ഉപകരണം ഓണാക്കുകയോ ഓഫാക്കുകയോ ചെയ്യുന്നു.
• Function Control Wheel: മെനുകൾ നാവിഗേറ്റ് ചെയ്യുകയും പാരാമീറ്ററുകൾ ക്രമീകരിക്കുകയും ചെയ്യുന്നു.
• യുഎസ്ബി ടൈപ്പ്-സി ചാർജിംഗ് പോർട്ട്: ആന്തരിക ബാറ്ററി ചാർജ് ചെയ്യുന്നതിന്.
• മാഗ്നെറ്റിക് ബാക്ക്: Allows for quick attachment to metal surfaces.
• 1/4"-20 സ്ക്രൂ മൗണ്ട്: ട്രൈപോഡുകളിലോ മറ്റ് ആക്‌സസറികളിലോ ഘടിപ്പിക്കുന്നതിന്.

ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് വശം view of the Aputure Amaran MC light highlights its OLED screen, power switch, USB Type-C charging port, and function control wheel.

Image: A diagram shows the back of the Aputure Amaran MC light, pointing out the integrated magnets and the 1/4"-20 screw mount for versatile attachment.

സജ്ജമാക്കുക

1. പ്രാരംഭ ചാർജിംഗ്

Before first use, fully charge the Aputure Amaran MC using the provided USB Type-C cable. Connect the cable to the light's USB-C port and a compatible USB power source. The OLED screen will indicate charging status.

2. Attaching Diffuser

For softer light output, slide the included silicone rubber diffuser over the front of the light. The diffuser is designed to fit snugly and can be easily removed when not needed.

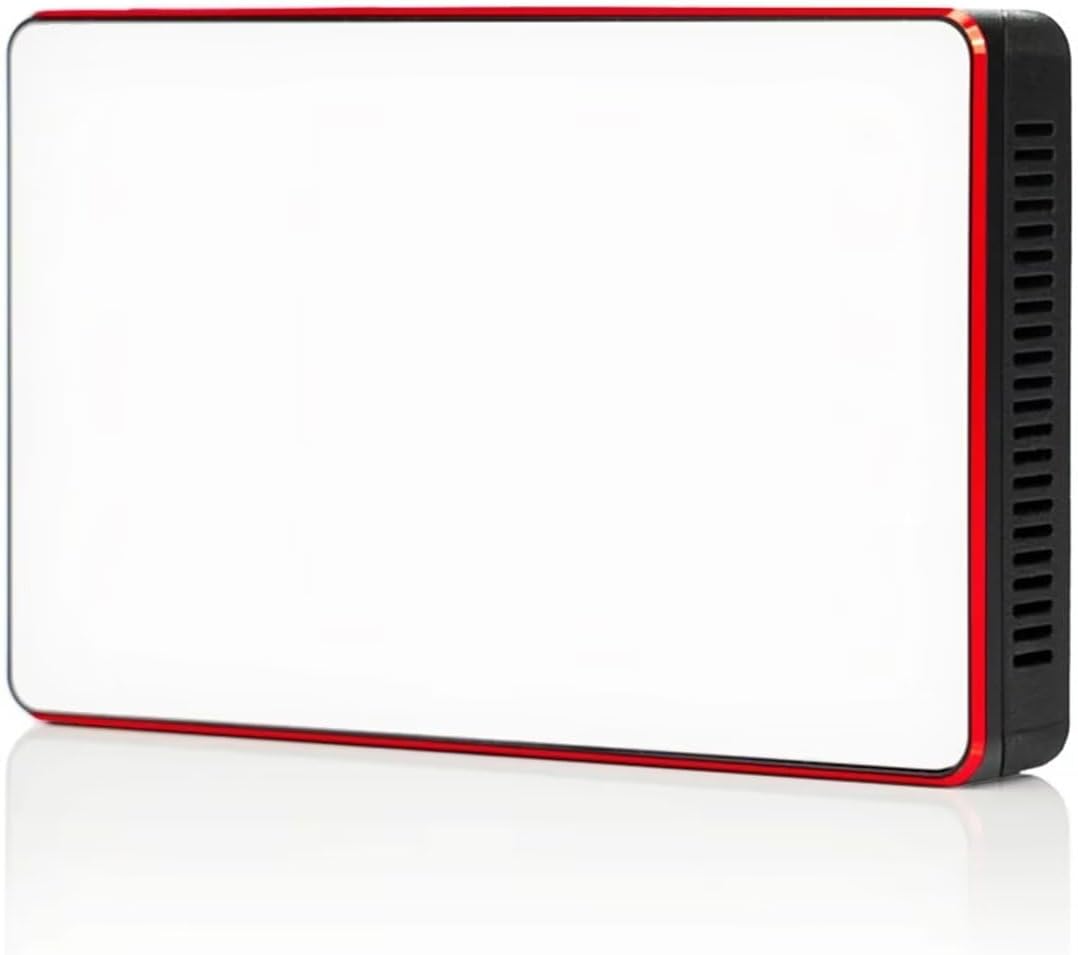

Image: The Aputure Amaran MC light is shown with its translucent silicone rubber diffuser fitted over the LED panel, softening the light output.

3 മൗണ്ടിംഗ് ഓപ്ഷനുകൾ

• കാന്തിക മൗണ്ട്: The integrated magnets on the back of the light allow for quick attachment to any ferrous metal surface.
• 1/4"-20 സ്ക്രൂ മൗണ്ട്: Use the 1/4"-20 screw thread to attach the light to tripods, light stands, or other compatible mounting accessories.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ/ഓഫ്

Slide the power switch to the 'ON' position to turn on the light. Slide it to 'OFF' to power down the device.

2. On-Board Control

Use the function control wheel to navigate through the light's settings displayed on the OLED screen. Press the wheel to select an option and rotate it to adjust values such as intensity (INT) and color temperature (CCT).

Image: A detailed diagram highlights the various controls on the side of the Aputure Amaran MC light, including the OLED screen for display, the USB-C port, the power switch, and the function control wheel.

3. Sidus Link App Control

For advanced control and features, download the Sidus Link mobile application from your device's app store. Connect the Amaran MC via Bluetooth to unlock full RGBWW color tuning, special effects, and multi-light control.

• CCT മോഡ്: Adjust color temperature from 3200K to 6500K.
• HSI മോഡ്: Full control over Hue, Saturation, and Intensity.
• RGB മോഡ്: Fine-tune Red, Green, and Blue values.
• FX മോഡ്: Access built-in lighting effects like Fire, Cop Car, Lightning, Paparazzi, Pulsing, and more.
• Source Match: Use your phone's camera to sample a color and match the light's output.
• ദൃശ്യ നിയന്ത്രണം: Create and save custom lighting scenes for quick recall, managing multiple lights simultaneously.

Image: A smartphone screen displays the Sidus Link app's color wheel interface, allowing users to select and adjust hue, saturation, and intensity for the Amaran MC light.

Image: The Sidus Link app's effects menu is shown on a smartphone, presenting icons for various pre-programmed lighting effects such as Fireworks, Party, Fire, Cop Car, and TV.

Image: A visual comparison demonstrates the Amaran MC light's ability to produce different color temperatures, with one image showing a warm 3200K light and another a cool 6500K light.

മെയിൻ്റനൻസ്

To ensure optimal performance and longevity of your Aputure Amaran MC light, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the light. Avoid abrasive cleaners or solvents.
• ബാറ്ററി കെയർ: For best battery life, avoid fully discharging the battery frequently. Recharge regularly.
• സംഭരണം: Store the light in a cool, dry place, preferably in its carrying bag, when not in use.

ട്രബിൾഷൂട്ടിംഗ്

• ലൈറ്റ് ഓണാക്കുന്നില്ല: Ensure the battery is charged. Connect to a USB power source to check if it powers on.
• ആപ്പ് കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: Ensure Bluetooth is enabled on your mobile device and the light is within range. Restart both the app and the light if issues persist.
• അമിത ചൂടാക്കൽ: The light has a warning regarding magnets and heat. To prevent decreasing the strength of the magnets, do not attach this device or the magnets to any surface hotter than 80°C.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For detailed warranty information and customer support, please refer to the product packaging or visit the official Aputure webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.
