ആമുഖം
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Lenz Nexo 2 Single Lever Kitchen Faucet. Designed for high flexibility and water/energy saving, this faucet features a durable matte nickel finish. Please read all instructions carefully before installation and use to ensure proper function and longevity of the product.
സുരക്ഷാ വിവരങ്ങൾ
- ഏതെങ്കിലും ഇൻസ്റ്റാളേഷൻ അല്ലെങ്കിൽ അറ്റകുറ്റപ്പണികൾ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും പ്രധാന ജലവിതരണം ഓഫ് ചെയ്യുക.
- ചോർച്ച തടയാൻ എല്ലാ കണക്ഷനുകളും സുരക്ഷിതമാണെന്ന് ഉറപ്പാക്കുക.
- ഏതെങ്കിലും ഘട്ടത്തെക്കുറിച്ച് നിങ്ങൾക്ക് ഉറപ്പില്ലെങ്കിൽ, യോഗ്യതയുള്ള ഒരു പ്ലംബറെ സമീപിക്കുക.
- ടാപ്പിന്റെ ഫിനിഷിൽ അബ്രാസീവ് ക്ലീനറുകളോ കഠിനമായ രാസവസ്തുക്കളോ ഉപയോഗിക്കരുത്, കാരണം ഇത് കേടുപാടുകൾക്ക് കാരണമായേക്കാം.
- ചെറിയ ഭാഗങ്ങൾ കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
പാക്കേജ് ഉള്ളടക്കം
ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:
- Nexo 2 Single Lever Kitchen Faucet with Pull-Out Spray
- 2 Flexible connection hoses (600 mm, G3/8)
- Water-saving 35 mm ceramic cartridge
- Quick attachment accessory
- Mounting hardware (washers, nuts, screws)

ചിത്രം 1: പൊട്ടിത്തെറിച്ചു view of the mounting hardware, including gaskets, mounting plate, and screws.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Follow these steps for proper installation of your Lenz Nexo 2 kitchen faucet:
- സിങ്ക് തയ്യാറാക്കുക: Ensure the mounting hole on your sink or countertop is clean and free of debris. The faucet requires a single mounting hole.
- ഫ്യൂസറ്റ് ഇൻസ്റ്റാൾ ചെയ്യുക: Insert the faucet body into the mounting hole. Ensure the base gasket is correctly positioned between the faucet and the sink surface.
- പൈപ്പ് സുരക്ഷിതമാക്കുക: From underneath the sink, slide the rubber washer, then the metal washer, and finally the mounting nut onto the threaded shank of the faucet. Hand-tighten the nut, then use a wrench to secure it firmly.
- വാട്ടർ ഹോസുകൾ ബന്ധിപ്പിക്കുക: Attach the two flexible connection hoses to the corresponding inlets on the faucet body (typically marked for hot and cold). Connect the other ends of the hoses to your hot and cold water supply lines. Use a 19mm wrench for the water connections to ensure a tight seal.
- Install Pull-Out Spray Hose: Connect the pull-out spray hose to the designated connection point on the faucet body. Ensure the hose moves freely.
- Attach Counterweight: Secure the counterweight to the pull-out spray hose at an appropriate height to ensure smooth retraction of the spray head.
- ചോർച്ചയ്ക്കുള്ള പരിശോധന: Slowly turn on the main water supply and check all connections for any leaks. Operate the faucet to ensure proper water flow and temperature control.

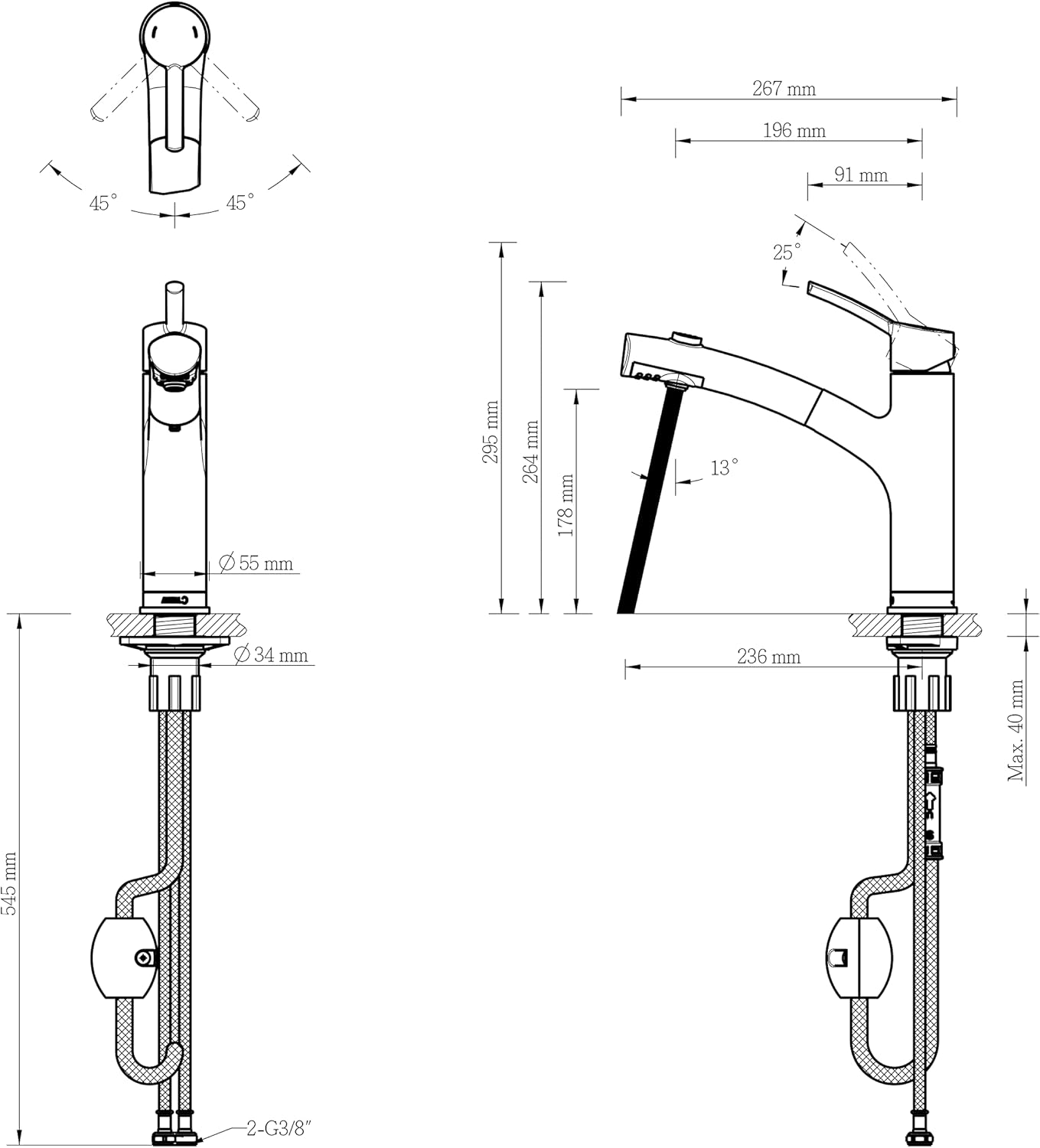

Figure 2: Detailed dimensional drawing showing installation measurements and hose connections.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Your Lenz Nexo 2 faucet is designed for ease of use:
- ജലപ്രവാഹവും താപനിലയും: ജലപ്രവാഹത്തെയും താപനിലയെയും നിയന്ത്രിക്കുന്നത് സിംഗിൾ ലിവർ ആണ്. ഒഴുക്ക് വർദ്ധിപ്പിക്കാൻ ലിവർ ഉയർത്തുക. ചൂടുവെള്ളത്തിനായി ലിവർ ഇടത്തോട്ടും തണുത്ത വെള്ളത്തിനായി വലത്തോട്ടും നീക്കുക.
- പുൾ-ഔട്ട് സ്പ്രേ: Gently pull the spray head from the faucet spout. The flexible hose allows for extended reach.
- സ്പ്രേ പ്രവർത്തനങ്ങൾ: The spray head features two functions. Press the button on the spray head to switch between a steady stream and a powerful spray.
- Retracting the Spray: When finished, guide the spray head back into the spout. The counterweight on the hose will assist in smooth retraction.
മെയിൻ്റനൻസ്
Regular maintenance will help preserve the appearance and functionality of your faucet:
- ഫിനിഷ് വൃത്തിയാക്കൽ: Clean the matte nickel finish with a soft, damp cloth and mild soap. Rinse thoroughly and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners, scouring pads, or harsh chemicals.
- എയറേറ്റർ ക്ലീനിംഗ്: If water flow becomes restricted, the aerator may be clogged. Unscrew the aerator from the tip of the spout, clean any debris, and rinse under running water before reattaching.
- സെറാമിക് കാട്രിഡ്ജ്: The faucet is equipped with a durable ceramic cartridge. In case of persistent drips or leaks, the cartridge may need to be replaced. This is a specialized task; contact customer support or a qualified plumber.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| കുറഞ്ഞ ജലപ്രവാഹം | Clogged aerator; partially closed shut-off valve | Clean aerator; ensure shut-off valves are fully open |
| Leaks from faucet base | Loose mounting nut; damaged gasket | Tighten mounting nut; inspect and replace gasket if damaged |
| സ്പൗട്ടിൽ നിന്ന് ഒലിച്ചിറങ്ങുന്നു | തേഞ്ഞുപോയ സെറാമിക് കാട്രിഡ്ജ് | Replace ceramic cartridge (professional assistance recommended) |
| സ്പ്രേ ഹെഡ് പൂർണ്ണമായും പിൻവാങ്ങുന്നില്ല. | Counterweight improperly positioned or obstructed hose | Adjust counterweight position; check hose for obstructions |
സ്പെസിഫിക്കേഷനുകൾ

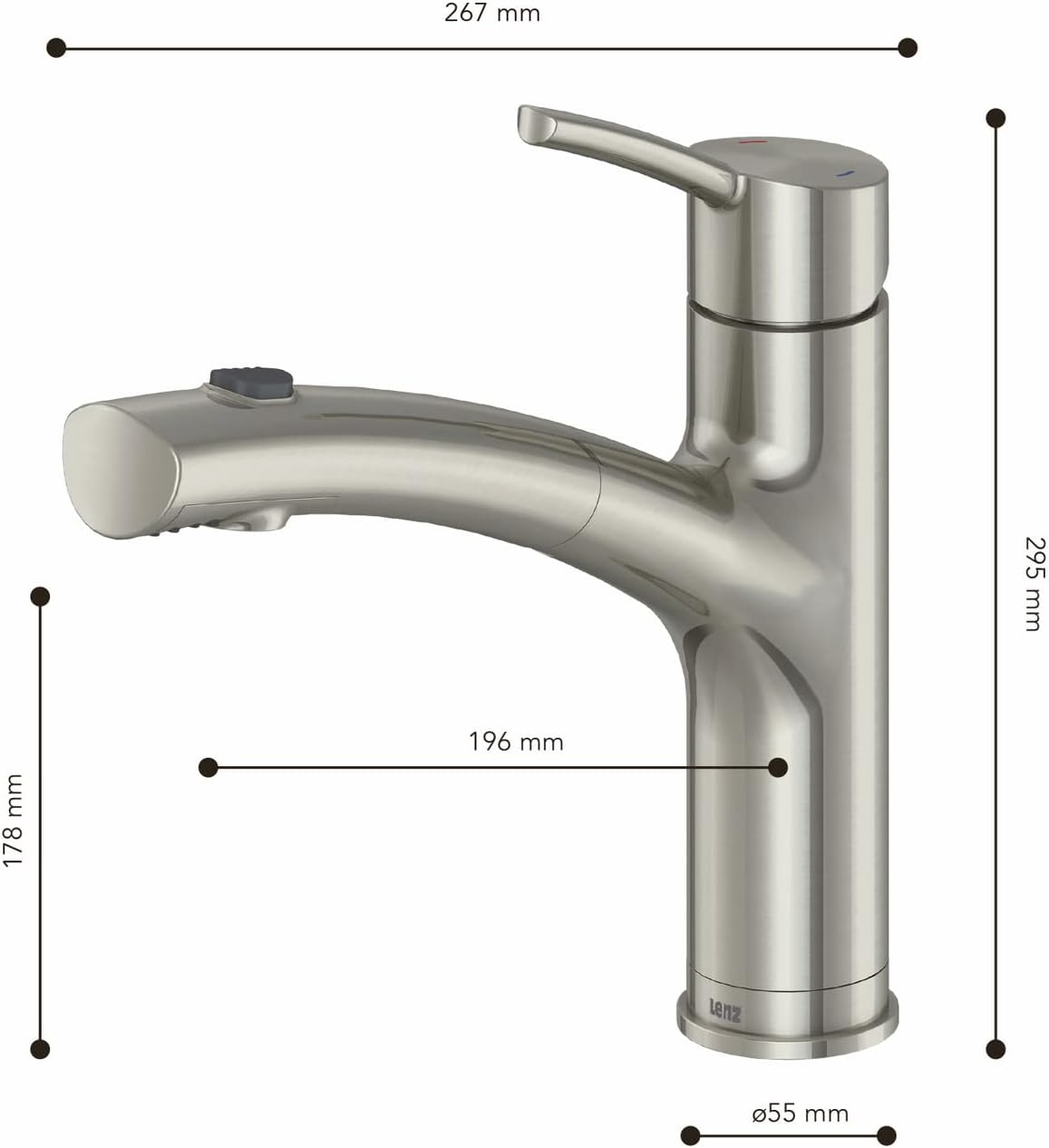

Figure 3: Key dimensions of the Lenz Nexo 2 kitchen faucet.
- മോഡൽ നമ്പർ: 46070022
- മെറ്റീരിയൽ: പിച്ചള
- പൂർത്തിയാക്കുക: മാറ്റ് നിക്കൽ
- ഇൻസ്റ്റലേഷൻ രീതി: സിംഗിൾ ഹോൾ ഡെക്ക് മൗണ്ട്
- ഹാൻഡിലുകളുടെ എണ്ണം: 2 (Lever for hot/cold, button for spray function)
- ഹോസ് നീളം: 600 mm (flexible connection hoses)
- Faucet Spout Reach: 19 സെ.മീ
- ഉൽപ്പന്ന അളവുകൾ: 26.3 x 6 x 23.4 സെ.മീ
- ഇനത്തിൻ്റെ ഭാരം: 2.29 കിലോഗ്രാം
- പ്രത്യേക സവിശേഷത: ജലസംരക്ഷണം
- ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ: Faucet, 2 flexible connection hoses, 35mm ceramic cartridge, quick attachment, pull-out spray with two functions.
വാറൻ്റി വിവരങ്ങൾ
The Lenz Nexo 2 Kitchen Faucet comes with a 10 വർഷത്തെ നിർമ്മാതാവിന്റെ വാറന്റി against defects in materials and workmanship. This warranty covers the original purchaser and is valid from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, abuse, accident, or normal wear and tear.
പിന്തുണ
For technical assistance, replacement parts, or warranty inquiries, please contact Lenz customer support. Refer to the contact information provided with your purchase documentation or visit the official Lenz webസൈറ്റ്.
ഓൺലൈൻ ഉറവിടങ്ങൾ: കൂടുതൽ പിന്തുണയ്ക്കും പതിവുചോദ്യങ്ങൾക്കും, ദയവായി സന്ദർശിക്കുക www.lenz.com (ഉദാample link, replace with actual if available).
