Jackson Pro Series Signature Phil Demmel Demmelition Fury PD Electric Guitar User Manual

ആമുഖം

This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Jackson Pro Series Signature Phil Demmel Demmelition Fury PD electric guitar. Designed for high-performance playing, this instrument features an all-mahogany body, EMG humbucking pickups, and a Floyd Rose Special tremolo system. Please read this manual thoroughly to ensure optimal performance and longevity of your guitar.

സജ്ജമാക്കുക

1 അൺപാക്കിംഗും പ്രാരംഭ പരിശോധനയും

Carefully remove the guitar from its packaging. Inspect the instrument for any signs of damage that may have occurred during shipping. Ensure all accessories, if included, are present. Keep the original packaging for future transport or storage.

2. Battery Installation for Active Pickups

Your Demmelition Fury PD is equipped with active EMG humbucking pickups, which require a 9V battery for operation. The battery compartment is located on the back of the guitar body.

1. Locate the battery compartment cover on the back of the guitar.
2. കവർ ശ്രദ്ധാപൂർവ്വം തുറക്കുക.
3. Insert a fresh 9V alkaline battery, observing the correct polarity (+/-).
4. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ സുരക്ഷിതമായി അടയ്ക്കുക.

കുറിപ്പ്: Always disconnect the guitar cable from the output jack when not in use to conserve battery life. A dead battery will result in no sound from the pickups.

3. Stringing and Tuning (Floyd Rose System)

The Floyd Rose Special tremolo system requires a specific stringing and tuning procedure. This system provides excellent tuning stability but differs from traditional bridge setups.

1. Unlocking the Nut: Use the appropriate Allen wrench to loosen the three locking nut screws on the headstock.
2. String Installation at Bridge: Loosen the saddle lock screw for the string you wish to replace. Insert the ball-end-removed string into the saddle block and tighten the screw to secure it.
3. String Installation at Tuner: Thread the string through the tuning machine post and wind it a few times, then tune the string close to pitch using the tuning peg.
4. Rough Tuning: Tune all strings to their approximate pitch.
5. Locking the Nut: Once roughly tuned, tighten the locking nut screws firmly. This will lock the strings at the nut.
6. ശരിയാക്കുക: Use the fine tuners on the Floyd Rose bridge to achieve precise pitch for each string.

നുറുങ്ങ്: Stretch new strings thoroughly before locking the nut to minimize tuning drift.

4. Action and Intonation Adjustment

For optimal playability, the string action (height) and intonation should be set correctly. Adjustments to the Floyd Rose system can be complex and may require professional assistance if you are unfamiliar with the process.

• പ്രവർത്തനം: The overall string height is adjusted by raising or lowering the two pivot posts of the Floyd Rose bridge.
• അന്തർ‌ദ്ദേശം: Each saddle on the Floyd Rose bridge can be moved forward or backward to adjust intonation. This requires loosening the saddle mounting screw, adjusting the saddle position, and then re-tightening.

പ്രവർത്തിക്കുന്നു

1. നിയന്ത്രിക്കുന്നുview

Your Demmelition Fury PD features a streamlined control layout designed for direct tone access:

• Volume 1 Knob: Controls the output volume of the neck pickup.
• Volume 2 Knob: Controls the output volume of the bridge pickup.

കുറിപ്പ്: This model does not include a tone control, providing a direct, uncolored signal path from the pickups.

2. Using the Floyd Rose Tremolo System

The Floyd Rose Special tremolo allows for expressive pitch bending, dive bombs, and vibrato effects while maintaining tuning stability.

• Pitch Bending: Push the tremolo arm down to lower the pitch of all strings. Pull up on the arm to raise the pitch.
• Fine Tuners: After using the tremolo, if minor tuning adjustments are needed, use the fine tuners located on the bridge.

ജാഗ്രത: Excessive force or improper use of the tremolo arm can damage the bridge or strings.

3. Ampലൈഫയർ കണക്ഷൻ

Connect your guitar to an amplifier using a standard 1/4-inch instrument cable. Ensure the amplifier is powered off or at a low volume before connecting or disconnecting the cable to prevent sudden loud noises.

മെയിൻ്റനൻസ്

1. വൃത്തിയാക്കൽ

• Body and Neck: Use a soft, lint-free cloth to wipe down the guitar body and neck after each use to remove sweat and fingerprints. For a deeper clean, use a guitar-specific polish or cleaner.
• ഫ്രെറ്റ്ബോർഡ്: The laurel wood fretboard should be cleaned periodically with a specialized fretboard cleaner and conditioner to prevent drying and cracking.
• ഹാർഡ്‌വെയർ: Wipe down the bridge, tuners, and other metal parts to prevent corrosion.

2. സ്ട്രിംഗ് മാറ്റിസ്ഥാപിക്കൽ

Regular string replacement is crucial for maintaining tone and playability. Refer to the 'Stringing and Tuning' section for the specific procedure for the Floyd Rose system.

3. Floyd Rose System Maintenance

• Pivot Posts: Periodically apply a small amount of high-quality lubricant to the tremolo pivot posts to ensure smooth operation and prevent wear.
• സ്പ്രിംഗ് ടെൻഷൻ: The tremolo spring tension in the back cavity affects the bridge's balance. Adjust the spring claw screws to achieve the desired balance and feel.

ട്രബിൾഷൂട്ടിംഗ്

1. ശബ്ദ ഔട്ട്പുട്ട് ഇല്ല

• ബാറ്ററി പരിശോധിക്കുക: Ensure the 9V battery for the active pickups is fresh and correctly installed.
• കേബിൾ പരിശോധിക്കുക: മറ്റൊരു ഉപകരണ കേബിൾ ഉപയോഗിച്ച് പരീക്ഷിക്കുക.
• പരിശോധിക്കുക Ampജീവപര്യന്തം: ഉറപ്പാക്കുക amplifier is powered on, volume is up, and it is functioning correctly.
• Check Volume Knobs: Ensure both volume knobs on the guitar are turned up.

2. Buzzing or Unwanted Noise

• ഗ്രൗണ്ടിംഗ്: Ensure all connections are properly grounded.
• കേബിളുകൾ: Use high-quality, shielded instrument cables.
• ഊർജ്ജ സ്രോതസ്സ്: Check for interference from power sources or other electronic devices.
• Action/Fret Buzz: If buzzing occurs when playing, the string action might be too low, or the neck relief may need adjustment.

3. Tuning Instability

• പുതിയ സ്ട്രിംഗുകൾ: New strings require stretching before they stabilize.
• Floyd Rose Setup: Ensure the Floyd Rose system is properly balanced and the locking nut is securely tightened.
• Worn Parts: Check for worn knife edges on the tremolo bridge or worn string saddles.

സ്പെസിഫിക്കേഷനുകൾ

ഉൽപ്പന്ന ചിത്രങ്ങൾ

ഫ്രണ്ട് view of the Jackson Demmelition Fury PD electric guitar, showcasing its distinctive body shape, EMG humbucking pickups, Floyd Rose tremolo system, and the Red Tide Fade finish.

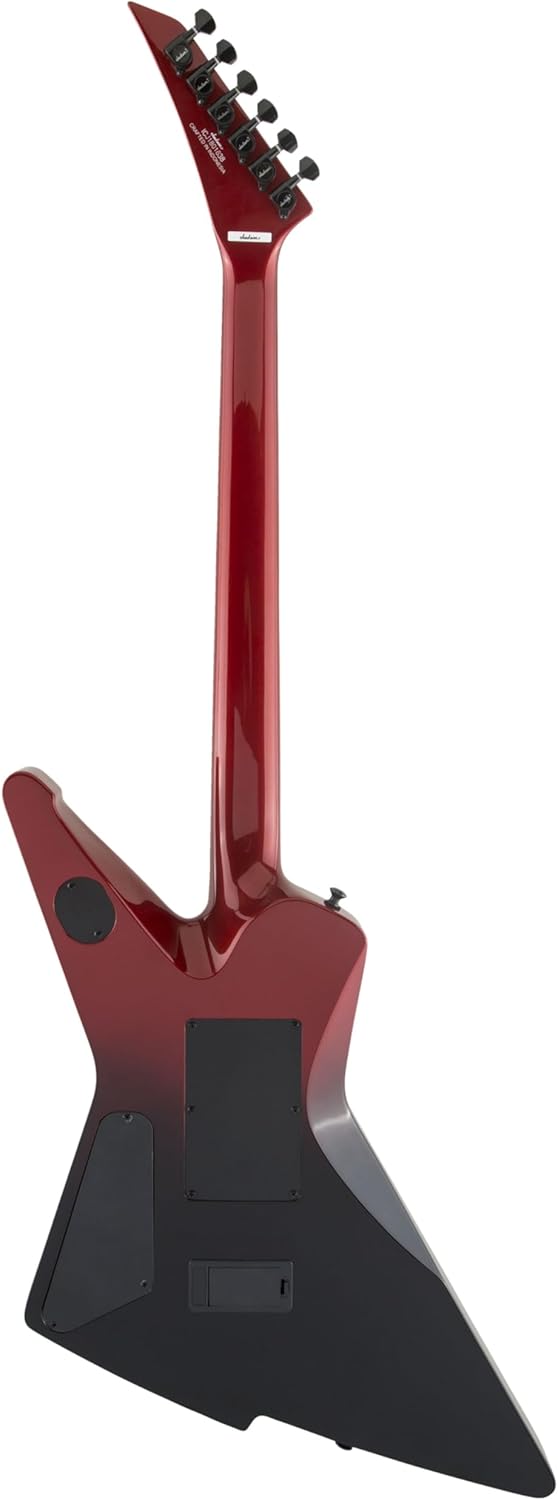

തിരികെ view of the Jackson Demmelition Fury PD electric guitar, illustrating the neck-through body construction, the access panel for the tremolo springs, and the 9V battery compartment for the active pickups.

വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, product registration, and technical support, please visit the official Jackson Guitars webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

Official Jackson Guitars Webസൈറ്റ്: www.jacksonguitars.com
