SCHÜTTE 80122 MDF Toilet Seat with Soft-Close Mechanism Instruction Manual

ആമുഖം

This manual provides essential information for the proper installation, operation, and maintenance of your SCHÜTTE 80122 MDF Toilet Seat with Soft-Close Mechanism. Please read these instructions carefully before installation and retain them for future reference. Correct installation and care will ensure the longevity and optimal performance of your toilet seat.

The SCHÜTTE 80122 toilet seat features a durable MDF construction, an attractive motif design, and a convenient soft-close mechanism for quiet and gentle closing of the lid and seat.

സുരക്ഷാ നിർദ്ദേശങ്ങൾ

• Do not stand on the toilet seat or lid. This product is designed for sitting only.
• Ensure all mounting components are securely tightened to prevent the seat from shifting or becoming unstable.
• Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface finish and material.
• The maximum load capacity for this toilet seat is 150 kg (approximately 330 lbs). Exceeding this weight may cause damage or injury.
• Keep small children away from the toilet seat during installation to prevent access to small parts.

പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഭാഗങ്ങളും നിലവിലുണ്ടോ എന്ന് ദയവായി പരിശോധിക്കുക:

• 1 x SCHÜTTE 80122 MDF Toilet Seat (pre-assembled with lid and seat)
• 1 x Mounting Kit (includes spacer buffers, 2 x metal fixing hinges, screws, washers, and nuts)
• 1 x Assembly Instructions (this document)

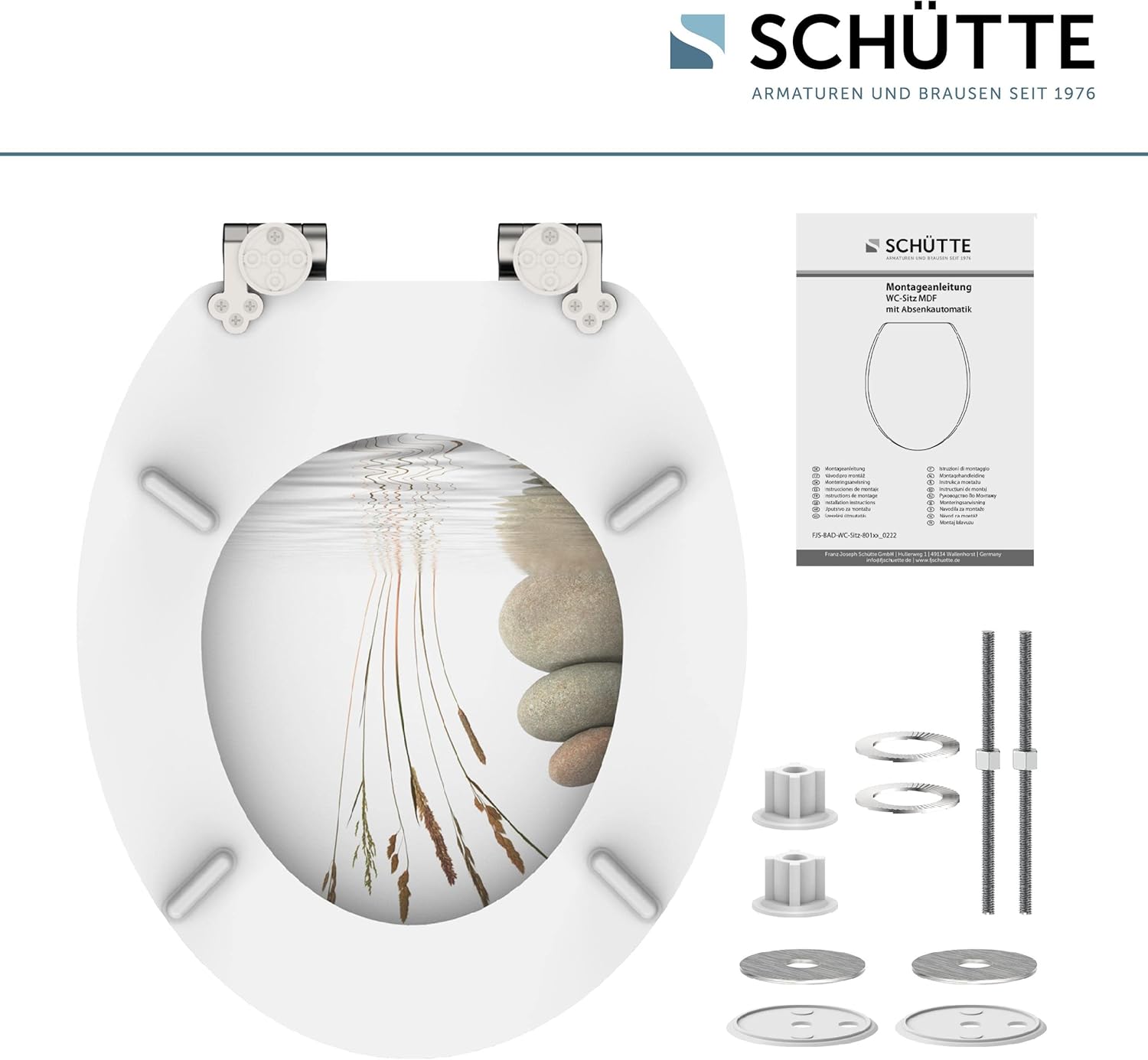

Image: Complete toilet seat package contents, including the seat, mounting kit, and manual.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps for a secure installation of your SCHÜTTE 80122 toilet seat:

1. തയ്യാറാക്കൽ: Ensure the toilet bowl is clean and dry. Remove any old toilet seat and hardware.
2. Check Toilet Bowl Type: This toilet seat is designed for toilet bowls with two through-holes that allow for screwing from underneath. If your toilet bowl has blind holes (where screws cannot be accessed from below), this mounting system may not be compatible.
3. പൊസിഷൻ ഹിഞ്ചുകൾ: Place the metal fixing hinges into the mounting holes on the toilet bowl. The hinges are adjustable to accommodate various hole distances (130-185 mm).
4. സുരക്ഷിത ഹിഞ്ചുകൾ: From underneath the toilet bowl, thread the screws through the hinges and secure them with the provided washers and nuts. Do not fully tighten yet.
5. സീറ്റ് അറ്റാച്ചുചെയ്യുക: Align the pre-assembled toilet seat onto the secured hinges. The seat should click into place or be secured with additional small screws depending on the hinge design.
6. ക്രമീകരിക്കുക, മുറുക്കുക: Adjust the position of the toilet seat to ensure it is centered and aligned with the toilet bowl. Once satisfied with the position, fully tighten the nuts from underneath the toilet bowl to secure the hinges firmly.
7. Install Spacer Buffers: Attach the self-adhesive spacer buffers to the underside of the toilet seat and lid, if not already pre-installed. These buffers provide stability and prevent direct contact with the ceramic.

Image: Dimensional diagram of the toilet seat, indicating measurements for proper fit.

Image: Detailed technical drawing with all relevant dimensions for installation.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The SCHÜTTE 80122 toilet seat is equipped with a soft-close mechanism for enhanced comfort and durability.

• To close the lid or seat, simply give it a gentle tap downwards. The soft-close mechanism will engage, allowing the lid and seat to lower slowly and silently without slamming.
• Avoid forcing the lid or seat down, as this can damage the soft-close mechanism over time.

Image: Demonstration of the soft-close function, ensuring quiet and gentle closing.

പരിപാലനവും പരിചരണവും

Proper care will help maintain the appearance and functionality of your MDF toilet seat.

• വൃത്തിയാക്കൽ: ടോയ്‌ലറ്റ് സീറ്റ് പതിവായി നേരിയ സോപ്പ് ലായനിയും മൃദുവായ, ഡി ക്ലീനറും ഉപയോഗിച്ച് വൃത്തിയാക്കുക.amp cloth. Wipe dry immediately with a clean, soft cloth.
• കഠിനമായ ക്ലീനറുകൾ ഒഴിവാക്കുക: Do not use abrasive cleaning agents, scouring pads, strong detergents, or cleaners containing chlorine, acids, or alcohol. These can damage the MDF material and the surface finish.
• ഈട്: The MDF material is designed to be shatter-proof and scratch-resistant, contributing to a long service life.
• ഹിഞ്ച് കെയർ: Periodically check the hinges for any signs of corrosion or stiffness. A small amount of silicone spray can be applied to the hinge mechanisms if needed, avoiding contact with the seat surface.

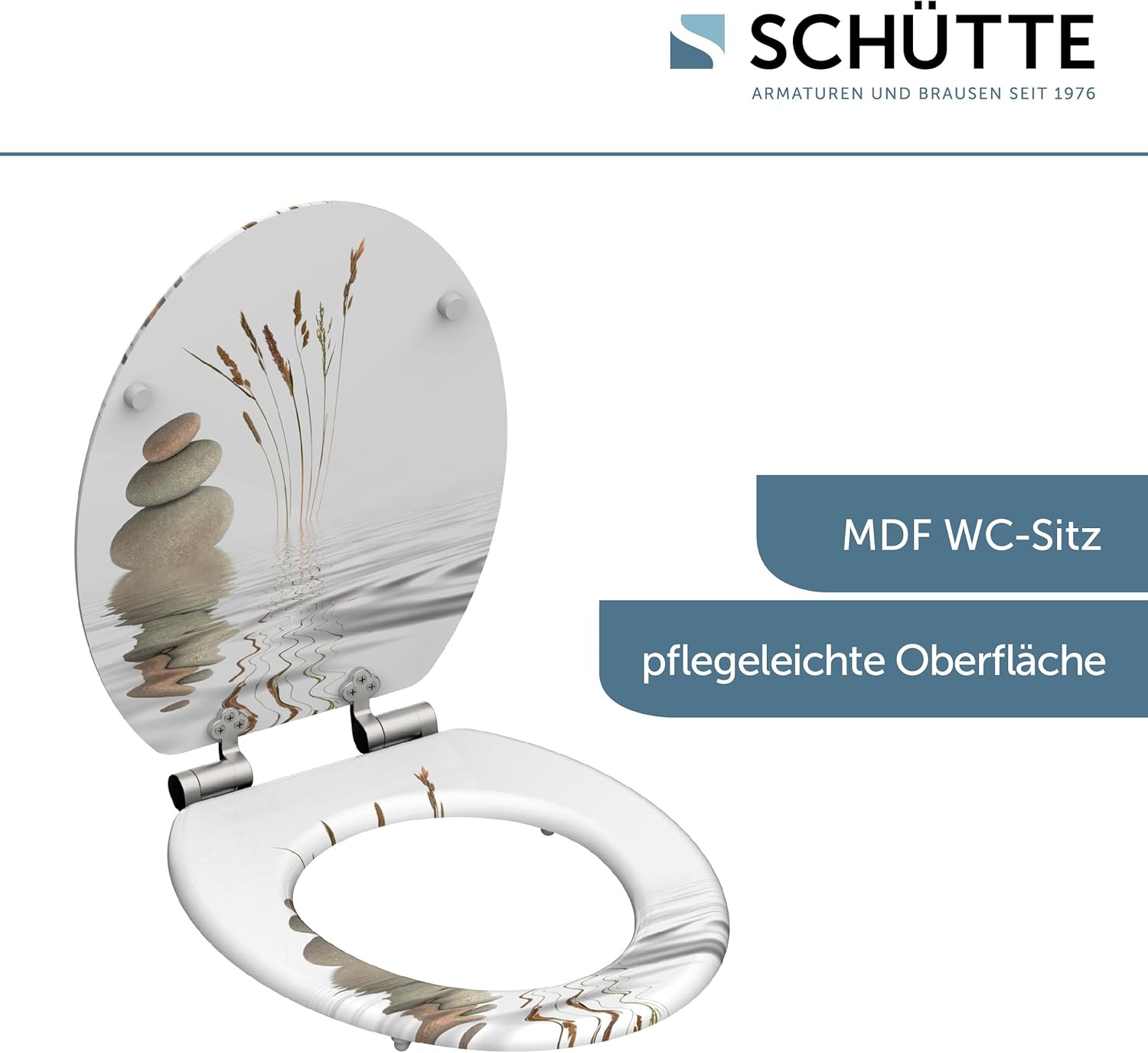

Image: The easy-care surface of the MDF toilet seat, designed for hygienic cleaning.

ട്രബിൾഷൂട്ടിംഗ്

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഇതാ:

• സീറ്റ് ഒഴിഞ്ഞുകിടക്കുന്നു: If the toilet seat feels wobbly or loose, check the mounting nuts underneath the toilet bowl. Tighten them securely until the seat is stable.
• Soft-Close Mechanism Not Working Properly: Ensure the hinges are clean and free from debris. If the mechanism slows down significantly or stops working, it might indicate wear. Contact customer support if the issue persists after cleaning.
• ഞരക്കമുള്ള ശബ്ദങ്ങൾ: Squeaking can often be resolved by ensuring all connections are tight. A small amount of silicone-based lubricant can be applied to the hinge pins, avoiding contact with the seat material.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support regarding your SCHÜTTE 80122 MDF Toilet Seat, please contact the manufacturer directly.

SCHÜTTE has been developing products for the sanitary sector for over 40 years. For assistance, you can reach us at:

ഫോൺ: +49 (0) 5407-81529-0

പിന്തുണയുമായി ബന്ധപ്പെടുമ്പോൾ നിങ്ങളുടെ മോഡൽ നമ്പറും (80122) വാങ്ങൽ വിവരങ്ങളും തയ്യാറായി വയ്ക്കുക.
