Teesa TSA3228 Slow Juicer Instruction Manual

1. ആമുഖം

Thank you for choosing the Teesa TSA3228 Slow Juicer. This manual provides essential information for the safe and efficient use of your appliance. Please read these instructions carefully before operating the juicer and retain them for future reference.

The Teesa TSA3228 Slow Juicer is designed to extract juice from various fruits and vegetables, preserving nutrients through its slow-speed masticating process. Its robust stainless steel construction ensures durability and ease of cleaning.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

• അസംബ്ലി ചെയ്യുന്നതിനോ, ഡിസ്അസംബ്ലിംഗ് ചെയ്യുന്നതിനോ, വൃത്തിയാക്കുന്നതിനോ മുമ്പ് ഉപകരണം പവർ ഔട്ട്‌ലെറ്റിൽ നിന്ന് അൺപ്ലഗ് ചെയ്തിട്ടുണ്ടെന്ന് എല്ലായ്പ്പോഴും ഉറപ്പാക്കുക.
• മോട്ടോർ ബേസ് വെള്ളത്തിലോ മറ്റേതെങ്കിലും ദ്രാവകത്തിലോ മുക്കരുത്.
• Keep hands and utensils away from moving parts during operation to prevent injury. Use the provided pusher for feeding ingredients.
• Ensure all parts are correctly assembled and locked into place before operating the juicer. The juicer is equipped with safety mechanisms to prevent operation if not properly assembled.
• കേടായ ചരടോ പ്ലഗോ ഉപയോഗിച്ച് ഉപകരണം പ്രവർത്തിപ്പിക്കരുത്, അല്ലെങ്കിൽ ഉപകരണം തകരാറിലായാൽ അല്ലെങ്കിൽ ഏതെങ്കിലും വിധത്തിൽ കേടുപാടുകൾ സംഭവിച്ചിട്ടുണ്ടെങ്കിൽ.
• ഈ ഉപകരണം വീട്ടുപയോഗത്തിന് മാത്രമുള്ളതാണ്. വാണിജ്യ ആവശ്യങ്ങൾക്ക് ഇത് ഉപയോഗിക്കരുത്.
• Do not allow children to operate the juicer. Close supervision is necessary when the appliance is used near children.
• Avoid juicing hard items such as ice, frozen fruits, or large seeds/pits, as this can damage the auger and motor.
• Do not use abrasive cleaning agents or scouring pads on any part of the juicer.

3. പാക്കേജ് ഉള്ളടക്കം

അൺപാക്ക് ചെയ്യുമ്പോൾ, എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ദയവായി പരിശോധിക്കുക:

• Teesa TSA3228 Slow Juicer (Motor Base, Juicing Chamber, Auger, Sieve, Lid)
• Juice Container (800 ml capacity)
• Pulp Container (1000 ml capacity)
• ക്ലീനിംഗ് ബ്രഷ്
• ഫുഡ് പുഷർ

Image: Included accessories: two clear containers, a cleaning brush, and a food pusher.

4. ഉൽപ്പന്ന ഘടകങ്ങൾ

Familiarize yourself with the main parts of your Teesa TSA3228 Slow Juicer:

1. മോട്ടോർ ബേസ്: Contains the motor and control switch.
2. Juicing Chamber: Where ingredients are processed.
3. Auger (Snail): The slow-rotating component that crushes and presses ingredients. Made of stainless steel and PCTG.
4. അരിപ്പ: Separates juice from pulp. Features small holes for efficient extraction.
5. ലിഡ്: Covers the juicing chamber and includes the feeding chute.
6. ഫുഡ് പുഷർ: Used to guide ingredients into the feeding chute.
7. Juice Spout with Anti-Drip Cap: Dispenses extracted juice. The cap prevents drips.
8. Pulp Spout: Discharges separated pulp.
9. ജ്യൂസ് കണ്ടെയ്നർ: വേർതിരിച്ചെടുത്ത നീര് ശേഖരിക്കുന്നു.
10. പൾപ്പ് കണ്ടെയ്നർ: Collects the discarded pulp.
11. വൈദ്യുതി സ്വിച്ച്: Controls the juicer's operation (ON/OFF/Reverse).
12. Lock/Unlock Mechanism: Secures the juicing chamber to the motor base.

ചിത്രം: വശം view of the Teesa TSA3228 Slow Juicer, showing its assembled components.

Image: Close-up of the lock/unlock mechanism on the Teesa TSA3228 Slow Juicer base.

ചിത്രം: വശം view of the Teesa TSA3228 Slow Juicer, highlighting the power switch.

5. സജ്ജീകരണം

Follow these steps to assemble your slow juicer before first use:

1. Place the motor base on a stable, flat, and dry surface. Ensure the non-slip feet are securely positioned.
2. Align the juicing chamber with the motor base and rotate it clockwise until it locks into place. You should hear a click or feel it secure.
3. Insert the auger into the center of the juicing chamber.
4. Place the sieve over the auger, ensuring it sits correctly within the juicing chamber.
5. Attach the lid to the top of the juicing chamber, aligning the arrows or indicators, and rotate it clockwise until it locks securely.
6. Position the juice container under the juice spout and the pulp container under the pulp spout.

Your Teesa TSA3228 Slow Juicer is now ready for operation.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

6.1. Ingredient Preparation

• എല്ലാ പഴങ്ങളും പച്ചക്കറികളും നന്നായി കഴുകുക.
• Remove any hard pits, seeds, or large stems (e.g., from peaches, plums, apples).
• Cut ingredients into pieces small enough to fit into the feeding chute. For fibrous vegetables like celery, cut them into short lengths to prevent clogging.
• Peel fruits with thick or inedible skins (e.g., oranges, pineapples, kiwis).

6.2. ജ്യൂസിംഗ് പ്രക്രിയ

1. Ensure the anti-drip cap on the juice spout is closed if you wish to mix juices internally or prevent drips.
2. Plug the power cord into a suitable electrical outlet (220-240V ~ 50/60Hz).
3. Turn the power switch to the 'ON' position. The auger will begin to rotate.
4. Slowly feed the prepared ingredients into the feeding chute. Use the food pusher to gently guide ingredients down. Do not force ingredients, as this can strain the motor.
5. Juice will be dispensed from the juice spout into the juice container, and pulp will be expelled from the pulp spout into the pulp container.
6. For continuous juicing, ensure the anti-drip cap is open.
7. The maximum continuous operating time is 20 minutes. After 20 minutes, allow the juicer to rest for at least 30 minutes to prevent overheating.
8. Once juicing is complete, turn the power switch to the 'OFF' position and unplug the appliance.

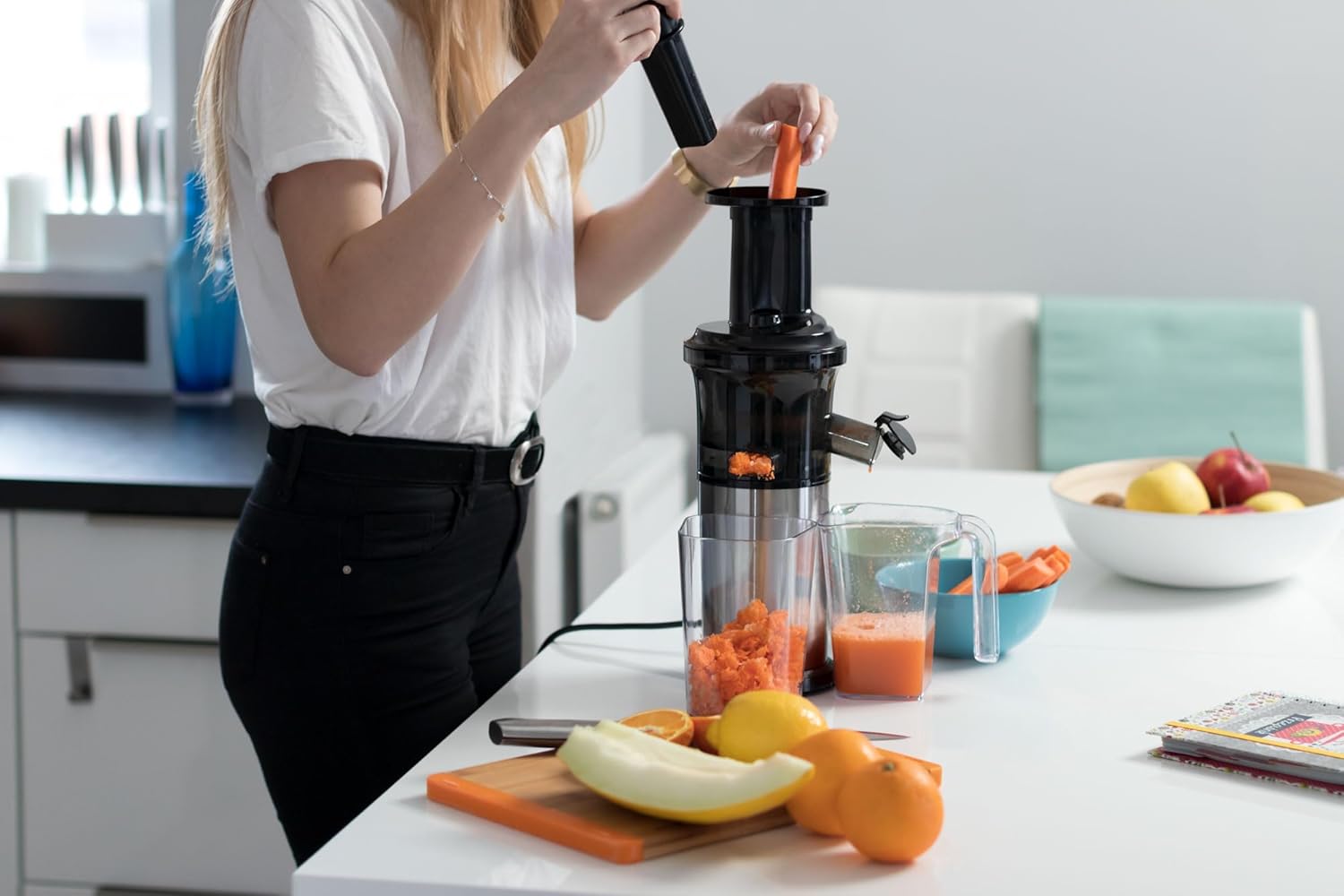

Image: A person feeding a carrot into the Teesa TSA3228 Slow Juicer's feeding chute.

Image: A person operating the Teesa TSA3228 Slow Juicer, showing juice collecting in the front container and pulp in the side container.

Image: Close-up of fresh juice being dispensed from the Teesa TSA3228 Slow Juicer into a glass.

6.3. റിവേഴ്സ് ഫംഗ്ഷൻ

If ingredients become jammed or the juicer stops during operation, switch the power to the 'R' (Reverse) position for a few seconds. This will rotate the auger in the opposite direction to clear the blockage. After clearing, switch back to 'ON' to resume juicing. If the blockage persists, turn off the juicer, unplug it, and disassemble to clear the obstruction manually.

7. പരിപാലനവും ശുചീകരണവും

Regular cleaning ensures optimal performance and extends the lifespan of your juicer.

1. വേർപെടുത്തുക: After unplugging the juicer, rotate the lid counter-clockwise to unlock and remove it. Then, remove the sieve, auger, and juicing chamber from the motor base.
2. കഴുകൽ: Immediately rinse all removable parts (lid, pusher, juicing chamber, auger, sieve, containers) under running water to prevent pulp from drying and sticking.
3. ക്ലീനിംഗ് ബ്രഷ്: Use the provided cleaning brush to remove stubborn pulp from the sieve and other components.
4. ഡിഷ്വാഷർ സുരക്ഷിത ഭാഗങ്ങൾ: The majority of the removable parts are dishwasher safe. Refer to the product packaging or manufacturer's guidelines for specific dishwasher compatibility.
5. മോട്ടോർ ബേസ്: പരസ്യം ഉപയോഗിച്ച് മോട്ടോർ ബേസ് തുടയ്ക്കുകamp cloth. Never immerse the motor base in water or other liquids.
6. ഉണക്കൽ: Ensure all parts are thoroughly dried before reassembling or storing the juicer.
7. പ്രധാനപ്പെട്ടത്: Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the surfaces of the juicer.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Teesa TSA3228 Slow Juicer, refer to the following common problems and solutions:

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact your retailer or the Teesa customer service department. Keep your proof of purchase for warranty validation.
