ആമുഖം
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Ferroli DIVATECH D LN C 24 Open Chamber Boiler. Please read this manual thoroughly before attempting any installation or operation. Keep this manual for future reference.
സുരക്ഷാ വിവരങ്ങൾ
Always adhere to local regulations and safety standards during installation and operation. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Consult a qualified installer, service agency, or the gas supplier for information or assistance.
- യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥർ: ഇൻസ്റ്റാളേഷനും അറ്റകുറ്റപ്പണിയും യോഗ്യതയുള്ളതും അംഗീകൃതവുമായ ഉദ്യോഗസ്ഥർ മാത്രമേ നടത്താവൂ.
- ഗ്യാസ് വിതരണം: Ensure the gas supply is turned off before any service or maintenance.
- വെൻ്റിലേഷൻ: This is an open chamber boiler; ensure adequate ventilation as per local codes to prevent carbon monoxide buildup.
- ജല സമ്മർദ്ദം: Do not operate the boiler if the water pressure is outside the recommended range.
- കുട്ടികൾ: Keep children away from the boiler and its controls.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of the Ferroli DIVATECH D LN C 24 boiler requires professional expertise. Refer to the detailed installation guide provided separately with the product for specific instructions regarding plumbing, gas connection, electrical wiring, and flue system setup.
പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ:
- Verify that the boiler model matches the gas type available (methane).
- Ensure the installation site meets all ventilation and space requirements.
- Check the integrity of the packaging and the boiler for any transport damage.
Mounting the Boiler:
The boiler should be securely mounted on a solid wall capable of supporting its weight (27 kg). Use appropriate wall fixings. Ensure the boiler is level to guarantee proper operation and drainage.

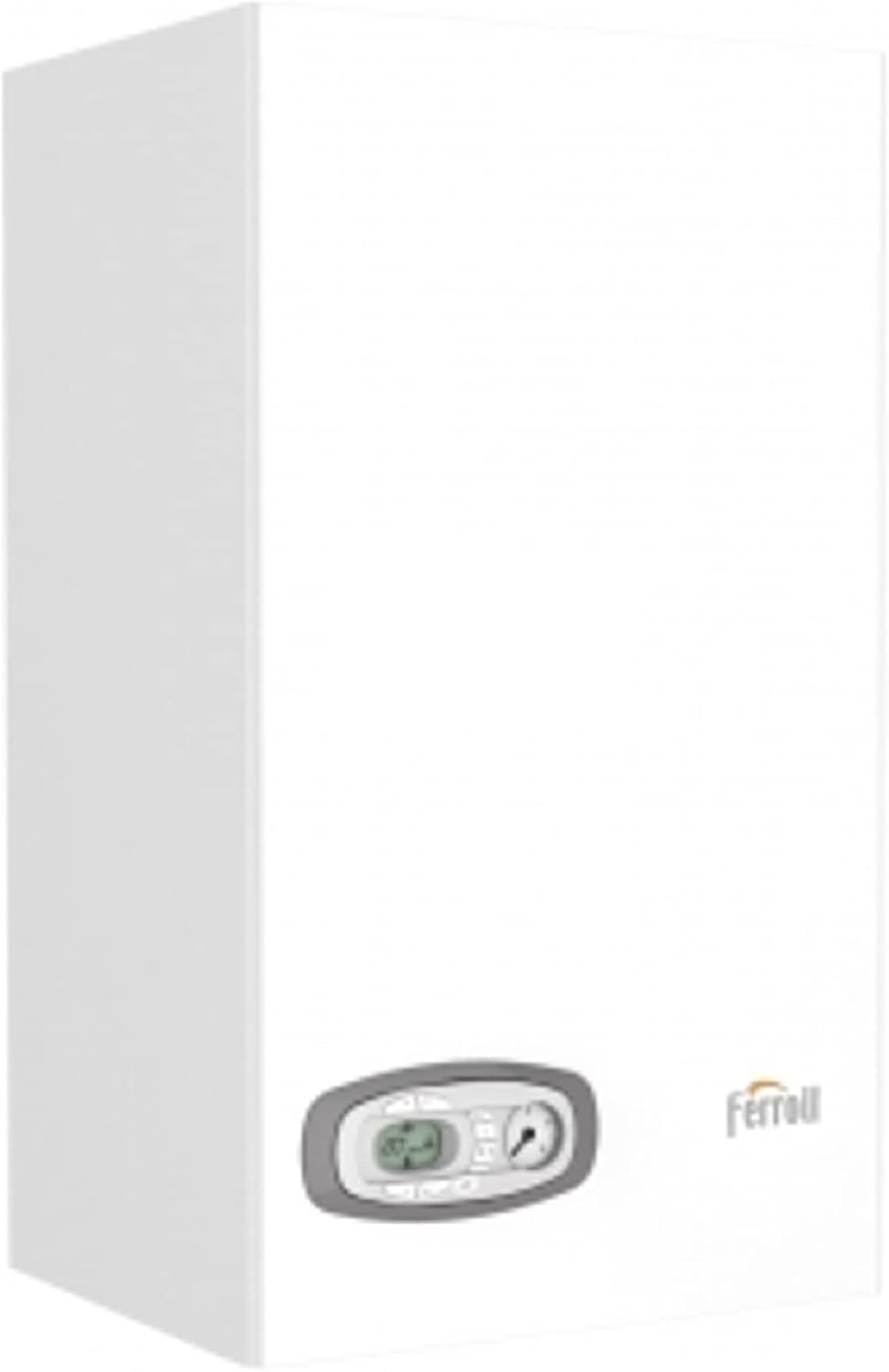

ചിത്രം 1: ഫ്രണ്ട് view of the Ferroli DIVATECH D LN C 24 Open Chamber Boiler. The boiler is white with a grey control panel located at the bottom right, featuring a digital display and pressure gauge. The Ferroli logo is visible above the control panel.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
പ്രാരംഭ ആരംഭം:
- Ensure all gas, water, and electrical connections are secure and leak-free.
- പ്രധാന ഗ്യാസ് വാൽവ് തുറക്കുക.
- Fill the heating system with water until the pressure gauge reads between 1 and 1.5 bar. Bleed air from the system.
- Turn on the electrical supply to the boiler.
- Set the boiler to heating mode using the control panel.
പ്രതിദിന പ്രവർത്തനം:
- താപനില ക്രമീകരണം: Use the temperature control knobs on the front panel to set the desired heating and domestic hot water temperatures.
- പ്രഷർ മോണിറ്ററിംഗ്: Regularly check the system pressure on the gauge. If it drops below 1 bar, repressurize the system.
- പിശക് കോഡുകൾ: The digital display will show error codes if a fault occurs. Refer to the troubleshooting section for common codes.
മെയിൻ്റനൻസ്
Regular maintenance is crucial for the longevity and efficient operation of your boiler. It is recommended to have the boiler serviced annually by a qualified technician.
ഉപയോക്തൃ പരിപാലനം:
- വൃത്തിയാക്കൽ: Wipe the exterior of the boiler with a soft, damp തുണി. ഉരച്ചിലുകൾ ഉള്ള ക്ലീനറുകൾ ഉപയോഗിക്കരുത്.
- സമ്മർദ്ദ പരിശോധന: Monitor system pressure weekly.
- വെൻ്റിലേഷൻ: Ensure that the area around the boiler is clear and ventilation openings are not obstructed.
പ്രൊഫഷണൽ മെയിൻ്റനൻസ്:
- Annual inspection and cleaning of the heat exchanger and burner.
- Checking and adjusting gas pressure.
- Verification of safety devices and controls.
- Flue gas analysis.
ട്രബിൾഷൂട്ടിംഗ്
Before calling for service, consult the following table for common issues and their solutions. For persistent problems or issues not listed, contact a qualified technician.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No heating/hot water | കുറഞ്ഞ സിസ്റ്റം മർദ്ദം | Repressurize the system to 1-1.5 bar. |
| No heating/hot water | ഗ്യാസ് വിതരണം നിർത്തി | Check if the main gas valve is open. |
| Boiler lockout/Error code | ഇഗ്നിഷൻ പരാജയം | Reset the boiler. If it persists, call a technician. |
| ബോയിലർ അസാധാരണമായ ശബ്ദങ്ങൾ ഉണ്ടാക്കുന്നു | Air in the system / Limescale buildup | Bleed radiators. For limescale, professional descaling is required. |
സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: ഫെറോലി
- മോഡൽ നമ്പർ: 500001
- ഉൽപ്പന്ന അളവുകൾ (L x W x H): 5.99 x 13.51 x 5.99 സെ.മീ (ഏകദേശം 2.36 x 5.32 x 2.36 ഇഞ്ച്)
- ഭാരം: 27 കിലോഗ്രാം (ഏകദേശം 59.5 പൗണ്ട്)
- മെറ്റീരിയൽ: 18/8 stainless steel (internal components, where applicable)
- തരം: Open Chamber Boiler
- ഇന്ധന തരം: മീഥെയ്ൻ (പ്രകൃതി വാതകം)
- ASIN: B07PX285Y8
- ആദ്യം ലഭ്യമായ തീയതി: 30 മാർച്ച് 2019
വാറൻ്റിയും പിന്തുണയും
For warranty information, please refer to the warranty card included with your product or contact Ferroli customer service. Keep your proof of purchase for warranty claims.
For technical support, spare parts, or to schedule professional service, please contact your authorized Ferroli dealer or visit the official Ferroli website. Always provide your model number (500001) and serial number when seeking support.
ഉൽപ്പന്ന വീഡിയോകൾ
No official product videos from the seller were found to be relevant for inclusion in this manual.
