1. ആമുഖം
This manual provides essential information for the proper installation, operation, and maintenance of the Karcher BR 55/40 C scrubber dryer squeegee blades. These blades are critical components for effective water pickup and drying performance of your Karcher BR 55/40 C floor scrubber. Please read this manual thoroughly before installation or maintenance to ensure safe and efficient use.
2 സുരക്ഷാ വിവരങ്ങൾ
Always observe general safety precautions when working with machinery and replacement parts. Failure to follow these instructions may result in injury or damage to the equipment.
- പവർ വിച്ഛേദിക്കുക: Before performing any installation, maintenance, or troubleshooting, ensure the Karcher BR 55/40 C scrubber dryer is turned off and disconnected from its power source to prevent accidental startup.
- സംരക്ഷണ ഗിയർ ധരിക്കുക: Use appropriate personal protective equipment (PPE), such as gloves, to protect your hands during handling and installation.
- ശ്രദ്ധയോടെ കൈകാര്യം ചെയ്യുക: Squeegee blades may have sharp edges or corners. Handle them carefully to avoid cuts.
- Consult Machine Manual: Refer to the main Karcher BR 55/40 C scrubber dryer operating manual for specific instructions related to the machine's safety, power disconnection, and squeegee unit removal.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Karcher BR 55/40 C scrubber dryer squeegee blade set includes both front and rear blades designed for optimal water collection. These blades are made from durable PU anti-oil rubber, specified at 70 SH (Shore hardness) and are yellow in color.

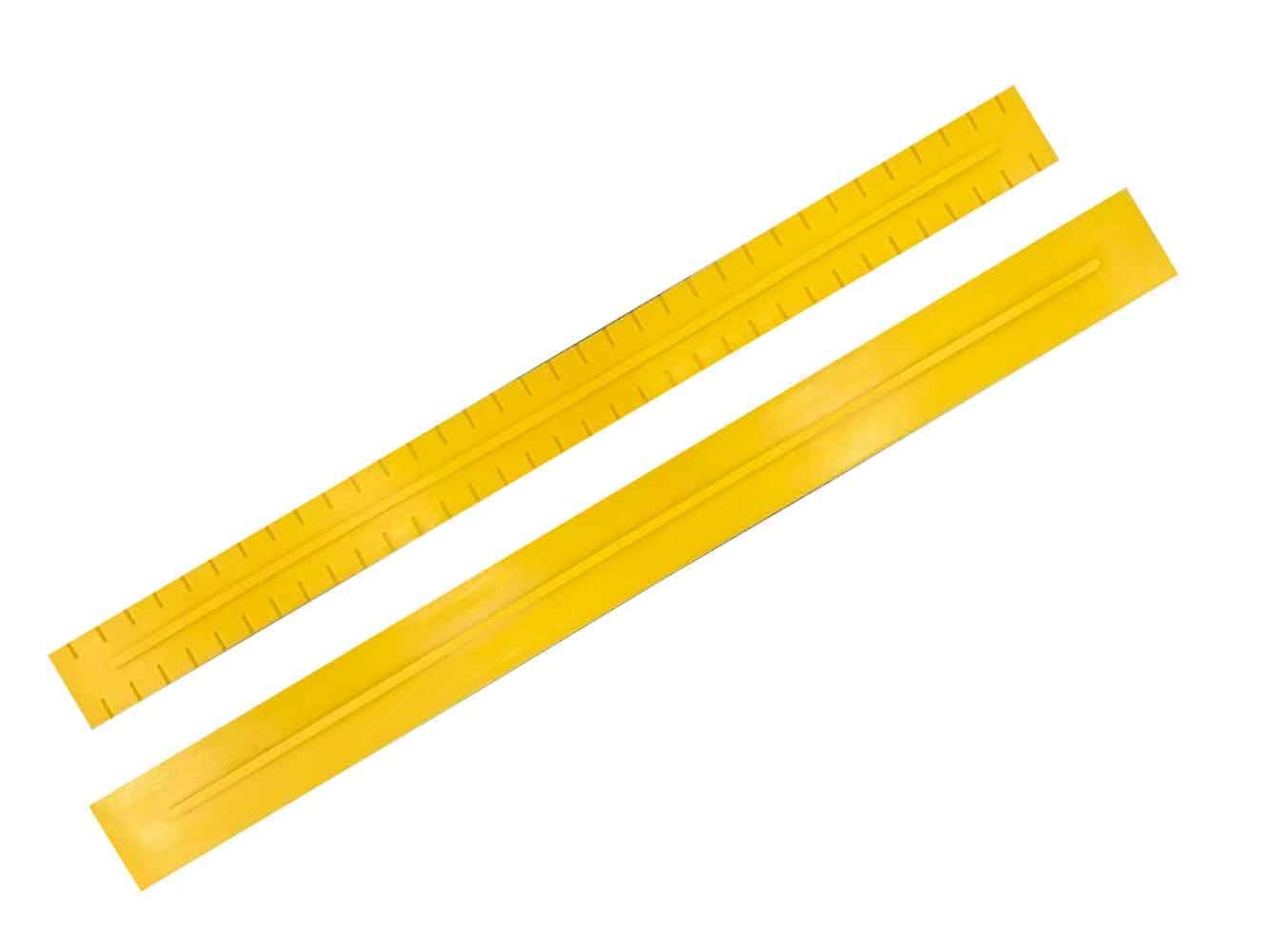

Image 1: Karcher BR 55/40 C Scrubber Dryer Squeegee Blade. This image displays a yellow squeegee blade, likely a replacement part for the Karcher BR 55/40 C scrubber dryer, showing its flexible rubber material and mounting holes.
Blade Specifications:
- Front Blade: Approximately 830 x 68 x 6 / 12 mm, PU anti-oil, 70 SH yellow.
- Rear Blade: Approximately 890 x 78 x 6 / 12 mm, PU anti-oil, 70 SH yellow.
- മെറ്റീരിയൽ: High-quality PU (Polyurethane) anti-oil rubber.
- കാഠിന്യം: 70 Shore (SH).
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The squeegee blades are designed for vehicle-specific fitment (Karcher BR 55/40 C) and typically use a pinch tab mounting type. Always refer to the Karcher BR 55/40 C scrubber dryer's main instruction manual for detailed, model-specific installation steps. The following is a general guide:
- മെഷീൻ തയ്യാറാക്കുക: Ensure the scrubber dryer is turned off, unplugged, and the squeegee unit is in a position that allows safe access.
- പഴയ ബ്ലേഡുകൾ നീക്കം ചെയ്യുക: Carefully detach the worn front and rear squeegee blades from their mounting brackets. Note their orientation for correct installation of the new blades.
- Clean the Squeegee Unit: Clean any debris or residue from the squeegee unit frame before installing new blades.
- പുതിയ ബ്ലേഡുകൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Position the new front and rear blades correctly into their respective slots or mounting points. Ensure they are securely fastened using the existing pinch tab mechanism or other fasteners as per the machine's manual. The blades should be straight and free from kinks.
- വിന്യാസം പരിശോധിക്കുക: Verify that the blades are properly aligned and make full contact with the floor when the squeegee unit is lowered.
5. പ്രവർത്തന തത്വങ്ങൾ
Once correctly installed, the squeegee blades work in conjunction with the vacuum system of the Karcher BR 55/40 C scrubber dryer to effectively remove water from the floor surface. The front blade guides the water towards the rear blade, which then creates a seal to allow the vacuum to pick up the dirty water, leaving the floor dry and clean. Proper blade condition and adjustment are crucial for optimal drying performance.
6. പരിപാലനം
Regular maintenance of your squeegee blades extends their lifespan and ensures consistent cleaning results.
- പ്രതിദിന പരിശോധന: After each use, inspect the blades for wear, cuts, tears, or embedded debris.
- വൃത്തിയാക്കൽ: Clean the blades thoroughly after each use to remove any dirt, grit, or chemical residues that can degrade the rubber or impair performance. Use mild soap and water.
- Rotation/Flipping: Many squeegee blades can be rotated or flipped to utilize unworn edges, extending their service life. Consult your machine's manual for specific instructions on this procedure.
- മാറ്റിസ്ഥാപിക്കൽ: Replace blades when they show significant wear, such as rounded edges, deep cuts, or when they no longer effectively pick up water, leading to streaking or wet floors.
- സംഭരണം: If removing blades for extended periods, store them flat and away from direct sunlight or extreme temperatures to prevent warping or degradation.
7. പ്രശ്നപരിഹാരം
If your Karcher BR 55/40 C scrubber dryer is leaving streaks or not picking up water effectively, the squeegee blades are often the cause. Here are common issues and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Streaks or wet floor after scrubbing | Worn, damaged, or dirty blades; incorrect blade adjustment; debris caught under blades. | Inspect, clean, or replace blades. Adjust squeegee pressure/angle according to machine manual. Remove any debris. |
| മോശം വെള്ളം എടുക്കൽ | Blades not making full contact with floor; vacuum system issue; clogged vacuum hose. | Check blade installation and adjustment. Verify vacuum motor function and clear any blockages in the hose or recovery tank. |
| Blades wear out quickly | Operating on abrasive surfaces; excessive down pressure; improper storage. | Ensure appropriate blade material for floor type. Adjust squeegee pressure. Store blades properly when not in use. |
8 സ്പെസിഫിക്കേഷനുകൾ
- നിർമ്മാതാവ്: കാർച്ചർ
- മോഡൽ അനുയോജ്യത: Karcher BR 55/40 C Scrubber Dryer
- Part Position: മുന്നിലും പിന്നിലും
- Front Blade Dimensions: 830 x 68 x 6 / 12 മി.മീ
- Rear Blade Dimensions: 890 x 78 x 6 / 12 മി.മീ
- മെറ്റീരിയൽ: PU (Polyurethane) anti-oil rubber
- കാഠിന്യം: 70 SH (Shore hardness)
- നിറം: മഞ്ഞ
- മൗണ്ടിംഗ് തരം: Pinch tab (vehicle-specific fitment)
- നിർമ്മാതാവിൻ്റെ റഫറൻസ്: 98765
- ASIN: B07Q6XQWSJ
9. വാറൻ്റിയും പിന്തുണയും
Specific warranty information for this replacement part is not provided in the product details. For warranty inquiries, technical support, or to purchase additional replacement parts, please contact Karcher customer service directly or visit their official website. Always provide your product model (BR 55/40 C) and the part's manufacturer reference number (98765) when seeking support.
