1. ആമുഖം
This manual provides essential information for the safe and efficient operation of your Intex Above Ground Underwater LED Magnetic Pool Light. Please read all instructions carefully before installation and use.
2 സുരക്ഷാ വിവരങ്ങൾ
Always follow basic safety precautions when installing and using this electrical product. Failure to do so may result in serious injury or property damage.
- Ensure the power source is disconnected before any installation or maintenance.
- Do not attempt to open or repair the sealed light unit or external transmitter.
- Keep the external power unit and transformer away from water and out of reach of children.
- This product is designed for above-ground pools up to 24 feet in size.
3. പാക്കേജ് ഉള്ളടക്കം
എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- Light Unit (internal, waterproof)
- Transmitter (external, with power cord)
- Power Cord (for transmitter)
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ

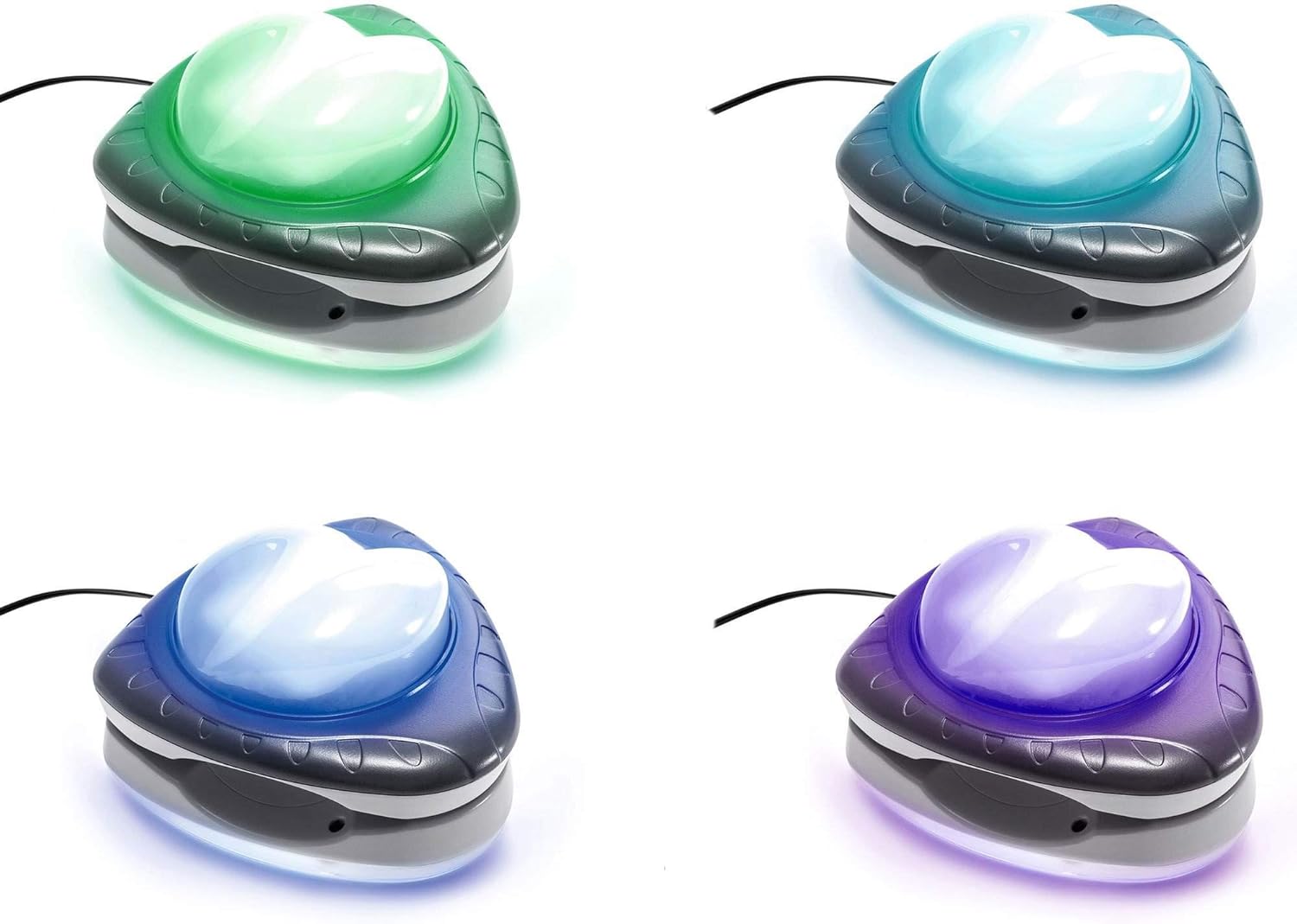

Figure 1: Intex Magnetic Pool Lights (4 Pack) showing various color options.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The Intex Magnetic Pool Light uses magnetic induction to safely power the light unit through the pool wall. No wiring is required inside the pool.
4.1 ഘടകം ഓവർview
Figure 2: Internal Light Unit (placed inside the pool).
Figure 3: External Transmitter Unit (placed outside the pool).
4.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ
- Separate the internal light unit from the external transmitter unit. They are held together magnetically.
- Place the internal light unit inside the pool, against the pool wall, at your desired location.
- Align the external transmitter unit on the outside of the pool wall, directly opposite the internal light unit. The strong magnets will hold them securely in place.
- Ensure the power cord from the external transmitter is routed safely away from the pool and connected to a suitable 110V AC outlet.
Figure 4: Magnetic light unit securely attached to the pool wall.
പ്രധാനപ്പെട്ടത്: If the internal light unit becomes separated from the external transmitter, it is designed to float to the surface for easy retrieval. The external power source is safe for use near water.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The light unit features multiple color modes for enhanced ambiance.
5.1 Powering On/Off and Changing Modes
Figure 5: Control buttons on the external transmitter unit.
- Plug the external transmitter's power cord into a 110V AC outlet.
- Press the power button on the external transmitter to turn the light on.
- Press the mode button repeatedly to cycle through the available color options: white, green, blue, and a color-changing mode.
- ലൈറ്റ് ഓഫ് ചെയ്യാൻ വീണ്ടും പവർ ബട്ടൺ അമർത്തുക.
Video 1: Demonstration of the automatic color changing mode of the LED pool light.
5.2 Nighttime Illumination
The powerful LED light effectively illuminates pools up to 24 feet, providing clear visibility and a vibrant atmosphere for evening swims.
Figure 6: Pool illuminated by the Intex LED Magnetic Pool Light at night.
6. പരിപാലനം
Regular maintenance ensures optimal performance and longevity of your pool light.
- വൃത്തിയാക്കൽ: Periodically wipe down the external transmitter unit with a damp cloth. The internal light unit can be cleaned with a soft brush or cloth while submerged.
- സംഭരണം: During off-season or extended periods of non-use, disconnect the power, remove both units from the pool wall, clean them thoroughly, and store them in a dry, cool place away from direct sunlight.
- പരിശോധന: Regularly inspect the power cord for any signs of damage. If damaged, discontinue use and replace the unit.
7. പ്രശ്നപരിഹാരം
If your Intex Magnetic Pool Light is not functioning as expected, refer to the following common issues and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ലൈറ്റ് ഓണാക്കില്ല. | No power to the transmitter. | പ്രവർത്തിക്കുന്ന ഒരു ഔട്ട്ലെറ്റിൽ പവർ കോർഡ് സുരക്ഷിതമായി പ്ലഗ് ചെയ്തിട്ടുണ്ടോയെന്ന് പരിശോധിക്കുക. |
| വെളിച്ചം മങ്ങുന്നു അല്ലെങ്കിൽ മിന്നിമറയുന്നു. | Poor magnetic connection. | Ensure the internal light unit and external transmitter are perfectly aligned on opposite sides of the pool wall. |
| Light unit floats away. | Loss of magnetic connection. | This is a safety feature. Re-attach the external transmitter to the pool wall, aligning it with the internal unit. |
| Cannot change light colors. | Mode button not pressed correctly. | Press the mode button firmly and release. Ensure the unit is powered on. |
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ഇന്റക്സ് |
| മോഡൽ നമ്പർ | 28697ഇ |
| പവർ ഉറവിടം | കോർഡഡ് ഇലക്ട്രിക് |
| വാല്യംtage | 110 വോൾട്ട് (എസി) |
| പ്രകാശ സ്രോതസ്സ് തരം | എൽഇഡി |
| ഇളം നിറം | മൾട്ടി-കളർ |
| തെളിച്ചം | 800 ല്യൂമെൻസ് |
| ഇൻസ്റ്റലേഷൻ തരം | വാൾ മൗണ്ട് (കാന്തിക) |
| നിയന്ത്രണ രീതി | Touch (on external unit) |
| ജല പ്രതിരോധ നില | Water Resistant (internal unit) |
| Maximum Pool Size | Up to 24-foot pools |
9. വാറൻ്റിയും പിന്തുണയും
For warranty information, product registration, or technical support, please refer to the official Intex website or contact Intex customer service directly. Keep your purchase receipt for warranty claims.
