1. ആമുഖം
The Oakton WD-35805-18 Spear-Tip Double-Junction pH Electrode is a specialized sensor designed for accurate pH measurements in various applications, particularly those involving semi-solid samples. Its unique spear-tip design allows for direct penetration into materials like food, soil, or gels, while the double-junction construction minimizes contamination of the reference electrolyte, ensuring stable and reliable readings. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your electrode.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The WD-35805-18 electrode features a robust glass body and a sealed, double-junction reference system. The spear-tip sensing bulb is specifically engineered for direct insertion into challenging samples. This design provides a faster response time and improved longevity compared to conventional electrodes when used with semi-solids.

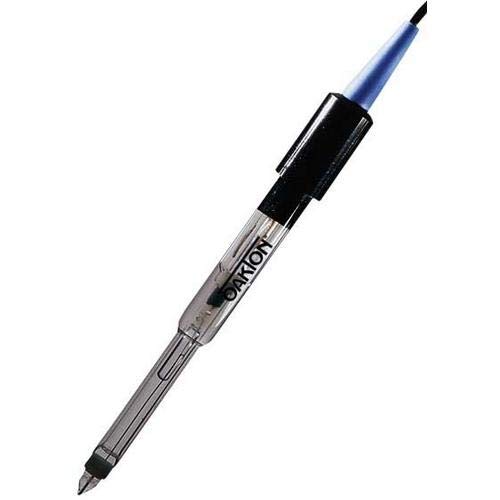

Image of the Oakton WD-35805-18 pH electrode, showing its spear-tip design, glass body, and the 'OAKTON' branding. The electrode is designed for direct insertion into semi-solid sampലെസ്.
3. സജ്ജീകരണം
- Initial Conditioning: Before first use, or after prolonged storage, soak the electrode tip in a pH 4 or pH 7 buffer solution for at least 30 minutes. This rehydrates the glass bulb and ensures optimal performance.
- കണക്ഷൻ: Connect the electrode's BNC connector to a compatible pH meter. Ensure the connection is secure and dry.
- കാലിബ്രേഷൻ: Calibrate the pH meter with the electrode using at least two fresh pH buffer solutions (e.g., pH 4.01, 7.00, and 10.00). Follow the specific calibration procedure outlined in your pH meter's instruction manual. Always calibrate at the temperature of your samples for best accuracy.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
- Sampതയ്യാറാക്കൽ: For semi-solid samples, ensure the sample is homogenous. If necessary, prepare the sample by gently mixing or grinding to achieve consistency.
- അളവ്:
- Rinse the electrode with distilled or deionized water and gently blot dry with a lint-free tissue.
- Carefully insert the spear-tip of the electrode directly into the semi-solid sample. Ensure the entire sensing bulb and junction are fully immersed.
- Allow sufficient time for the reading to stabilize on your pH meter. This may take longer in viscous or low-ionic strength sampലെസ്.
- Record the stable pH reading.
- Between Sampകുറവ്: Rinse the electrode thoroughly with distilled or deionized water between each measurement to prevent cross-contamination.
5. പരിപാലനം
- വൃത്തിയാക്കൽ:
- After each use, rinse the electrode thoroughly with distilled or deionized water.
- For stubborn deposits (e.g., protein, grease), refer to your pH meter's manual or electrode manufacturer's guidelines for specific cleaning solutions. Avoid abrasive materials.
- സംഭരണം: Always store the electrode with its sensing bulb immersed in a proper electrode storage solution (e.g., Oakton electrode storage solution or a pH 4 buffer with KCl). ഒരിക്കലുമില്ല store the electrode dry or in distilled/deionized water, as this will dehydrate the glass bulb and deplete the reference electrolyte.
- കാലിബ്രേഷൻ ആവൃത്തി: The frequency of calibration depends on the accuracy required, the nature of the samples, and the frequency of use. For best results, calibrate daily or before each series of measurements.
6. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Unstable or Drifting Readings | Dehydrated bulb, dirty electrode, air bubbles, temperature fluctuations, insufficient sample immersion. | Recondition electrode, clean electrode, ensure proper immersion, allow sample to equilibrate to temperature. |
| മന്ദഗതിയിലുള്ള പ്രതികരണ സമയം | Dirty or clogged junction, dehydrated bulb, old electrode. | Clean electrode, recondition, consider electrode replacement if old. |
| Inaccurate Readings / Calibration Failure | Contaminated buffers, incorrect calibration procedure, damaged electrode, temperature difference. | Use fresh buffers, re-calibrate carefully, inspect electrode for damage, ensure temperature consistency. |
If issues persist after attempting these solutions, contact Oakton technical support.
7 സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ: WD-35805-18
- ഇലക്ട്രോഡ് തരം: Spear-Tip Double-Junction pH Electrode
- ബോഡി മെറ്റീരിയൽ: ഗ്ലാസ്
- Junction Type: Annular
- അനുയോജ്യമായ ആപ്ലിക്കേഷനുകൾ: Semi-solid samples (e.g., food, soil, gels)
- നിർമ്മാതാവ്: ഓക്ടൺ
- ASIN: B07QL2H8CF
8. വാറൻ്റിയും പിന്തുണയും
For detailed warranty information and technical support, please refer to the official documentation provided with your purchase or visit the Oakton website. Contact information for customer service and technical assistance can typically be found on the manufacturer's product page or in the packaging materials.
