1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The VIVOHOME 20ft Inflatable Outdoor Projector Screen (Model VH394) is designed for versatile outdoor and indoor projection. It features a stable and sturdy design, double-sided projection capability, and durable 210D Oxford cloth material. This screen is ideal for backyard gatherings, outdoor parties, and various events, offering a large viewing area and quick setup.

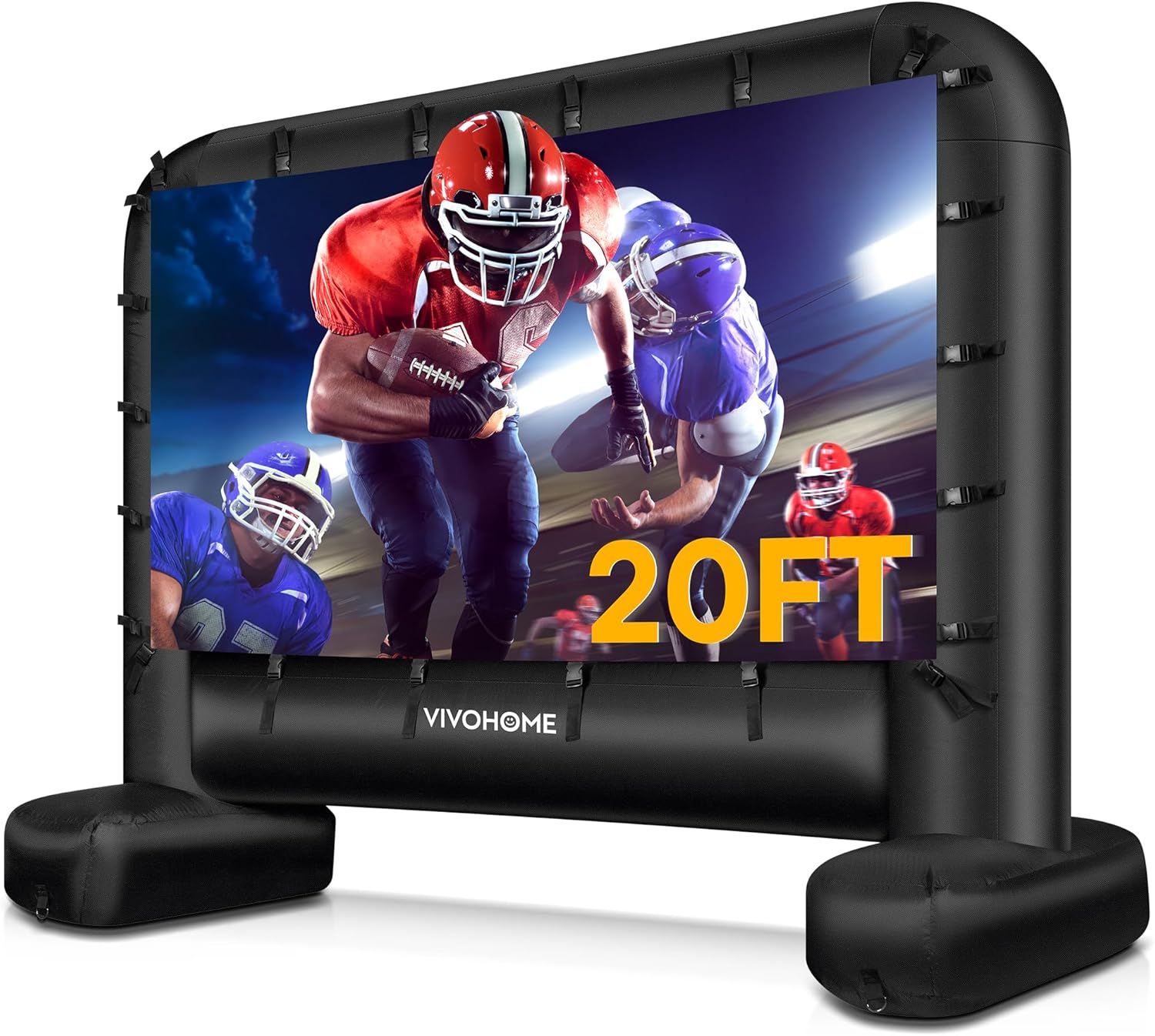

Image 1.1: The VIVOHOME 20ft Inflatable Outdoor Projector Screen, showcasing its large size and black inflatable frame.
2. പാക്കേജ് ഉള്ളടക്കം
സജ്ജീകരണവുമായി മുന്നോട്ടുപോകുന്നതിനുമുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- Inflatable Projector Screen Frame (20ft)
- Projection Surface (White, removable)
- 480W എയർ ബ്ലോവർ
- Ground Spikes (10 pieces)
- Ropes (4 pieces)
- 420D Oxford Carry Bag
3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
Follow these steps for a quick and secure setup:
- Unpack and Lay Flat: Remove the inflatable screen frame and projection surface from the carry bag. Lay the black inflatable frame flat on a clean, level surface in your desired viewing ഏരിയ.
- Attach Projection Surface: The projection surface attaches to the inflatable frame using strong Velcro strips. Ensure the surface is smooth and taut for optimal viewing.
- എയർ ബ്ലോവർ ബന്ധിപ്പിക്കുക: Locate the air intake tube on the inflatable frame. Securely attach the 480W air blower to this tube. Ensure the zipper on the air intake is closed before inflating.
- Inflate the Screen: Plug in the air blower. The screen will begin to inflate rapidly. Gently guide the inflatable tubes as they expand to ensure they form the correct shape. The screen should be fully inflated within approximately 65 seconds.
- Secure the Screen: Once fully inflated, use the provided ground spikes and ropes to secure the screen firmly to the ground. This is crucial for stability, especially in outdoor conditions or windy environments. The screen features extra-wide and extended feet for enhanced stability.
Image 3.1: The VIVOHOME screen inflating in a backyard setting, highlighting its fast setup time and quiet blower operation.
Image 3.2: Close-up of the stable design features, including wider feet, screen locking clips, and ground nails for secure placement.
സജ്ജീകരണ പ്രകടന വീഡിയോ
Video 3.1: A demonstration of the VIVOHOME inflatable screen's quick inflation process and overall setup, showcasing its ease of use and picture quality.
Video 3.2: This video illustrates the setup of the VIVOHOME inflatable projector screen, showing how it inflates and can be used for various events.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The VIVOHOME projector screen supports both front and rear projection, offering flexibility for your viewസജ്ജീകരിക്കുന്നു.
- Front Projection: Position your projector in front of the screen, facing the white projection surface.
- Rear Projection: Position your projector behind the screen, projecting through the white surface. The double-sided projection cloth ensures clear and vibrant images from either side.
Image 4.1: Illustration of the double-sided projection feature, allowing for both front and rear projection without visual blockage.
5. പരിപാലനം
Proper maintenance ensures the longevity and performance of your projector screen.
- Cleaning the Projection Surface: The projection surface is removable and can be easily cleaned. Simply wipe it with a wet cloth to remove any dirt or smudges. Allow it to air dry completely before storage.
- Cleaning the Inflatable Frame: The 210D Oxford cloth frame can be wiped clean with a damp തുണി. കഠിനമായ രാസവസ്തുക്കൾ ഒഴിവാക്കുക.
- സംഭരണം: After use, ensure the screen is completely dry before deflating and folding. Store the screen and all accessories in the provided 420D Oxford carry bag in a cool, dry place. Avoid storing the white screen directly against black fabric to prevent color transfer.
Image 5.1: Demonstrates the removable screen surface for easy cleaning and the compact 420D Oxford storage bag for portability.
6. പ്രശ്നപരിഹാരം
നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഇതാ:
- Screen Not Inflating: Ensure the air blower is securely attached to the intake tube and the zipper on the tube is fully closed. Check that the blower is plugged into a working power outlet.
- Screen Wrinkles: While the screen is made of wrinkle-free material, some minor creases may appear from folding. These typically become less noticeable once the screen is fully inflated and in use. Ensure the projection surface is tautly attached.
- Blower Noise: The 480W air blower operates at approximately 70dB. While designed to be quiet, if the noise is disruptive, consider positioning the blower further away or using sound-dampening techniques (e.g., placing it behind a barrier) if possible, ensuring adequate airflow.
- Screen Instability: Always use the provided ground spikes and ropes to secure the screen, especially outdoors. Ensure the screen's feet are fully extended and on a flat surface.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | വിവോഹോം |
| മോഡൽ നമ്പർ | VH394 |
| ഇനത്തിൻ്റെ ഭാരം | 34.1 പൗണ്ട് |
| മെറ്റീരിയൽ | 210D ഓക്സ്ഫോർഡ് |
| ഉൽപ്പന്ന അളവുകൾ | 169"ആംശം x 95"ആംശം |
| ഡിസ്പ്ലേ അളവുകൾ | 14.1ft x 8ft (166.5" x 81.1") |
| വീക്ഷണാനുപാതം | 16:9 |
| മൗണ്ടിംഗ് തരം | ഫ്ലോർസ്റ്റാൻഡിംഗ് |
| ബ്ലോവർ പവർ | 480W |
| Blower Noise Level | 70dB |
Image 7.1: Detailed dimensions of the VIVOHOME 20ft inflatable projector screen, including overall size and viewing ഏരിയ.
Image 7.2: Highlights the premium 210D Oxford fabric material, emphasizing its wrinkle-free, weather-resistant, and long-lasting properties.
8. വാറൻ്റിയും പിന്തുണയും
For information regarding product warranty or technical support, please refer to the official VIVOHOME website or contact their customer service directly. Specific warranty details are typically provided with your purchase documentation.
