XPPen AC41 ഡ്രോയിംഗ് ടാബ്‌ലെറ്റ് സ്റ്റാൻഡ് ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides comprehensive instructions for the setup, operation, and maintenance of your XPPen AC41 Drawing Tablet Stand. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.

Image 1: XPPen AC41 Drawing Tablet Stand (folded)

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• Constructed from durable ABS and glass fiber for a lightweight and portable design.
• Measures 330.15mm x 223.17mm, compatible with XPPen Artist 15.6 Pro, Artist 15.6 Pro V2, Artist Pro 14/16 Gen2 Drawing Tablets, and other tablets 15.6 inches or smaller.
• Features non-slip pads on both the surface and bottom to prevent movement and enhance stability during use.
• Designed to provide an optimal viewing and drawing angle, reducing neck and shoulder strain.

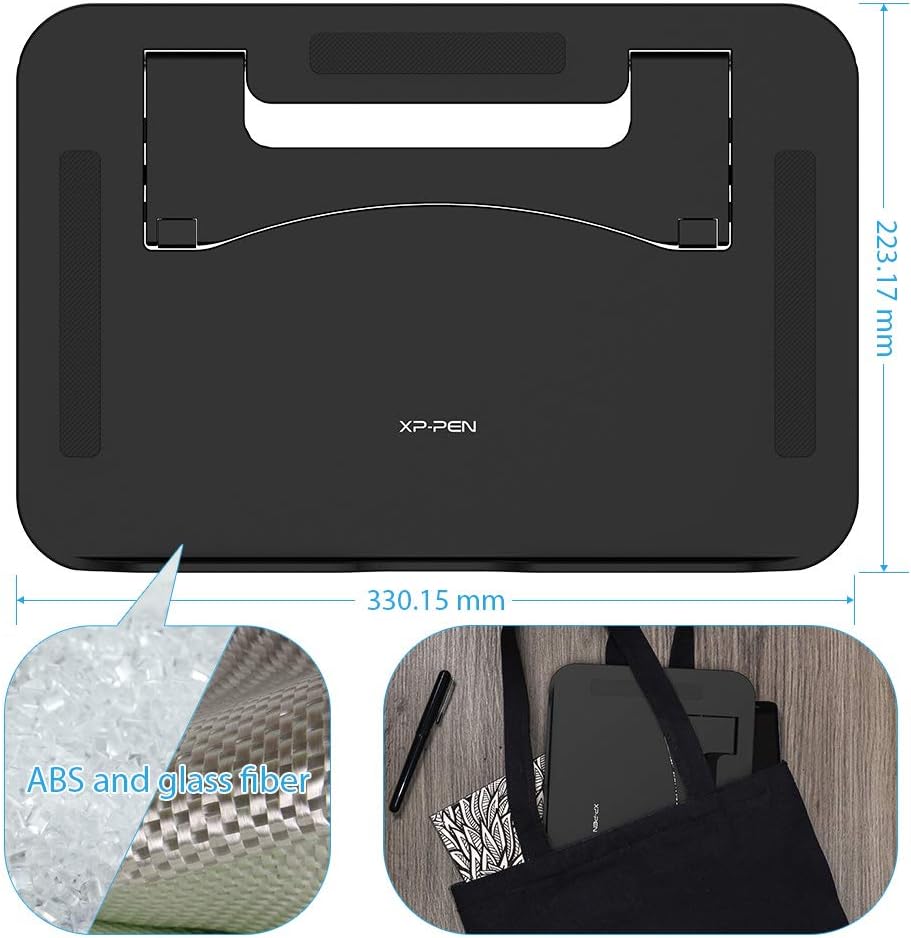

Image 2: Dimensions and Material Composition

3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

Follow these steps to set up your XPPen AC41 Drawing Tablet Stand:

1. Place the stand on a flat, stable surface.
2. Locate the support plate on the underside of the stand.
3. Press down on the designated areas (marked 'PUSH' if visible) and pull the support plate back until it locks into a 90-degree position, providing stable support.
4. Ensure the support plate is fully extended and securely locked.
5. Carefully place your compatible drawing tablet onto the stand. The non-slip pads will help secure the tablet.

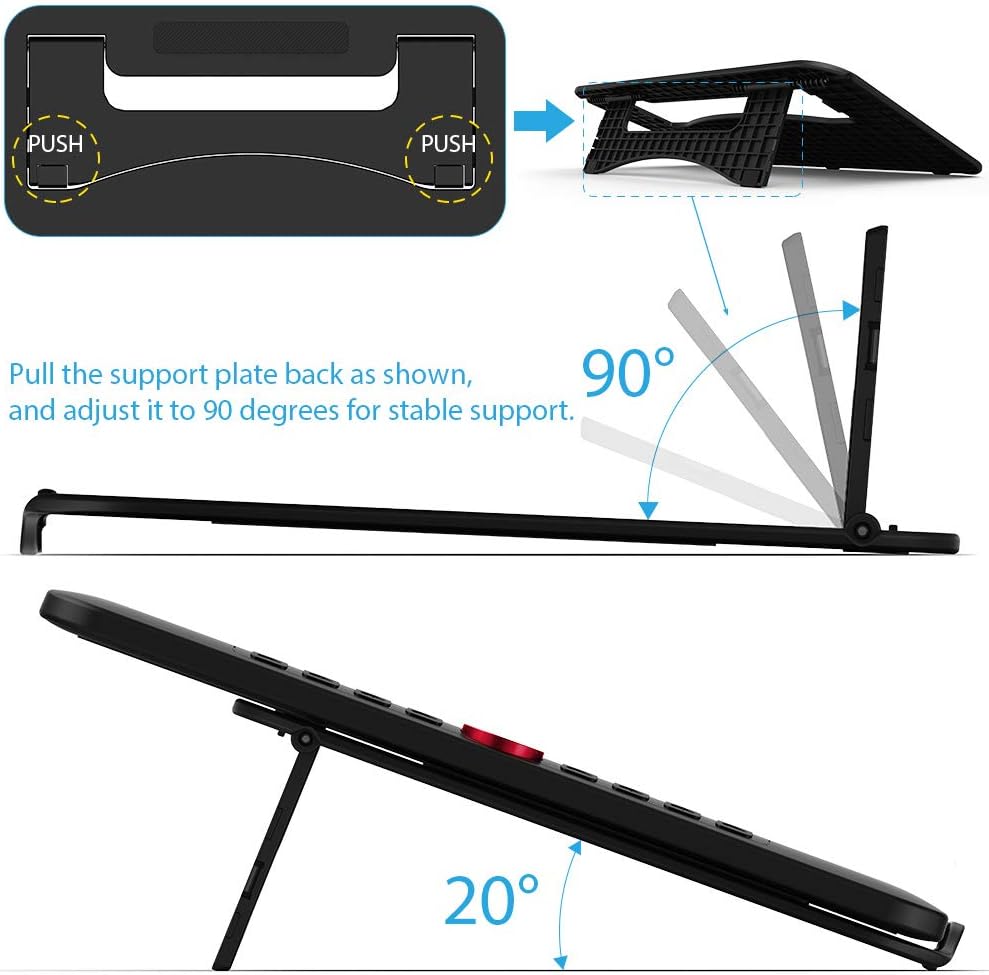

Image 3: Stand Unfolding and Angle

Image 4: Non-Slip Pad Details

4. ഓപ്പറേഷൻ

Once the stand is set up and your tablet is placed on it, you can begin your creative work. The stand provides a fixed, ergonomic angle designed for comfortable drawing and viewing.

• Ensure your tablet is centered on the stand for optimal balance.
• The non-slip surface will help keep your tablet in place during use.
• The fixed angle is engineered to reduce physical discomfort during extended use.

Image 5: Placing Tablet on Stand

Image 6: Tablet in Use on Stand

5. പരിചരണവും പരിപാലനവും

To maintain the condition and functionality of your AC41 stand:

• വൃത്തിയാക്കൽ: Wipe the stand with a soft, slightly damp cloth. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the material.
• ഉണക്കൽ: Ensure the stand is completely dry before placing any electronic devices on it.
• സംഭരണം: When not in use, fold the stand flat for compact storage. Store in a cool, dry place away from direct sunlight.

6. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your AC41 stand, refer to the following common solutions:

• Stand not stable:
  Ensure the support plate is fully extended and securely locked into the 90-degree position. Verify that the tablet is placed centrally on the stand and is within the recommended size and weight limits.
• Tablet sliding on the stand:
  Check that the non-slip pads on both the stand's surface and bottom are clean and free from dust or debris. Clean them gently with a damp cloth if necessary. Ensure your tablet's surface that contacts the stand is also clean.
• മടക്കുന്നതിനോ വിടുന്നതിനോ ഉള്ള ബുദ്ധിമുട്ട്:
  Apply gentle, even pressure when pressing the release mechanism and pulling the support plate. Do not force the mechanism. If resistance persists, check for any obstructions.

7 സാങ്കേതിക സവിശേഷതകൾ

8. വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, technical assistance, or customer support regarding your XPPen AC41 Drawing Tablet Stand, please visit the official XP-Pen webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി നേരിട്ട് ബന്ധപ്പെടുക.

കൂടുതൽ വിവരങ്ങളും ബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങളും നിങ്ങൾക്ക് ഇവിടെ കണ്ടെത്താനാകും XP-Pen Official Store.
