Fisher M-Scope MSCOPE-110 Portable Walk-Through Metal Detector

1. ആമുഖം

The Fisher M-Scope MSCOPE-110 is a portable and transportable walk-through metal detector designed for versatile and efficient security applications. Its modular construction allows for rapid deployment and easy assembly/disassembly, making it suitable for event management, schools, and temporary security checkpoints. The M-Scope features a rechargeable battery for up to 40 hours of continuous operation, an intuitive control panel, three-zone detection with visual and audio alarms, and 100 adjustable sensitivity levels. It is built to operate in diverse conditions, including extreme temperatures and high humidity.

2 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: To prevent electrical shock, fire, or explosion, observe the following safety guidelines:

• ഉൽപ്പന്നം വേർപെടുത്തുകയോ പരിഷ്കരിക്കുകയോ നന്നാക്കുകയോ ചെയ്യരുത്.
• താപ സ്രോതസ്സുകളിൽ നിന്ന് ഉൽപ്പന്നം സൂക്ഷിക്കുക.
• Do not expose the product to liquids beyond its intended operational environment.
• Always unplug the product from the power source before handling metallic objects or performing maintenance.
• Store the product in a cool, dry place away from direct sunlight and excessive heat.
• Always follow the manufacturer's instructions for proper usage and storage.

3. ഉൽപ്പന്ന സവിശേഷതകൾ

• Portable and Transportable Design: Modular construction for quick assembly and disassembly, facilitating easy transportation for temporary security setups, events, and remote locations.
• വിപുലീകരിച്ച ബാറ്ററി ലൈഫ്: Equipped with a rechargeable battery providing up to 40 hours of continuous operation on a single charge. Can also be powered by standard AC outlets.
• Advanced Detection Capabilities: Intuitive three-zone detection with visual LED indicators and adjustable audio alarms for precise identification of metal objects.
• ഇഷ്ടാനുസൃതമാക്കാവുന്ന സെൻസിറ്റിവിറ്റി: 100 adjustable sensitivity levels to tailor detection thresholds to specific security needs and environments.
• Secure Control Panel: Password-protected control panel ensures only authorized personnel can modify settings or access system diagnostics.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Built to operate effectively in temperatures from -4°F to 140°F and up to 95% non-condensing humidity.
• Efficient Data Tracking: Includes transit and target counters to monitor alarm events and traffic flow.
• Self-Diagnostic Feature: Ensures optimal system functionality and helps maintain peak performance.

4. ഘടകങ്ങൾ കഴിഞ്ഞുview

ചിത്രം 4.1: പൊട്ടിത്തെറിച്ചു View of M-Scope Components. This image illustrates the modular design of the M-Scope, showing its individual parts for assembly and disassembly.

Figure 4.2: M-Scope Collapsed for Transport. The detector is shown in its compact, folded configuration, secured for easy transportation.

Figure 4.3: M-Scope in Carrying Case. The M-Scope packed securely in its dedicated carrying case, ready for transport.

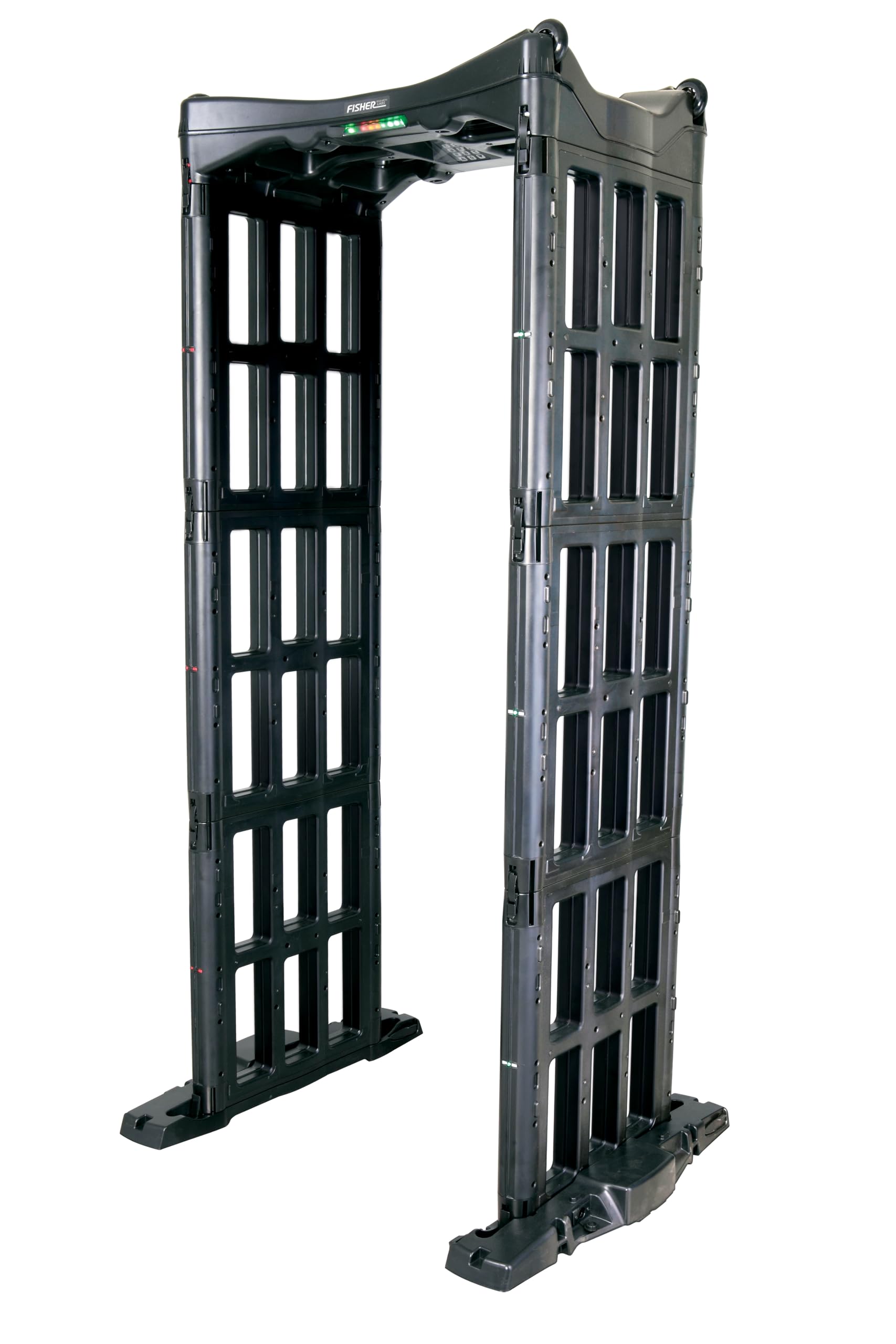

Figure 4.4: Assembled M-Scope. ഒരു പൂർണ്ണ view of the Fisher M-Scope walk-through metal detector in its operational state.

5. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

1. അൺപാക്ക് ചെയ്യുന്നു: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക. പാക്കിംഗ് ലിസ്റ്റിൽ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഭാഗങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
2. അസംബ്ലി: The M-Scope features a modular design. Refer to the exploded view (Figure 4.1) for component identification. Connect the base units to the side panels, ensuring secure locking mechanisms are engaged. Attach the top arch, aligning all connectors.
3. പവർ കണക്ഷൻ: Insert the rechargeable battery into its designated compartment. Alternatively, connect the M-Scope to a standard AC power outlet using the provided power adapter. Ensure the power source meets the device's specifications.
4. പ്ലേസ്മെൻ്റ്: Position the assembled M-Scope on a stable, level surface in the desired screening location. Ensure adequate space around the unit for safe passage and operation.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ: Press the power button on the control panel. The unit will perform a self-diagnostic check.
2. ആക്‌സസ് കൺട്രോൾ പാനൽ: Enter the password to access advanced settings. The default password can be found in the quick start guide or by contacting support.
3. സംവേദനക്ഷമത ക്രമീകരിക്കുക: Use the up/down arrows on the control panel to adjust the sensitivity level (1-100). Higher sensitivity detects smaller metallic objects but may increase false alarms. Test with known metallic items to find the optimal setting for your environment.
4. കണ്ടെത്തൽ മേഖലകൾ: The M-Scope features three detection zones. Visual LED indicators on the side panels will illuminate to show the approximate location of detected metal.
5. അലാറം ക്രമീകരണങ്ങൾ: Configure audio and visual alarms via the control panel. You can adjust alarm volume and duration.
6. പ്രവർത്തനം: Instruct individuals to walk through the detector one at a time. Observe the visual indicators and listen for audio alarms. If an alarm sounds, follow your security protocol for secondary screening.
7. ഡാറ്റ മോണിറ്ററിംഗ്: Monitor transit and target counters on the display to track traffic flow and alarm events.
8. പവർ ഓഫ്: യൂണിറ്റ് ഓഫ് ചെയ്യാൻ പവർ ബട്ടൺ അമർത്തിപ്പിടിക്കുക.

7. പരിപാലനം

• വൃത്തിയാക്കൽ: Regularly wipe down the exterior surfaces of the M-Scope with a soft, damp തുണി. ഉരച്ചിലുകൾ ഉണ്ടാക്കുന്ന ക്ലീനറുകളോ ലായകങ്ങളോ ഒഴിവാക്കുക.
• ബാറ്ററി കെയർ: Recharge the battery as needed. For long-term storage, ensure the battery is partially charged (around 50%) and store in a cool, dry place.
• പരിശോധന: Periodically inspect all cables, connectors, and structural components for any signs of wear or damage. Replace damaged parts immediately.
• സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ: നിർമ്മാതാവ് പരിശോധിക്കുക website for any available software or firmware updates to ensure optimal performance.

8. പ്രശ്‌നപരിഹാരം

• യൂണിറ്റ് പവർ ഓൺ ആകുന്നില്ല: Ensure the battery is charged or the AC adapter is securely connected to a working power outlet. Check the power button for proper function.
• പതിവ് തെറ്റായ അലാറങ്ങൾ: Reduce the sensitivity setting. Ensure the M-Scope is not placed too close to large metallic objects or sources of electromagnetic interference.
• കണ്ടെത്തൽ ഇല്ല: Increase the sensitivity setting. Verify that the unit is powered on and functioning correctly (self-diagnostic check).
• ഡിസ്പ്ലേ പ്രശ്നങ്ങൾ: If the LCD screen is not functioning correctly, try restarting the unit. If the problem persists, contact customer support.
• Unusual Noises/Behavior: Perform a self-diagnostic check. If the issue is not resolved, power off the unit and contact customer support.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

The Fisher M-Scope MSCOPE-110 is sold by First Texas Products Corporation. For warranty information, including details on available protection plans (e.g., 3-Year Protection Plan), please refer to your purchase documentation or contact First Texas Products Corporation directly. They offer customer support and handle returns within a 30-day period for refunds or replacements.

For technical assistance or further inquiries, please reach out to the seller or manufacturer's official support channels.
