1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The TrolMaster DSH-2 is a 240V Humidity Device Station designed to provide precise humidity control within a Hydro-X Control System. This device acts as a relay, allowing the Hydro-X system to manage external humidity-related equipment, such as humidifiers or dehumidifiers, by switching their power on or off based on programmed settings.
ചിത്രം 1: മുൻഭാഗം view of the TrolMaster DSH-2 240V Humidity Device Station, showing the 240V outlet and indicator lights.
ചിത്രം 2: വശം view of the TrolMaster DSH-2 240V Humidity Device Station, showing the power plug.
2. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- 1x DSH-2 240V Humidity Device Station
- 1x RJ12 Cable (for connection to Hydro-X system)

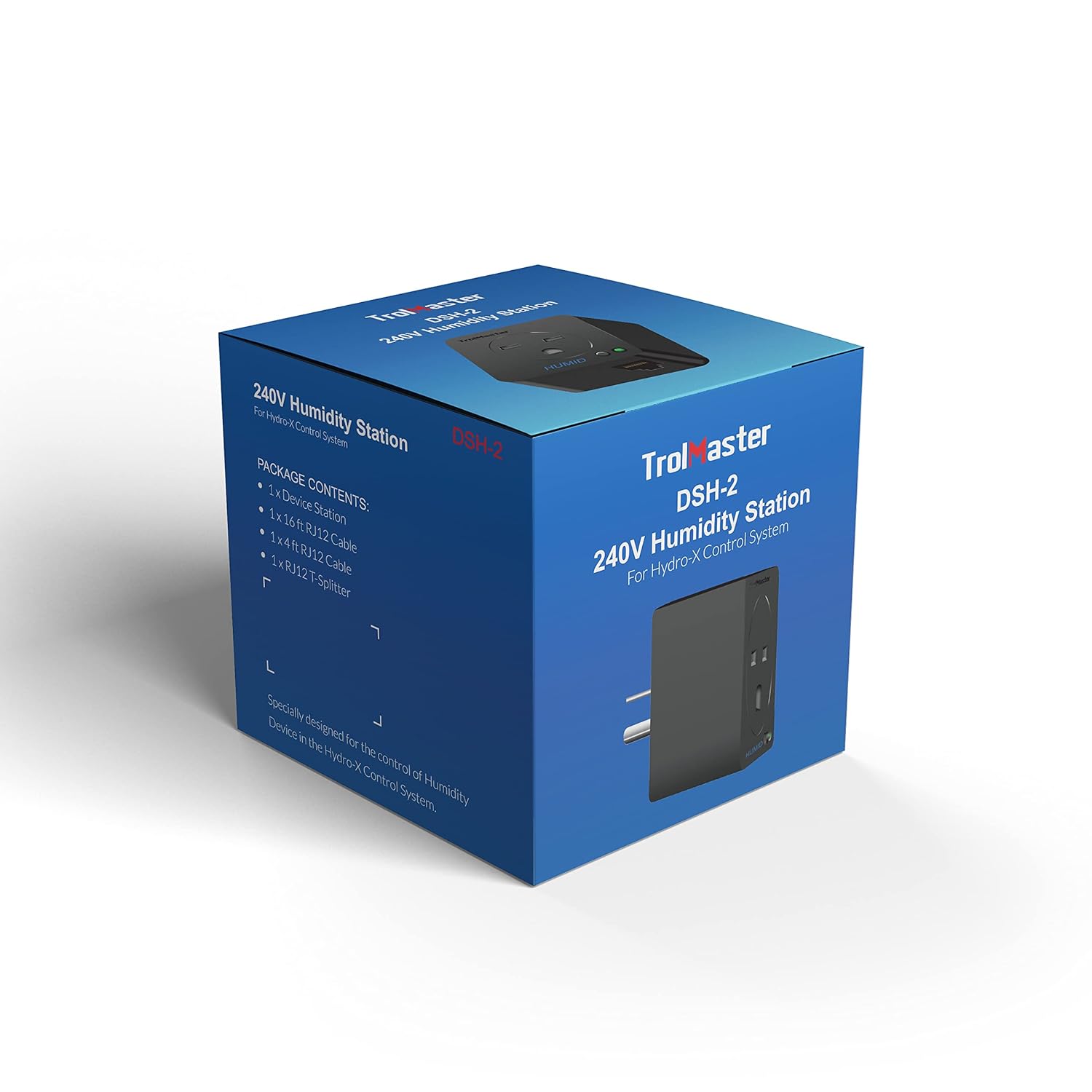

Figure 3: Packaging of the TrolMaster DSH-2, indicating package contents.
3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
Follow these steps to set up your DSH-2 Humidity Device Station:
- പവർ കണക്ഷൻ: Plug the DSH-2 device into a standard 240V power outlet. Ensure the outlet is properly grounded.
- Connect to Hydro-X System: Use the provided RJ12 cable to connect the DSH-2 to an available 'Device' port on your TrolMaster Hydro-X Control System. The Hydro-X system will automatically detect the DSH-2.
- Connect Humidity Device: Plug your 240V humidifier or dehumidifier into the outlet on the DSH-2.
- കോൺഫിഗറേഷൻ: Refer to your Hydro-X Control System manual for instructions on how to configure the humidity settings and assign the DSH-2 to a specific humidity control zone.
Figure 4: Connection diagram illustrating how the DSH-2 (Humid Device Stations H1, H2) connects to the Hydro-X Control System's device ports.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once connected and configured with your Hydro-X Control System, the DSH-2 operates automatically based on the parameters set in the Hydro-X system. The DSH-2 acts as a switch, turning the connected humidity device on or off to maintain the desired humidity levels.
- ഇൻഡിക്കേറ്റർ ലൈറ്റുകൾ: Observe the indicator lights on the DSH-2 for operational status. Typically, a green light indicates power and proper connection.
- സിസ്റ്റം നിയന്ത്രണം: All humidity setpoints, differentials, and schedules are managed directly through the Hydro-X Control System interface.
5. പരിപാലനം
The DSH-2 Humidity Device Station requires minimal maintenance. Follow these guidelines to ensure longevity and optimal performance:
- വൃത്തിയാക്കൽ: Periodically wipe the exterior of the device with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- പരിസ്ഥിതി: Ensure the device is operated in a dry environment, free from excessive dust or moisture.
- കേബിൾ സമഗ്രത: Regularly inspect the RJ12 cable and power cord for any signs of damage. Replace if necessary.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your DSH-2, consider the following troubleshooting steps:
- ശക്തിയില്ല: Ensure the DSH-2 is securely plugged into a live 240V outlet. Check the circuit breaker.
- Not Detected by Hydro-X: Verify that the RJ12 cable is firmly connected to both the DSH-2 and an active 'Device' port on the Hydro-X system. Try a different RJ12 cable or port.
- Humidity Device Not Responding: Confirm that the humidity device (humidifier/dehumidifier) plugged into the DSH-2 is powered on and functioning correctly independently. Check the settings for the DSH-2 within the Hydro-X Control System.
- Incorrect Humidity Readings: This is typically related to the humidity sensor connected to the Hydro-X system, not the DSH-2 itself. Refer to your Hydro-X system manual for sensor troubleshooting.
If problems persist, contact TrolMaster customer support or your authorized dealer.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ഉൽപ്പന്ന അളവുകൾ | 3.35 x 3.15 x 3.54 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 11.84 ഔൺസ് |
| മോഡൽ നമ്പർ | DSH-2 |
| നിർമ്മാതാവ് | ട്രോൾ മാസ്റ്റർ |
| നിറം | കറുപ്പ് |
| മൗണ്ടിംഗ് തരം | ടേബിൾടോപ്പ് |
| ഉയർന്ന താപനില റേറ്റിംഗ് | 122 ഡിഗ്രി ഫാരൻഹീറ്റ് |
| മാതൃരാജ്യം | ചൈന |
8. വാറൻ്റി വിവരങ്ങൾ
For detailed warranty information regarding your TrolMaster DSH-2, please refer to the official TrolMaster website or contact your authorized dealer. Warranty terms and conditions may vary and are subject to the manufacturer's policy at the time of purchase.
9. ഉപഭോക്തൃ പിന്തുണ
If you require further assistance or have questions not covered in this manual, please contact TrolMaster customer support through their official website or the contact information provided by your retailer. When contacting support, please have your product model (DSH-2) and purchase details ready.
TrolMaster Official Webസൈറ്റ്: www.trollmaster.com
