VirtuFit Multifunction Pro Wall-Mounted Pull-Up Bar Instruction Manual

1. ആമുഖം

The VirtuFit Multifunction Pro Wall-Mounted Pull-Up Bar is designed for effective upper body training. This robust fitness equipment allows for various exercises, including pull-ups and chin-ups with different grip positions, and can also be used for abdominal exercises. It is constructed from high-quality alloy steel to ensure durability and stability.

Image 1: The VirtuFit Multifunction Pro Wall-Mounted Pull-Up Bar, showcasing its black finish and multiple grip options.

2 സുരക്ഷാ വിവരങ്ങൾ

• ഇൻസ്റ്റലേഷൻ: Ensure the pull-up bar is securely mounted to a solid wall using the provided hardware. Improper installation can lead to serious injury.
• ഭാര പരിധി: Do not exceed the maximum recommended weight capacity of 350 kg.
• പരിശോധന: Before each use, inspect the pull-up bar and all mounting hardware for any signs of wear, damage, or looseness. Do not use if any components are compromised.
• Proper Form: Use correct exercise form to prevent injury. If unsure, consult a fitness professional.
• കുട്ടികൾ: Keep children away from the equipment unless supervised by an adult.

3. പാക്കേജ് ഉള്ളടക്കം

The VirtuFit Multifunction Pro Wall-Mounted Pull-Up Bar package includes the following components:

• Wall-mounted pull-up bar frame (alloy steel)
• Multiple grip handles with soft foam padding
• 8 metal percussion anchors (expansion bolts)
• Necessary screws and washers for assembly

Image 2: All components of the VirtuFit Pull-Up Bar, including the main frame, grip handles, and mounting hardware.

ചിത്രം 3: ക്ലോസ്-അപ്പ് view of the 8 metal percussion anchors (expansion bolts) included for secure wall mounting.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the safety and stability of your pull-up bar. Please follow these instructions carefully.

4.1 ആവശ്യമായ ഉപകരണങ്ങൾ (ഉൾപ്പെടുത്തിയിട്ടില്ല)

• 14 എംഎം ഡ്രിൽ ബിറ്റ് ഉപയോഗിച്ച് തുളയ്ക്കുക
• ചുറ്റിക
• അളക്കുന്ന ടേപ്പ്
• പെൻസിൽ അല്ലെങ്കിൽ മാർക്കർ
• ലെവൽ
• Wrench (appropriate size for bolts)

4.2 Wall Selection

The pull-up bar must be mounted on a solid, load-bearing wall (e.g., concrete, solid brick). Do not install on drywall, plasterboard, or hollow walls without proper reinforcement, as this can lead to structural failure and injury.

4.3 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. സ്ഥാനനിർണ്ണയം: Choose a suitable height for installation, ensuring enough clearance above and below the bar for full range of motion during exercises. Use a level to mark the desired positions for the mounting plates on the wall.
2. ഡ്രില്ലിംഗ് ദ്വാരങ്ങൾ: Using a 14 mm drill bit, drill holes at the marked positions. The depth of each hole should be approximately 1.5 cm shorter than the length of the percussion anchor.
3. Inserting Anchors: Gently hammer each metal percussion anchor into its respective drilled hole until it is flush with the wall surface.
4. ഫ്രെയിം മൌണ്ട് ചെയ്യുന്നു: Align the central piece of the pull-up bar with the holes in the support brackets. Then, attach the support brackets to the wall using the provided screws and washers, tightening them securely with a wrench. Ensure all bolts are fully tightened to achieve maximum stability.
5. അന്തിമ അസംബ്ലി: Attach the remaining bar sections and foam grips as shown in the diagrams. Ensure all connections are tight and secure.

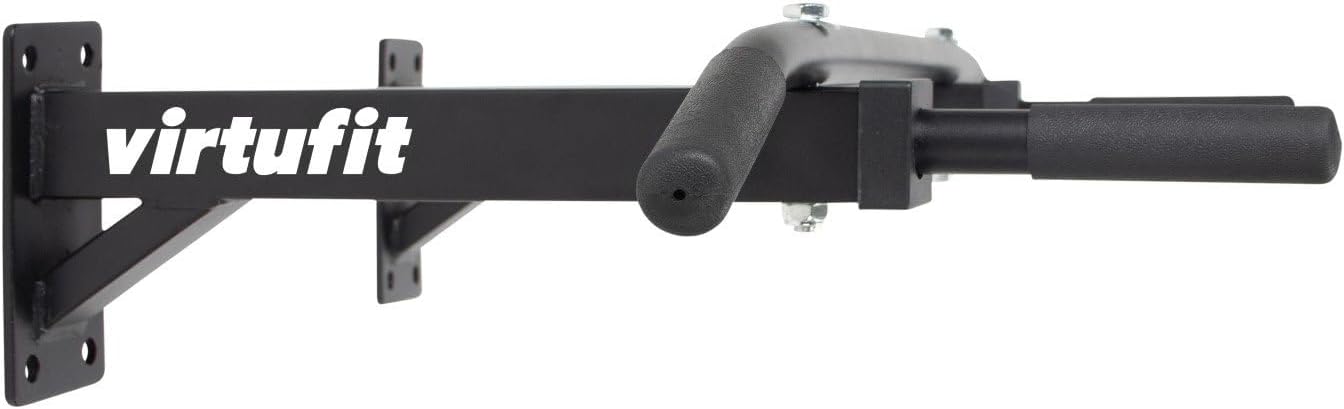

Image 4: Close-up of the wall mounting plate, showing the sturdy construction and pre-drilled holes for anchors.

Image 5: The VirtuFit Pull-Up Bar fully assembled and ready for use, showing the various grip positions.

4.4 ഇൻസ്റ്റലേഷൻ വീഡിയോ

For a visual guide on installation, please refer to the following video:

Video 1: Installation and usage demonstration for a wall-mounted pull-up bar. Note: This video is for a similar product (ISE Multifunction Pull-Up Bar SY-165) and provides general guidance. Always refer to the specific instructions for your VirtuFit model.

5. Operating Instructions (Exercises)

The VirtuFit Multifunction Pro Pull-Up Bar offers a variety of exercises to strengthen your upper body and core. The multiple grip positions allow you to target different muscle groups.

5.1 Pull-Ups (Overhand Grip)

• Grip the bar with an overhand grip (palms facing away from you), slightly wider than shoulder-width apart.
• Hang with arms fully extended.
• Pull your body upwards until your chin clears the bar.
• Lower yourself slowly and with control back to the starting position.

5.2 Chin-Ups (Underhand Grip)

• Grip the bar with an underhand grip (palms facing towards you), shoulder-width apart.
• Hang with arms fully extended.
• Pull your body upwards until your chin clears the bar.
• Lower yourself slowly and with control back to the starting position.

5.3 Neutral Grip Pull-Ups

• Use the parallel grips (palms facing each other).
• Perform the pull-up motion as described above.

5.4 Leg Raises (Core Exercise)

• Hang from the bar with an overhand or neutral grip.
• Keeping your legs straight or slightly bent, raise them towards your chest or higher, engaging your abdominal muscles.
• Lower your legs slowly and with control.

Image 6: Close-up of the padded grip handles, highlighting the comfortable and secure design for various hand positions.

6. പരിപാലനം

• വൃത്തിയാക്കൽ: Wipe down the bar and grips with a damp cloth after each use to remove sweat and dirt. Avoid abrasive cleaners.
• പതിവ് പരിശോധന: എല്ലാ ബോൾട്ടുകളും കണക്ഷനുകളും ഇറുകിയതാണെന്ന് ഉറപ്പാക്കാൻ ഇടയ്ക്കിടെ പരിശോധിക്കുക. ആവശ്യമെങ്കിൽ വീണ്ടും മുറുക്കുക.
• തേയ്മാനം: Inspect the foam grips for any tears or excessive wear. While durable, replacement may be necessary over time.
• തുരുമ്പ് തടയൽ: Keep the pull-up bar in a dry environment to prevent rust, especially on metal components.

7. പ്രശ്‌നപരിഹാരം

• Bar feels wobbly after installation: Re-check all mounting bolts and ensure they are fully tightened. Verify that the wall material is suitable for installation. If the issue persists, consult a professional.
• Grips are slipping: Ensure hands are dry before use. If grips are worn, consider replacing them or using chalk for better adhesion.
• Unusual noises during use: Stop exercising immediately. Inspect all connections and mounting points for looseness or damage. Tighten any loose parts.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

The VirtuFit Multifunction Pro Wall-Mounted Pull-Up Bar comes with a 2 വർഷത്തെ വാറൻ്റി, ensuring excellent quality and reliability. For support, questions, or warranty claims, please contact your retailer or visit the official VirtuFit brand store.

സന്ദർശിക്കുക VirtuFit Brand Store കൂടുതൽ ഉൽപ്പന്നങ്ങൾക്കും വിവരങ്ങൾക്കും.
