NVX XBAF65 6.5-ഇഞ്ച് വെതർപ്രൂഫ് സിലിക്കൺ സ്പീക്കർ ബാഫിൾ കിറ്റ് ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides instructions for the installation and use of the NVX XBAF65 Weatherproof Silicone Rubber Speaker Baffle Kit. This kit is designed to enhance the acoustic performance and longevity of your 6.5-inch or 6.75-inch car audio speakers by creating a sealed environment and protecting them from environmental elements.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• Acoustic Sealing: The XBAF65 baffles create a tight and secure seal around your speakers, optimizing sound quality by preventing sound wave cancellation within the door panel.
• Weatherproof Silicone Construction: Engineered from high-quality silicone, these baffles are waterproof and designed to withstand moisture accumulation within door panels, protecting speakers from damage and maintaining their shape over time.
• Egg Crate Foam: Included egg crate foam pieces are placed behind the speaker to absorb back waves, further improving sound clarity and preventing front-to-rear wave cancellation.

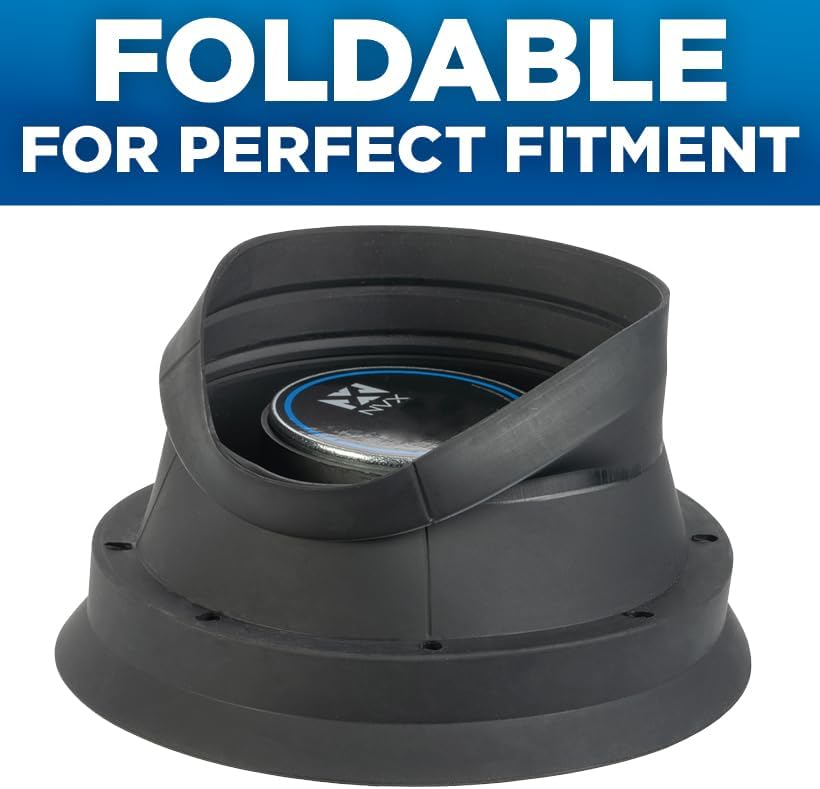

• ഇഷ്ടാനുസൃതമാക്കാവുന്ന ഫിറ്റ്: The flexible silicone design allows for customization to match various speaker mounting depths. The baffles can be trimmed if necessary to achieve a perfect fit.
• Reduced Vibrations: The material helps to dampen vibrations caused by speaker movement, contributing to a cleaner audio output.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The NVX XBAF65 kit is designed for straightforward installation. Follow these general steps:

1. സ്പീക്കർ ലൊക്കേഷൻ ആക്‌സസ് ചെയ്യുക: Carefully remove the car door panel or other trim to access the speaker mounting location.
2. മൗണ്ടിംഗ് ഉപരിതലം തയ്യാറാക്കുക: Ensure the speaker mounting surface is clean and free of debris.
3. Install Speaker Baffle: Place the silicone speaker baffle into the speaker opening. The flexible material allows for adjustment to fit the contour of the mounting area. The baffle can be trimmed along designated lines if a shallower depth is required for your specific speaker or mounting location.
4. Mount Speaker: Install your 6.5-inch or 6.75-inch speaker into the baffle, ensuring a snug fit. Secure the speaker using appropriate mounting hardware.
5. Apply Egg Crate Foam: Peel the adhesive backing from the egg crate foam piece and attach it to the inner skin of the door panel, directly behind the speaker. This helps absorb rear sound waves.
6. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Reattach the door panel or trim, ensuring no wires are pinched and all fasteners are secure.

ഇൻസ്റ്റലേഷൻ വീഡിയോകൾ:

4. പ്രവർത്തന തത്വങ്ങൾ

The NVX XBAF65 baffles operate by creating an optimal acoustic environment for your speakers. By sealing the rear of the speaker from the front, they prevent destructive interference of sound waves, which can lead to reduced bass response and overall clarity. The silicone material also acts as a barrier against moisture, dust, and other contaminants, ensuring the speaker's internal components remain protected and function optimally over time. The egg crate foam further refines sound by absorbing unwanted reflections from the inner door panel surface.

5. പരിപാലനം

The NVX XBAF65 speaker baffles require minimal maintenance due to their durable silicone construction. Periodically inspect the baffles during any speaker or door panel service to ensure they remain securely in place and are free from tears or damage. Clean with a damp ആവശ്യമെങ്കിൽ തുണി.

6. പ്രശ്‌നപരിഹാരം

If you experience issues after installing the XBAF65 baffles, consider the following:

• കുറഞ്ഞ ശബ്‌ദ നിലവാരം: Ensure the baffle is properly sealed around the speaker and against the mounting surface. Check that the egg crate foam is correctly positioned behind the speaker. Verify that the speaker cone is not obstructed by the baffle or door panel.
• Rattling/Vibrations: Confirm all mounting screws for the speaker and baffle are tightened. Check for any loose components within the door panel that may be vibrating against the baffle or speaker.
• ഈർപ്പത്തിൻ്റെ പ്രശ്നങ്ങൾ: While the baffles are waterproof, ensure proper drainage in the door cavity is maintained to prevent excessive water buildup.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

The NVX XBAF65 Speaker Baffle Kit comes with a Limited Warranty. For specific warranty details, claims, or technical support, please refer to the official NVX website or contact NVX customer service directly. Keep your proof of purchase for warranty purposes.
