CRANACH Door Lock Latch for Home Security

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The CRANACH Door Lock Latch is a robust and reliable security device designed to enhance the safety of your home, hotel room, or apartment. Constructed from thicken solid aluminium alloy with a satin nickel finish, this swing bar door guard provides an additional layer of security against forced entry and offers peace of mind.

It functions as a security locking device for swing-in doors, allowing you to open the door a few inches for identification or ventilation while maintaining privacy and security. Its design also makes it an effective child-safe door security measure, as it can be installed out of children's reach.

Figure 1.1: The CRANACH Door Lock Latch, showcasing its durable aluminium alloy construction and satin nickel finish.

Figure 1.2: The versatility of the CRANACH Door Lock Latch, suitable for use in hotels, bedrooms, studies, living rooms, bathrooms, and kitchens.

2. Safety Information and Compatibility

This door lock latch is designed to provide enhanced security. Please observe the following safety guidelines and compatibility requirements:

• കുട്ടികളുടെ സുരക്ഷ: The latch can be installed at a height inaccessible to young children, preventing them from opening the door unsupervised.
• Inward Opening Doors Only: This product is designed exclusively for doors that swing inwards. It is not compatible with outward-opening doors.
• Door and Molding Compatibility: Ensure your door is flush with the door jamb for proper installation and function. It is compatible with most wooden doors and molding.
• Force Resistance: The ultra-thick swing arm and solid lock base are engineered to resist up to 600 lbs of force, providing significant resistance against forced entry.

Figure 2.1: Important installation tip: The CRANACH Door Lock Latch is designed for inward-opening doors only. It is not suitable for outward-opening doors or doors with a significant height difference from the jamb.

Figure 2.2: The CRANACH Door Lock Latch can be installed above a child's reach to enhance home safety and prevent unsupervised door opening.

3. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ്, നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:

• 1 x CRANACH Swing Bar Door Lock Latch (Satin Nickel)
• 7 x Mounting Screws (1.00 inch length)
• 2 x Base Plates (for mounting)

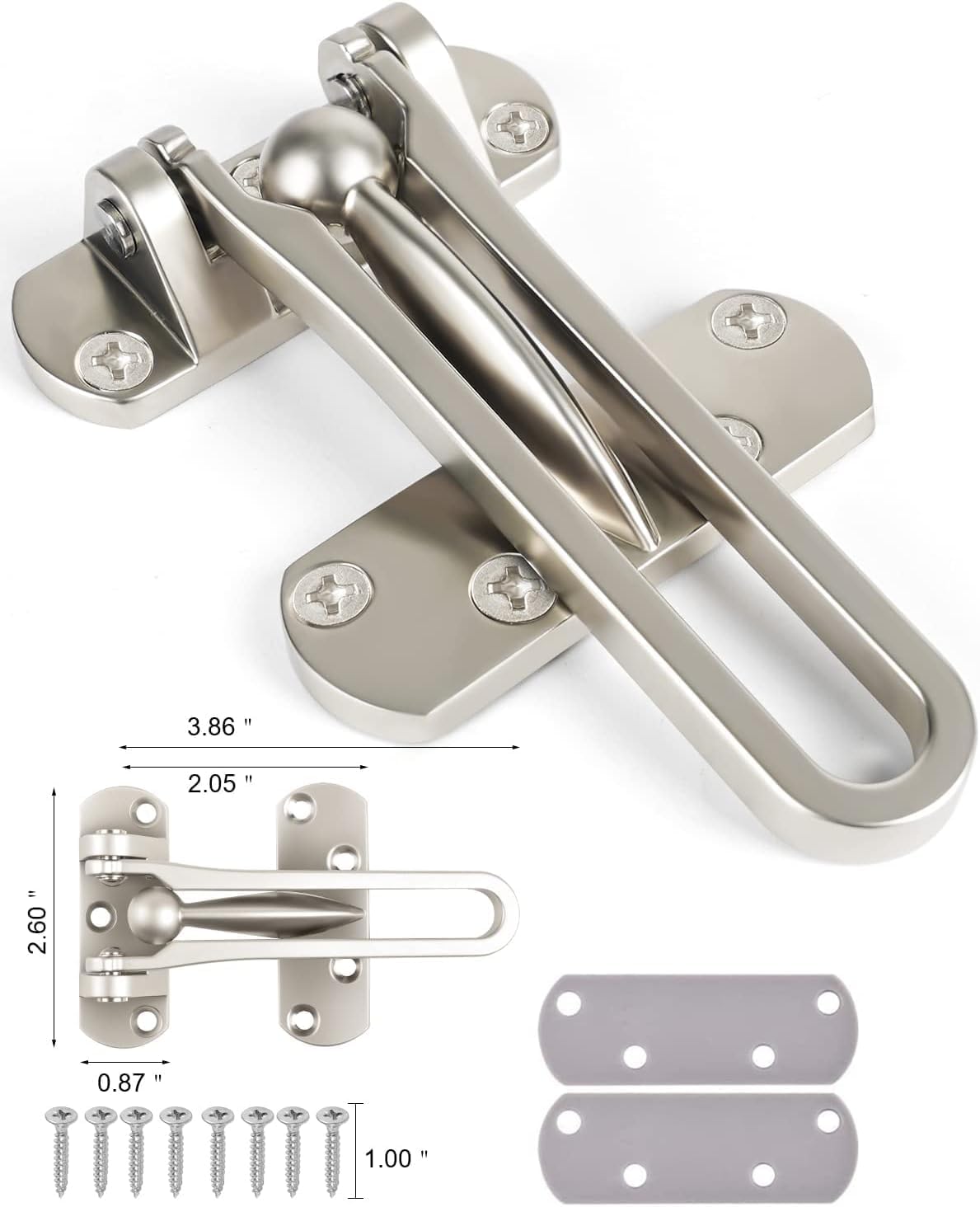

Figure 3.1: Contents of the package, including the main lock unit, mounting screws, and base plates. Dimensions are also shown for reference.

4. ഇൻസ്റ്റാളേഷൻ ഗൈഡ്

Installation of the CRANACH Door Lock Latch is designed to be straightforward and can be completed in minutes with basic tools. A power drill is recommended for pre-drilling pilot holes.

1. Step 1: Position the Latch. Hold the main body of the door lock latch against the door frame at the desired height. Ensure the swing arm can freely extend over the door when closed. For childproofing, position it higher than a child's reach.
2. Step 2: Mark Screw Holes. Using a pencil, mark the positions for the mounting screws through the holes on the base plates.
3. Step 3: Drill Pilot Holes. Carefully drill pilot holes at the marked positions. This helps prevent wood splitting and ensures screws go in straight.
4. Step 4: Secure the Latch. Align the latch with the pilot holes and secure it firmly using the provided screws. Ensure the latch is mounted securely and does not wobble.

Figure 4.1: Visual representation of the four-step installation process: 1. Position, 2. Mark, 3. Drill, 4. Secure.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The CRANACH Door Lock Latch is designed for simple and intuitive operation.

• To Engage the Lock: Close the door completely. Swing the bar arm of the latch over the door until the ball end rests securely in its housing. The steel ball positioning feature will hold the arm in place, preventing it from swinging open unintentionally.
• To Disengage the Lock (from inside): Simply swing the bar arm away from the door. The latch can be unlocked easily from the inside with a simple swinging motion.
• Security Peek Feature: The latch allows the door to be opened a few inches while remaining secured, enabling you to identify visitors or allow for ventilation without fully compromising security.
• ക്രമീകരിക്കാവുന്ന സ്ഥാനങ്ങൾ: The upgraded design features three distinct positions (Gear 1, Gear 2, Gear 3) to accommodate different door opening needs, providing flexibility in how wide the door can be partially opened while secured.

Figure 5.1: The security peek feature allows for partial door opening while maintaining security, useful for identifying visitors or allowing pets to interact safely.

Figure 5.2: The upgraded design incorporates three gear positions, offering varying degrees of partial door opening for enhanced flexibility and security.

6. പരിപാലനം

The CRANACH Door Lock Latch is made from high-quality aluminium alloy, which is resistant to rust and oxidation, ensuring a long service life. To maintain its appearance and functionality:

• Wipe the surface periodically with a soft, damp പൊടിയും അഴുക്കും നീക്കം ചെയ്യാനുള്ള തുണി.
• Avoid using abrasive cleaners or harsh chemicals, as these can damage the satin nickel finish.
• Ensure the moving parts (swing arm and pivot points) remain free of debris to allow for smooth operation.

7. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your CRANACH Door Lock Latch, please refer to the following common problems and solutions:

If you continue to experience issues, please contact CRANACH customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

CRANACH stands behind the quality of its products. While specific warranty details are not provided in this manual, for any product-related inquiries, technical support, or warranty claims, please contact the seller directly through your purchase platform or visit the official CRANACH store.

For more information and to explore other CRANACH products, visit the CRANACH Store on Amazon.
