യൂറോടൈം ക്വാർട്സ് അലാറം ക്ലോക്ക് മോഡൽ 27000-03 ഉപയോക്തൃ മാനുവൽ

ആമുഖം

The Eurotime Quartz Alarm Clock Model 27000-03 is designed for ease of use and features a silent, non-ticking quartz movement. It includes a crescendo alarm, snooze function, and a white backlight for nighttime visibility. This manual provides detailed instructions to help you get the most out of your alarm clock.

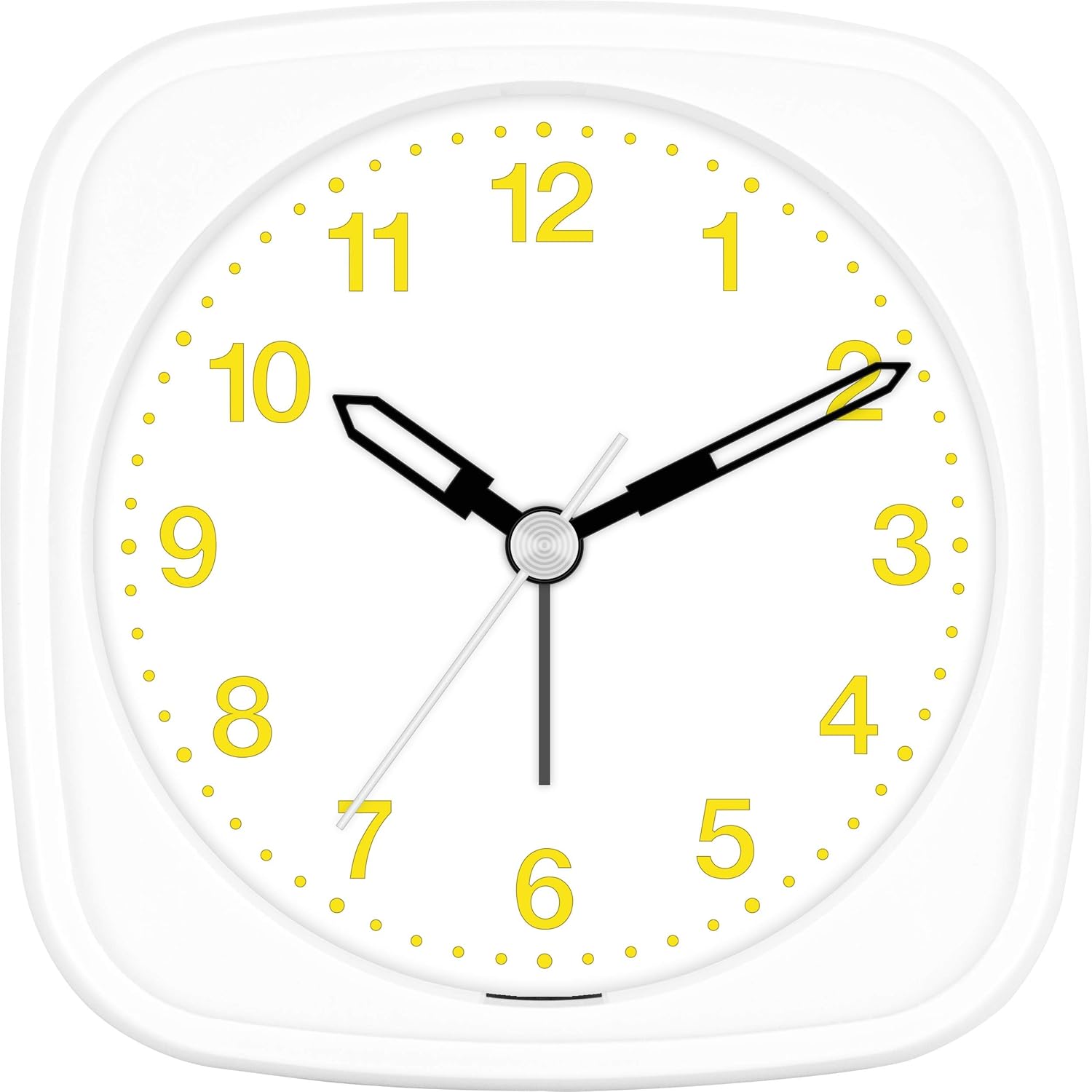

ചിത്രം 1: ഫ്രണ്ട് view of the Eurotime Quartz Alarm Clock. This image displays the clock's face with yellow numbers, black hour and minute hands, and a silver second hand, all set within a white plastic casing.

സജ്ജമാക്കുക

1. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

Your Eurotime alarm clock requires 1 AA 1.5V alkaline battery (not included). For optimal performance and to avoid common functional errors, ensure a new, full alkaline battery is used. Non-alkaline batteries are not suitable for this model.

1. ക്ലോക്കിന്റെ പിൻഭാഗത്ത് സ്ഥിതി ചെയ്യുന്ന ബാറ്ററി കമ്പാർട്ട്മെന്റ് കവർ തുറക്കുക.
2. Insert one AA 1.5V alkaline battery, ensuring the polarity (+ and -) matches the indicators inside the compartment.
3. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ സുരക്ഷിതമായി അടയ്ക്കുക.

2. Setting the Time and Alarm

Use the adjustment knobs located on the back of the clock to set the current time and your desired alarm time.

1. സമയ ക്രമീകരണ നോബ്: Rotate this knob to adjust the hour and minute hands to the current time.
2. അലാറം സജ്ജീകരണ നോബ്: Rotate this knob to set the alarm hand to your desired wake-up time.

ചിത്രം 2: തിരികെ view of the alarm clock. This image highlights the battery compartment, the time setting knob, and the alarm setting knob, essential for initial setup.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. Turning the Alarm ON/OFF

A switch on the side of the clock controls the alarm function.

1. To activate the alarm, slide the switch to the ON സ്ഥാനം.
2. To deactivate the alarm, slide the switch to the ഓഫ് സ്ഥാനം.

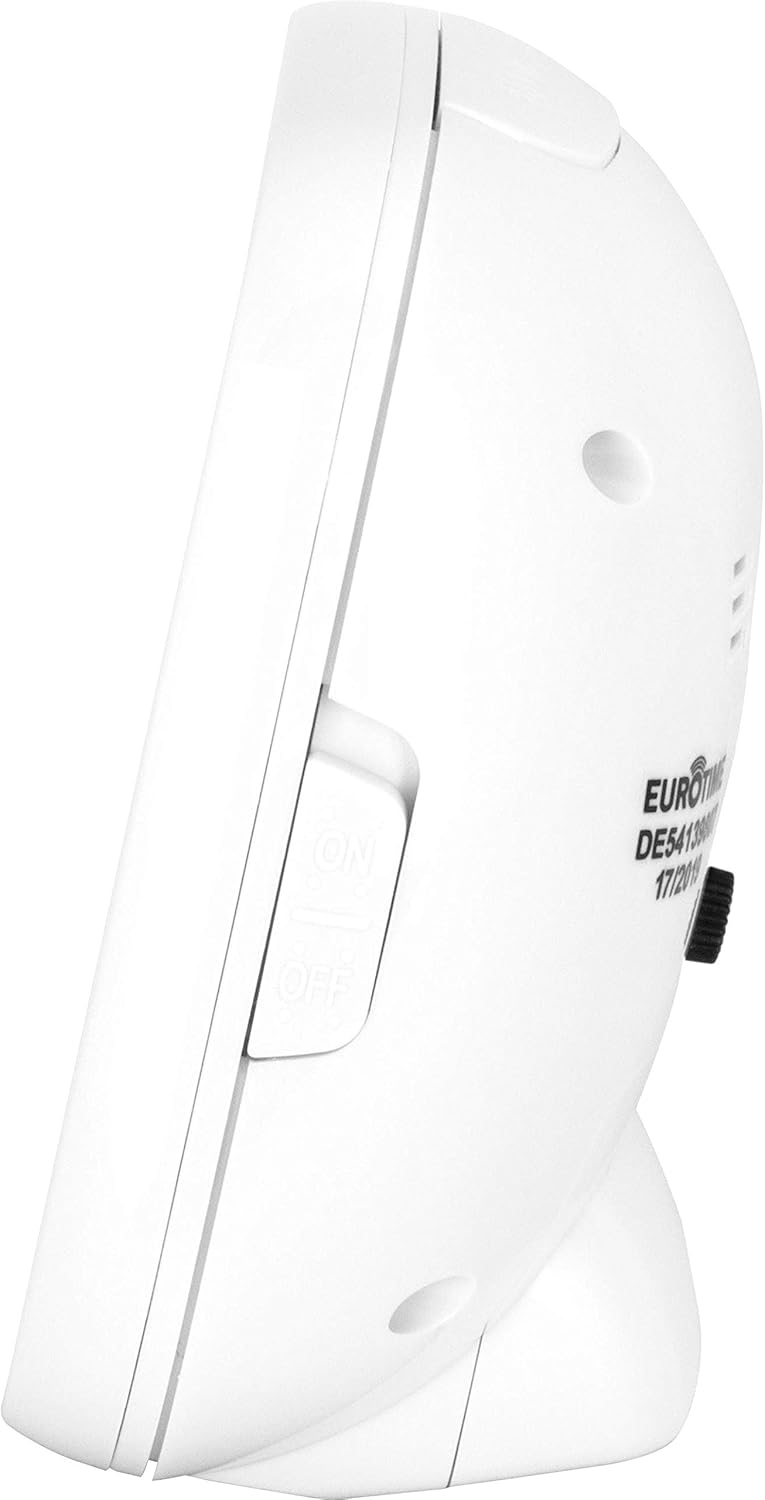

ചിത്രം 3: വശം view of the alarm clock. This image clearly shows the ON/OFF switch for the alarm function.

2. Snooze and Light Function

The button located on the top of the clock serves two functions:

• വെളിച്ചം: Press the button to illuminate the clock face with a white backlight for easy viewing in the dark. The light will stay on as long as the button is pressed.
• സ്‌നൂസ്: When the alarm is sounding, press this button to temporarily silence the alarm. The alarm will sound again after approximately 5 minutes.

3. Crescendo Alarm

The alarm features a crescendo (ascending) sound, meaning it starts softly and gradually increases in volume to gently wake you up.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ

To clean your alarm clock, gently wipe the casing and plastic lens with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish.

ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ

If the second hand stops moving or the alarm function becomes unreliable, it is an indication that the battery needs to be replaced. Follow the battery installation steps outlined in the Setup section to replace the battery.

ട്രബിൾഷൂട്ടിംഗ്

• Clock not working or alarm not sounding:
  The most common cause for functional errors is an incorrect or depleted battery. Ensure you are using a new, full 1.5V AA alkaline battery.
• Alarm sounds immediately after setting:
  Analog alarm clocks do not distinguish between AM and PM. If you set the alarm within approximately one hour of the current time, it may trigger immediately. To ensure the alarm sounds at the desired time (e.g., 7:00 AM), set it outside this one-hour window (e.g., set it at 9:00 PM for a 7:00 AM alarm).
• Second hand stops or clock runs intermittently:
  This indicates that the battery power is low and the battery needs to be replaced.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For any further questions or issues with your Eurotime Quartz Alarm Clock, please contact the manufacturer or your retailer for assistance. Please refer to your purchase documentation for specific warranty information.
