Trevi Bidet Toilet Seat Instruction Manual

ആമുഖം

The Trevi Bidet Toilet Seat is designed to provide a superior level of personal hygiene and comfort. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new bidet seat. Please read all instructions carefully before installation and use to ensure safe and efficient operation.

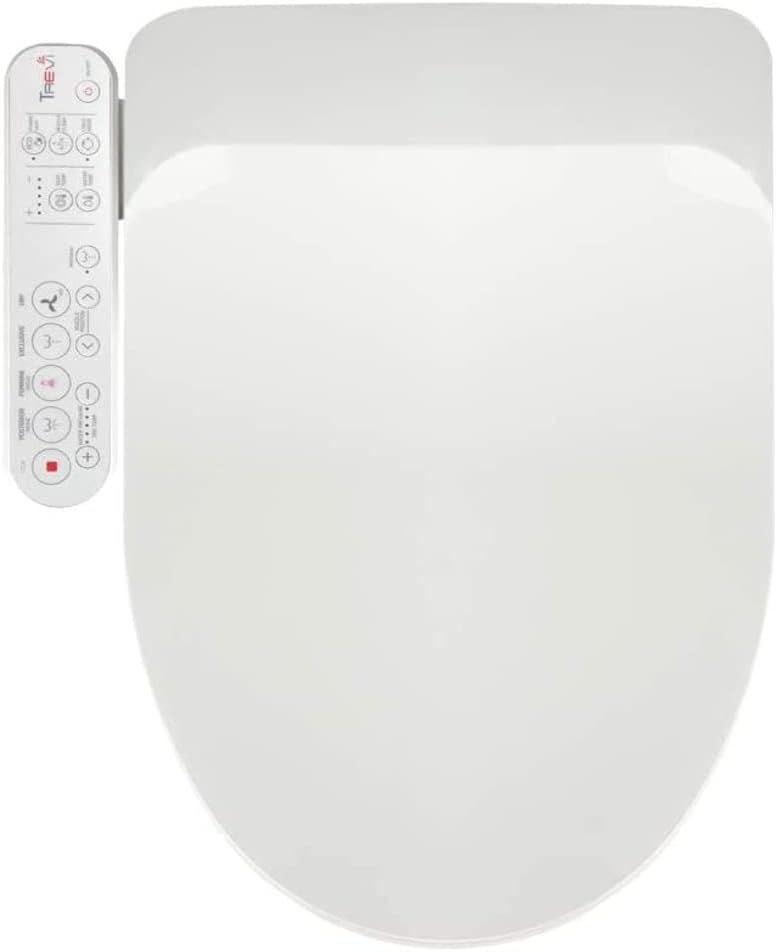

ചിത്രം: മുകളിൽ നിന്ന് താഴേക്ക് view of the Trevi Bidet Toilet Seat, highlighting its sleek design and integrated control panel.

പ്രധാന സവിശേഷതകൾ

• 3 കഴുകൽ പ്രവർത്തനങ്ങൾ: Posterior, Feminine, and Aerated Exclusive wash for comfortable and thorough cleaning.
• Nozzle Oscillation and Pulse: For wider wash coverage and varying water pressure.
• ചൂട് എയർ ഡ്രയർ: Provides a comfortable drying experience after washing.
• ചൂടായ സീറ്റ്: Adjustable seat temperature for year-round comfort.
• Full Stainless Steel Nozzle: Durable and hygienic.
• സ്വയം വൃത്തിയാക്കൽ നോസൽ: Automatically cleans before and after each use, with a dedicated 2-minute cleaning cycle.
• പവർ സേവ് മോഡ്: Minimizes energy consumption.
• ചൈൽഡ് മോഡ്: Specialized setting for children's use.
• സോഫ്റ്റ് ക്ലോസ് ലിഡ്: അടിക്കുന്നത് തടയുകയും ശബ്ദം കുറയ്ക്കുകയും ചെയ്യുന്നു.

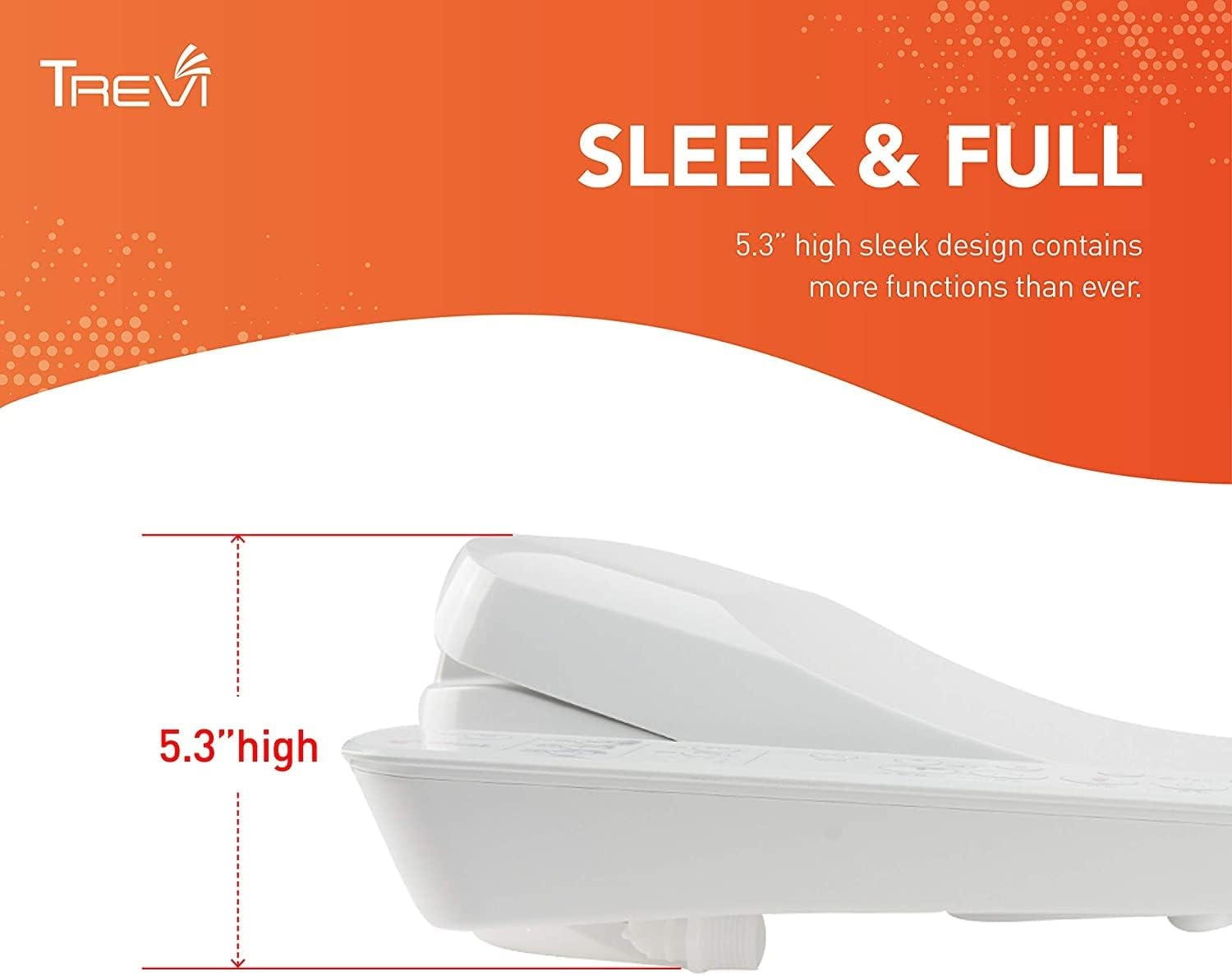

Image: The bidet seat features a sleek, low-profile design, measuring 5.3 inches high.

Image: Detail of the air bubble function, showing aerated water for a gentle yet effective wash.

Image: Visual representation of the warm air dryer in operation, providing comfortable post-wash drying.

Image: The nozzle cleaning function, showing water actively rinsing the stainless steel nozzle.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Trevi Bidet Toilet Seat is designed for DIY easy installation. No plumber is typically required. Follow these steps for a smooth setup:

1. ജലവിതരണം ഓഫാക്കുക: Locate and turn off the water supply valve to your toilet. Flush the toilet to drain the tank completely.
2. നിലവിലുള്ള ടോയ്‌ലറ്റ് സീറ്റ് നീക്കം ചെയ്യുക: For most toilet seats, flip up the screw caps behind the seat and use a flathead screwdriver to loosen the screws. Remove the old seat.
3. Connect to Water Line: Disconnect the existing flexible hose from your toilet tank. Prepare the T-valve (tank adapter) by inserting a black washer inside. Connect the top side of the T-valve to the tank of your toilet tightly. Connect the Trevi hose to the side hole of the T-valve.
4. ബേസ് പ്ലേറ്റ് ഘടിപ്പിക്കുക: Place the Trevi base plate onto the toilet bowl, ensuring the side with rubber non-slip pads is facing down. Align the back of the base plate with the tank, leaving a gap of at least 3/4 inches. Line up the mounting brackets on the base plate over the toilet bolt holes and click them into the grooves. Insert the mounting bolts into the bolt holes and tighten the packing, washer, and nuts from the bottom of the toilet bowl.
5. Attach Bidet Unit: Place your Trevi Bidet onto the toilet bowl, connecting the slots of the main body with the base plate. You will hear a click when it is properly attached.
6. പ്ലഗ് ഇൻ: Plug your Trevi Bidet into a grounded, 3-prong 120V outlet.
7. ജലവിതരണം പുനഃസ്ഥാപിക്കുക: Open the water supply valve to fill the toilet tank. It will take about 1 minute to complete, and you may hear a 'beep' sound when the tank is full.

Important Note on Toilet Bowl Shape:

This bidet seat is designed for elongated toilet bowls. Ensure your toilet bowl measures 20.6 inches or more from the toilet tank to the front of the toilet bowl for proper fit and function.

Image: Diagram illustrating the required dimensions for an elongated toilet bowl to ensure compatibility with the bidet seat.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Trevi Bidet Toilet Seat features an intuitive side control panel. Ensure you are seated on the bidet for wash functions to activate, as it includes a sensor.

ചിത്രം: വിശദമായത് view of the bidet's control panel, showing buttons for wash modes, temperature, and other settings.

കഴുകൽ പ്രവർത്തനങ്ങൾ:

• പിൻഭാഗത്തെ വാഷ്: Press the 'Posterior' button for a rear wash.
• സ്ത്രീലിംഗം കഴുകുക: Press the 'Feminine' button for a front wash.
• Exclusive Wash: Press the 'Exclusive' button for an aerated wash, which can assist with constipation.
• Nozzle Oscillation: Press the 'Move' button during a wash to make the nozzle oscillate back and forth for wider coverage.
• Water Pressure Pulse: Water pressure pulsates from strong to soft during certain wash cycles.
• ജല സമ്മർദ്ദ ക്രമീകരണം: Use the '+' and '-' buttons to adjust water pressure.
• നോസൽ സ്ഥാന ക്രമീകരണം: Use the arrow buttons to adjust the nozzle's position.

താപനില നിയന്ത്രണങ്ങൾ:

• സീറ്റ് താപനില: Adjust the heated seat temperature using the 'Seat Temp' buttons.
• ജലത്തിൻ്റെ താപനില: Adjust the water temperature using the 'Water Temp' buttons.

മറ്റ് പ്രവർത്തനങ്ങൾ:

• ചൂട് എയർ ഡ്രയർ: Press the 'Dry' button to activate the warm air dryer.
• നോസൽ വൃത്തിയാക്കുക: Press the 'Nozzle Clean' button to activate a 2-minute automatic self-cleaning cycle for the nozzle.
• പവർ സേവ് മോഡ്: Activates an eco-friendly mode to reduce energy consumption.
• ചൈൽഡ് മോഡ്: Adjusts settings for a gentler experience suitable for children.
• നിർത്തുക: Press the 'Stop' button to end any active function.

മെയിൻ്റനൻസ്

Regular cleaning and maintenance will ensure the longevity and hygienic operation of your Trevi Bidet Toilet Seat.

• നോസൽ വൃത്തിയാക്കൽ: Utilize the dedicated 'Nozzle Clean' function regularly to ensure the nozzle remains hygienic.
• ബാഹ്യ ശുചീകരണം: Wipe down the exterior of the bidet seat with a soft, damp cloth and mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the surface.
• ഫിൽട്ടർ വൃത്തിയാക്കൽ: Refer to the detailed user manual (PDF) for instructions on cleaning or replacing any internal filters, if applicable.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter any issues with your Trevi Bidet Toilet Seat, please refer to the following common solutions:

• വൈദ്യുതിയില്ല/പ്രവർത്തനങ്ങൾ പ്രവർത്തിക്കുന്നില്ല: Ensure the bidet is properly plugged into a grounded 120V outlet. Check if the power save mode is active. Verify the seat sensor is engaged (you must be seated for wash functions to operate).
• No Water/Low Water Pressure: Confirm the water supply valve to the toilet is fully open. Check all hose connections for kinks or leaks.
• Nozzle Not Extending/Retracting: Ensure the seat sensor is properly engaged. Run the 'Nozzle Clean' cycle to clear any obstructions.
• അസാധാരണമായ ശബ്ദങ്ങൾ: A 'beep' sound is normal when the tank fills. Other unusual noises may indicate an issue; refer to the detailed user manual or contact customer support.

For more complex issues or problems not listed here, please consult the comprehensive user manual (PDF) or contact Trevi customer support.

സാങ്കേതിക സവിശേഷതകൾ

വാറൻ്റിയും പിന്തുണയും

For detailed warranty information and customer support, please refer to the official user manual or contact the manufacturer directly.

നിർമ്മാതാവ്: Ace Life Co., Ltd

ഉപയോക്തൃ മാനുവൽ (PDF): PDF ഡൗൺലോഡ് ചെയ്യുക
