SICCE സ്പേസ് EKO 300 കാനിസ്റ്റർ ഫിൽട്ടർ ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

The SICCE Space EKO 300 is a high-performance external canister filter designed for both freshwater and saltwater aquariums. This filter system offers a unique easy start-up, large filter capacity, and quiet operation, making it suitable for various aquarium setups. It is engineered for long-lasting performance with proper maintenance.

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Space EKO 300 canister filter.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read all safety instructions carefully before operating the filter. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• ഏതെങ്കിലും അറ്റകുറ്റപ്പണികൾ അല്ലെങ്കിൽ വൃത്തിയാക്കൽ നടത്തുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും വൈദ്യുതി വിതരണം വിച്ഛേദിക്കുക.
• Ensure the filter is placed on a stable, level surface below the aquarium water level to facilitate proper operation.
• പവർ കോർഡിനോ പ്ലഗിനോ കേടുപാടുകൾ സംഭവിച്ചാൽ ഫിൽട്ടർ പ്രവർത്തിപ്പിക്കരുത്.
• ഈ ഉപകരണം ഇൻഡോർ ഉപയോഗത്തിന് മാത്രമുള്ളതാണ്.
• കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• Ensure all connections are secure and leak-free before powering on the unit.

3. പാക്കേജ് ഉള്ളടക്കം

Verify that all components are present and undamaged upon unpacking. The Space EKO 300 canister filter package typically includes:

• Space EKO 300 Canister Filter Unit
• All necessary tubing and connectors
• Filter media (mechanical, biological, and chemical)
• Quick disconnect system
• മാധ്യമ കൊട്ടകൾ
• Heavy-duty locking clips

ചിത്രം 3.1: പൊട്ടിത്തെറിച്ചു view diagram showing all components of the Space EKO filter, including the canister body, head unit, media baskets, tubing, and connectors.

4. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

Follow these steps for the initial setup of your Space EKO 300 canister filter:

1. Prepare the Filter Media: റിലേ വഴി ഫിൽട്ടർ ഹെഡ് തുറക്കുകasing the locking clips. Remove the media baskets. Rinse all filter media thoroughly under tap water to remove any dust or debris. Arrange the media in the baskets according to the manufacturer's recommendations (typically mechanical filtration at the bottom, followed by biological and chemical).
2. Assemble the Canister: Place the filled media baskets back into the canister body. Ensure the sealing gasket on the filter head is clean and properly seated. Secure the filter head to the canister body using the heavy-duty locking clips.
3. ട്യൂബുകൾ ബന്ധിപ്പിക്കുക: Attach the inlet and outlet tubing to the quick disconnect system on the filter head. Ensure a tight fit to prevent leaks. The quick disconnect system allows for easy removal of the filter for maintenance.


   ചിത്രം 4.1: വിശദമായി view of the quick disconnect system on the filter head, showing the secure attachment points for the inlet and outlet hoses.
4. Install Inlet and Outlet Pipes: Position the inlet pipe (with strainer) and outlet pipe (with spray bar or nozzle) inside your aquarium. Secure them using the provided suction cups. Ensure the inlet is submerged and the outlet is positioned to create good water circulation.
5. ഫിൽട്ടർ സ്ഥാപിക്കുക: Place the canister filter on a stable surface below the aquarium water level. This is crucial for the self-priming function to work effectively.
6. ഫിൽട്ടർ പ്രൈമിംഗ്: The Space EKO filter features a self-priming system. Before plugging in the unit, ensure the quick disconnect valve is open. To assist with priming, it is highly recommended to fill the canister completely with water before starting. Once filled, operate the priming handle (located on top of the filter head) by pushing it down and pulling it up repeatedly until water begins to flow into the filter and air is expelled from the outlet hose. This may require several pumps.


   Figure 4.2: The priming handle, located on the top of the filter head, used to manually draw water into the system during initial setup.

7. പവർ ഓൺ: Once water is flowing steadily through the outlet hose and no large air bubbles are visible, plug the filter into a grounded electrical outlet. The filter should start operating quietly.

Figure 4.3: The Sicce Space EKO canister filter fully assembled with inlet and outlet hoses connected, illustrating its compact design.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Space EKO 300 filter is designed for continuous operation to maintain optimal water quality in your aquarium. Once set up, it requires minimal intervention.

• ഒഴുക്ക് നിയന്ത്രണം: The filter head may feature a flow control lever or valve to adjust the water flow rate. Adjust this as needed for your specific aquarium requirements.


  Figure 5.1: The flow control lever on the filter head, allowing users to regulate the water output from the filter.

• നിശബ്ദ പ്രവർത്തനം: The Space EKO series is known for its quiet performance. Any unusual noise may indicate air trapped in the system or an issue with the impeller. Refer to the troubleshooting section if noise occurs.
• നിരീക്ഷണം: Regularly observe the water clarity and flow rate to ensure the filter is functioning correctly. A decrease in flow often indicates that the filter media requires cleaning.

6. പരിപാലനം

Regular maintenance is crucial for the long-term performance and efficiency of your Space EKO 300 filter. Maintenance frequency depends on your aquarium's bioload and size, but typically every 2-4 weeks.

1. പവർ വിച്ഛേദിക്കുക: Always unplug the filter from the power outlet before beginning any maintenance.
2. ഹോസുകൾ വിച്ഛേദിക്കുക: Close the quick disconnect valve on the filter head and then detach the entire quick disconnect assembly from the filter head. This prevents water from spilling.
3. Open Canister: Release the locking clips and carefully lift the filter head off the canister body.
4. Clean Media Baskets: Remove the media baskets. Rinse mechanical filter media (e.g., sponges, filter floss) in old aquarium water (not tap water, to preserve beneficial bacteria) to remove trapped debris. Replace filter floss as needed. Biological media should only be gently rinsed if heavily clogged, again using old aquarium water. Chemical media (e.g., activated carbon) should be replaced according to its lifespan, typically every 2-4 weeks.


   Figure 6.1: The floating filter media baskets, designed for easy removal and replacement of various filter media types.

5. ക്ലീൻ ഇംപെല്ലർ: Inspect and clean the impeller and impeller housing located within the filter head. Remove any debris, hair, or slime that may impede its rotation.
6. Clean Canister Body and Hoses: Rinse the inside of the canister body. Periodically clean the inlet and outlet pipes and hoses to prevent buildup that can restrict flow.
7. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Reassemble the filter in reverse order, ensuring all seals and gaskets are clean and properly seated. Reconnect the quick disconnect assembly and open the valve.
8. പുനരാരംഭിക്കുക: Follow the priming steps from Section 4.6 to restart the filter.

7. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your Space EKO 300 filter.

8 സ്പെസിഫിക്കേഷനുകൾ

Key technical specifications for the SICCE Space EKO 300 Canister Filter:

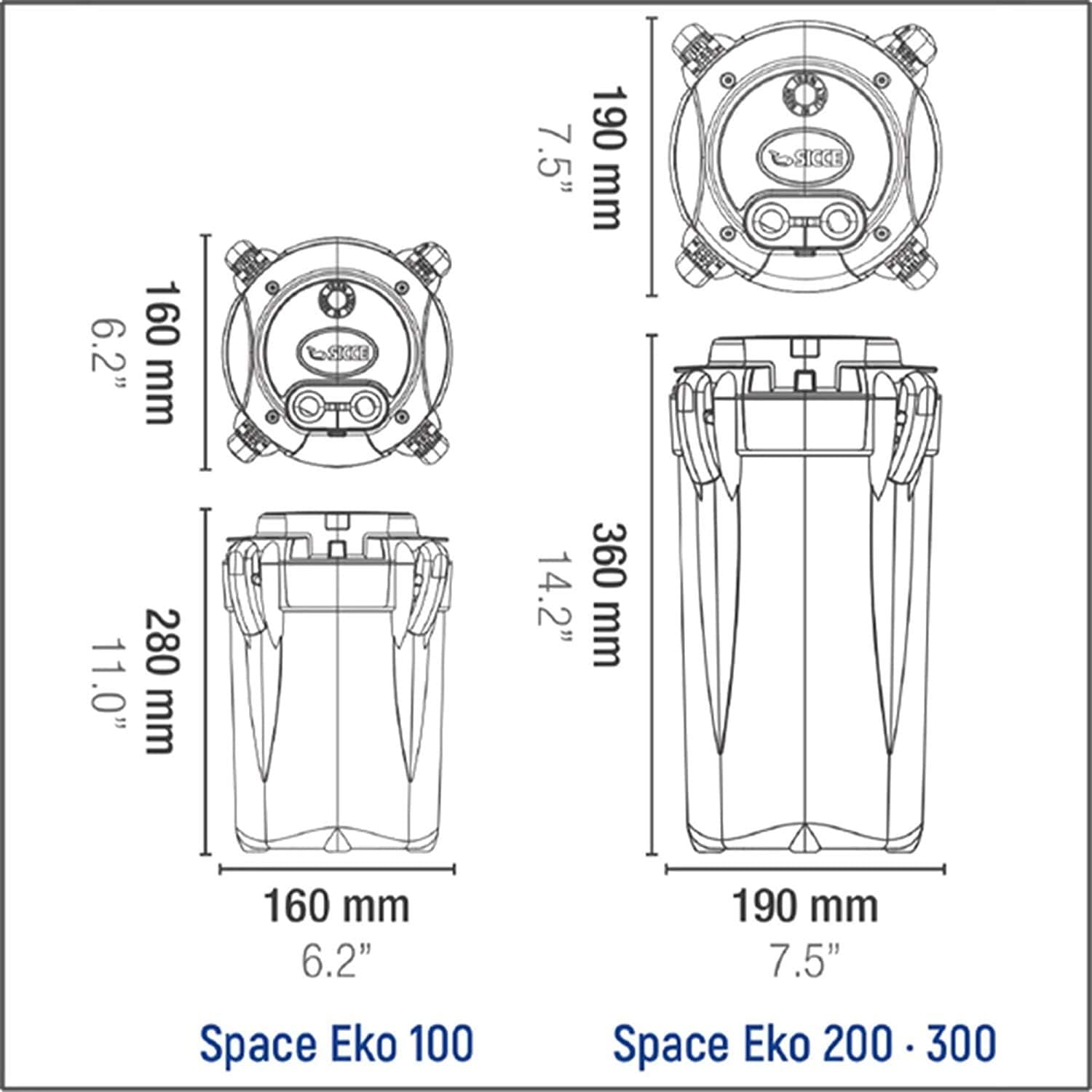

Figure 8.1: Dimensional diagram illustrating the sizes of Space EKO 100, 200, and 300 models. The Space EKO 300 shares dimensions with the 200 model.

9. വാറൻ്റിയും പിന്തുണയും

The SICCE Space EKO 300 Canister Filter comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty duration and coverage details.

For technical assistance, spare parts, or warranty claims, please contact Sicce customer support. You can find more information and contact details by visiting the official Sicce store or webസൈറ്റ്:
