Jimwey 9-inch GPS Navigation System User Manual

1. ആമുഖം

Thank you for choosing the Jimwey 9-inch GPS Navigation System. This device is designed to provide reliable and accurate navigation for various vehicles, including cars, trucks, and lorries. With its large display and comprehensive features, it aims to make your journeys safer and more efficient.

This manual will guide you through the setup, operation, maintenance, and troubleshooting of your new navigation system. Please read it carefully before use to ensure optimal performance and longevity of the device.

Figure 1: Jimwey 9-inch GPS Navigation System

This image shows the Jimwey 9-inch GPS Navigation System from the front, mounted on a suction cup stand. The screen displays a detailed map with a highlighted route, current speed (Tempo: 55 km/h), and a height limit warning (11.7ft Height Limit), indicating its suitability for larger vehicles like trucks.

2. പാക്കേജ് ഉള്ളടക്കം

സജ്ജീകരണവുമായി മുന്നോട്ടുപോകുന്നതിനുമുമ്പ്, താഴെ പട്ടികപ്പെടുത്തിയിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Jimwey 9-inch GPS Navigation System
• കാർ ചാർജർ കേബിൾ
• യുഎസ്ബി ഡാറ്റ കേബിൾ
• Suction Cup Mount (Sucker)
• Dashboard Mount (Adhesive Pad)
• English/German User Manual

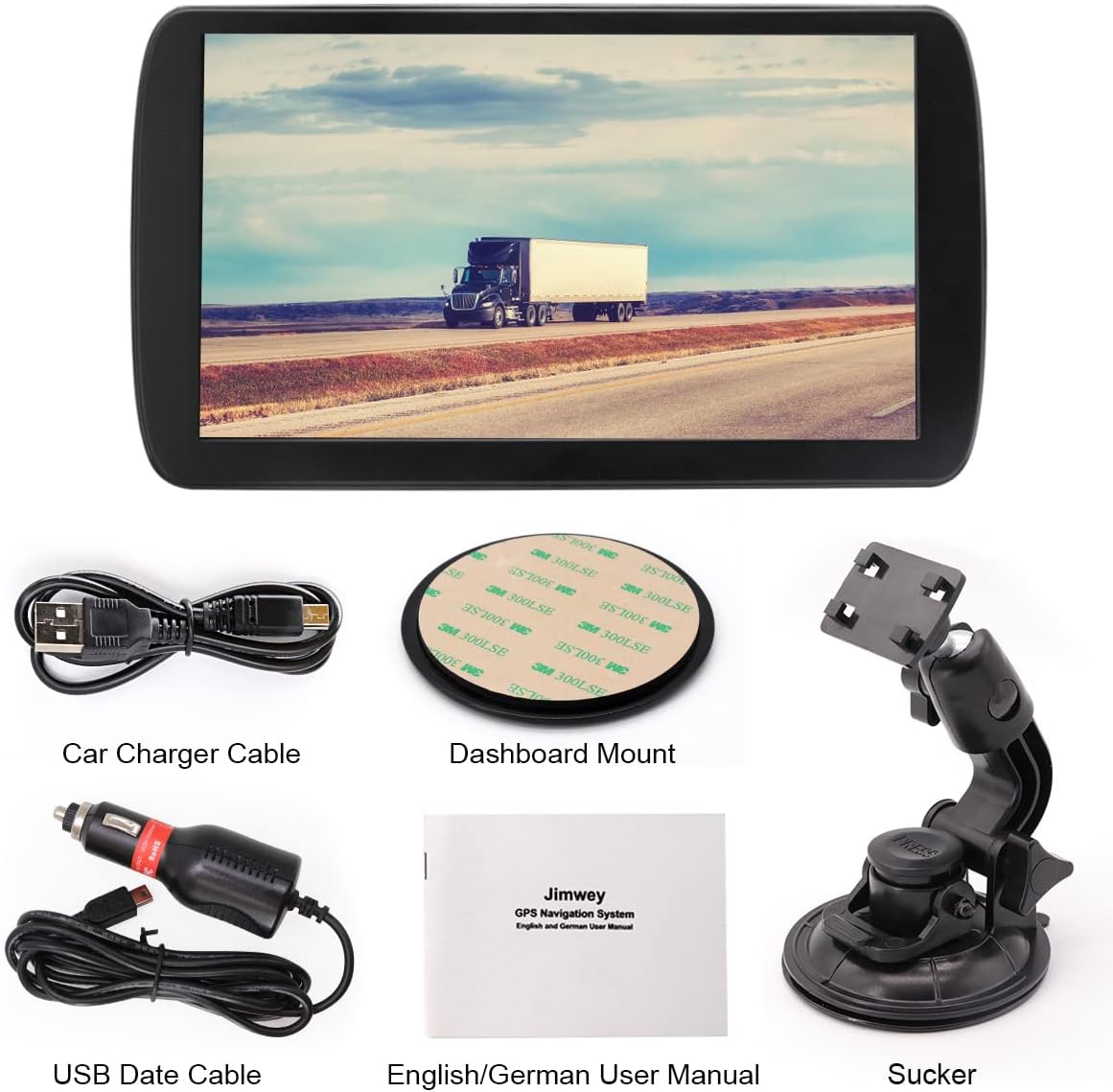

ചിത്രം 2: പാക്കേജ് ഉള്ളടക്കം

This image displays all the components included in the Jimwey GPS Navigation System package: the main GPS unit, a car charger cable, a USB data cable, a dashboard mount adhesive pad, an English/German user manual, and a suction cup mount.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

3.1 ഉപകരണം കഴിഞ്ഞുview

Familiarize yourself with the device's ports and buttons:

• ഓൺ/ഓഫ് ബട്ടൺ: ഉപകരണം ഓൺ അല്ലെങ്കിൽ ഓഫ് ചെയ്യുന്നു.
• ഹെഡ്‌ഫോൺ ജാക്ക്: For audio output to headphones.
• ടിഎഫ് കാർഡ് സ്ലോട്ട്: For inserting a TransFlash (microSD) memory card.
• USB ഇൻ്റർഫേസ്: For connecting to a computer or charging.
• ദ്വാരം പുനഃസജ്ജമാക്കുക: To perform a hard reset (use a thin pin).

Figure 3: Device Ports and Dimensions

This diagram illustrates the physical layout of the Jimwey GPS device, highlighting key features such as the ON/OFF button, headphone jack, TF card slot, USB interface, and reset hole. It also provides approximate dimensions of the device (24cm width, 13.5cm height).

3.2 മൗണ്ടിംഗ് ഓപ്ഷനുകൾ

The Jimwey GPS Navigation System offers two primary mounting options:

1. വിൻഡ്ഷീൽഡ് മൗണ്ട്: Attach the suction cup mount to a clean, smooth area on your windshield. Ensure it does not obstruct your view.
2. Dashboard Mount: Use the adhesive pad to secure the mount base to a flat, clean surface on your dashboard. This provides a more permanent installation.

Once the mount is secured, attach the GPS unit to the mount and adjust the viewനിങ്ങളുടെ ഡ്രൈവിംഗിന് തടസ്സമാകാതെ ഒപ്റ്റിമൽ ദൃശ്യപരതയ്ക്കായി ഇംഗ് ആംഗിൾ view.

ചിത്രം 4: മൗണ്ടിംഗ് ഓപ്ഷനുകൾ

This image demonstrates two ways to mount the Jimwey GPS: on the windshield using the suction cup mount, and on the dashboard using an adhesive pad. Both setups show the device positioned for clear visibility from the driver's seat.

3.3 പവർ ഓണും പ്രാരംഭ സജ്ജീകരണവും

1. Connect the device to your vehicle's power outlet using the provided car charger cable.
2. അമർത്തിപ്പിടിക്കുക ഓൺ/ഓഫ് ഉപകരണം ഓണാക്കാൻ ബട്ടൺ.
3. Upon first use, the system may prompt you to select your language, time zone, and other basic settings. Follow the on-screen instructions.
4. ഉപകരണത്തിന് വ്യക്തത ഉണ്ടെന്ന് ഉറപ്പാക്കുക view of the sky to acquire a GPS signal. This may take a few minutes for the initial fix.

4. Operating the Navigation System

4.1 പ്രധാന സവിശേഷതകൾ

The Jimwey GPS Navigation System comes equipped with a variety of features to enhance your navigation experience:

• 12 Satellite Positioning: Ensures accurate and reliable location tracking.
• വോയ്സ് ബ്രോഡ്കാസ്റ്റ്: Provides clear, turn-by-turn voice directions.
• POI & ZIP Search: Easily find Points of Interest (POIs) or search by postal code.
• Smart Route Planning: Calculates optimal routes based on various criteria.
• Maps & Free Updates: Comes with pre-loaded maps and supports free updates.
• എഫ്എം ട്രാൻസ്മിറ്റർ: Transmit audio from the GPS to your car's FM radio.
• Speed Warnings: Alerts you to speed limits and exceeding them.
• 2D/3D Map View മോഡ്: Switch between two-dimensional and three-dimensional map displays.
• മ്യൂസിക് പ്ലേ: ഓഡിയോ പ്ലേ ചെയ്യുക fileഉപകരണത്തിലോ ചേർത്ത TF കാർഡിലോ സംഭരിച്ചിരിക്കുന്നു.

Figure 5: Multifunction Sat Nav Features

This image displays a grid of nine icons, each representing a key feature of the Jimwey Sat Nav: 12 Satellite Positioning, Voice Broadcast, POI & ZIP Search, Smart Route Planning, Maps & Free Updates, FM Transmitter, Speed Warnings, 2D/3D Map View Mode, and Music Play.

4.2 ഒരു ലക്ഷ്യസ്ഥാനത്ത് പ്രവേശിക്കുന്നു

1. From the main menu, tap "Navigation" or "Destination".
2. Choose your preferred method of input: Address, POI, Coordinates, or History.
3. ഓൺ-സ്ക്രീൻ കീബോർഡ് ഉപയോഗിച്ച് ആവശ്യമായ വിവരങ്ങൾ നൽകുക.
4. Confirm the destination. The system will calculate the route.
5. Tap "Go" or "Start Navigation" to begin your journey.

4.3 Vehicle Modes and Restrictions

The Jimwey GPS supports various vehicle types, allowing for customized routing based on vehicle dimensions and weight. This is particularly useful for trucks and lorries to avoid restricted roads.

• കാർ മോഡ്: Standard routing for passenger vehicles.
• Lorry/Truck Mode: Accounts for height, weight, length, and width restrictions, avoiding low bridges, weight-restricted roads, and narrow streets.
• മറ്റ് മോഡുകൾ: Includes options for Taxi, Pedestrian, Bicycle, Bus, and Emergency vehicles, each with specific routing considerations.

To change the vehicle mode, navigate to "Settings" > "Vehicle Type" and select the appropriate option. Ensure you input accurate vehicle dimensions if using Lorry/Truck mode.

Figure 6: Supported Vehicle Types

This image is a collage showing various modes of transport supported by the GPS, including Car, Taxi, Lorry, Pedestrian, Bicycle, Bus, and Emergency vehicles, indicating the device's versatility in route planning.

Figure 7: Road Restriction Awareness

This image displays four common road signs that the GPS system can account for: speed limit, high limit (e.g., tunnel clearance), weight limit, and traffic light information, crucial for safe navigation, especially for larger vehicles.

5. പരിപാലനം

5.1 ഉപകരണം വൃത്തിയാക്കുന്നു

To maintain the clarity of the screen and the device's appearance:

• സ്‌ക്രീനും ബോഡിയും തുടയ്ക്കാൻ മൃദുവായ, ലിന്റ് രഹിത തുണി ഉപയോഗിക്കുക.
• കഠിനമായ പാടുകൾക്ക്, ചെറുതായി dampen വെള്ളമുള്ള തുണി അല്ലെങ്കിൽ ഒരു സ്ക്രീൻ ക്ലീനർ.
• Avoid using abrasive cleaners, alcohol, or solvents, as these can damage the screen or casing.

5.2 മാപ്പ് അപ്‌ഡേറ്റുകൾ

To ensure you always have the most current map data, regularly check for updates. The Jimwey GPS Navigation System supports free map updates. Refer to the included user manual or the manufacturer's website for detailed instructions on how to download and install map updates.

Typically, map updates involve connecting the device to a computer via the USB data cable and using specific software provided by Jimwey.

6. പ്രശ്‌നപരിഹാരം

If the problem persists after trying these solutions, please contact Jimwey customer support.

7 സ്പെസിഫിക്കേഷനുകൾ

Figure 8: Key Hardware Components

This image highlights three core components of the Jimwey GPS: its 9-inch touchscreen, the MediaTek2531 CPU, and the 2100mAh battery, emphasizing the device's internal specifications.

8. വാറൻ്റിയും പിന്തുണയും

Jimwey products are designed for reliability and performance. For information regarding warranty coverage, please refer to the warranty card included in your product package or visit the official Jimwey webസൈറ്റ്.

For technical support, troubleshooting assistance beyond this manual, or inquiries about parts and accessories, please contact Jimwey customer service through their official channels. Keep your purchase receipt and product model information handy when contacting support.
