പാവ്ഹട്ട് പെറ്റ് പ്ലേപെൻ D06-072 ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides detailed instructions for the assembly, operation, and maintenance of your PawHut DIY Pet Playpen (Model D06-072). This versatile enclosure is designed to provide a safe and customizable space for small animals such as guinea pigs, rabbits, chinchillas, ferrets, hedgehogs, and kitties. Please read all instructions carefully before assembly and use to ensure proper setup and safety for your pet.

2 സുരക്ഷാ വിവരങ്ങൾ

• Not Suitable for All Animals: This playpen is ഹാംസ്റ്ററുകൾക്കും എലികൾക്കും അനുയോജ്യമല്ല due to the grid size. Ensure your pet cannot escape through the panel openings.
• സുരക്ഷിത കണക്ഷനുകൾ: Always ensure all connectors are firmly attached to the wire panels. Use the included cable ties for additional stability, especially in multi-level configurations or if your pet is active.
• സ്ഥിരതയുള്ള സ്ഥാനം: Place the assembled playpen on a flat, stable surface to prevent wobbling or collapse.
• പതിവ് പരിശോധന: Periodically check all connections and panels for any signs of wear, damage, or loosening. Tighten or replace components as necessary.
• മേൽനോട്ടം: Always supervise your pet, especially during initial use, to ensure they are safe and comfortable within the enclosure.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation within the playpen.
• കുട്ടികളുടെ സുരക്ഷ: ചെറിയ ഭാഗങ്ങളും പാക്കേജിംഗ് വസ്തുക്കളും കുട്ടികളിൽ നിന്ന് അകറ്റി നിർത്തുക.

3. പാക്കേജ് ഉള്ളടക്കം

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 35 x Wire Panels (approx. 13.75" x 13.75" / 35 x 35 cm each)
• 1 x Door Panel
• 1 x PVC Hammer
• Several Cable Ties
• 72 x പ്ലാസ്റ്റിക് കണക്ടറുകൾ

Figure 1: Included components of the PawHut Pet Playpen.

4. സജ്ജീകരണവും അസംബ്ലി നിർദ്ദേശങ്ങളും

The PawHut Pet Playpen features a DIY design, allowing for various configurations. Follow these general steps for assembly:

1. നിങ്ങളുടെ ഡിസൈൻ ആസൂത്രണം ചെയ്യുക: Before connecting panels, decide on the desired shape and size of your playpen. Consider the space available and your pet's needs.
2. പാനലുകൾ ബന്ധിപ്പിക്കുക: Insert the corners of the wire panels into the slots of the plastic connectors. Ensure the panels are fully seated within the connectors.
3. സുരക്ഷിത കണക്ഷനുകൾ: Use the included PVC hammer to gently tap the panels into the connectors, ensuring a snug and secure fit. This helps to prevent wobbling.
4. ഡോർ പാനൽ ഇൻസ്റ്റാൾ ചെയ്യുക: Integrate the door panel into your design. The door allows for easy access to your pet for feeding, watering, and interaction.
5. Add Stability with Cable Ties: For enhanced stability, especially for larger or more active pets, use the provided cable ties to reinforce connections between panels. Wrap the cable ties around adjacent wires near the connectors and tighten securely.
6. Create Multi-Level Structures (Optional): If building a multi-level cage, ensure the base is strong and stable. Use additional panels to create platforms and ramps. PP resin layers (not included, but can be added by user) on platforms and ramps can make walking more comfortable for your pet.
7. അന്തിമ പരിശോധന: Once assembled, gently push and pull on the structure to ensure all connections are secure and the playpen is stable.

ചിത്രം 2: ഉദാample of a multi-level playpen configuration.

ചിത്രം 3: ഉദാamples of DIY configurations possible with the playpen panels.

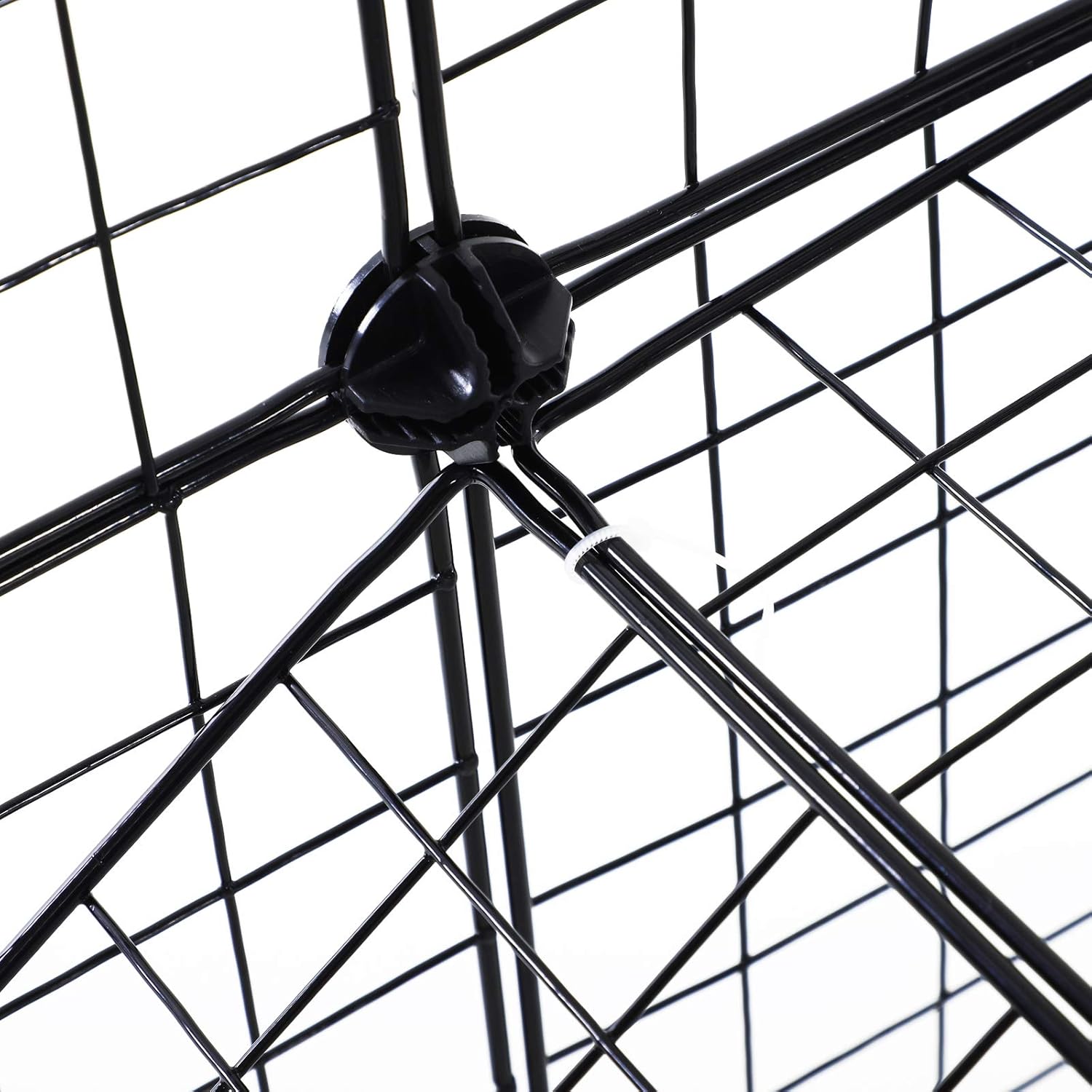

Figure 4: Detail of a secure panel connection using a plastic connector and cable tie.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Using your PawHut Pet Playpen is straightforward:

• Door Access: The integrated door panel allows for easy entry and exit. Simply unlatch and open the door to access your pet or place items inside the enclosure.
• Reconfiguration: The modular design allows you to easily reconfigure the playpen as needed. To change the shape or size, gently disconnect panels from the connectors and reassemble them in the desired arrangement. Always re-secure connections with the hammer and cable ties.
• പ്ലേസ്മെൻ്റ്: Position the playpen in a safe, indoor area away from direct sunlight, drafts, or hazards. Ensure sufficient space around the enclosure for cleaning and pet interaction.

Figure 5: PawHut Pet Playpen in use with small animals.

6. പരിപാലനം

Regular maintenance will extend the life of your pet playpen:

• വൃത്തിയാക്കൽ: Wipe down wire panels and plastic connectors with a damp cloth and mild, pet-safe cleaner. Rinse thoroughly and dry completely before reassembling or allowing pets back inside. Avoid abrasive cleaners.
• പരിശോധന: Routinely inspect all components for any signs of damage, rust, or loose connections. Replace any damaged panels or connectors immediately.
• സംഭരണം: If disassembling for storage, clean all parts and store them in a dry place away from extreme temperatures.

7. പ്രശ്‌നപരിഹാരം

• Playpen is Wobbly:
  പരിഹാരം: Ensure all wire panels are fully inserted into the plastic connectors. Use the PVC hammer to gently tap connections for a tighter fit. Reinforce critical connections with cable ties.
• Panels Not Connecting Properly:
  പരിഹാരം: Check that the panel corners are correctly aligned with the connector slots. Apply even pressure and use the PVC hammer if needed. Avoid forcing connections, which can damage components.
• Pet Escaping:
  പരിഹാരം: Inspect the entire enclosure for any gaps or loose panels. Ensure the door is securely latched. For very small or determined pets, consider adding additional panels or reinforcing the base and top with cable ties.
• കേടായ ഘടകങ്ങൾ:
  പരിഹാരം: If a panel or connector is damaged, discontinue use and contact customer support for replacement parts.

8 സ്പെസിഫിക്കേഷനുകൾ

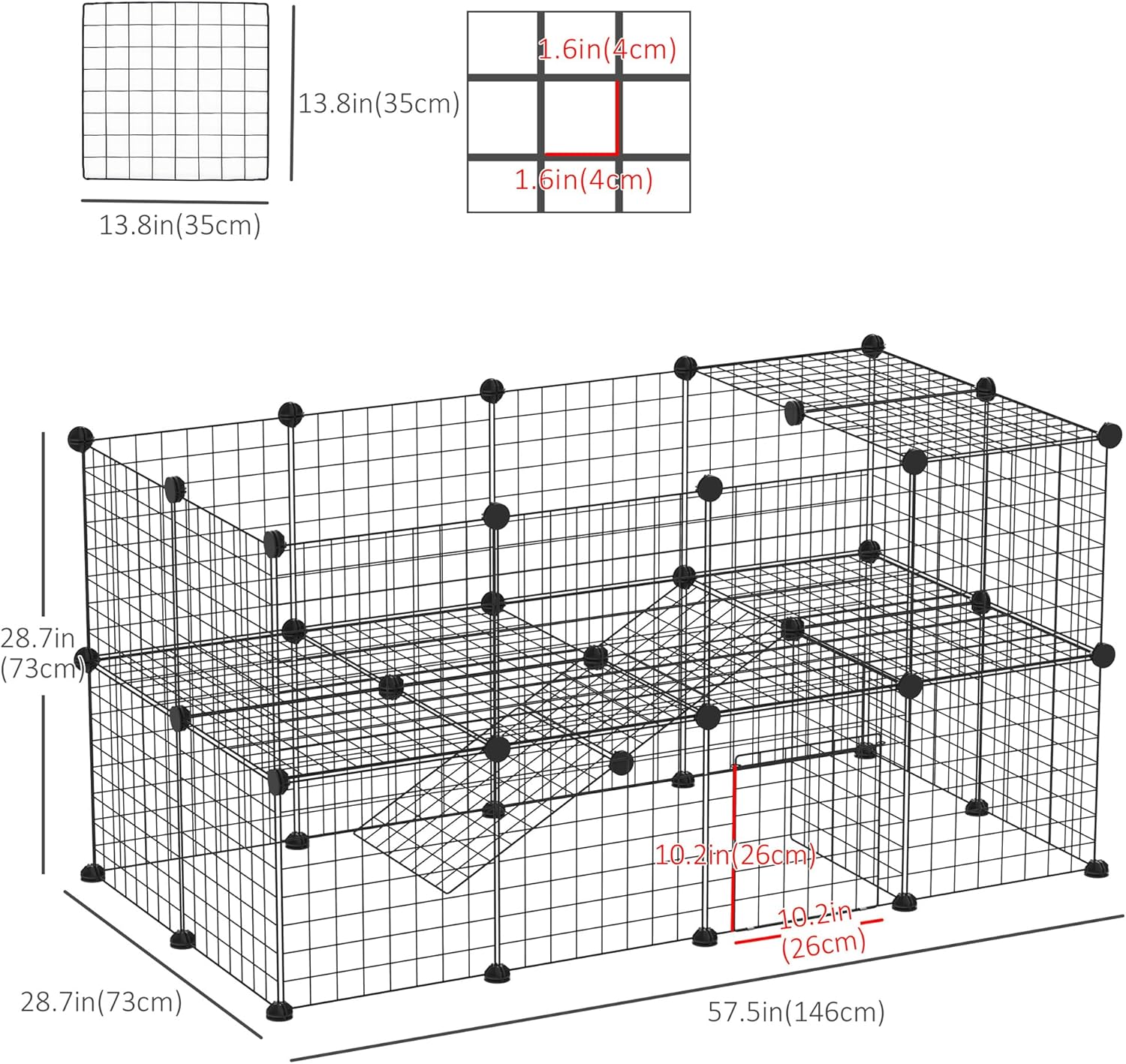

Figure 6: Detailed dimensions of the PawHut Pet Playpen.

9. വാറൻ്റിയും പിന്തുണയും

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For product support or to inquire about replacement parts, please contact the manufacturer:

നിർമ്മാതാവ്: ആസോം കാനഡ
ബിസിനസ് സ്ഥലം: മാർക്കം, ഒന്റാറിയോ, കാലിഫോർണിയ
ടെലിഫോൺ: 1-416-792-6088
