Renogy Phoenix 300 Portable Power Station Instruction Manual

ആമുഖം

The Renogy Phoenix 300 Solar Generator is a compact and lightweight portable power station designed for various applications, including home backup, camping, and emergency use. With a 337Wh capacity, it features multiple charging ports, including AC, USB-A, USB-C Power Delivery, and D-Tap, to power a wide range of devices. Its high energy density battery cells and robust design ensure reliable performance.

സജ്ജമാക്കുക

1. അൺബോക്‌സിംഗും പ്രാരംഭ പരിശോധനയും

Carefully open the packaging and remove the Renogy Phoenix 300 Portable Power Station and all included accessories. Inspect the unit for any signs of damage. The package should contain the Phoenix 300 Power Station, a user's manual, AC adapter, car charger cable, and solar charging cable.

2. പ്രാരംഭ ചാർജിംഗ്

Before first use, it is recommended to fully charge the Phoenix 300 to 100%. This helps calibrate the battery management system (BMS) for optimal performance and accurate battery level readings. Use the provided AC adapter for the fastest initial charge.

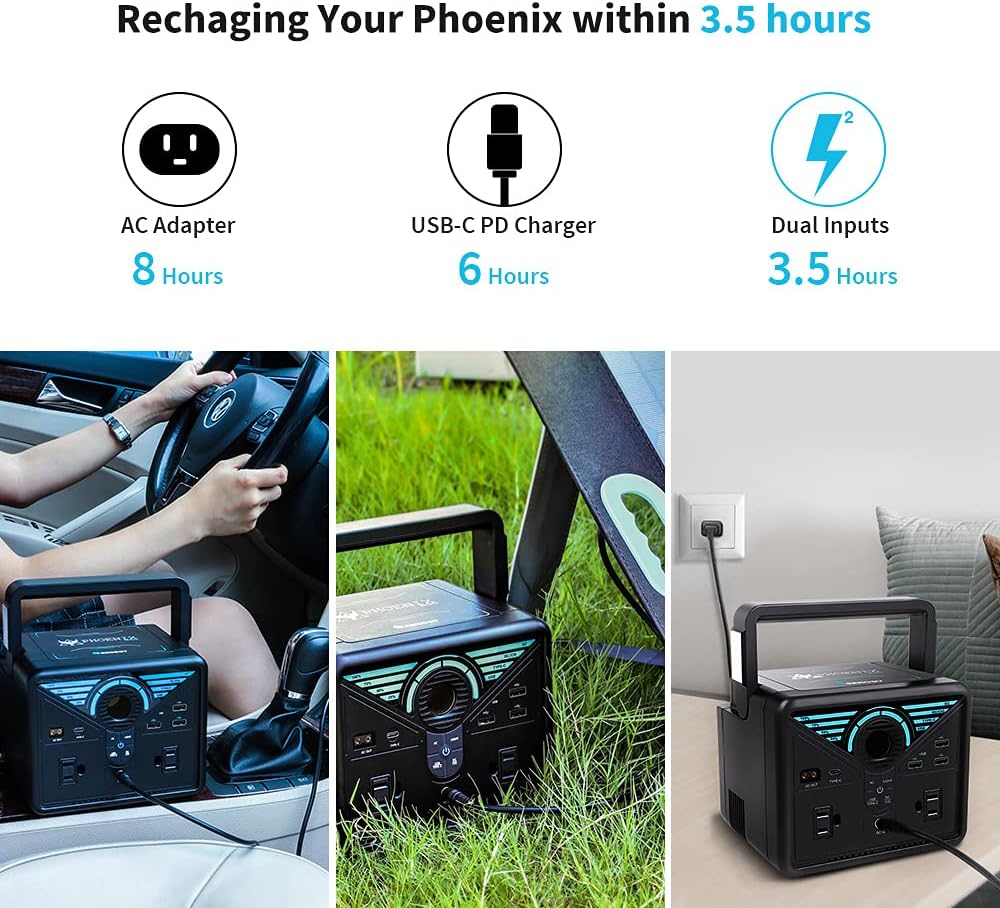

ചിത്രം: The Renogy Phoenix 300 can be recharged within 3.5 hours using dual inputs. It shows recharging options via AC Adapter (8 hours), USB-C PD Charger (6 hours), and Dual Inputs (3.5 hours), with accompanying images of the power station being charged in a car, with a solar panel, and via a wall outlet.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ/ഓഫ്

Press and hold the main power button located on the front panel to turn the unit on or off. The LCD display will illuminate, showing the battery status and other relevant information.

2. എൽസിഡി ഡിസ്പ്ലേ ഓവർview

എൽസിഡി ഡിസ്പ്ലേ തത്സമയ വിവരങ്ങൾ നൽകുന്നു:

• ബാറ്ററി നില: നിലവിലെ ചാർജ് ശതമാനം കാണിക്കുന്നുtage.
• ഇൻപുട്ട്/ഔട്ട്പുട്ട് വാട്ട്tage: Displays the power being drawn in or out.
• ശേഷിക്കുന്ന സമയം: Estimates the remaining runtime or charging time.

3. ഔട്ട്പുട്ട് പോർട്ടുകൾ

The Phoenix 300 offers a variety of output ports:

• എസി ഔട്ട്ലെറ്റുകൾ: Two 120V AC ports for standard appliances. Press the 'AC' button to activate.
• USB-A പോർട്ടുകൾ: Multiple USB-A ports, including 18W Quick Charge ports, for charging mobile devices.
• യുഎസ്ബി-സി പോർട്ട്: One 60W Power Delivery (PD) USB-C port for fast charging compatible devices.
• ഡി-ടാപ്പ് ഔട്ട്പുട്ട്: For specialized equipment.
• CIG പോർട്ട്: 12V car cigarette lighter port.
• ഡിസി put ട്ട്‌പുട്ട്: Two 12V/10A DC ports.

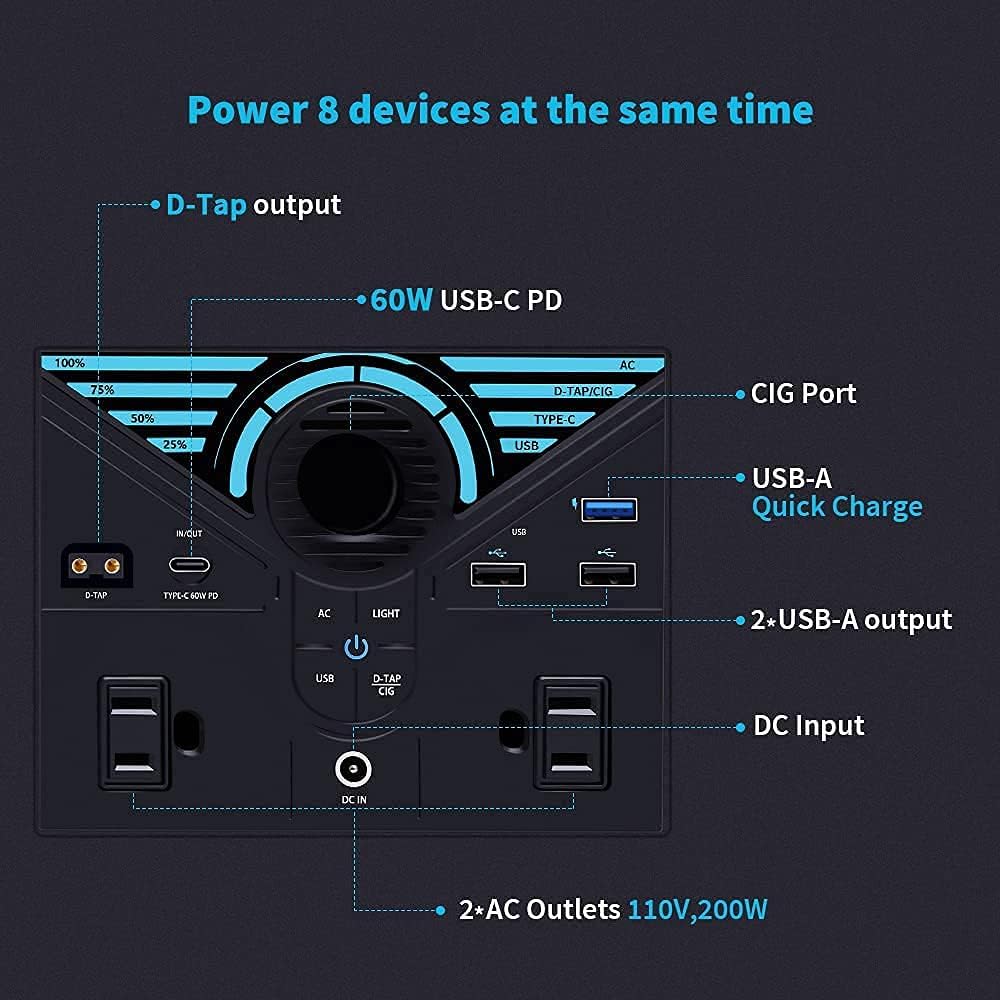

ചിത്രം: A detailed diagram illustrating the various input and output ports on the Renogy Phoenix 300. It highlights the D-Tap output, 60W USB-C PD, CIG Port, USB-A Quick Charge, 2x USB-A output, DC Input, and 2x AC Outlets (110V, 200W).

4. Charging the Phoenix 300

The unit can be charged using multiple methods:

• എ സി അഡാപ്റ്റർ: Connect the provided AC adapter to a wall outlet.
• USB-C PD ചാർജർ: Use a compatible USB-C PD charger for faster charging.
• സോളാർ പാനൽ: Connect a compatible solar panel (not included) using the provided solar charging cable.
• കാർ ചാർജർ: Use the provided car charger cable to charge from your vehicle's 12V cigarette lighter port.

5. Fast/Slow Charge Modes

The Phoenix 300 supports both fast and slow charging modes. Refer to the user manual for specific instructions on how to switch between these modes, typically involving a combination of button presses.

6 ബൂസ്റ്റ് മോഡ്

The Phoenix 300 features a boost mode that allows it to temporarily output up to 450W for devices with high startup power requirements, while maintaining a continuous output of 300W. This is useful for appliances like air compressors or refrigerators that have a momentary power surge when starting. However, it is not recommended for sensitive electronics like TVs or computers.

7. Emergency Flashlight

The unit includes an emergency flashlight with multiple modes: Bright, Dim, Flashing, and SOS. Activate and cycle through modes using the dedicated light button.

ചിത്രം: The Renogy Phoenix 300 features an emergency flashlight with multiple modes: Bright, Dim, Flashing, and SOS, providing versatile lighting options for various situations.

8. ആപ്പ് നിയന്ത്രണം

The Phoenix 300 can be controlled via a smartphone app using Bluetooth or Wi-Fi connectivity. Scan the QR code on the unit to download the app and follow the in-app instructions for pairing. The app allows for remote monitoring and control of various functions.

മെയിൻ്റനൻസ്

• ബാറ്ററി കാലിബ്രേഷൻ: To maintain battery health and accurate readings, it is recommended to fully discharge the unit to 0% and then fully recharge it to 100% periodically.
• സംഭരണം: Store the Phoenix 300 in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, ensure the battery is charged to approximately 50-80%.
• വൃത്തിയാക്കൽ: യൂണിറ്റിന്റെ പുറംഭാഗം വൃത്തിയാക്കാൻ മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിക്കുക. അബ്രാസീവ് ക്ലീനറുകൾ ഉപയോഗിക്കരുത് അല്ലെങ്കിൽ യൂണിറ്റ് വെള്ളത്തിൽ മുക്കരുത്.

ട്രബിൾഷൂട്ടിംഗ്

• Unregulated 12V Output: The 12V CIG port output is unregulated, meaning its voltage varies with the battery's state of charge (approximately 11V to 17V). This may not be suitable for sensitive 12V electronics that require a stable voltage.
• USB-C Output Issues: Some users have reported that the USB-C port may not function correctly when the battery level drops below 50%. Ensure the unit is sufficiently charged for optimal USB-C performance.
• AC Output Not Activating: If the AC outlets do not activate, check the battery level. Some users have experienced issues with AC output below 75% charge. Ensure the unit is adequately charged.
• യൂണിറ്റ് ചാർജ് ചെയ്യുന്നില്ല: Verify that all charging cables are securely connected and that the power source (wall outlet, solar panel, car) is active. Check the input wattagഇ എൽസിഡി സ്ക്രീനിൽ പ്രദർശിപ്പിച്ചിരിക്കുന്നു.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി & പിന്തുണ

The Renogy Phoenix 300 Portable Power Station comes with a 3 വർഷത്തെ വാറൻ്റി. For any technical assistance, troubleshooting, or warranty claims, please contact Renogy customer support. Their customer service is highly regarded for its responsiveness and helpfulness.

You can find more information and contact details on the official Renogy webസൈറ്റ്: Visit the Renogy Store
