1. ആമുഖം
The Amazon Echo Dot (4th Gen) is a smart speaker designed to integrate Alexa into your home. Its spherical design delivers clear vocals and balanced bass for a full sound experience. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.

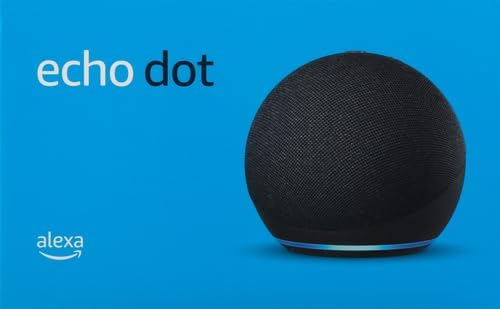

Image 1: The Amazon Echo Dot (4th Gen) in Charcoal, showcasing its spherical design and light ring.
Image 2: An Echo Dot on a wooden surface, surrounded by icons representing its core functionalities: music playback, timers, smart home control, information retrieval, intercom features, and news updates.
2. സജ്ജീകരണം
Follow these steps to set up your Echo Dot (4th Gen):
- ഉപകരണം അൺപാക്ക് ചെയ്യുക: Remove the Echo Dot and its power adapter from the packaging.
- പവർ ഓൺ: Plug the included power adapter into the Echo Dot and then into a wall outlet. The light ring on the bottom of the device will turn blue, then orange, indicating it is ready for setup.
- Alexa ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക: നിങ്ങളുടെ സ്മാർട്ട്ഫോണിലോ ടാബ്ലെറ്റിലോ, നിങ്ങളുടെ ഉപകരണത്തിന്റെ ആപ്പ് സ്റ്റോറിൽ നിന്ന് Amazon Alexa ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക.
- വൈഫൈയിലേക്ക് കണക്റ്റുചെയ്യുക: Open the Alexa app and follow the on-screen instructions to connect your Echo Dot to your Wi-Fi network. The Echo Dot supports dual-band Wi-Fi (2.4 GHz and 5 GHz).
- സജ്ജീകരണം പൂർത്തിയാക്കുക: Once connected, the light ring will turn off, and Alexa will greet you. Your Echo Dot is now ready for use.
For more detailed instructions or troubleshooting during setup, refer to the Alexa app.
ചിത്രം 3: ഒരു മുൻഭാഗം view of the Echo Dot (4th Gen), showing its fabric-covered speaker and the light ring at the base.
3. Operating Your Echo Dot
The Echo Dot is primarily voice-controlled using the wake word "Alexa."
വോയ്സ് കമാൻഡുകൾ
- സംഗീതവും ഓഡിയോയും: Say, "Alexa, play music" or "Alexa, play my workout playlist on Spotify." You can also ask for specific songs, artists, or genres.
- വിവരങ്ങൾ: Ask, "Alexa, what's the weather?" or "Alexa, tell me the news."
- ടൈമറുകളും അലാറങ്ങളും: Set a timer with, "Alexa, set a timer for 10 minutes." Set an alarm with, "Alexa, set an alarm for 7 AM."
- സ്മാർട്ട് ഹോം കൺട്രോൾ: If you have compatible smart home devices, say, "Alexa, turn on the lights" or "Alexa, set the thermostat to 72 degrees."
- ദിനചര്യകൾ: Create custom routines in the Alexa app. For example, "Alexa, good morning" could turn on lights, play news, and start the coffee maker.
- ആശയവിനിമയം: Use "Alexa, call Mom" or "Alexa, drop in on the kitchen Echo." You can also make announcements to all Echo devices in your home by saying, "Alexa, announce 'dinner is ready!'"
Image 4: An Echo Dot on a table, illustrating its ability to respond to voice commands such as setting alarms or playing news.
Image 5: A diagram of a multi-story house with Echo Dot devices placed in various rooms, demonstrating the multi-room music feature where Alexa can play music everywhere simultaneously.
ശാരീരിക നിയന്ത്രണങ്ങൾ
The Echo Dot has physical buttons on its top surface:
- വോളിയം കൂട്ടുക/താഴ്ത്തുക: സ്പീക്കർ ശബ്ദം ക്രമീകരിക്കുക.
- പ്രവർത്തന ബട്ടൺ: Activates Alexa without using the wake word, or dismisses alarms/timers.
- മൈക്രോഫോൺ ഓഫ് ബട്ടൺ: Press this button to electronically disconnect the microphones. The light ring will turn red when the microphones are off, indicating that Alexa cannot hear you. Press it again to re-enable the microphones.
ചിത്രം 6: മുകളിൽ നിന്ന് താഴേക്ക് view of the Echo Dot (4th Gen), highlighting the physical buttons for volume control, action, and microphone mute.
4. പരിപാലനം
To ensure optimal performance and longevity of your Echo Dot:
- വൃത്തിയാക്കൽ: Use a soft, dry, lint-free cloth to clean the device. Do not use abrasive cleaners or sprays.
- പ്ലേസ്മെൻ്റ്: Place the Echo Dot on a stable surface, away from sources of heat, direct sunlight, and liquids. Ensure proper ventilation.
- സോഫ്റ്റ്വെയർ അപ്ഡേറ്റുകൾ: Your Echo Dot automatically receives software security updates. Ensure your device is connected to Wi-Fi to receive these updates.
5. പ്രശ്നപരിഹാരം
If you encounter issues with your Echo Dot, try the following:
- ശക്തിയില്ല: Ensure the power adapter is securely plugged into both the Echo Dot and a working wall outlet.
- വൈഫൈ കണക്ഷൻ ഇല്ല: Check your Wi-Fi router and ensure it is working. Restart your router and the Echo Dot. Verify your Wi-Fi password in the Alexa app. The Echo Dot supports 802.11a/b/g/n/ac (2.4 and 5 GHz) networks.
- അലക്സ പ്രതികരിക്കുന്നില്ല: Ensure the microphone is not muted (the light ring should not be red). Speak clearly and ensure you are within hearing range of the device.
- ശബ്ദ പ്രശ്നങ്ങൾ: Adjust the volume using voice commands or the physical buttons. Check if the device is connected to an external Bluetooth speaker if sound is not coming from the Echo Dot itself.
- ആമസോൺ നടപ്പാത: If you experience network connectivity issues, especially after changing your Wi-Fi password, Amazon Sidewalk might be enabled. You can disable Sidewalk at any time from Account Settings in the Alexa App.
- ഉപകരണം പുനരാരംഭിക്കുക: Unplug the power adapter from the Echo Dot for a few seconds, then plug it back in.
For further assistance, consult the help section within the Alexa app or visit the Amazon device support webസൈറ്റ്.
6 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| വലിപ്പം | 3.9” x 3.9” x 3.5” (100 x 100 x 89 മിമി) |
| ഭാരം | 12 ഔൺസ് (341.3 ഗ്രാം) |
| Wi-Fi കണക്റ്റിവിറ്റി | ഡ്യുവൽ-ബാൻഡ് വൈ-ഫൈ 802.11a/b/g/n/ac (2.4 ഉം 5 GHz ഉം) നെറ്റ്വർക്കുകളെ പിന്തുണയ്ക്കുന്നു. അഡ്-ഹോക് നെറ്റ്വർക്കുകളെ പിന്തുണയ്ക്കുന്നില്ല. |
| ബ്ലൂടൂത്ത് കണക്റ്റിവിറ്റി | A2DP support for audio streaming; AVRCP for voice control of connected mobile devices. PIN-coded Bluetooth speakers are not supported. |
| ഓഡിയോ | 1.6” speaker. 3.5 mm line out for external speakers (cable not included). |
| സിസ്റ്റം ആവശ്യകതകൾ | Wi-Fi connection. Alexa app compatible with Fire OS, Android, iOS, and web ബ്ര rowsers സറുകൾ. |
| തലമുറ | Echo Dot (4th Gen) - 2020 release |
| ഭാഷ | അലക്സ ഇംഗ്ലീഷും സ്പാനിഷും സംസാരിക്കും |
| ബോക്സിൽ ഉൾപ്പെടുത്തിയിട്ടുണ്ട് | Echo Dot, power adapter (15W), Quick Start Guide. |
7. വാറൻ്റിയും പിന്തുണയും
വാറൻ്റി വിവരങ്ങൾ
Your Echo Dot (4th Gen) comes with a 90-day limited warranty and service. Optional 1-year, 2-year, and 3-year extended warranties are available for U.S. customers and are sold separately. Use of the Echo Dot is subject to the terms and conditions provided by Amazon.
പ്രവേശനക്ഷമത സവിശേഷതകൾ
The Alexa app and Alexa-enabled products include various features to assist customers with accessibility needs related to vision, hearing, mobility, and speech. For more details, please refer to the Alexa accessibility section within the Alexa app or on the Amazon webസൈറ്റ്.
സ്വകാര്യതാ സവിശേഷതകൾ
Amazon Echo devices are designed with multiple layers of privacy controls. These include wake word technology, streaming indicators, a microphone off button, and the ability to view and delete your voice recordings. For comprehensive information on how Alexa and Echo devices protect your privacy, visit the അലക്സ സ്വകാര്യതാ കേന്ദ്രം.
