KRK RP7 Rokit 7 G4 Professional Bi-Amp 7" Powered Studio Monitor Instruction Manual

1. ഓവർview

The KRK Rokit Generation 4 (G4) series professional monitors are engineered for music and sound creation. The RP7 G4 is a versatile and sonically accurate bi-amp monitor designed to provide a balanced listening experience. It features a DSP-driven graphic EQ for acoustic environment conditioning and Kevlar drivers for consistent sonic integrity across frequencies.

Image: KRK Rokit G4 series banner.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• DSP-driven Graphic EQ: Features 25 settings to help condition your acoustic environment, offering versatility in a studio monitor.
• Kevlar Drivers: Matching drivers made with Kevlar ensure consistent sonic integrity across all frequencies, minimizing listening fatigue and providing a balanced listening experience.
• High-Quality Enclosure: A scientifically designed enclosure with a newly-designed front-firing port offers exceptional low-end extension, punch, and flexible room positioning.
• Efficient Class D Power Ampജീവപര്യന്തം: Reduces operating temperatures to maintain audio integrity.
• Built-in Brickwall Limiter: Automatically engages at maximum amplifier level to maintain balanced sound, protect the system, and offer better dynamics.
• Iso-Foam Pads: High-density iso-foam pads decouple the speaker from the surface for improved clarity.

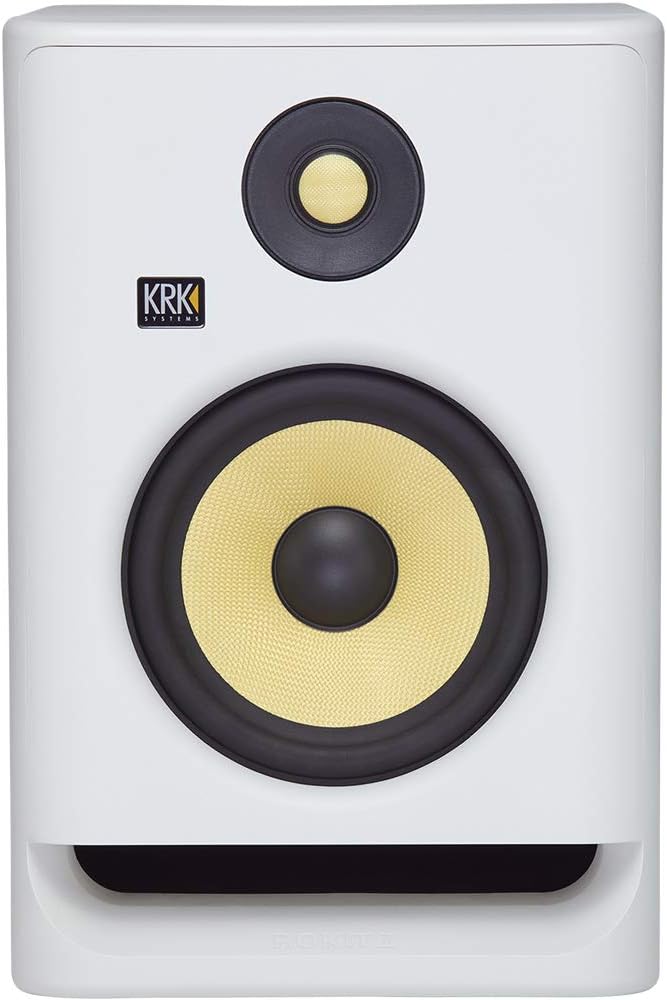

ചിത്രം: ഫ്രണ്ട് ആംഗിൾ view of the KRK RP7 Rokit 7 G4 studio monitor, highlighting the Kevlar woofer and tweeter.

3. പാക്കേജ് ഉള്ളടക്കം

The KRK RP7 Rokit 7 G4 package includes:

• Studio Monitor (1 unit)
• പവർ കേബിൾ
• Optional Faceplates

4. സജ്ജീകരണം

4.1 സ്പീക്കർ പ്ലേസ്മെന്റ്

For optimal listening, position the studio monitors as near-field monitors, aimed directly at the listener. Ensure the tweeters are at ear level when seated in your primary listening position. The front-firing port design allows for flexible room positioning.

4.2 കണക്ഷനുകൾ

The rear panel of the RP7 G4 offers balanced input options:

• സമതുലിതമായ ഇൻപുട്ട്: Connect your audio source using an XLR or TRS cable to the 'Balanced Input' port.
• ശക്തി: Connect the provided power cable to the AC input and a suitable power outlet.

Image: Rear panel of the KRK RP7 Rokit 7 G4 studio monitor, detailing balanced input, DSP room tuning display, volume knob, and power switch.

4.3 പ്രാരംഭ പവർ ഓൺ

After connecting the power cable, locate the 'Power' switch on the rear panel and switch it to the 'ON' position. The monitor will power on.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 വോളിയം ക്രമീകരണം

The 'Volume' knob on the rear panel allows you to adjust the output level of the monitor. Rotate clockwise to increase volume and counter-clockwise to decrease it.

5.2 DSP Room Tuning

The RP7 G4 features a high-resolution DSP room tuning system with 25 graphic EQ settings. This allows you to adjust the monitor's frequency response to compensate for your acoustic environment. Use the 'Volume' knob to navigate and select settings on the integrated display. The flat setting is suitable for most environments, but low, mid, and high frequency presets can be adjusted to address common acoustic issues.

5.3 Automatic Standby Mode

The monitors may enter an automatic standby mode if no audio signal is detected for a period. To reactivate the monitors, simply play an audio signal or adjust the volume. This feature helps conserve energy.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

The KRK RP7 Rokit 7 G4 Professional Bi-Amp 7" Powered Studio Monitor comes with a പരിമിത വാറൻ്റി. For detailed warranty information, troubleshooting, and technical support, please visit the official KRK Systems webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി ബന്ധപ്പെടുക.
