ഐഫോൺ QH-6KAT സെക്യൂരിറ്റി ഇന്റർകോം ഡോർ ഫോൺ യൂസർ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Aiphone QH-6KAT Security Intercom Door Phone. Please read this manual thoroughly before using the product and keep it for future reference.

The Aiphone QH-6KAT is a residential security master unit designed for condominiums, offering comprehensive communication and security features including intercom, emergency call, and detection for fire and gas leaks.

2 സുരക്ഷാ വിവരങ്ങൾ

പ്രധാനപ്പെട്ട സുരക്ഷാ മുന്നറിയിപ്പുകൾ:

• Installation of this unit requires an Electrical Engineer qualification and adherence to Fire Law Class A (Category 4) standards.
• Notification to the competent fire department is required prior to installation and operation.
• ഈ ഉപകരണം രൂപകൽപ്പന ചെയ്തിരിക്കുന്നത് AC direct power connection. Ensure proper electrical wiring is performed by a qualified professional.
• Do not attempt to disassemble or modify the unit. This may cause malfunction, electric shock, or fire.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Aiphone QH-6KAT is an exposed-type housing information panel that integrates various security and communication functions for residential units. It supports connections for two entrances, an optional handset (VHW-HSKA), and a monitor-less extension master unit (VH-RS).

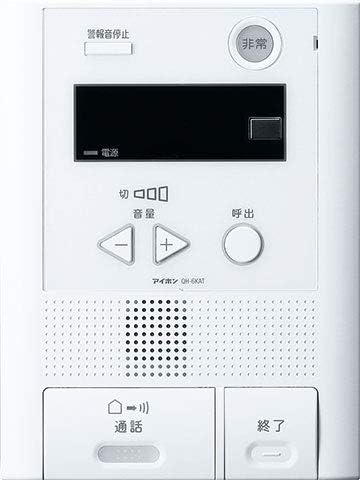

ചിത്രം 1: മുൻഭാഗം view of the Aiphone QH-6KAT Security Intercom Door Phone.

Figure 2: Aiphone QH-6KAT unit, showcasing its sleek and functional design.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The QH-6KAT unit is designed for AC direct power connection. Professional installation is required due to the electrical wiring and fire safety regulations.

4.1 അളവുകൾ

• Product Dimensions (Length x Width x Height): 240 mm x 180 mm x 42 mm
• Item Weight: Approximately 1.36 kg

4.2 വയറിംഗ്

This system is designed to minimize complex wiring, offering flexible installation options.

Figure 3: Illustration of minimal wiring requirements for certain configurations.

4.3 ഇൻസ്റ്റലേഷൻ രീതികൾ

The Aiphone system offers selectable installation methods to suit various residential environments.

ചിത്രം 4: ഉദാamples of selectable installation methods, including wall-mounted and desktop options.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 അടിസ്ഥാന പ്രവർത്തനങ്ങൾ

• ഇൻ്റർകോം: Communicate with visitors at the entrance.
• അടിയന്തര കോൾ: Activate an emergency alert for various situations.
• കണ്ടെത്തൽ: The unit is compatible with sensors for fire, gas leaks, and general purpose calls (e.g., bath, toilet).

5.2 ബട്ടൺ ഫംഗ്ഷനുകൾ (ചിത്രം 1 കാണുക)

• അടിയന്തര ബട്ടൺ: Press in case of an emergency (e.g., fire, gas leak, personal emergency).
• വോളിയം നിയന്ത്രണ ബട്ടണുകൾ (+/-): സ്പീക്കർ ശബ്ദം ക്രമീകരിക്കുക.
• കോൾ ബട്ടൺ: Initiate a call to an external unit or another internal unit.
• സംവാദ ബട്ടൺ: Press to speak during an intercom call.
• End Button: Terminate an intercom call.

6. പരിപാലനം

To ensure optimal performance and longevity of your Aiphone QH-6KAT unit, follow these general maintenance guidelines:

• Regularly wipe the unit with a soft, dry cloth to remove dust and dirt.
• Do not use abrasive cleaners, solvents, or strong chemicals, as these can damage the surface.
• Ensure that the speaker and microphone grilles are free from obstructions.
• Periodically check all connections for security, especially after any building maintenance.

7. പ്രശ്‌നപരിഹാരം

If you experience issues with your Aiphone QH-6KAT unit, consider the following basic troubleshooting steps:

• ശക്തിയില്ല: Verify that the unit is properly connected to the AC power source. Check the circuit breaker if necessary.
• ശബ്‌ദമില്ല/വികലമായ ശബ്‌ദം: Adjust the volume using the +/- buttons. Ensure the speaker and microphone are not obstructed.
• Call Not Connecting: Check the wiring connections if accessible, or contact a qualified technician.
• തെറ്റായ അലാറങ്ങൾ: Ensure sensors are clean and free from environmental factors that might trigger them. If persistent, contact a professional.

For more complex issues or repairs, please contact a qualified Aiphone service technician. Do not attempt to repair the unit yourself.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

Aiphone has been a leader in intercom systems for over 70 years, committed to providing reliable communication and security solutions. The company handles all aspects from manufacturing to after-sales support to ensure customer satisfaction.

Figure 5: Aiphone's dedicated customer support team.

For warranty information, technical support, or service inquiries, please refer to the contact details provided in the included documentation or visit the official Aiphone website. You can also explore the Aiphone Brand Store on Amazon കൂടുതൽ വിവരങ്ങൾക്ക്.

10. Aiphone's Global Presence

Aiphone intercoms are utilized in approximately 70 countries worldwide, including various notable locations, demonstrating the brand's global reach and reliability.

Figure 6: Aiphone intercoms are used in various prominent locations globally.
