1. ആമുഖം
This manual provides detailed instructions for the Waveshare 2-inch LCD Display Module. This module features an IPS screen with a 240x320 resolution, an embedded ST7789 controller, and communicates via a Serial Peripheral Interface (SPI). It is designed for integration with various microcontrollers and development boards, including Raspberry Pi, Arduino, and ESP32.

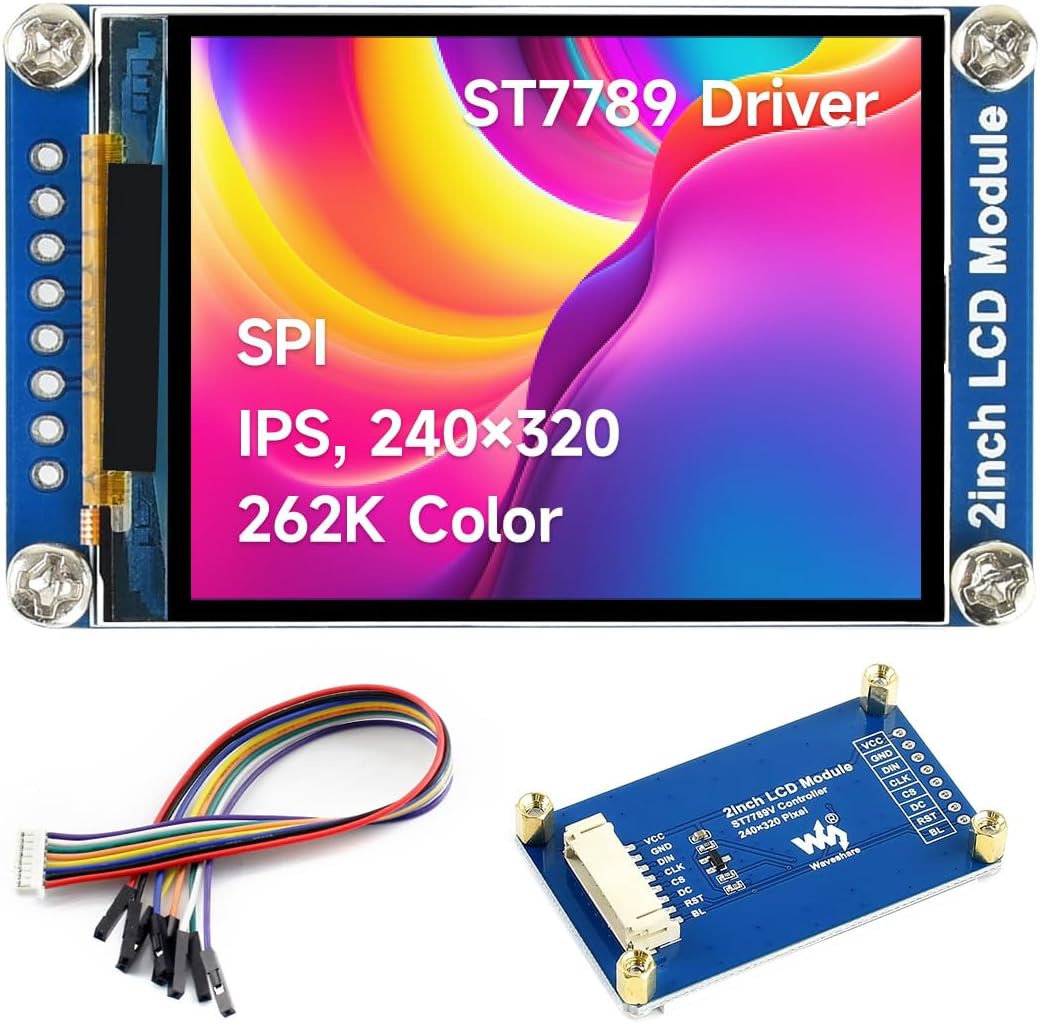

Image 1.1: The Waveshare 2-inch LCD Display Module, highlighting its key features like the ST7789 driver, SPI interface, IPS technology, 240x320 resolution, and 262K color support.
2. സവിശേഷതകൾ
- ഡിസ്പ്ലേ തരം: IPS screen, 2-inch diagonal.
- റെസലൂഷൻ: 240 × 320 pixels.
- കൺട്രോളർ: Embedded ST7789 driver.
- ഇൻ്റർഫേസ്: SPI (Serial Peripheral Interface), requiring minimal GPIO pins.
- വർണ്ണ ആഴം: 262K colors (RGB).
- ബാക്ക്ലൈറ്റ്: എൽഇഡി.
- ഓപ്പറേറ്റിംഗ് വോളിയംtage: 3.3V / 5V compatible.
- അനുയോജ്യത: Designed for use with Raspberry Pi, Jetson Nano, Arduino, STM32, and similar platforms.
Image 2.1: Visual summary of the display module's core features, including size, resolution, color depth, interface type, and driver IC.
3. പാക്കേജ് ഉള്ളടക്കം
The standard package for the Waveshare 2-inch LCD Display Module includes the following items:
- 1x Waveshare 2-inch LCD Display Module
- 1x Connection Cable (typically a 8-pin ribbon cable with female-to-female jumpers)
Image 3.1: The display module and its accompanying connection cable as typically found in the product package.
4 സ്പെസിഫിക്കേഷനുകൾ
| പരാമീറ്റർ | മൂല്യം |
|---|---|
| ഓപ്പറേറ്റിംഗ് വോളിയംtage | 3.3V / 5V |
| റെസലൂഷൻ | 240 × 320 പിക്സലുകൾ |
| ആശയവിനിമയ ഇൻ്റർഫേസ് | 4-വയർ എസ്പിഐ |
| ഡിസ്പ്ലേ വലിപ്പം | 30.60 × 40.80 മിമി |
| ഡിസ്പ്ലേ പാനൽ | ഐ.പി.എസ് |
| പിക്സൽ വലിപ്പം | 0.0975 × 0.0975 മിമി |
| ഡ്രൈവർ ഐ.സി | ST7789VW സ്പെസിഫിക്കേഷനുകൾ |
| മൊഡ്യൂൾ വലിപ്പം | 58.0 × 35.0 മിമി |
Image 4.1: A visual representation of the module's technical specifications.
5. Pinout and Interface Description
The module utilizes an SPI control interface, requiring specific pin connections for proper operation. Below is a description of each pin:
| പിൻ | വിവരണം |
|---|---|
| വി.സി.സി | Power input (3.3V / 5V) |
| ജിഎൻഡി | ഗ്രൗണ്ട് |
| DIN | SPI Data Input (MOSI) |
| CLK | SPI Clock Input (SCK) |
| CS | Chip Select, low active |
| DC | ഡാറ്റ/കമാൻഡ് തിരഞ്ഞെടുക്കൽ (ഡാറ്റയ്ക്ക് ഉയർന്നത്, കമാൻഡിന് കുറവ്) |
| ആർഎസ്ടി | റീസെറ്റ്, കുറവ് സജീവമാണ് |
| BL | ബാക്ക്ലൈറ്റ് നിയന്ത്രണം |
Image 5.1: Pin definitions and their functions on the display module.
6. Setup and Hardware Connection
This section details how to connect the 2-inch LCD Display Module to common development boards.
6.1. Connecting with Raspberry Pi
Follow the diagram below for connecting the display module to a Raspberry Pi board. Ensure correct pin mapping for VCC, GND, DIN (MOSI), CLK (SCK), CS, DC, RST, and BL.

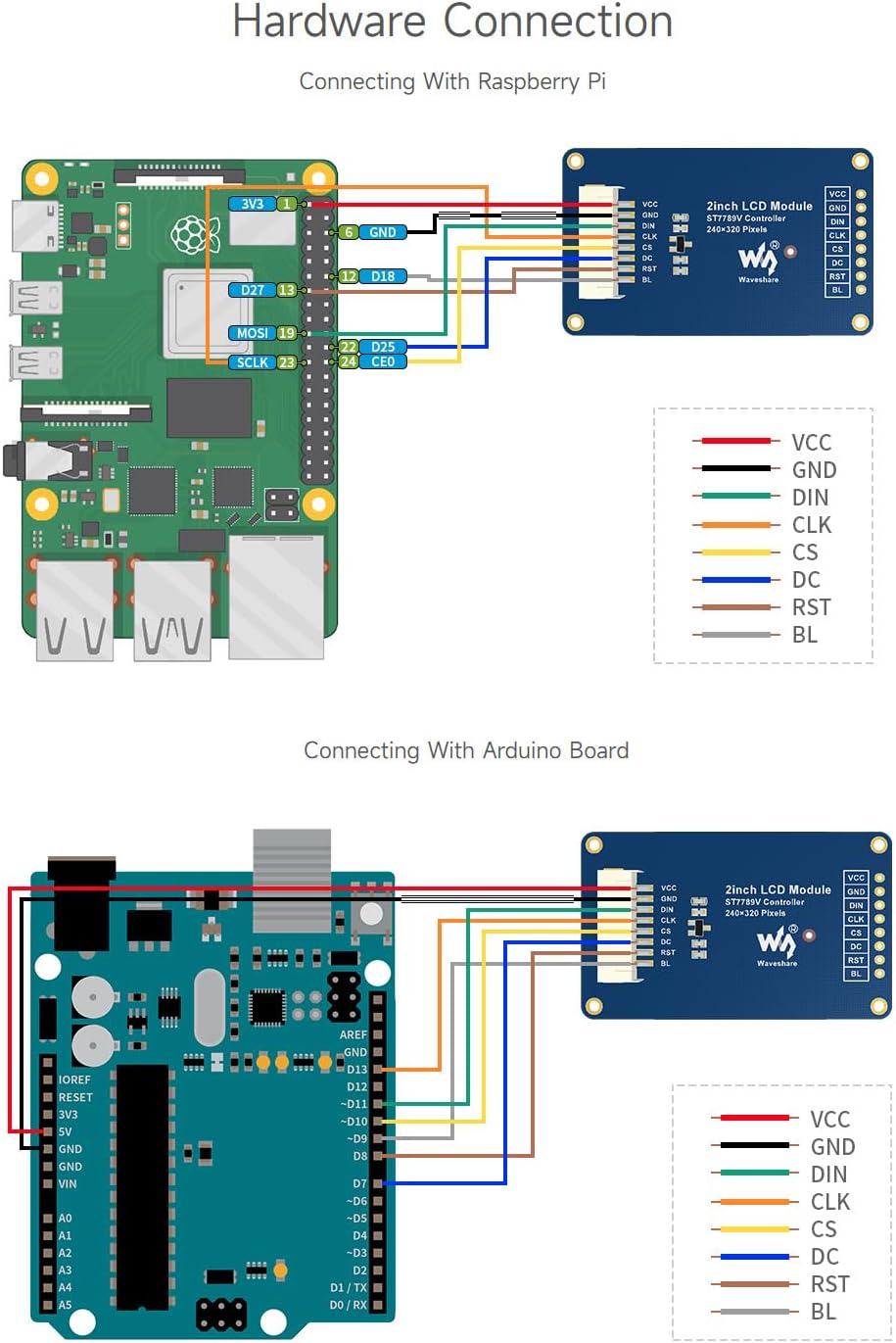

Image 6.1: Connection diagram for Raspberry Pi. Note the specific GPIO pins used for SPI communication and control.
6.2. Connecting with Arduino Board
Refer to the following diagram for connecting the display module to an Arduino board. Pay attention to the SPI pins and control pins on your specific Arduino model.
Image 6.2: Connection diagram for Arduino. Ensure proper voltage levels and pin assignments.
7. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once the hardware connections are established, the display module requires software configuration to function. Waveshare provides development resources and example code for various platforms.
7.1. Software Libraries and Exampലെസ്
It is recommended to use the official Waveshare development resources, which typically include:
- Libraries for ST7789 driver.
- Example code for Raspberry Pi, Arduino, STM32, etc.
These resources usually contain functions for initializing the display, drawing pixels, lines, shapes, text, and displaying images. Consult the specific documentation provided with the development resources for detailed API usage.
7.2. Basic Display Initialization Sequence
A typical initialization sequence in software involves:
- Powering up the module (VCC and GND).
- Asserting the RST (Reset) pin.
- Sending initialization commands to the ST7789 driver via SPI.
- Configuring display orientation and color mode.
- Enabling the backlight (BL pin).
8. പരിപാലനം
The Waveshare 2-inch LCD Display Module is a robust electronic component designed for long-term use with minimal maintenance. Adhering to the following guidelines will help ensure its longevity:
- കൈകാര്യം ചെയ്യൽ: Always handle the module by its edges to avoid touching the display surface or electronic components.
- വൃത്തിയാക്കൽ: If the display surface requires cleaning, use a soft, lint-free cloth. For stubborn marks, lightly dampen the cloth with distilled water or an electronics-safe screen cleaner. Avoid abrasive materials or harsh chemicals.
- സംഭരണം: Store the module in a dry, anti-static environment, away from direct sunlight and extreme temperatures.
- വൈദ്യുതി വിതരണം: വൈദ്യുതി വിതരണം വോളിയം ഉറപ്പാക്കുകtage is within the specified 3.3V to 5V range. Over-voltage can damage the module.
- സ്റ്റാറ്റിക് ഇലക്ട്രിസിറ്റി: Take precautions against electrostatic discharge (ESD) when handling the module, as static can damage sensitive electronic components.
9. പ്രശ്നപരിഹാരം
If you encounter issues with your Waveshare 2-inch LCD Display Module, consider the following troubleshooting steps:
- ഡിസ്പ്ലേ/ബ്ലാങ്ക് സ്ക്രീൻ ഇല്ല:
- Verify all power connections (VCC, GND) are correct and stable.
- Check the backlight (BL) pin connection and ensure it is enabled in your software.
- Confirm the RST (Reset) pin is correctly connected and toggled during initialization.
- Ensure the SPI communication lines (DIN, CLK, CS, DC) are correctly wired and that your software is sending data.
- Double-check the initialization sequence in your code against the ST7789 datasheet or Waveshare exampലെസ്.
- Incorrect Colors/Distorted Image:
- Verify the color mode settings in your software match the display's 262K color depth.
- Check for loose or incorrect SPI data line connections.
- Ensure the display orientation settings (e.g., rotation, mirroring) are configured as desired.
- Slow Refresh Rate:
- Optimize your SPI communication speed in software, ensuring it's within the limits of your microcontroller and the ST7789 driver.
- Reduce the amount of data being sent to the display if possible, or optimize drawing routines.
- മൊഡ്യൂൾ കണ്ടെത്തിയില്ല:
- Ensure the CS (Chip Select) pin is correctly asserted (low active) during SPI communication.
- Check for any short circuits or incorrect wiring that might prevent the module from responding.
10. ഔട്ട്ലൈൻ അളവുകൾ
The physical dimensions of the Waveshare 2-inch LCD Display Module are provided below for integration into your projects.
Image 10.1: Detailed outline dimensions of the display module in millimeters.
11. വാറൻ്റിയും പിന്തുണയും
For warranty information, technical support, and additional resources, please refer to the official Waveshare website or contact their customer service. Development resources, including datasheets, schematics, and example code, are typically available on the product's dedicated wiki page or support portal.
വേവ്ഷെയർ ഒഫീഷ്യൽ Webസൈറ്റ്: www.waveshare.com
