1. ആമുഖം
The PetSafe Extreme Weather Aluminum Pet Door is engineered to provide a durable and energy-efficient solution for pet access to the outdoors. This manual provides essential information for the proper installation, operation, and maintenance of your pet door, ensuring long-lasting performance and comfort for your pets.
പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:
- Extreme Weather Protection: Features a triple-flap thermal barrier designed to block up to three times more energy than standard pet doors, aiding in maintaining indoor temperatures.
- ഈടുനിൽക്കുന്ന അലൂമിനിയം ഡിസൈൻ: Constructed with a heavy-duty aluminum exterior frame and reinforced corners for enhanced longevity and multi-pet use.
- എളുപ്പമുള്ള DIY ഇൻസ്റ്റാളേഷൻ: Designed for straightforward installation in most exterior doors made of wood, paneling, PVC, or metal, with a thickness range of 1.5 to 2 inches.
- Secure Access Control: Includes a slide-in locking panel for secure flap closure, allowing controlled access for your pets.
2 സുരക്ഷാ വിവരങ്ങൾ
Please read and understand all safety instructions before installing and using the PetSafe Extreme Weather Aluminum Pet Door. Failure to follow these instructions may result in injury or damage.
- Always supervise your pet during initial use of the pet door to ensure they learn to use it safely.
- Regularly inspect the pet door for any signs of wear, damage, or obstructions that could impede its function or harm your pet.
- Ensure the pet door is installed securely to prevent accidental detachment or injury.
- Keep children away from the pet door opening to prevent accidental injury. The pet door is designed for pets, not children.
- Use the locking panel when the pet door is not in use or when you need to restrict pet access for security or weather reasons.
- Do not attempt to modify the pet door. Use only genuine PetSafe replacement parts.
3. പാക്കേജ് ഉള്ളടക്കം
ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:
- PetSafe Extreme Weather Aluminum Pet Door Frame (Inner and Outer)
- Triple-Flap System (pre-installed)
- Slide-in Locking Panel
- Installation Hardware (screws, caps)
- കട്ടിംഗ് ടെംപ്ലേറ്റ്
Figure 3.1: Main components of the PetSafe Extreme Weather Aluminum Pet Door.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of the PetSafe Extreme Weather Aluminum Pet Door requires basic tools and adherence to the provided instructions. This door is suitable for installation in wood, paneled, PVC, and metal doors with a thickness between 1.5 and 2 inches.
4.1. ആവശ്യമായ ഉപകരണങ്ങൾ
- പെൻസിൽ
- ടേപ്പ് അളവ്
- ഉചിതമായ ഡ്രിൽ ബിറ്റുകൾ ഉപയോഗിച്ച് തുളയ്ക്കുക
- ജൈസ അല്ലെങ്കിൽ റെസിപ്രോക്കേറ്റിംഗ് സോ
- സ്ക്രൂഡ്രൈവർ (ഫിലിപ്സ് ഹെഡ്)
- ലെവൽ
4.2. പ്രീ-ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ
- Determine Pet Size: Measure your pet's width and height to ensure the correct door size. The medium size is suitable for dogs up to 40 lb. Refer to the sizing guide below.
- ഇൻസ്റ്റലേഷൻ ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Select a suitable location on your exterior door, ensuring it is clear of any internal door mechanisms or structural elements.
- Review വാതിൽ അനുയോജ്യത: Confirm your door material (wood, panel, PVC, metal) and thickness (1.5-2 inches) are compatible.

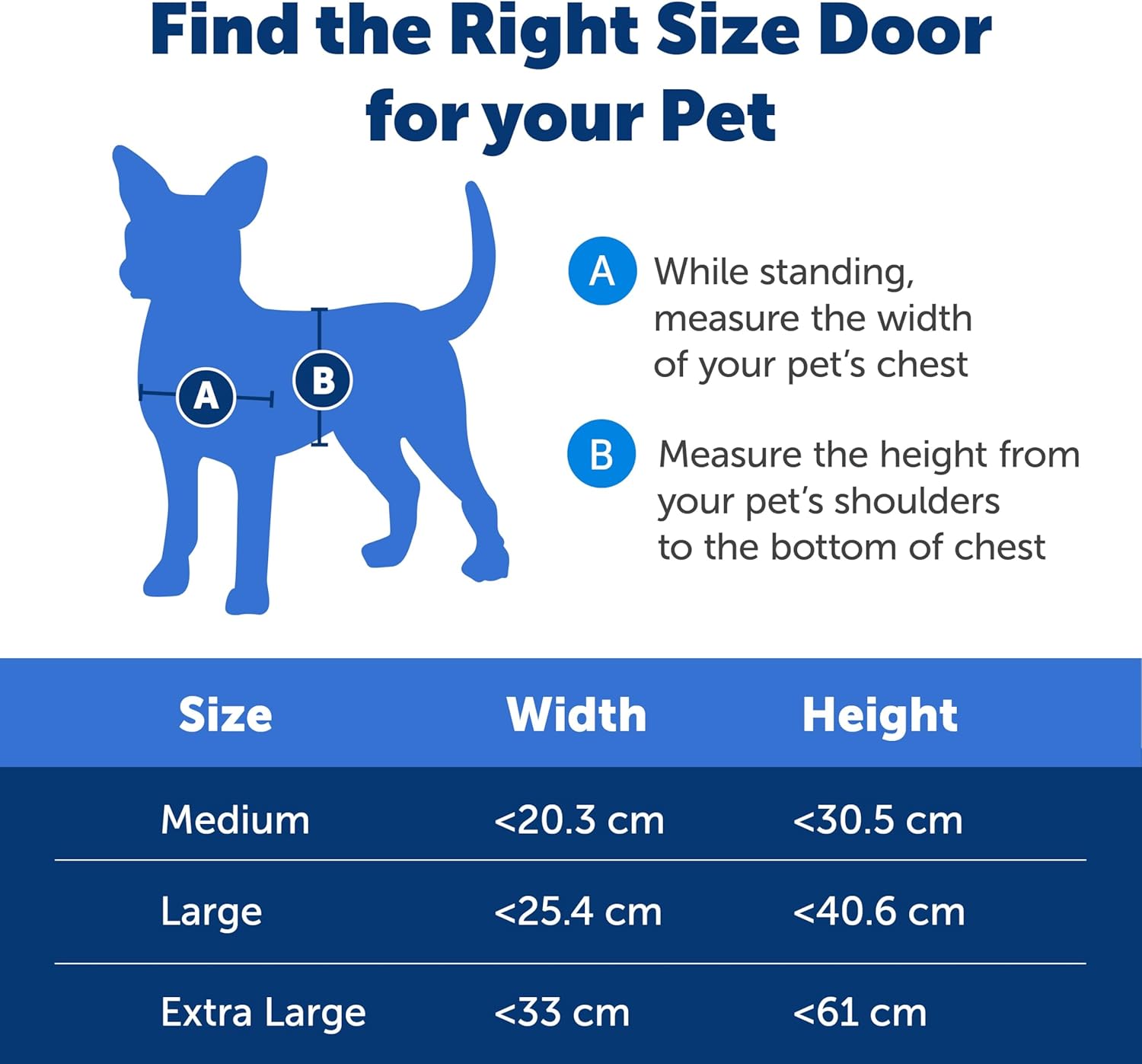

Figure 4.1: Pet Sizing Guide. Ensure your pet can comfortably pass through the opening.
Figure 4.2: Door Compatibility and Cut-out Dimensions for Medium Pet Door.
4.3. ഇൻസ്റ്റലേഷൻ നടപടിക്രമം
For detailed, step-by-step installation instructions, including precise cutting and drilling guides, please refer to the official Installation Manual (PDF) provided by PetSafe. This manual contains critical information for a successful and secure installation.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The PetSafe Extreme Weather Aluminum Pet Door is designed for simple operation, allowing your pet freedom while providing you with control over access.
5.1. Pet Door Flap Operation
The pet door features a triple-flap system. The inner and outer flaps are flexible, while the middle flap is insulated. All three flaps are designed to swing freely in both directions, allowing your pet to enter and exit. Magnetic strips along the bottom of the flaps ensure they return to a closed position, creating a tight seal against weather elements.
Figure 5.1: Pet utilizing the 3-flap system for entry/exit.
5.2. Using the Locking Panel
The included slide-in locking panel provides a secure way to control your pet's access and enhance home security. To engage the locking panel, simply slide it down into the grooves on the inside of the pet door frame until it is fully seated. This will block the opening, preventing pets from using the door and adding an extra layer of security.
To disengage, slide the panel upwards and remove it. Store the panel in a convenient location when not in use.

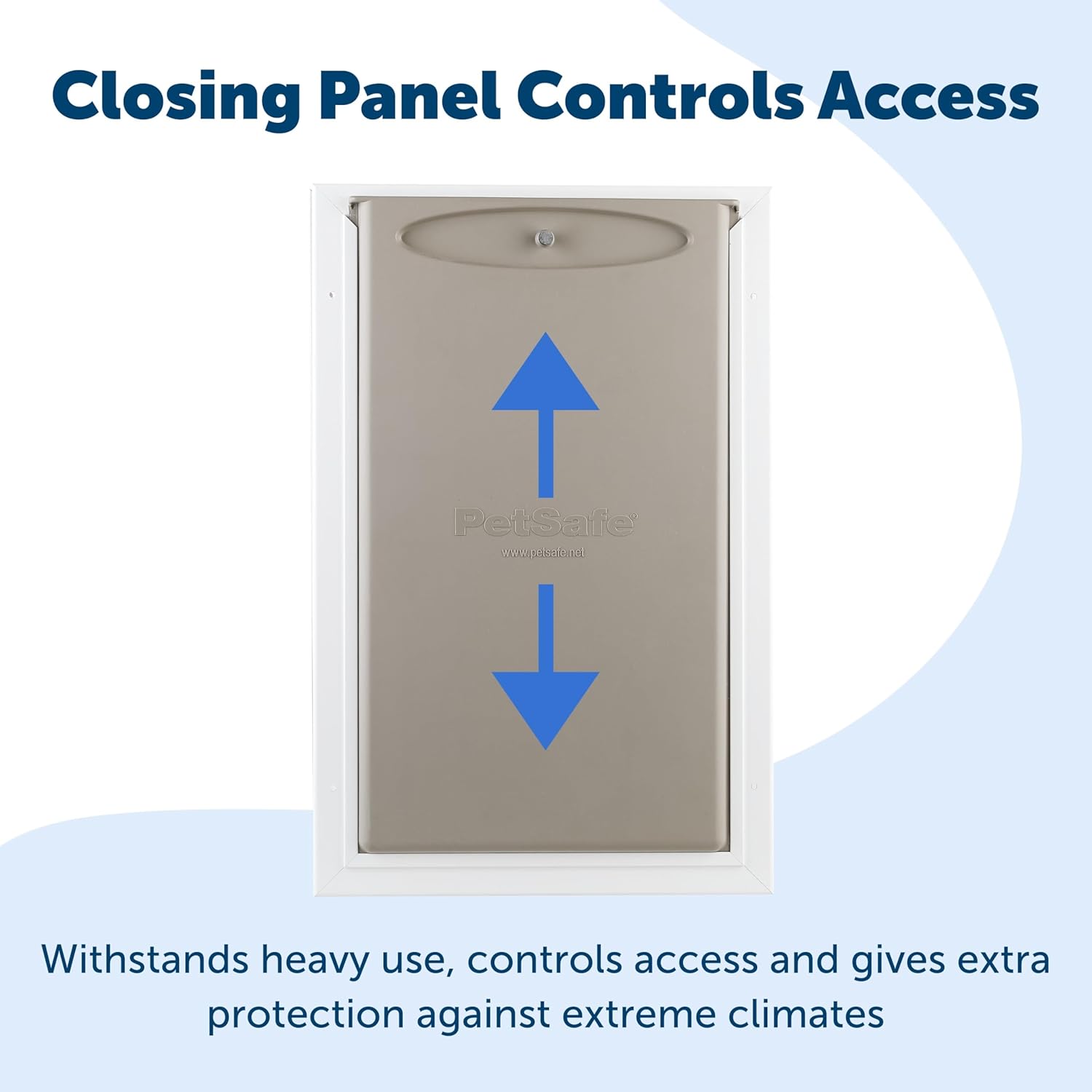

Figure 5.2: The slide-in closing panel for controlled access and security.
6. പരിപാലനം
Regular maintenance will ensure the longevity and optimal performance of your PetSafe Extreme Weather Aluminum Pet Door.
6.1. വൃത്തിയാക്കൽ
- Clean the pet door flaps and frame periodically with a mild soap and water solution.
- കഠിനമായ രാസവസ്തുക്കളോ അബ്രാസീവ് ക്ലീനറുകളോ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക, കാരണം ഇവ വസ്തുക്കൾക്ക് കേടുവരുത്തും.
- Wipe down the flaps and frame to remove dirt, pet hair, and debris that may accumulate.
6.2. Inspection and Replacement
- Inspect the flaps regularly for signs of wear, cracking, or tearing. Over time, flaps may need replacement due to heavy use or environmental exposure.
- Check the magnetic seals at the bottom of the flaps to ensure they are still strong and provide a good seal.
- Examine the frame for any looseness or damage. Tighten screws if necessary.
- Replacement flaps and parts are available from PetSafe. Refer to your product documentation or the PetSafe webവിവരങ്ങൾ ഓർഡർ ചെയ്യുന്നതിനുള്ള സൈറ്റ്.
7. പ്രശ്നപരിഹാരം
If you encounter issues with your PetSafe Extreme Weather Aluminum Pet Door, refer to the common problems and solutions below:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Flaps do not close completely or allow drafts. | Debris caught in flaps, worn out magnets, or damaged flaps. | Clean flaps and frame. Check magnets for proper alignment and strength. Replace flaps if damaged or magnets are weak. |
| Pet is hesitant to use the door. | Unfamiliarity, fear of the flaps, or difficulty pushing through. | Encourage your pet with treats and praise. Temporarily tape flaps open to allow them to get used to the opening, then gradually lower them. Ensure the door is at the correct height for your pet. |
| Door frame feels loose after installation. | കാലക്രമേണ സ്ക്രൂകൾ അയഞ്ഞു. | Carefully re-tighten all mounting screws. Avoid over-tightening. |
| Flaps are tearing or cracking prematurely. | Heavy usage, extreme temperatures, or material fatigue. | This is normal wear and tear for high-traffic doors. Replacement flaps are available. Consider the metal top bar upgrade mentioned in some user reviews for increased durability. |
If the problem persists after attempting these solutions, please contact PetSafe Customer Care for further assistance.
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | ZPA19-16853 |
| ASIN | B082N4VHRY |
| യു.പി.സി | 729849168534 |
| വലിപ്പം | മീഡിയം (1 പായ്ക്ക്) |
| നായ ബ്രീഡ് വലിപ്പം | Medium (up to 40 lb) |
| ഉൽപ്പന്ന അളവുകൾ | 2 x 10.75 x 15.63 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 4.47 പൗണ്ട് |
| ഫ്രെയിം മെറ്റീരിയൽ | അലുമിനിയം |
| ഫ്ലാപ്പ് സിസ്റ്റം | Triple-Flap Thermal Barrier |
| Minimum Compatible Door Thickness | 1.5 ഇഞ്ച് |
| Maximum Compatible Door Thickness | 2 ഇഞ്ച് |
| നിറം | വെള്ള |
| നിർമ്മാതാവ് | റേഡിയോ സിസ്റ്റംസ് കോർപ്പറേഷൻ |
9. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും
PetSafe is committed to providing high-quality products and exceptional customer support. For over 25 years, PetSafe has been dedicated to enhancing the lives of pets and their families.
For warranty information, product registration, or to contact customer support for assistance with your PetSafe Extreme Weather Aluminum Pet Door, please visit the official PetSafe website or contact their customer service line. Contact details can typically be found on the product packaging or the PetSafe brand webസൈറ്റ്.
