Douk Audio VU56C 56-Bit Level Meter Instruction Manual

ആമുഖം

The Douk Audio VU56C is a high-resolution 56-bit per channel LED music spectrum display designed to visually represent audio levels. It features 112-bit stereo display, offering real-time visualization of sound changes. This device enhances your listening experience by adding a dynamic visual element to your audio system.

ഫ്രണ്ട് view of the Douk Audio VU56C 56-Bit Level Meter, showcasing its LED display.

പ്രധാന സവിശേഷതകൾ

• ഉയർന്ന മിഴിവുള്ള ഡിസ്പ്ലേ: Adopts MCU to process audio signals, providing 56 bits per channel for a total of 112 bits stereo display.
• Adjustable Input Level (Gain): Easily control input signals for optimal display effects.
• Five Display Effects: Includes Main beam, Main beam + peak point drop, Left and right channel beams mirroring-display, Left and right channel beams mirroring-display + peak point drop, and Spring beam.
• Independent Setting Items: All display parameters (descent speed of main beam, descent speed of peak point, stay time of peak point) are independently adjustable with 16-level speed settings.
• Clean Audio Path: Power supply is isolated from audio input/output circuits to prevent interference with sound quality.
• വിശാലമായ അനുയോജ്യത: Standard stereo L/R RCA input and output for connection with mobile phones, computers, CD players, preamps, ശക്തി amplifiers, and studio mixers.

പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:

• 1x Finished LED Music Spectrum (Douk Audio VU56C)
• 1x മൈക്രോ-യുഎസ്ബി കേബിൾ
• 1 Set x Stand
• 1 Set x Isolation Stand Feet
• 1x ഉപയോക്തൃ മാനുവൽ

Image showing the Douk Audio VU56C, Micro-USB cable, stand components, and isolation feet included in the package.

സജ്ജമാക്കുക

1. Connecting Audio and Power

Connect your audio source (e.g., CD player, computer, phone) to the IN RCA ports on the back of the VU56C. Connect the പുറത്ത് RCA ports to your audio receiver, amplifier, or mixer. Power the device using the provided Micro-USB cable connected to a DC 5V/100mA power source.

Diagram illustrating the audio input (IN) from sources like phones or computers, and audio output (OUT) to devices such as ampലൈഫയർമാർ അല്ലെങ്കിൽ പ്രീamps, along with the GAIN knob, SET button, PREV/NEXT buttons, USB power input, and Ground set switch.

2. സ്റ്റാൻഡ് അസംബ്ലിംഗ്

The VU56C comes with a stand for vertical placement. Ensure to mount the stand components with the same serrations on the same side for stability. Attach the isolation stand feet to the bottom of the unit or stand as desired.

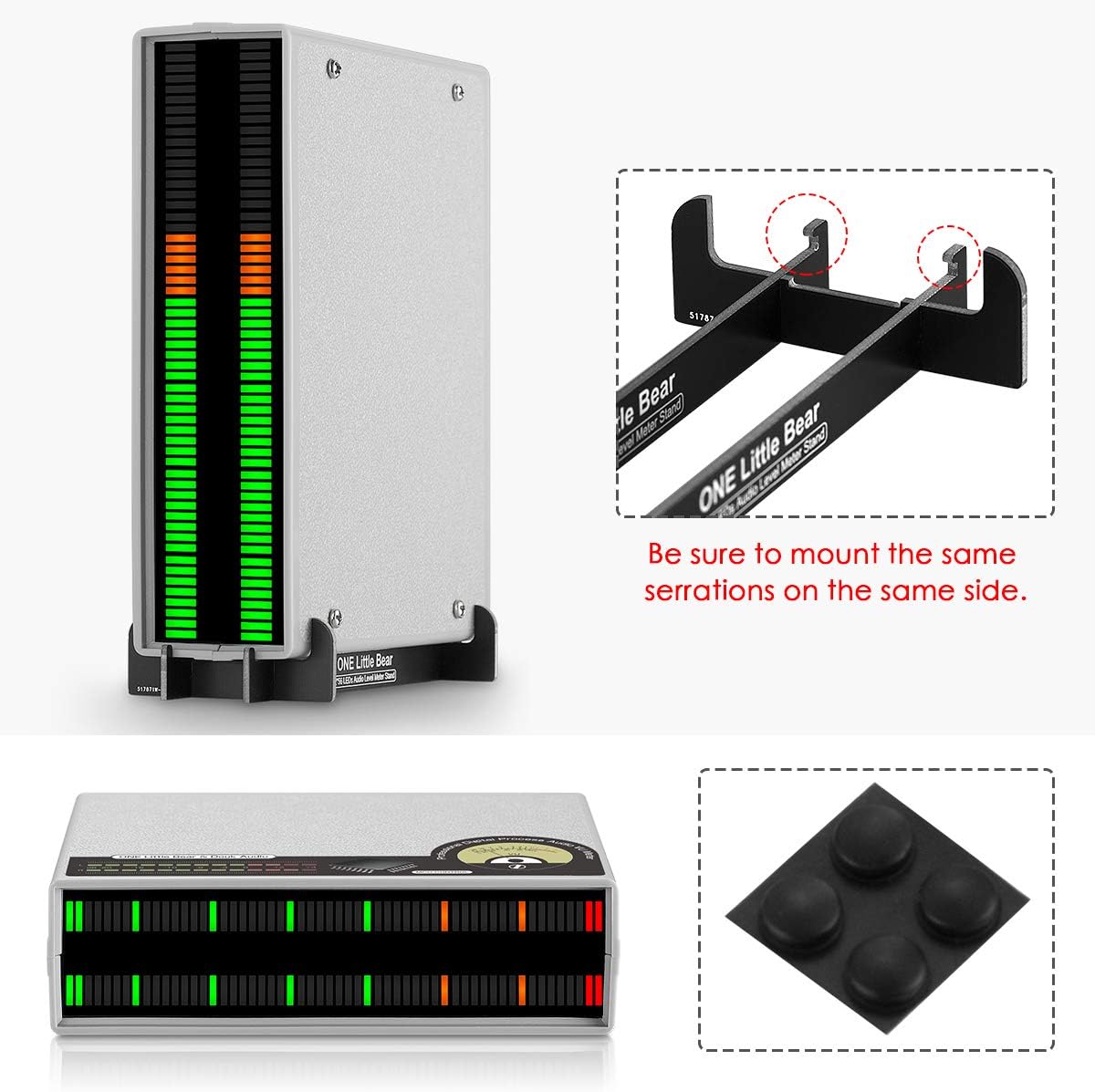

Image showing the vertical stand assembly for the VU56C and the included isolation stand feet.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ/ഓഫ്

The device supports power on/off functionality and power-off memory. To turn on, press and hold the 'SET' button for 3 seconds. To turn off, press and hold the 'SET' button again for 3 seconds.

2. Adjusting Input Level (GAIN)

ഉപയോഗിക്കുക നേട്ടം knob on the back of the unit to adjust the input audio level. This helps in achieving the best visual beating effects on the LED display, matching the intensity of your audio signal.

3. Changing Display Effects

The VU56C offers 5 distinct display effects. In normal operating mode (not setup mode), use the PREV ഒപ്പം അടുത്തത് buttons to cycle through the different display effects:

1. പ്രധാന ബീം
2. Main beam + peak point drop
3. Left and right channel beams mirroring-display
4. Left and right channel beams mirroring-display + peak point drop
5. Spring beam (Note: This effect does not support setting item adjustments.)

4. Setup Mode and Parameter Adjustments

To enter setup mode, press the സെറ്റ് button briefly. In setup mode, the 'Flash LED' indicates the current setting option value. Use the PREV ഒപ്പം അടുത്തത് buttons to change the value of the selected parameter. Press the സെറ്റ് button again to move to the next option or to exit setup mode.

The adjustable parameters (each with 16-level speed adjustments) include:

• The descent speed of the main beam
• The descent speed of the peak point
• The stay time of the peak point

All setup parameter changes will be displayed in real-time on the 'Preview bar'.

Diagram explaining the main display bar, peak LED, flash LED, and the setup bar with zones for main display falling speed, peak LED falling speed, and peak LED holding time settings. It also shows how to use PREV/NEXT and SET buttons in setup mode.

മെയിൻ്റനൻസ്

To ensure the longevity and optimal performance of your Douk Audio VU56C, follow these maintenance guidelines:

• Keep the device in a clean, dry environment, away from direct sunlight, high temperatures, and humidity.
• Avoid exposing the unit to water or other liquids.
• മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് പുറംഭാഗം വൃത്തിയാക്കുക. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ഉപയോഗിക്കരുത്.
• അമിതമായി ചൂടാക്കുന്നത് തടയാൻ യൂണിറ്റിന് ചുറ്റും ശരിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക.
• ശാരീരിക കേടുപാടുകൾ തടയാൻ ഉപകരണം ശ്രദ്ധാപൂർവ്വം കൈകാര്യം ചെയ്യുക.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your Douk Audio VU56C, please refer to the following common problems and solutions:

No Display or Weak Display

• പവർ പരിശോധിക്കുക: Ensure the Micro-USB cable is securely connected to a DC 5V/100mA power source and the unit is powered on.
• Check Audio Input: Verify that the audio source is playing and connected correctly to the IN RCA ports.
• ഗെയിൻ ക്രമീകരിക്കുക: Rotate the GAIN knob to increase the input level. If the input signal is too low, the display may not activate or appear weak.

Audible Noise in Audio System

Some users have reported audible noise (hum or clocking noise) when the unit is connected in pass-through mode or even when splitting the audio signal. This can be due to grounding issues or power supply interference.

• Ground Set Switch: Try adjusting the 'Ground set' switch on the back of the unit. Default is 'I'. If you experience back noise, switch to 'O'.
• വൈദ്യുതി വിതരണം ഒറ്റപ്പെടുത്തുക: Use a different USB power adapter or a high-quality, isolated power supply.
• Audio Isolation: Consider using an audio isolation transformer or a mixing board between your audio source and the VU56C to electrically isolate the signal path.

Display Inaccuracy Between Channels

Due to the high resolution and MCU signal processing, a slight error of 1-3 bits between left and right channels may occur even with identical input signals. This is considered normal operation for this device.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

Douk Audio products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Douk Audio webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
