X-PRO 125cc ATV TForce 125 Instruction Manual

1. ആമുഖം

This manual provides essential information for the safe and effective use of your X-PRO 125cc ATV TForce 125. Please read all instructions carefully before assembly, operation, or maintenance. This ATV is designed for off-road use and features a 125cc engine, front and rear luggage racks, and durable tires for various terrains.

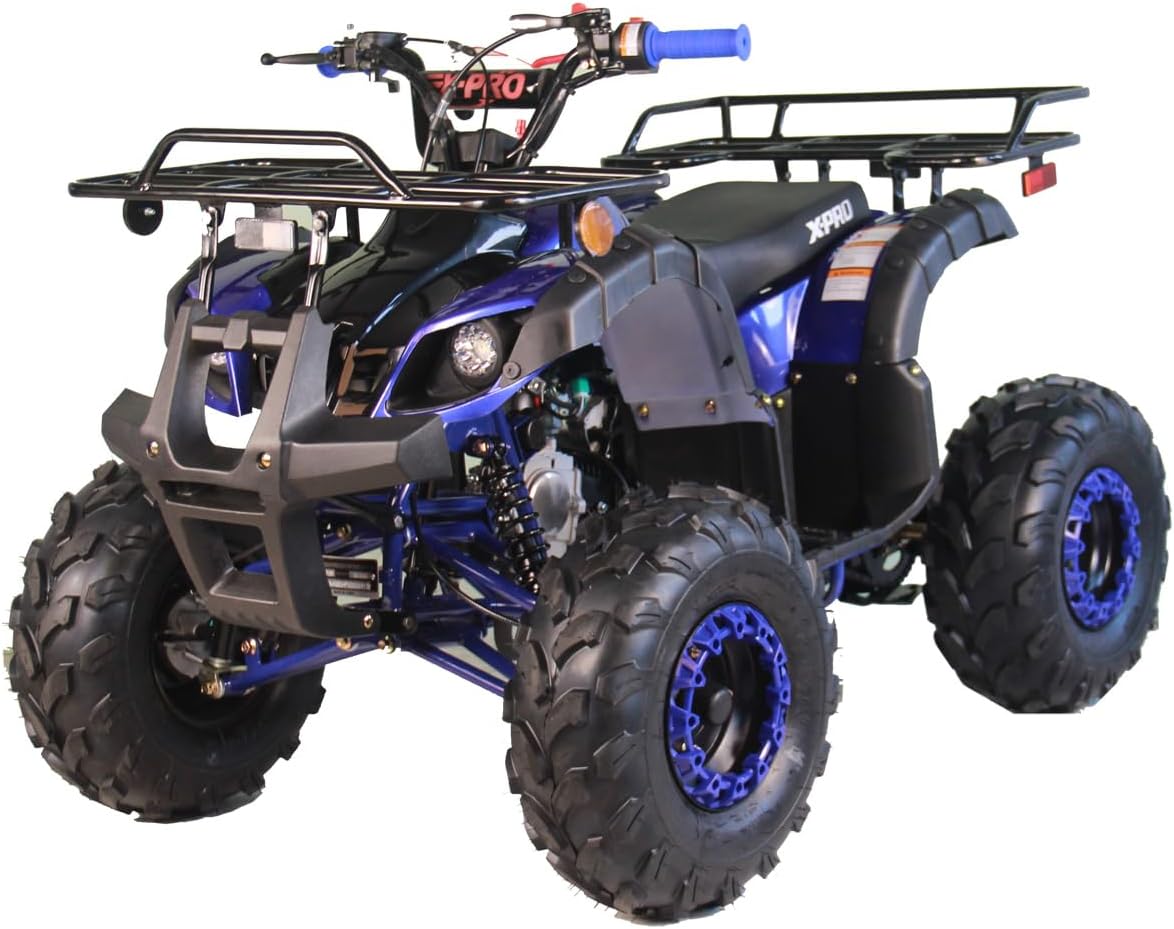

ചിത്രം 1: മുൻഭാഗം view of the X-PRO 125cc ATV TForce 125.

2 സുരക്ഷാ വിവരങ്ങൾ

Your safety is paramount. Always wear appropriate safety gear, including a helmet, eye protection, gloves, and sturdy footwear, when operating the ATV. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning).

2.1 Key Safety Features

• Speed Governor: Allows for speed limitation, especially useful for new riders.
• Safety Stop Switch: Provides an immediate engine shut-off in emergencies.
• Remote Kill Switch: Enables an adult supervisor to remotely shut off the engine.

2.2 ബ്രേക്ക്-ഇൻ പിരീഡ്

For the longevity of the engine, observe a break-in period. Ride the ATV for approximately 30 minutes at a slow speed (5-10 MPH) before performing the first oil change. Avoid prolonged high-speed operation during this initial period.

3. സജ്ജീകരണവും അസംബ്ലിയും

The X-PRO 125cc ATV requires some assembly upon delivery. This typically includes attaching the handlebars, front and rear luggage racks, and wheels. Ensure all fasteners are securely tightened according to the assembly guide provided with your ATV.

Figure 2: The X-PRO 125cc ATV TForce 125 as received in its shipping crate, indicating assembly is required.

3.1 പ്രാരംഭ പരിശോധനകൾ

• ബാറ്ററി: ആദ്യ ഉപയോഗത്തിന് മുമ്പ് ബാറ്ററി പൂർണ്ണമായി ചാർജ്ജ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• എണ്ണ: Verify engine oil levels and perform an initial oil change as recommended after the break-in period.
• ടയറുകൾ: Check tire pressure and ensure all tires are properly inflated.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 നിയന്ത്രണങ്ങൾ കഴിഞ്ഞുview

• ഹാൻഡ്ബ്രേക്ക്: Located on the handlebars for front wheel braking.
• ഫുട്ബ്രേക്ക്: Located on the right footrest for rear wheel braking.
• പാർക്കിംഗ് ബ്രേക്ക്: A lever on the left handlebar to lock the brakes when parked.
• Fuel Petcock (Gas Control): Located near the carburetor, switch to 'ON' for operation and 'OFF' when not in use.
• വീര്പ്പുമുട്ടുക: A lever near the carburetor, used to enrich the fuel mixture for cold starts. Push up for 'ON' (cold start) and down for 'OFF' (warm engine).
• Kill Switch: A red button on the left handlebar for immediate engine shutdown.
• ആരംഭ ബട്ടൺ: Located below the kill switch, used to start the engine.
• ഇഗ്നിഷൻ കീ: Insert and turn to 'ON' to enable electrical systems.
• Foot Shifter: Located on the left side, allows selection of Drive, Neutral, and Reverse gears.
• ത്രോട്ടിൽ: A thumb lever on the right handlebar to control engine speed.

4.2 Starting Procedure

1. Ensure the ATV is in Neutral (green 'N' light on the dash).
2. Turn the ignition key to the 'ON' position.
3. Turn the fuel petcock to 'ON'.
4. If the engine is cold, engage the choke by pushing the lever up.
5. Hold either the handbrake or press the footbrake.
6. ആരംഭ ബട്ടൺ അമർത്തുക.
7. Once the engine starts and warms up, disengage the choke by pushing the lever down.

4.3 ഗിയർ മാറ്റൽ

The foot shifter allows you to select between Drive, Neutral, and Reverse:

• Push the shifter forward once for ഡ്രൈവ് ചെയ്യുക.
• Push the shifter back once from Drive for നിഷ്പക്ഷ (green 'N' light will illuminate).
• Push the shifter back twice from Drive (or once from Neutral) for വിപരീതം (red 'R' light will illuminate).

5. പരിപാലനം

Regular maintenance is crucial for the performance and longevity of your ATV.

• എണ്ണ മാറ്റങ്ങൾ: Perform the first oil change after the break-in period (approx. 30 minutes of light use). Subsequent oil changes should follow the schedule in your detailed owner's manual.
• ഫാസ്റ്റനർ പരിശോധനകൾ: Regularly inspect and tighten all bolts and fasteners, as vibrations from operation can cause them to loosen.
• ടയർ മെയിൻ്റനൻസ്: Check tire pressure before each ride and inspect for wear or damage.
• വൃത്തിയാക്കൽ: Keep the ATV clean, especially after riding in muddy or dusty conditions, to prevent corrosion and maintain proper function.

6 സ്പെസിഫിക്കേഷനുകൾ

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your X-PRO 125cc ATV, consider the following general troubleshooting steps:

• എഞ്ചിൻ സ്റ്റാർട്ടാകുന്നില്ല: Check if the fuel petcock is 'ON', the choke is engaged (if cold), the kill switch is in the 'RUN' position, the ignition key is 'ON', and the battery is charged. Ensure the ATV is in Neutral.
• ശക്തി നഷ്ടം: Verify fuel levels, check for clogged fuel lines or air filter, and ensure spark plug is clean and properly gapped.
• അസാധാരണമായ ശബ്ദങ്ങൾ: Inspect for loose components, worn bearings, or issues with the drive chain.
• ബ്രേക്കിംഗ് പ്രശ്നങ്ങൾ: Check brake fluid levels, inspect brake pads for wear, and ensure brake cables are properly adjusted.

For more complex issues, consult a qualified technician or contact customer support.

8. വാറൻ്റിയും പിന്തുണയും

X-PRO is committed to providing reliable products and customer satisfaction. For any questions, technical assistance, or parts inquiries, please refer to the contact information provided with your purchase documentation or visit the official X-PRO webസൈറ്റ്.

X-PRO offers experienced aftermarket service and professional technical support to ensure your vehicle operates smoothly. We maintain a stock of parts for most vehicles sold, ensuring fast and reliable support.
