ആമുഖം
The REXING Woodlens H2-4K Wi-Fi Trail Camera is designed for high-quality outdoor surveillance, capturing detailed photos and videos of wildlife or for security purposes. This manual provides essential information for setting up, operating, and maintaining your camera to ensure optimal performance.
ഉൽപ്പന്നം കഴിഞ്ഞുview
The REXING H2-4K Trail Camera features advanced technology for reliable outdoor monitoring. Key features include:
- 4K റെസല്യൂഷൻ: Captures video in 4K, 2.7K, and 1080p HD with simultaneous audio recording.
- 20MP ഇമേജ് നിലവാരം: Produces high-resolution still images with an 8 million CMOS motion sensor.
- വൈഫൈ കണക്റ്റിവിറ്റി: Allows instant viewing and download of recordings via a dedicated mobile app.
- Ultra Night Vision: Double 850nm high-power infrared lights illuminate subjects up to 65 feet for clear night recordings.
- ഫാസ്റ്റ് ട്രിഗർ വേഗത: Activates in as quickly as 0.2 seconds after motion detection within a 105° angle.
- ഡ്യൂറബിൾ & വാട്ടർപ്രൂഫ്: Sturdy IP66-rated case protects against rain and dust.
- വിപുലീകൃത സ്റ്റാൻഡ്ബൈ: Up to 12 months of standby time with efficient power consumption.
സജ്ജമാക്കുക
Follow these steps to prepare your REXING H2-4K Trail Camera for use:
- ബാറ്ററികൾ ഇൻസ്റ്റാൾ ചെയ്യുക: ക്യാമറ തുറക്കുക casing and insert 8 AA batteries into the designated compartment. Ensure correct polarity.
- SD കാർഡ് ചേർക്കുക: Locate the SD card slot inside the camera. Insert a compatible SD card (up to 512GB) until it clicks into place.
- SD കാർഡ് ഫോർമാറ്റ് ചെയ്യുക: Turn on the camera. Navigate to the menu settings and select the option to format the SD card. This prepares the card for recording and ensures compatibility.
- പവർ ഓൺ: Use the ON/OFF switch to power on the camera. The built-in 2.4-inch LCD screen will activate.

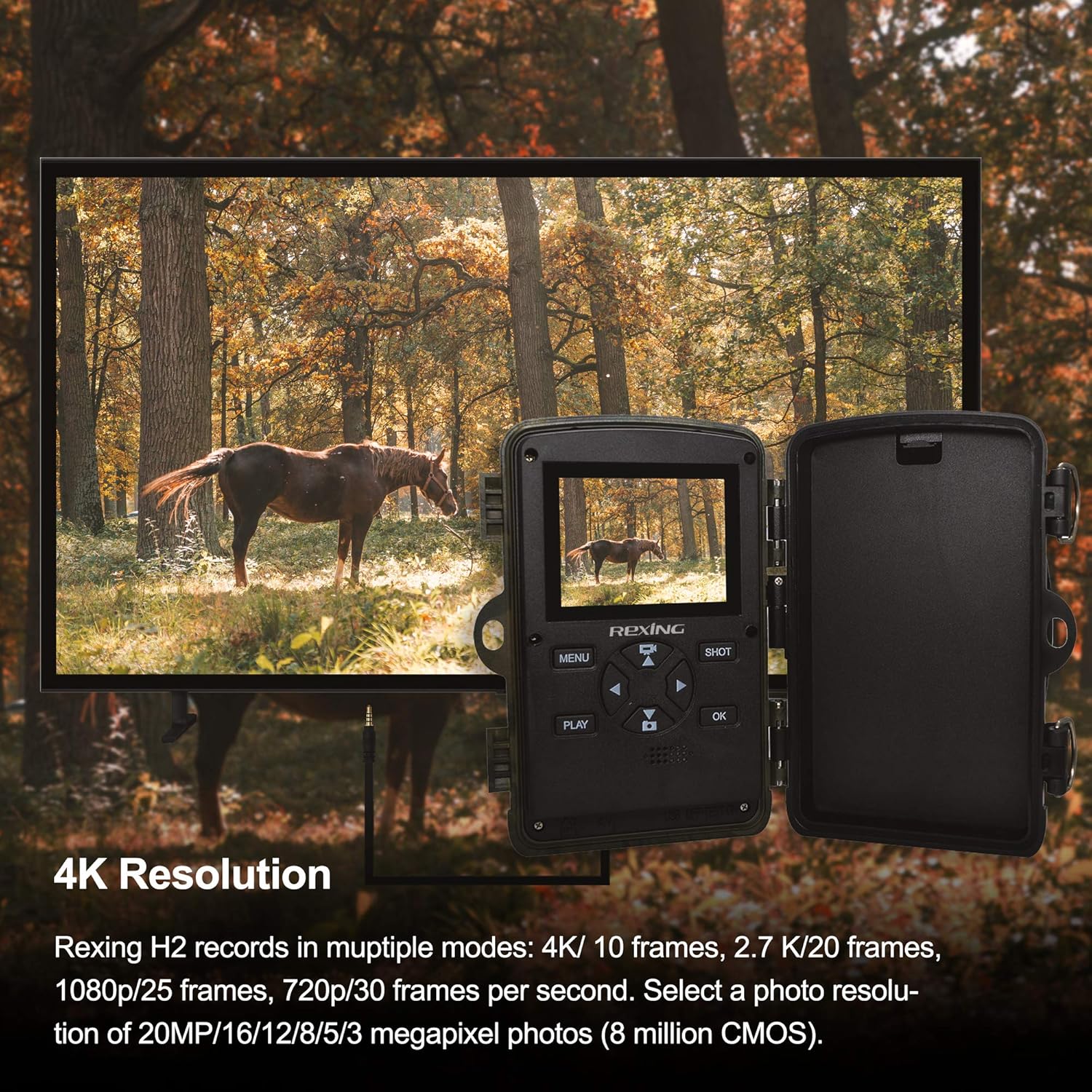

Image: The REXING H2-4K Trail Camera's screen showing 4K video resolution, with an external monitor displaying the same footage of a horse in a forest. This illustrates the camera's high-resolution video capabilities.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Familiarize yourself with the camera's controls and settings:
- നാവിഗേഷൻ: Use the MENU button to access settings and the directional (up/down/left/right) buttons to navigate. Press OK to confirm selections.
- മോഡ് തിരഞ്ഞെടുക്കൽ: Choose between photo, video, or photo+video modes in the settings.
- റെസല്യൂഷൻ ക്രമീകരണങ്ങൾ: Adjust photo resolution up to 20MP and video resolution up to 4K.
- ഓഡിയോ റെക്കോർഡിംഗ്: Enable or disable simultaneous audio recording for videos in the settings.
- ട്രിഗർ വേഗത: The camera features a rapid 0.2-second trigger speed to capture fast-moving subjects.
- PIR സെൻസറുകൾ: The 105° angle of detection ensures wide coverage for motion sensing.

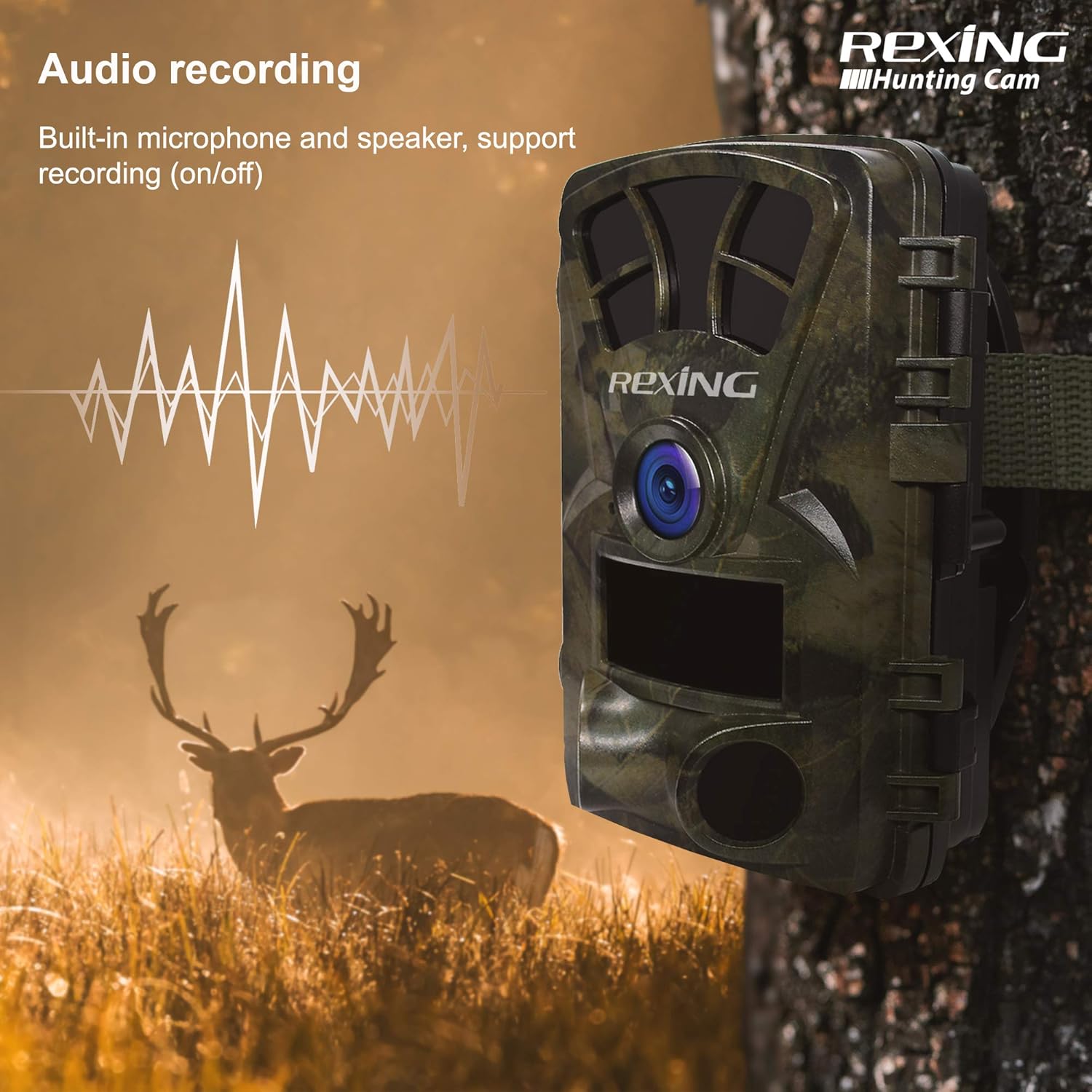

Image: The REXING H2-4K Trail Camera mounted on a tree, with a graphic overlay showing a sound wave, indicating its audio recording feature. A deer is visible in the background.
Wi-Fi Connection & App Usage
Manage your camera and view recordings conveniently with the mobile app:
- അപ്ലിക്കേഷൻ ഡൗൺലോഡുചെയ്യുക: Download the official REXING app to your smartphone.
- വൈഫൈ വഴി ബന്ധിപ്പിക്കുക: Enable Wi-Fi on your camera and connect your smartphone to the camera's Wi-Fi network as prompted by the app.
- തൽക്ഷണം Viewing: കണക്റ്റുചെയ്തുകഴിഞ്ഞാൽ, നിങ്ങൾക്ക് കഴിയും view തത്സമയംtage, playback recorded videos and photos, and adjust settings directly from your phone.
- എവി put ട്ട്പുട്ട്: For direct viewing on a television, connect the camera using an AV cable (not included).
Image: A smartphone screen shows a gallery of images captured by the REXING H2-4K Trail Camera, featuring various wildlife like deer and tigers in natural habitats, demonstrating the Wi-Fi connection feature for instant viewing.
നൈറ്റ് വിഷൻ
The REXING H2-4K is equipped with advanced night vision technology for clear recordings in low-light conditions:
- ഇൻഫ്രാറെഡ് പ്രകാശം: Utilizes double 850nm high-power infrared lights.
- വിപുലീകരിച്ച ശ്രേണി: Illuminates subjects up to 65 feet (20 meters) away.
- Clear Night Images: Produces sharp and detailed black-and-white images and videos during nighttime or in dark environments.
Image: A deer is captured in a dark forest environment by the REXING H2-4K Trail Camera, showcasing its advanced night vision capabilities with infrared illumination.
പവർ മാനേജ്മെൻ്റ്
Optimize your camera's battery life and power options:
- ലോംഗ് സ്റ്റാൻഡ്ബൈ: The camera offers up to 12 months of standby time, minimizing the need for frequent battery changes.
- ബാഹ്യ ശക്തി: Supports an external power supply and can be connected to a 6V 1.5A solar panel for continuous operation.
- താപനില പരിധി: -4°F മുതൽ 140°F (-20°C മുതൽ 60°C) വരെയുള്ള താപനിലകളിൽ ഫലപ്രദമായി പ്രവർത്തിക്കുന്നു.
Mounting and Security
Securely deploy your REXING H2-4K Trail Camera in various environments:
- മൗണ്ടിംഗ് ഓപ്ഷനുകൾ: Use the included strap to attach the camera to trees or poles. The camera also features a standard tripod thread for alternative mounting solutions.
- കാലാവസ്ഥ സംരക്ഷണം: The sturdy, IP66-rated case protects the camera from rain and dust, making it suitable for outdoor use.
- പാസ്വേഡ് സംരക്ഷണം: Set a password to prevent unauthorized access to your camera's settings and recordings.
- ലോക്കിംഗ് മെക്കാനിസം: Utilize the built-in loops for a cable lock to secure the camera against theft.
Image: A collage of four images demonstrating the multipurpose use of the REXING H2-4K Trail Camera for hunting, home security, wildlife monitoring, and farm surveillance.
മെയിൻ്റനൻസ്
Regular maintenance ensures the longevity and performance of your camera:
- ബാറ്ററി പരിശോധന: Periodically check battery levels, especially before extended deployment. Replace or recharge batteries as needed.
- SD കാർഡ് മാനേജുമെന്റ്: Regularly download and clear your SD card to prevent it from becoming full, which can stop recording.
- വൃത്തിയാക്കൽ: Keep the camera lens and PIR sensors clean and free from debris to ensure optimal image quality and motion detection.
- പരിസ്ഥിതി സംരക്ഷണം: Ensure the camera's latches are securely closed to maintain its waterproof and dustproof integrity.
ട്രബിൾഷൂട്ടിംഗ്
Refer to these common issues and solutions:
- ക്യാമറ റെക്കോർഡ് ചെയ്യുന്നില്ല: Check if the SD card is full or improperly formatted. Ensure batteries have sufficient charge.
- വൈഫൈ കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: Ensure the camera's Wi-Fi is enabled and your smartphone is within range. Restart both devices if necessary.
- മോശം രാത്രി കാഴ്ച: Verify that the infrared lights are not obstructed. Ensure batteries are fully charged as low power can affect IR performance.
- Motion Sensor Not Triggering: Check PIR sensor sensitivity settings in the app or camera menu. Ensure sensors are not obstructed.
- ആപ്പ് പ്രവർത്തനം: If the app is not connecting or displaying images correctly, try resetting the camera and reinstalling the app.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| വീഡിയോ റെസല്യൂഷൻ | 4K, 2.7K, 1080p |
| നിശ്ചല മിഴിവ് | 20 എം.പി |
| ഫോട്ടോ സെൻസർ ടെക്നോളജി | CMOS |
| കണക്റ്റിവിറ്റി | Wi-Fi, AV Output |
| സംഭരണം | 512GB വരെ SD കാർഡ് |
| നൈറ്റ് വിഷൻ റേഞ്ച് | 65 അടി (20 മീറ്റർ) |
| ട്രിഗർ വേഗത | 0.2 സെക്കൻഡ് |
| പിഐആർ ഡിറ്റക്ഷൻ ആംഗിൾ | 105° |
| പവർ ഉറവിടം | 8 AA Batteries, 6V 1.5A External (Solar Panel compatible) |
| സ്റ്റാൻഡ്ബൈ സമയം | 12 മാസം |
| വാട്ടർപ്രൂഫ് റേറ്റിംഗ് | IP66 |
| പ്രവർത്തന താപനില | -4°F മുതൽ 140°F വരെ (-20°C മുതൽ 60°C വരെ) |
| അളവുകൾ | 7 x 4 x 4 ഇഞ്ച് |
| ഭാരം | 10.8 ഔൺസ് |
വാറൻ്റിയും പിന്തുണയും
The REXING Woodlens H2-4K Trail Camera is certified with CE, FCC, and ROHS standards. For detailed warranty information and customer support, please refer to the manufacturer's official website or scan the QR code provided in the product packaging.
Video: Official REXING H2 Commercial Video. This video provides an overview of the REXING H2-4K Trail Camera's features and capabilities, demonstrating its use in various scenarios.
