ABB SACE T8V-D 3000A മോൾഡഡ് കേസ് സ്വിച്ച് ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the safe and effective installation, operation, and maintenance of the ABB SACE T8V-D 3000A Molded Case Switch. This industrial electrical component is designed for high-current applications, ensuring reliable circuit protection and control. Please read this manual thoroughly before any handling or operation.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Risk of Electric Shock or Arc Flash. Only qualified and authorized personnel should install, operate, or service this equipment. Failure to follow these instructions can result in death, serious injury, or equipment damage.

• Always disconnect and lock out/tag out all power sources before working on or near the switch.
• Use appropriate personal protective equipment (PPE) as required by local safety regulations and industry standards.
• വോളിയം പരിശോധിക്കുകtage presence with a properly rated voltage sensing device before touching any electrical components.
• ഉപകരണങ്ങളുടെ ശരിയായ ഗ്രൗണ്ടിംഗ് ഉറപ്പാക്കുക.
• Do not operate the switch if it appears damaged or has been subjected to abnormal conditions.

3. ഉൽപ്പന്ന വിവരണവും സവിശേഷതകളും

The ABB SACE T8V-D 3000A Molded Case Switch is a robust 3-pole device designed for high-current electrical systems. It is part of the SACE Tmax series, known for its reliability and performance in industrial environments.

പ്രധാന സവിശേഷതകൾ:

• 3000 Amp നിലവിലെ റേറ്റിംഗ്
• Suitable for 480/600 VAC applications
• 3-Pole configuration
• Molded Case design for enhanced protection

ഉൽപ്പന്നം Views:

ചിത്രം 3.1: കോണാകൃതിയിലുള്ള മുൻഭാഗം view of the ABB SACE T8V-D 3000A Molded Case Switch, showcasing its robust construction and primary controls.

ചിത്രം 3.2: ക്ലോസപ്പ് view of the control panel, highlighting the 'Push OFF' and 'Push ON' buttons, and detailed product labels including model number and ratings.

ചിത്രം 3.3: നേർരേഖ view of the switch, providing a clear perspective of the main operating interface and overall design.

ചിത്രം 3.4: വശം view of the switch, illustrating the large bus bar connections designed for high current applications.

ചിത്രം 3.5: പിൻഭാഗം view of the switch, detailing the robust connection terminals for secure electrical wiring.

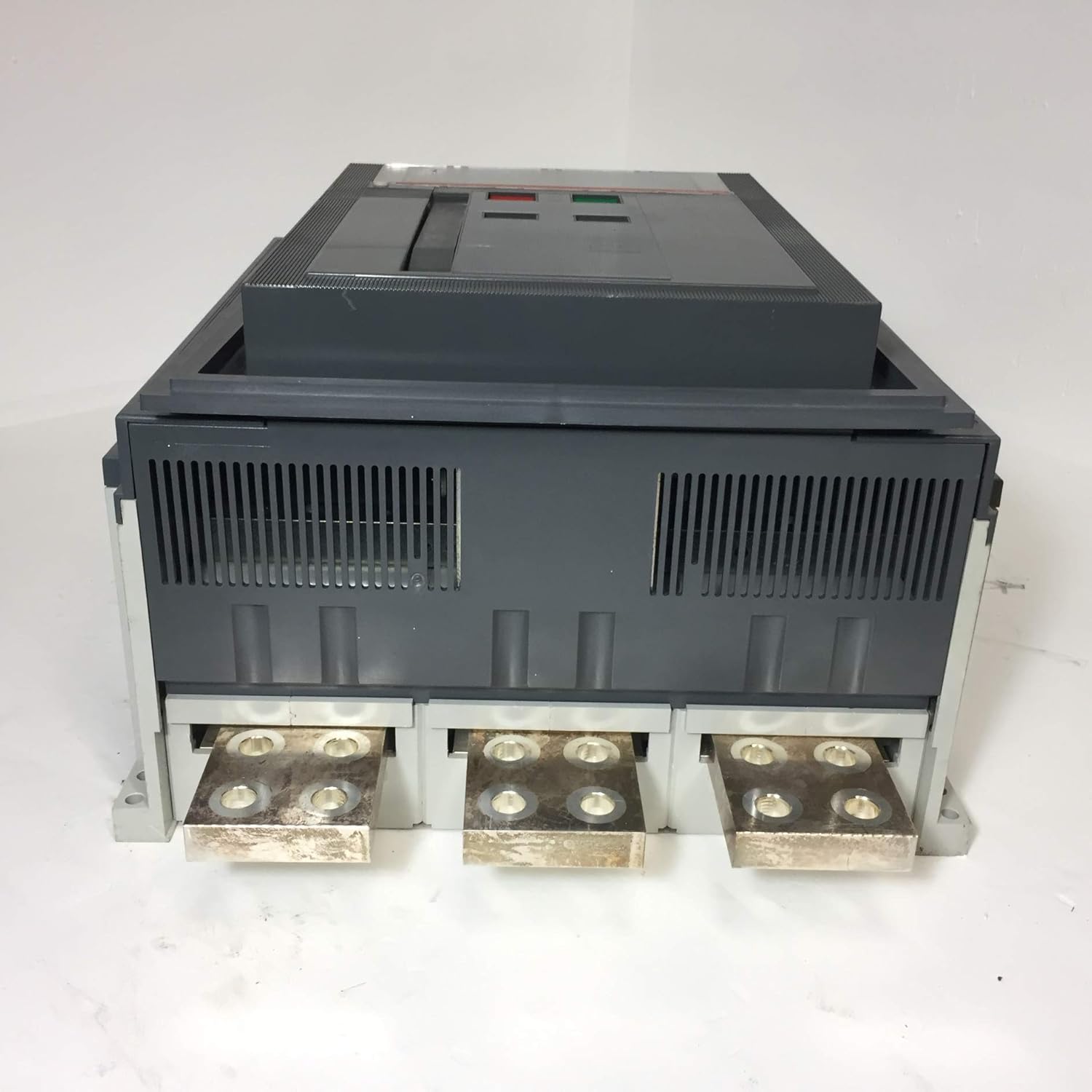

ചിത്രം 3.6: താഴെ view of the switch, showing the lower connection terminals and ventilation features.

4 സ്പെസിഫിക്കേഷനുകൾ

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Installation of the ABB SACE T8V-D 3000A Molded Case Switch must be performed by qualified electrical personnel in accordance with all national and local electrical codes and regulations.

ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:

1. തയ്യാറാക്കൽ: Ensure all power to the installation site is de-energized and properly locked out/tagged out. Verify absence of voltage.
2. മൗണ്ടിംഗ്: Securely mount the switch in its designated panel or enclosure using appropriate hardware. Ensure adequate ventilation and clearance as per manufacturer specifications and electrical codes.
3. വയറിംഗ്: Connect the main power conductors to the switch terminals. Ensure proper phase sequence and torque all connections to the values specified by ABB. Use appropriately sized conductors for 3000A service.
4. ഗ്രൗണ്ടിംഗ്: Connect the equipment grounding conductor to the designated grounding terminal on the switch or enclosure.
5. Pre-Energization Checks: Before re-energizing, visually inspect all connections for tightness and proper insulation. Confirm no foreign objects are present within the switch or enclosure.

6. ഓപ്പറേഷൻ

The ABB SACE T8V-D 3000A Molded Case Switch is designed for straightforward operation. It features clear ON and OFF indicators and push-button controls.

സ്വിച്ച് പ്രവർത്തിപ്പിക്കുന്നത്:

• ഓണാക്കാൻ: Press the green 'Push ON' button. The switch handle should move to the 'ON' position.
• ഓഫാക്കാൻ: Press the red 'Push OFF' button. The switch handle should move to the 'OFF' position.
• Trip Indication: In the event of an overcurrent or short-circuit condition, the switch will automatically trip to an intermediate position. To reset, first push the handle fully to the 'OFF' position, then press the green 'Push ON' button. Investigate the cause of the trip before re-energizing.

7. പരിപാലനം

Regular maintenance is crucial for the longevity and safe operation of the ABB SACE T8V-D 3000A Molded Case Switch. All maintenance procedures must be performed by qualified personnel with the power de-energized and locked out/tagപുറത്തായി.

ശുപാർശ ചെയ്യുന്ന അറ്റകുറ്റപ്പണി ഷെഡ്യൂൾ:

• വാർഷിക പരിശോധന:
  • Visually inspect the switch for any signs of physical damage, discoloration, or overheating.
  • Check all electrical connections for tightness. Re-torque if necessary according to ABB specifications.
  • Clean any dust or debris from the switch and its enclosure using a dry, non-conductive cloth or vacuum.
  • Operate the switch manually a few times to ensure smooth mechanical action.
• Periodic Electrical Testing (as per industry standards):
  • Perform insulation resistance tests.
  • Conduct contact resistance measurements.
  • Verify trip unit functionality (if applicable, for circuit breaker variants).

8. പ്രശ്‌നപരിഹാരം

This section provides basic troubleshooting guidance for common issues. For complex problems or issues not listed, contact qualified electrical service personnel or ABB technical support.

9. വാറൻ്റിയും പിന്തുണയും

For information regarding product warranty, technical support, or service, please contact ABB customer support directly. Ensure you have your product model number (T8V-D) and serial number available when contacting support.

You can find more information and contact details on the official ABB website or through your authorized ABB distributor.
