Unify OpenScape DeskPhone CP200T IP Phone User Manual

1. ആമുഖവും അവസാനവുംview

The Unify OpenScape DeskPhone CP200T is an entry-level digital IP phone designed for essential communication needs in a professional environment. This manual provides detailed instructions for setting up, operating, and maintaining your CP200T phone, ensuring optimal performance and longevity.

Key features include a clear black and white display, programmable function keys, and hands-free operation. The phone is built for reliability and ease of use, making it suitable for various business communication requirements.

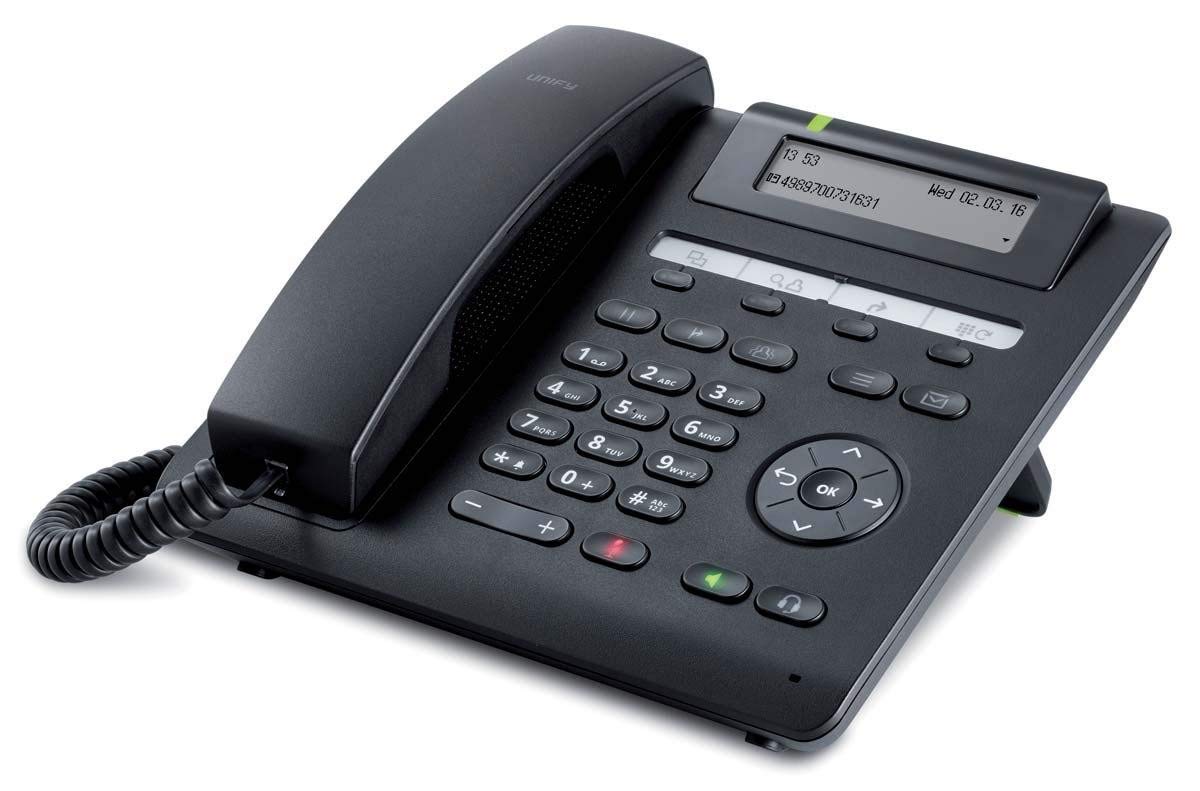

ചിത്രം 1: മുൻഭാഗം view of the Unify OpenScape DeskPhone CP200T IP Phone, showcasinജി അതിന്റെ ഡിസ്പ്ലേയും കീപാഡും.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• ഡിസ്പ്ലേ: 2.7-inch black and white graphical display, 2-line view for clear information.
• പ്രോഗ്രാമബിൾ കീകൾ: 4 freely programmable function keys with LED indicators for quick access to features.
• സ്ഥിരമായ പ്രവർത്തന കീകൾ: 5 dedicated keys for common functions such as call transfer, message access, and speakerphone.
• ഹാൻഡ്‌സ് ഫ്രീ ഓപ്പറേഷൻ: Full-duplex speakerphone for clear conference calls and hands-free communication.
• Headset Support: Connect a wired headset via an adapter (sold separately) for private conversations.
• വാൾ മൗണ്ടബിൾ: The phone can be mounted on a wall using an optional installation kit (sold separately).
• കോളർ ഐഡി: Supports caller identification for incoming calls.

3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

Follow these steps to set up your Unify OpenScape DeskPhone CP200T:

1. Unpack the Phone: Carefully remove all components from the packaging. Ensure you have the phone unit, handset, handset cord, and Ethernet cable.
2. ഹാൻഡ്‌സെറ്റ് ബന്ധിപ്പിക്കുക: Plug one end of the coiled handset cord into the handset and the other end into the designated port on the phone base (usually marked with a handset icon).
3. നെറ്റ്‌വർക്കിലേക്ക് കണക്‌റ്റ് ചെയ്യുക: Connect one end of the Ethernet cable to the LAN port on the back of the phone (often labeled "LAN" or with a network icon) and the other end to an active network port (e.g., a wall jack or network switch).
4. പവർ ബന്ധിപ്പിക്കുക (ബാധകമെങ്കിൽ): If your network does not provide Power over Ethernet (PoE), connect an appropriate power adapter (sold separately) to the power port on the phone and then to a power outlet. The phone will power on automatically.
5. Initial Boot-Up: The phone will display a boot-up sequence. This may take a few moments. It will then attempt to connect to your network and register with your IP PBX system.
6. കോൺഫിഗറേഷൻ: Network and system configuration is typically handled by your IT administrator. If the phone does not register automatically, contact your IT department for assistance.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 കോളുകൾ ചെയ്യലും സ്വീകരിക്കലും

• ഒരു കോൾ ചെയ്യാൻ: Lift the handset or press the speakerphone button. Dial the desired number using the keypad. Press the "Dial" or "Send" soft key (if available) or wait for the call to connect automatically.
• ഒരു കോളിന് ഉത്തരം നൽകാൻ: When the phone rings, lift the handset or press the speakerphone button.
• ഒരു കോൾ അവസാനിപ്പിക്കാൻ: Replace the handset or press the speakerphone button again.

4.2 പ്രോഗ്രാം ചെയ്യാവുന്ന കീകൾ ഉപയോഗിക്കൽ

The 4 programmable keys can be configured by your system administrator for various functions such as speed dial, line appearance, or feature access. Refer to your system's specific configuration for their assigned functions. The LED indicator next to each key shows its status (e.g., active, ringing).

4.3 വോളിയം ക്രമീകരണം

Use the volume control buttons (typically located on the side or bottom of the keypad) to adjust the handset, speakerphone, or ringer volume during a call or when idle.

4.4 Speakerphone and Mute

• സ്പീക്കർഫോൺ: Press the dedicated speakerphone button to activate or deactivate hands-free mode.
• നിശബ്ദമാക്കുക: Press the mute button (often indicated by a microphone icon with a slash) to mute your microphone during a call. Press it again to unmute.

4.5 കോൾ ട്രാൻസ്ഫർ

To transfer an active call, press the "Transfer" fixed function key. Dial the number of the party you wish to transfer the call to. You may then either announce the call (consultative transfer) or complete the transfer directly (blind transfer) depending on your system's configuration and the soft key options displayed on the screen.

5. പരിപാലനം

Proper care and maintenance will extend the life of your Unify OpenScape DeskPhone CP200T.

• വൃത്തിയാക്കൽ: Use a soft, dry, lint-free cloth to clean the phone's display and casing. കഠിനമായ അടയാളങ്ങൾക്ക്, ചെറുതായി dampen the cloth with water. Do not use harsh chemicals, abrasive cleaners, or solvents.
• ദ്രാവകങ്ങൾ ഒഴിവാക്കുക: Keep the phone away from liquids and moisture. Do not immerse the phone in water or expose it to excessive humidity.
• താപനില: Operate and store the phone within recommended temperature ranges. Avoid extreme heat or cold.
• കേബിൾ മാനേജുമെന്റ്: Ensure all cables are securely connected and not strained or tangled to prevent damage.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Unify OpenScape DeskPhone CP200T, refer to the following common problems and solutions:

For issues not listed here or if the suggested solutions do not resolve the problem, please contact your IT support department or the product vendor for further assistance.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

വാറൻ്റി വിവരങ്ങൾ: For specific warranty terms and conditions, please refer to the warranty card included with your product or contact your point of purchase. Warranty coverage typically includes defects in materials and workmanship under normal use.

സാങ്കേതിക സഹായം: If you require technical assistance, have questions about advanced features, or encounter issues not covered in this manual, please contact your IT administrator or the authorized Unify service provider. Ensure you have your product model number (L30250-F600-C435) and serial number ready when contacting support.
