ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your Rough Country 50-inch Dual Row LED Light Bar with White DRL. This powerful off-road lighting solution features 43,200 lumens, 480 watts of Cree LED lighting, and a combo spot/flood beam pattern for versatile illumination. It is designed for durability with an IP67 waterproof rating and a robust die-cast aluminum housing.
സുരക്ഷാ വിവരങ്ങൾ
പ്രൊഫഷണൽ ഇൻസ്റ്റാളേഷൻ ശുപാർശ ചെയ്യുന്നു: While this light bar is designed for straightforward installation, Rough Country recommends that a certified technician install complex automotive systems. Proper knowledge of installation procedures and post-installation checks is crucial for ensuring the integrity and operating safety of your vehicle's systems.
പതിവ് പരിശോധനകൾ: It is the owner's responsibility to check all bolts and nuts for tightness after the first 500 miles of use, and then every 1,000 miles thereafter. Regular inspection by a qualified mechanic is recommended for all vehicle systems, including lighting, every 3,000 miles.
നിർദ്ദേശം 65 മുന്നറിയിപ്പ്: ഈ ഉൽപ്പന്നത്തിൽ കാൻസർ, ജനന വൈകല്യങ്ങൾ അല്ലെങ്കിൽ മറ്റ് പ്രത്യുൽപാദന ഹൃദ്രോഗങ്ങൾ എന്നിവ ഉണ്ടാക്കാൻ കാലിഫോർണിയ സ്റ്റേറ്റിന് അറിയപ്പെടുന്ന രാസവസ്തുക്കൾ അടങ്ങിയിരിക്കാം.
ബോക്സിൽ എന്താണുള്ളത്
ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:
- (1) 50-inch LED Light Bar
- (1) Wiring Harness with On/Off Switch
- (1) Light Bar Cover
- Swivel Mounting Brackets
- Hardware (bolts, nuts, washers)
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The Rough Country 50-inch LED Light Bar is designed for versatile mounting on various off-road vehicles. The included wiring harness simplifies electrical connection.
മൗണ്ടിംഗ്
Utilize the provided end mounts and adjustable base mounts to secure the light bar to your desired location, such as bumpers, grilles, or roof racks. Ensure the mounting surface is stable and capable of supporting the light bar's weight. Tighten all hardware securely, but do not overtighten.
Image: Rough Country 50-inch LED Light Bar installed on the front of a Jeep, demonstrating the DRL function. The light bar is mounted horizontally across the grille area.
Image: Rough Country 50-inch LED Light Bar installed on the rear roofline of a utility vehicle, fully illuminated. This shows an alternative mounting position and the full light output.
വയറിംഗ്
Connect the included wiring harness to your vehicle's electrical system. The harness features a three-way switch for easy control of the light bar's functions. Ensure all connections are secure and properly insulated to prevent short circuits and water intrusion.
Noise Silencers
The light bar includes Noise Silencers designed to reduce wind hum, whistles, and other aerodynamic noise that can occur with mounted LED light bars. Install these according to the separate instructions provided with the silencers to optimize noise reduction.
ഇൻസ്റ്റലേഷൻ വീഡിയോ ഗൈഡ്
Video: Official Rough Country video demonstrating the features and operation of DRL LED Light Bars and Pods, including the 50-inch model. This video provides visual guidance on the light functions and housing features.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Your Rough Country LED Light Bar offers both Daytime Running Light (DRL) functionality and full-power illumination, controlled by a three-way switch.
Three-Way Switch Operation
- Position I (DRL Mode): Activates the integrated Daytime Running Lights. These LEDs provide enhanced visibility for your vehicle during daylight hours, mimicking modern headlight DRL functions. The DRLs are available in cool white.
- Position O (Off): Turns the light bar completely off.
- Position II (Full Output Mode): Activates all 96 high-intensity 5-watt Cree LEDs, providing 43,200 lumens of illumination with a combo spot/flood beam pattern for maximum off-road visibility.
Image: Close-up of the Rough Country 50-inch LED Light Bar with the DRLs illuminated, showing a bright white strip of light along the center.

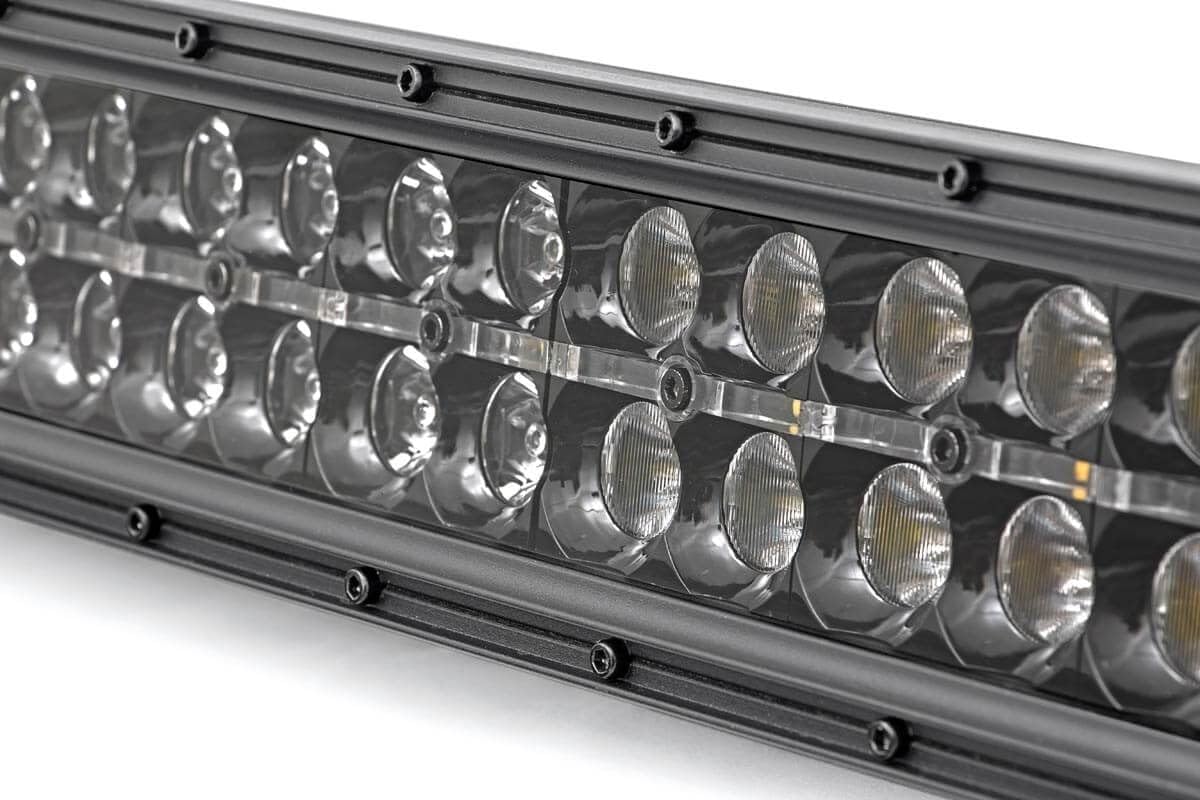

Image: Close-up of the Rough Country 50-inch LED Light Bar with the main LEDs off, highlighting the central DRL strip. This view emphasizes the distinct DRL feature.
Always select the appropriate lighting mode based on driving conditions and local regulations.
മെയിൻ്റനൻസ്
Proper maintenance ensures the longevity and optimal performance of your LED light bar.
- വൃത്തിയാക്കൽ: Regularly clean the lens with a soft cloth and mild soap and water to remove dirt, mud, and debris. Avoid abrasive cleaners or harsh chemicals that could damage the polycarbonate lens.
- ഭവനം: The durable die-cast aluminum housing is designed for maximum strength and heat dissipation. Periodically inspect the housing for any signs of damage or corrosion.
- വാട്ടർപ്രൂഫ് റേറ്റിംഗ്: The light bar features an IP67 waterproof rating, providing reliable performance in harsh conditions. However, avoid directing high-pressure water jets directly at the light bar for extended periods.
- Moisture Breather Technology: This technology helps reduce moisture build-up inside the light bar. Ensure the breather is not obstructed.
- Snap-on Cover: Use the included snap-on cover to protect the lens when the light bar is not in use or during storage, especially from impacts or harsh elements.
- ഹാർഡ്വെയർ പരിശോധന: As per safety guidelines, regularly check all mounting hardware for tightness.
Image: Rough Country 50-inch LED Light Bar with its protective snap-on cover installed. The cover helps shield the lens from damage when not in use.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your light bar, refer to the following common solutions:
- Light Bar Not Illuminating:
- Check all electrical connections for proper seating and corrosion.
- Verify the wiring harness fuse is intact.
- Ensure the three-way switch is in the correct position (DRL or Full Output).
- Confirm the vehicle's power source is active.
- മങ്ങിയ അല്ലെങ്കിൽ മിന്നുന്ന ലൈറ്റുകൾ:
- അയഞ്ഞ കണക്ഷനുകൾക്കോ കേടുപാടുകൾക്കോ വേണ്ടി വയറിംഗ് പരിശോധിക്കുക.
- മതിയായ വോള്യം പരിശോധിക്കുകtage supply to the light bar.
- Clean the lens if it is obstructed by dirt or debris.
- Excessive Wind Noise/Hum:
- Ensure Noise Silencers are correctly installed and positioned.
- Verify the light bar is securely mounted and not vibrating.
- Adjust the mounting angle if possible to reduce aerodynamic drag.
- ലെൻസിനുള്ളിലെ ഈർപ്പം:
- Ensure the Moisture Breather is clear and unobstructed.
- If persistent, inspect the housing seals for damage.
For issues not resolved by these steps, or for complex electrical problems, it is recommended to consult a qualified automotive technician.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | 70950BD |
| നീളം | 50-5/16" (1277.9 മിമി) |
| ആഴം | 3.45" (87.6 മിമി) |
| ഉയരം | 3" (76.2 മിമി) |
| ല്യൂമെൻ ഔട്ട്പുട്ട് | 43,200 ല്യൂമെൻസ് |
| വാട്ട്tage | 480 വാട്ട്സ് |
| LED തരം | Cree LED (96 x 5W) |
| DRL LEDs | 48 Cool White DRL LEDs |
| ബീം പാറ്റേൺ | Combo Spot (5°) / Flood (90°) |
| വർണ്ണ താപനില | 6000K |
| ഓപ്പറേറ്റിംഗ് വോളിയംtage | 10-30V DC / 12V |
| Ampഎരേജ് ഡ്രോ | 40 Amps |
| വാട്ടർപ്രൂഫ് റേറ്റിംഗ് | IP67 |
| ഹൗസിംഗ് മെറ്റീരിയൽ | ഡൈ-കാസ്റ്റ് അലുമിനിയം |
| ലെൻസ് മെറ്റീരിയൽ | പോളികാർബണേറ്റ് |
| പ്രത്യേക സവിശേഷതകൾ | Dust Proof, Rust Proof, Weather Resistant, White DRL, Moisture Breather Technology, Noise Silencers |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | Light Bar, Wiring Harness with Switch, Light Bar Cover, Swivel Mounting Brackets, Hardware |
| ഓട്ടോമോട്ടീവ് ഫിറ്റ് തരം | യൂണിവേഴ്സൽ ഫിറ്റ് |
വാറൻ്റി വിവരങ്ങൾ
This Rough Country 50-inch Dual Row LED Light Bar is backed by a 3-year warranty. For specific terms and conditions, please refer to the official Rough Country warranty policy or contact customer support.
ഉപഭോക്തൃ പിന്തുണ
For technical assistance, warranty claims, or any questions regarding your Rough Country product, please visit the official Rough Country website or contact their customer service department. Ensure you have your product model number (70950BD) and purchase details available when contacting support.
പരുക്കൻ നാട് Webസൈറ്റ്: www.roughcountry.com
