V-TAC VT-6140 40W LED Panel User Manual

1. ആമുഖം

Thank you for choosing the V-TAC VT-6140 40W LED Panel. This manual provides essential information for the safe installation, operation, and maintenance of your LED panel. The VT-6140 is a 40W LED panel, measuring 595x595mm, designed to provide 4000K day white light. Its IP65 rating makes it suitable for both indoor and outdoor installations where protection against dust and water jets is required. It includes a high-quality IP65 driver, ensuring reliable performance and a high light transmission rate.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

Please read these instructions carefully before installation and keep them for future reference.

• Ensure the main power supply is switched off before commencing any installation or maintenance.
• Installation should be performed by a qualified electrician in accordance with all local and national wiring regulations.
• Do not install the product on unstable surfaces or in areas with excessive vibration.
• Ensure proper grounding is established to prevent electrical shock.
• Do not look directly into the LED light source when it is illuminated, as this may cause eye damage.
• This product is IP65 rated, suitable for damp and outdoor locations, but should not be submerged in water.
• Do not modify the product in any way; unauthorized modifications will void the warranty and may pose safety risks.

3. പാക്കേജ് ഉള്ളടക്കം

ഓരോ പാക്കേജിലും ഇനിപ്പറയുന്ന ഇനങ്ങൾ അടങ്ങിയിരിക്കുന്നു:

• 6 x V-TAC VT-6140 40W LED Panel (595x595mm, 4000K Day White)
• 6 x IP65 LED Driver
• നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)

Image 1: Product packaging displaying key specifications like 40W, 4000K, 120-degree beaming angle, 4400 lumens, 20,000 hours long life, and 3 years warranty.

4 സ്പെസിഫിക്കേഷനുകൾ

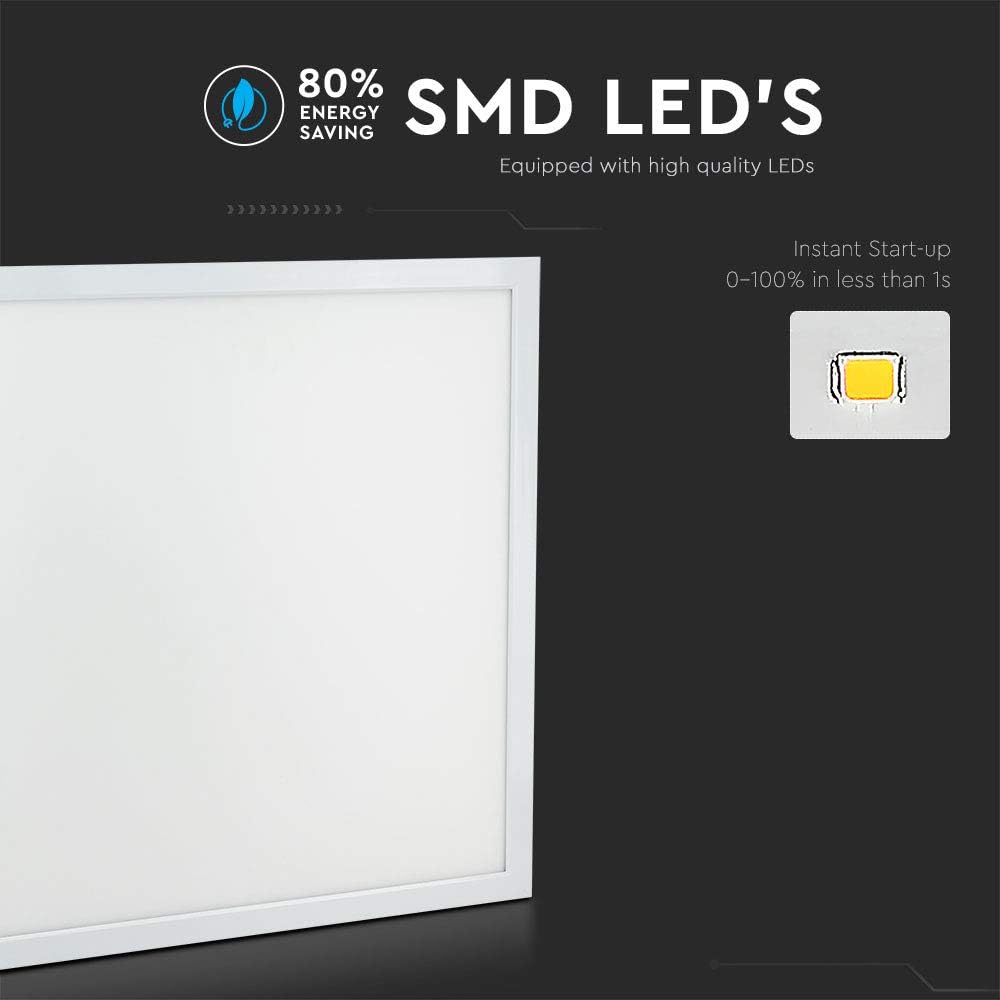

Image 2: The LED panel emphasizing 80% energy saving with SMD LEDs and instant start-up (0-100% in less than 1 second).

Image 3: Visual representation of the IP65 rating, indicating the panel is water and dust/moisture resistant.

Image 4: The LED panel highlighting its stylish and modern design, constructed with Aluminium, PMMA, and PS body materials.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The V-TAC VT-6140 LED Panel is designed for easy installation in various settings, including suspended ceilings, surface mounting, or recessed applications. Always ensure power is disconnected before starting.

5.1 പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ

• Verify that the installation location is suitable for the panel's dimensions (595x595mm).
• Confirm that the electrical supply matches the panel's requirements (220V AC).
• Ensure you have all necessary tools and mounting accessories (not included unless specified).

5.2 വയറിംഗ് നിർദ്ദേശങ്ങൾ

1. Switch off the main power supply at the circuit breaker.
2. Connect the LED driver to the main AC power supply (Live, Neutral, Earth) ensuring correct polarity and secure connections.
3. Connect the output of the LED driver to the LED panel. Ensure the connection is firm and waterproof if installing in an IP65 environment.
4. തുടരുന്നതിന് മുമ്പ് എല്ലാ കണക്ഷനുകളും രണ്ടുതവണ പരിശോധിക്കുക.

5.3 പാനൽ മൌണ്ട് ചെയ്യുന്നു

Mounting methods vary depending on your specific application (e.g., recessed into a grid ceiling, surface mounted with a frame, or suspended). Follow the instructions provided with your chosen mounting kit.

• റീസെസ്ഡ് ഇൻസ്റ്റലേഷൻ: Typically involves placing the panel into a standard 600x600mm grid ceiling opening.
• ഉപരിതലത്തിൽ ഘടിപ്പിച്ചിരിക്കുന്നത്: Requires a surface mount frame (sold separately) to secure the panel to a solid ceiling or wall.
• സസ്പെൻഡ് ചെയ്ത ഇൻസ്റ്റാളേഷൻ: Uses suspension kits (sold separately) to hang the panel from the ceiling.

ചിത്രം 5: ഉദാample of multiple V-TAC LED panels installed in a long indoor hallway, demonstrating a common recessed application.

ചിത്രം 6: ഉദാample of a V-TAC LED panel installed on an outdoor patio ceiling, showcasing its suitability for IP65-rated outdoor environments.

6. ഓപ്പറേഷൻ

Once properly installed and wired, operating the V-TAC VT-6140 LED Panel is straightforward:

• പവർ ഓൺ: Restore power to the circuit at the main breaker. The LED panel will illuminate instantly.
• പവർ ഓഫ്: Switch off the power at the wall switch or circuit breaker to turn off the panel.

The panel provides a consistent 4000K day white light output. There are no user-adjustable settings on the panel itself.

7. പരിപാലനം

The V-TAC VT-6140 LED Panel requires minimal maintenance due to its durable design and long-life LEDs.

• വൃത്തിയാക്കൽ: Periodically clean the surface of the panel with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or diffuser. Ensure the power is off before cleaning.
• പരിശോധന: Regularly inspect the panel and its wiring for any signs of damage, loose connections, or wear. If any issues are found, disconnect power immediately and consult a qualified electrician.
• ഉപയോക്തൃ-സേവനയോഗ്യമായ ഭാഗങ്ങൾ ഇല്ല: The LED panel contains no user-serviceable parts. Do not attempt to open or repair the unit.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your V-TAC VT-6140 LED Panel, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact V-TAC customer support or your supplier.

9. വാറൻ്റിയും പിന്തുണയും

The V-TAC VT-6140 LED Panel typically comes with a manufacturer's warranty, often 3 years as indicated on some product information. Please refer to your purchase documentation or the V-TAC official webനിങ്ങളുടെ പ്രദേശത്തിന് ബാധകമായ നിർദ്ദിഷ്ട വാറന്റി നിബന്ധനകൾക്കും വ്യവസ്ഥകൾക്കും സൈറ്റ് സന്ദർശിക്കുക.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact your retailer or the official V-TAC customer service. Contact details can usually be found on the V-TAC webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗ്.

വി-ടിഎസി Webസൈറ്റ്: www.v-tac.eu
