1. ആമുഖം
The AUTOPHIX FCAR F506 Heavy Duty Truck Scanner is a comprehensive diagnostic tool designed for both heavy-duty trucks and light-duty vehicles. It provides full-system scanning capabilities, allowing users to read and clear trouble codes, view live data, and perform special functions across various vehicle systems.
2. പാക്കേജ് ഉള്ളടക്കം
The FCAR F506 package typically includes:
- 1x F506 OBD2 Scanner Unit
- 1x 6-9 Y Pin J1939 Type 2 Connector
- 1x OBD 16 Pin Connector
- 1x USB കേബിൾ
- 1x ഉപയോക്തൃ മാനുവൽ
- 1x Soft Nylon Carrying Case

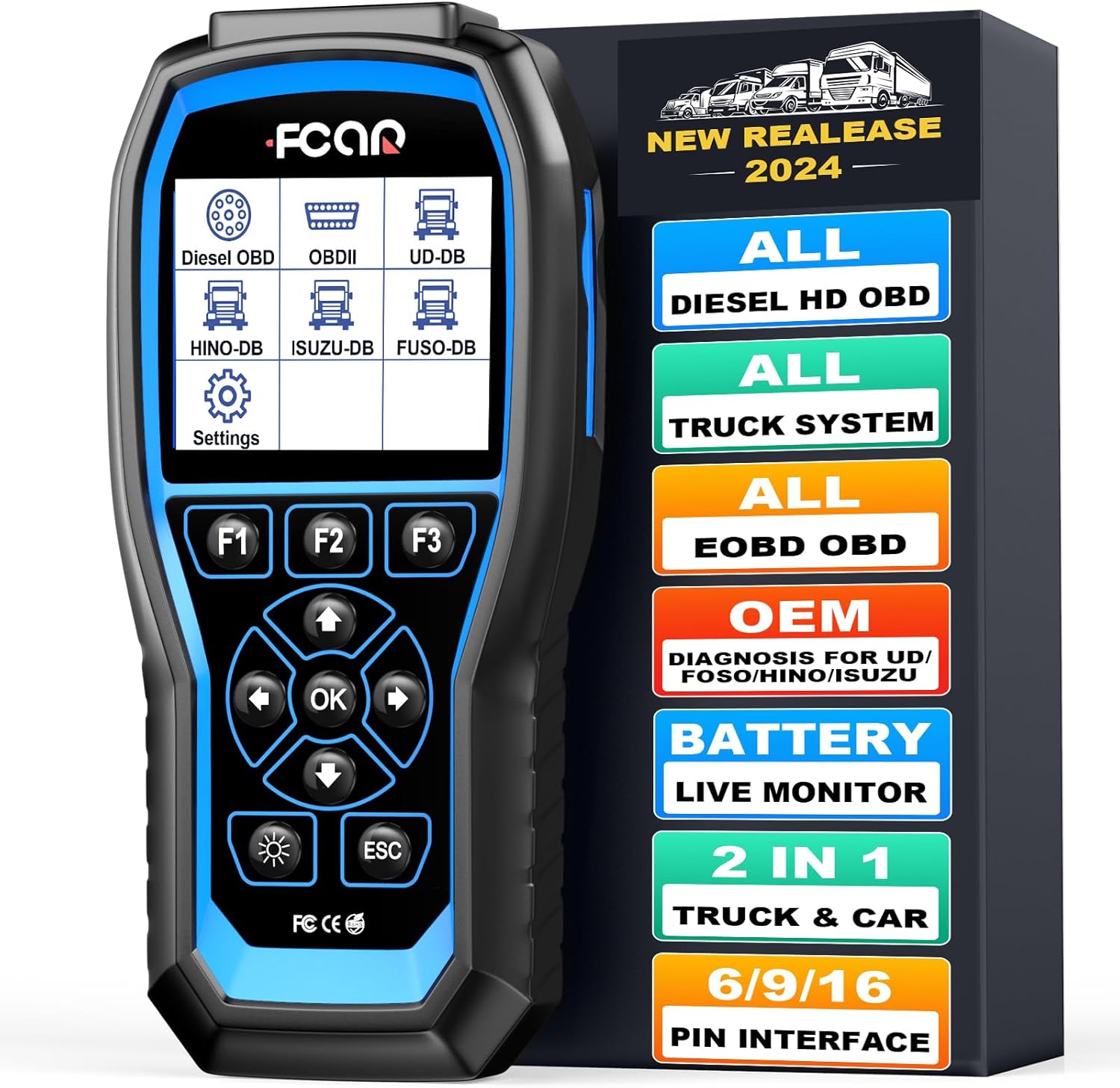

Image: FCAR F506 scanner unit and its packaging, illustrating the device and its protective case.
3. സജ്ജീകരണം
- പവർ ഓൺ: Connect the F506 scanner to the vehicle's diagnostic port (OBD2, J1708, or J1939 depending on the vehicle). The device will power on automatically.
- ഭാഷാ ക്രമീകരണങ്ങൾ: Navigate to "Settings" on the main menu. Select "Language" and choose your preferred language (e.g., English).
- യൂണിറ്റ് ക്രമീകരണങ്ങൾ: In the "Settings" menu, select "Unit Setting" to choose between SAE English or Metric units.
- സോഫ്റ്റ്വെയർ അപ്ഡേറ്റ്: Ensure the device software is up-to-date for optimal performance and vehicle compatibility. Connect the scanner to a computer via USB and follow the internet update instructions provided in the full manual.
Image: The main menu of the FCAR F506, displaying various diagnostic options for different vehicle types.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1. Full-System Diagnostics
The F506 supports full-system diagnostics for heavy-duty trucks, covering systems such as Engine, Airbag, Transmission, ECU/BCU, VCS, ABS, SRS, EBS, DCU, AT, Clutch System, Brake System, Meter System, Battery System, Inverter System, Hybrid System, and Immobilizer System.
- From the main menu, select the appropriate vehicle type (e.g., "Diesel OBD", "Hino", "Isuzu", "Fuso", "UD").
- Choose "Enter by system" or "Enter by year" if prompted.
- Select the specific system you wish to diagnose (e.g., "Powertrain", "Chassis", "Car Body").
- Follow the on-screen prompts to proceed with the diagnostic functions.
Image: The FCAR F506 screen showing various full-system diagnostic functions available for trucks.
4.2. തകരാറുകൾ വായിക്കുകയും മായ്ക്കുകയും ചെയ്യുന്നു
- After selecting the vehicle system, choose "Read Fault Code" to view active and historical diagnostic trouble codes (DTCs).
- To clear codes, select "Erase Fault Code" and confirm the action. Ensure any underlying issues are resolved before clearing codes.
4.3. ലൈവ് ഡാറ്റ സ്ട്രീം
The "Live Data" function displays real-time parameters from the vehicle's ECU, aiding in performance analysis and troubleshooting.
- Select "Live Data" from the diagnostic menu.
- Parameters include Engine speed, ECU temperature, Accelerator pedal position, Coolant temperature, Battery voltage, Alternator voltage, Ambient air temperature, and more.
- ഡാറ്റ ആകാം viewed in numerical format or graphically for easier analysis.
Image: Live data display on the FCAR F506, showing real-time engine parameters.
4.4. പ്രത്യേക പ്രവർത്തനങ്ങൾ
The F506 offers various special functions for component adaptations and calibrations after repairs or replacements.
- Access "Special Function" from the system menu.
- Available functions may include pump adjust learn, fuel rail pressure tests, and other component-specific tests.
Video: Demonstration of FCAR F506 performing diagnostics on a Mack truck, showcasing system selection and data reading.
Video: Demonstration of FCAR F506 performing diagnostics on an International truck, illustrating the user interface and diagnostic process.
5. പരിപാലനം
- വൃത്തിയാക്കൽ: ഒരു സോഫ്റ്റ് ഉപയോഗിക്കുക, ഡിamp cloth to clean the scanner unit. Avoid abrasive cleaners or solvents.
- സംഭരണം: Store the device in its protective carrying case in a dry, cool environment when not in use.
- സോഫ്റ്റ്വെയർ അപ്ഡേറ്റുകൾ: Regularly check for software updates on the manufacturer's website to ensure compatibility with new vehicle models and improved functionalities. The device supports one-key updates.
6. പ്രശ്നപരിഹാരം
- ഉപകരണം പവർ ചെയ്യുന്നില്ല:
- Ensure the diagnostic cable is securely connected to both the vehicle's DLC (Diagnostic Link Connector) and the scanner.
- വാഹനത്തിന്റെ ഇഗ്നിഷൻ ഓൺ സ്ഥാനത്താണെന്ന് ഉറപ്പാക്കുക.
- വാഹനത്തിന്റെ ബാറ്ററി വോള്യം പരിശോധിക്കുകtage.
- ആശയവിനിമയ പിശക്:
- Confirm the correct vehicle make, model, and year are selected.
- Check for damaged diagnostic cables or connectors.
- Ensure the vehicle's ECU is functioning correctly.
- തകരാർ കോഡുകളൊന്നും കണ്ടെത്തിയില്ല:
- This indicates that the system currently has no stored diagnostic trouble codes.
- If a problem persists, consider checking live data for abnormal readings or performing active tests on relevant components.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ഓട്ടോഫിക്സ് |
| മോഡൽ | F506 |
| പ്രദർശിപ്പിക്കുക | 3.5" TFT കളർ സ്ക്രീൻ |
| കണക്റ്റിവിറ്റി | J1708, J1939, OBD2 (SAE J1850PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4) |
| വാഹന കവറേജ് | Most trucks with J1708/J1939, OBD2 automotive (1996 onwards), Hino, Mitsubishi Fuso, Isuzu, Nissan UD commercial vehicles (since 1992) |
| ഓപ്പറേറ്റിംഗ് സിസ്റ്റം | Windows 7 (for updates) |
| ഇനത്തിൻ്റെ ഭാരം | 2 പൗണ്ട് |
| ഉൽപ്പന്ന അളവുകൾ | 12 x 9 x 3 ഇഞ്ച് |
8. വാറൻ്റിയും പിന്തുണയും
The FCAR F506 comes with a 1-year warranty. For technical support, software updates, or any inquiries, please refer to the contact information provided in the product packaging or visit the official AUTOPHIX webസൈറ്റ്.
