ELRO AS90S Home+ Wireless Smart Alarm System User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The ELRO AS90S Home+ wireless alarm system is a reliable all-in-one solution designed to secure your home or office. This comprehensive system includes a base unit, a control panel, a motion detector, three door/window sensors, and a remote control. It is designed for easy self-installation, typically within 15 minutes, and can be expanded with additional sensors and accessories as needed.

Upon detection of an intruder, the base unit activates an audible alarm of at least 100 dB, sufficient to deter intruders. Additionally, you will receive an alarm notification directly on your smartphone. The ELRO Home+ alarm system features a backup battery and, with a GSM module (SIM card not included), ensures continued operation during power outages.

The dedicated ELRO Home+ App, available for free on the App Store and Google Playstore, allows you to arm and disarm the system remotely. It also sends push notifications for detected intrusions and enables easy adjustment of system and accessory settings.

ചിത്രം 1.1: ഓവർview of the ELRO AS90S Home+ Smart Alarm System components, including the base unit, control panel, motion detector, door/window contacts, and remote control.

2. പാക്കേജ് ഉള്ളടക്കം

Verify that all items listed below are included in your ELRO AS90S Home+ alarm system package:

• അടിസ്ഥാന യൂണിറ്റ്
• നിയന്ത്രണ പാനൽ
• മോഷൻ ഡിറ്റക്ടർ
• 3 x ഡോർ/വിൻഡോ സെൻസറുകൾ
• റിമോട്ട് കൺട്രോൾ
• യുടിപി കേബിൾ
• ബാറ്ററികൾ
• പവർ അഡാപ്റ്റർ
• മൌണ്ടിംഗ് ഹാർഡ്വെയർ
• Alarm/Warning Sticker
• നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)

3. ഘടകങ്ങൾ കഴിഞ്ഞുview

3.1. അടിസ്ഥാന യൂണിറ്റ്

The Base Unit is the central hub of your ELRO Home+ alarm system. All sensors connect wirelessly to this unit, which then transmits information to the ELRO Home+ application on your smartphone.

Figure 3.1.1: The ELRO AS90S Base Unit, designed to be placed within your WiFi network for optimal connectivity.

Figure 3.1.2: Physical dimensions of the ELRO AS90S Base Unit, measuring 145 mm by 145 mm.

ചിത്രം 3.1.3: വിശദമായി view of the ELRO AS90S Base Unit's features, including (1) DC 5V / 2A power adapter port, (2) LAN 1x RJ45 cable port, (3) GSM SIM card slot, (4) 100 dB(A) siren, and (5) Lithium Polymer battery for backup power.

3.2. നിയന്ത്രണ പാനൽ

The modernly designed Control Panel can be mounted near your entrance. It allows you to arm or disarm your system using a personal code.

Figure 3.2.1: The ELRO AS90S Control Panel, used to arm or disarm your alarm system.

Figure 3.2.2: Physical dimensions of the ELRO AS90S Control Panel, measuring 80 mm by 38.2 mm.

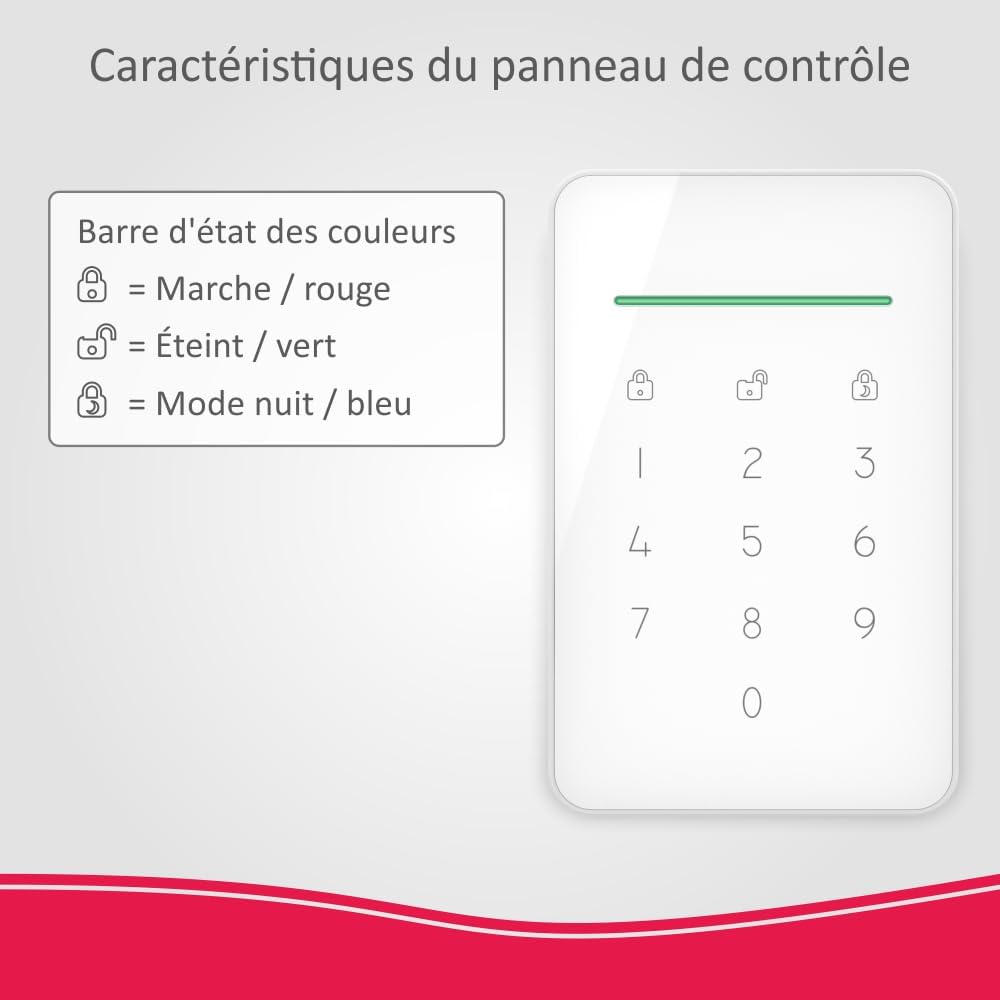

Figure 3.2.3: Explanation of the ELRO AS90S Control Panel's color status bar: Armed (red), Disarmed (green), and Night Mode (blue).

3.3. മോഷൻ ഡിറ്റക്ടർ

The Motion Detector registers movement within a designated area of your home, triggering the alarm if the system is armed.

Figure 3.3.1: The ELRO AS90S Motion Detector, used to secure a specific zone.

Figure 3.3.2: Physical dimensions of the ELRO AS90S Motion Detector, measuring 99 mm by 53 mm.

Figure 3.3.3: Detection range of the ELRO AS90S Motion Detector, covering 9 meters with a 110° angle. It features easy aiming with a magnetic "click" mount, typically installed at 1.8-2.2 meters height.

3.4. Door/Window Sensors (3 included)

These sensors trigger the alarm if a window or door is opened while the system is armed.

Figure 3.4.1: The ELRO AS90S Door/Window Sensor, used to secure doors and windows.

Figure 3.4.2: Physical dimensions of the ELRO AS90S Door/Window Sensor, with the main unit measuring 80 mm by 38.2 mm, and the smaller magnet unit measuring 14.8 mm. The maximum gap between the two parts should be 9 mm.

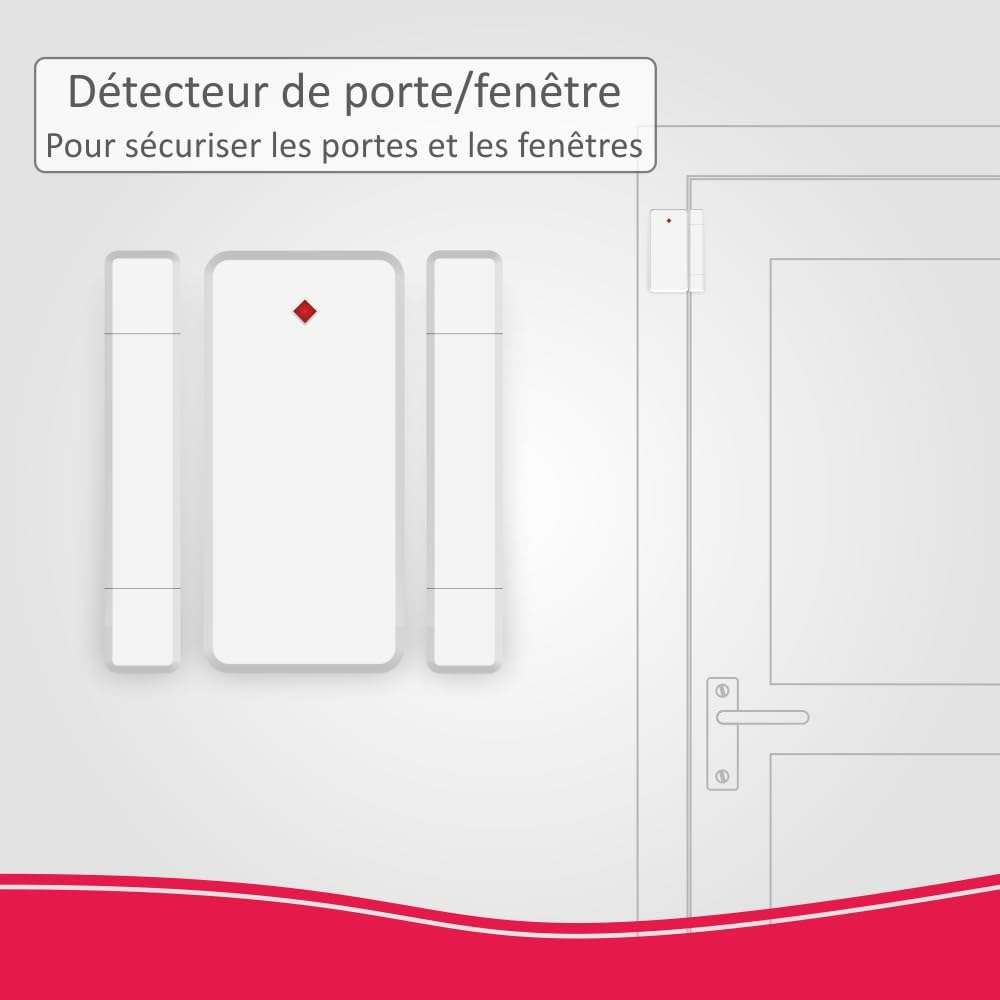

ചിത്രം 3.4.3: ഉദാample installation of the ELRO AS90S Door/Window Sensor on a door frame.

3.5. റിമോട്ട് കൺട്രോൾ

The Remote Control provides a convenient way to arm or disarm your alarm system.

Figure 3.5.1: The ELRO AS90S Remote Control, used to arm or disarm your system.

Figure 3.5.2: Physical dimensions of the ELRO AS90S Remote Control, measuring 58 mm by 33 mm.

Figure 3.5.3: Functions of the ELRO AS90S Remote Control buttons: Arm, Disarm, Night Mode, and S.O.S./Panic.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Installing the ELRO Home+ alarm system is straightforward. All included system components are pre-connected to the base unit, making the setup process quick and easy.

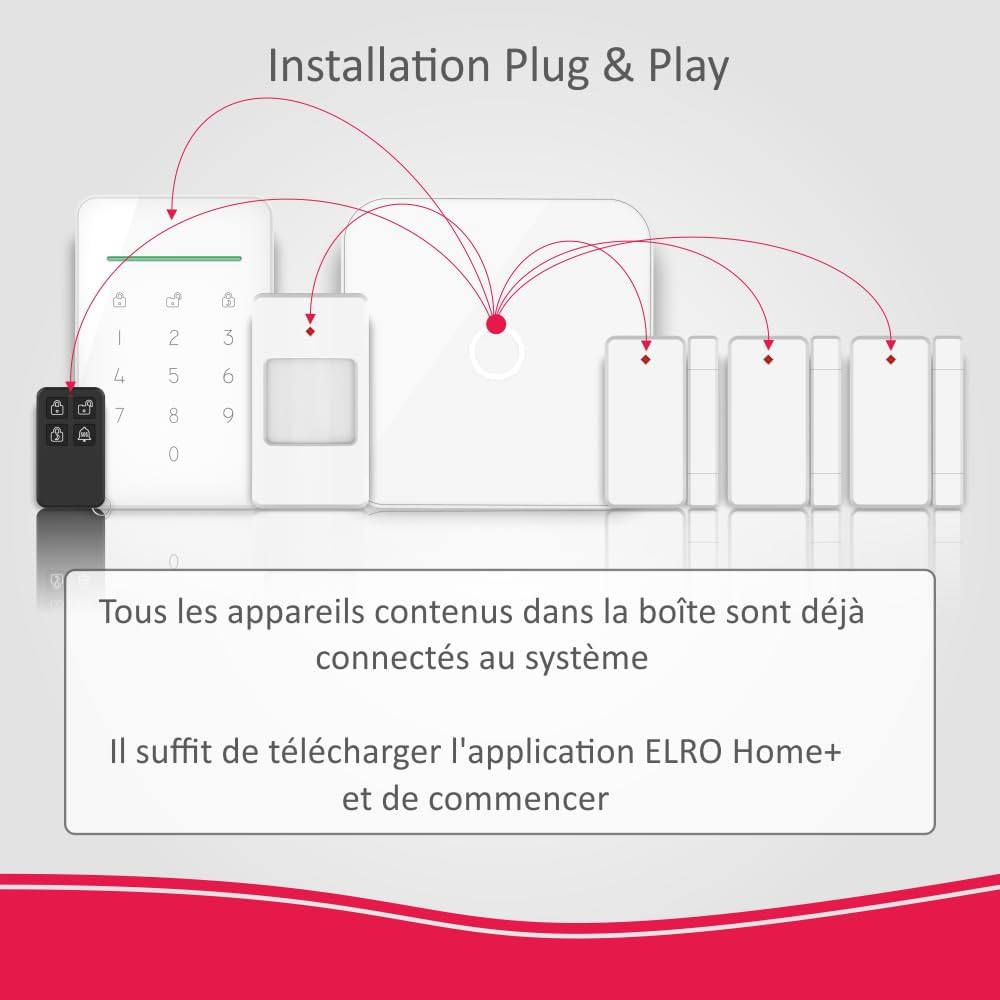

Figure 4.1: Plug & Play installation diagram for the ELRO AS90S system. All devices in the box are pre-connected to the system. Simply download the ELRO Home+ app and begin setup.

1. Activate Components: Activate all sensors and the base unit.
2. അപ്ലിക്കേഷൻ ഡൗൺലോഡുചെയ്യുക: Download the free ELRO Home+ App from the App Store (for iOS) or Google Playstore (for Android).
3. സ്മാർട്ട്‌ഫോണുമായി ബന്ധിപ്പിക്കുക: Follow the in-app instructions to connect the system to your smartphone.
4. തന്ത്രപരമായ സ്ഥാനം: Place all components in strategic locations within your home to ensure optimal coverage and security.

The system can typically be installed and operational within 15 minutes.

5. ഓപ്പറേഷൻ

The ELRO AS90S Home+ alarm system offers various operational modes and features for comprehensive security management.

5.1. ആയുധമാക്കലും നിരായുധീകരണവും

• Full Arm Mode: Activates all sensors for complete protection.
• നിരായുധീകരണ മോഡ്: Deactivates the alarm system.
• രാത്രി മോഡ്: Allows certain sensors (e.g., perimeter sensors like door/window contacts) to remain active while others (e.g., motion detectors in living areas) are disarmed, enabling free movement within the home at night.

You can arm or disarm the system using the Control Panel (with a personal code), the Remote Control, or through the ELRO Home+ App.

5.2. App Functionality

The ELRO Home+ App provides full control and monitoring capabilities:

Figure 5.2.1: The ELRO Home+ App interface, allowing users to arm, disarm, set home arm mode, and check system status. The app is available for free on Google Play and the App Store.

• റിമോട്ട് കൺട്രോൾ: Arm and disarm the system from anywhere.
• തൽക്ഷണ അറിയിപ്പുകൾ: Receive push notifications on your smartphone when an intrusion is detected.
• ക്രമീകരണങ്ങൾ ക്രമീകരിക്കൽ: Easily adjust system parameters and accessory settings.
• ഉപയോക്തൃ മാനേജ്മെന്റ്: Create unique users to track who arms or disarms the alarm.

5.3. വിപുലമായ സവിശേഷതകൾ

• സംയോജിത സൈറൺ: The base unit features a powerful 100 dB integrated siren.
• Forced Alarm: Enter a special PIN on the control panel to disarm the system under duress. All users will be notified that a forced alarm deactivation occurred.
• Entry/Exit Delay: Customizable arming and disarming delays (from 0 seconds to 9 minutes and 50 seconds), with an optional countdown beep.
• Adjustable Siren Duration: The duration of the siren alarm is adjustable. A silent alarm option (push notification only) is also available.
• സ്ഥിരമായ വയർലെസ് കണക്ഷൻ: Provides a stable wireless connection between the base unit and accessories with a range of 300 meters (without obstacles).

6 അനുയോജ്യമായ ആക്സസറികൾ

The ELRO Home+ alarm system is highly expandable. You can enhance your security setup with the following compatible accessories:

ചിത്രം 6.1: ഓവർview of compatible accessories for the ELRO AS90S Home+ system, including the AS90CA HD Security Camera, AS90SRA Indoor Siren, AS90KEA Control Panel, AS90RE Remote Control, AS90MA Door/Window Sensor, AS90PLE Smart Plug, and AS90PR Motion Detector.

• ELRO AS90CA Home+ Full HD Pan/Tilt Security Camera
• ELRO AS90MA Home+ Door/Window Sensor
• ELRO AS90PR Home+ Motion Detector
• ELRO AS90KEA Home+ Control Panel
• ELRO AS90SRA Home+ Indoor Siren
• ELRO AS90PL Home+ Smart Plug

7 സ്പെസിഫിക്കേഷനുകൾ

8. പ്രശ്‌നപരിഹാരം

This section provides solutions to common issues you might encounter with your ELRO AS90S Home+ alarm system.

8.1. സിസ്റ്റം പ്രതികരിക്കുന്നില്ല

• പവർ പരിശോധിക്കുക: Ensure the base unit is properly connected to power and that the power adapter is functioning. Verify the backup battery is charged.
• ഇൻ്റർനെറ്റ് കണക്ഷൻ പരിശോധിക്കുക: Confirm your home WiFi network is active and the base unit is connected. If using GSM, ensure the SIM card is correctly inserted and has active service.
• സിസ്റ്റം പുനരാരംഭിക്കുക: Disconnect power from the base unit, remove the backup battery, wait 30 seconds, then reinsert the battery and reconnect power.

8.2. Sensor Not Triggering Alarm

• ബാറ്ററി പരിശോധിക്കുക: Replace batteries in the sensor if necessary.
• പ്ലേസ്മെൻ്റ് പരിശോധിക്കുക: Ensure motion detectors are placed correctly to cover the desired area and that door/window sensors are aligned with a maximum 9mm gap when closed.
• Re-pair Sensor: If a sensor is not communicating, try re-pairing it with the base unit via the ELRO Home+ App. Refer to the app's instructions for pairing new devices.
• Check System Mode: Ensure the system is in the correct arming mode (Full Arm or Night Mode) for the specific sensor to be active.

8.3. ആപ്പ് കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ

• ഇൻ്റർനെറ്റ് കണക്ഷൻ: Verify your smartphone has a stable internet connection (WiFi or mobile data).
• ആപ്പ് പതിപ്പ്: Ensure your ELRO Home+ App is updated to the latest version.
• ലോഗിൻ ക്രെഡൻഷ്യലുകൾ: Double-check your login details for the app.
• സെർവർ നില: In rare cases, there might be a temporary server issue. Try again after some time.

8.4. False Alarms

• Motion Detector Placement: Ensure motion detectors are not facing direct sunlight, heat sources, or areas with pets if they are not pet-immune models.
• വാതിൽ/ജനൽ സെൻസർ വിന്യാസം: Re-check the alignment and gap of door/window sensors. Strong vibrations or loose mounting can cause false triggers.
• പാരിസ്ഥിതിക ഘടകങ്ങൾ: High winds causing doors/windows to rattle, or large temperature fluctuations can sometimes affect sensors.

9. വാറൻ്റിയും പിന്തുണയും

The ELRO AS90S Home+ alarm system comes with a 2 വർഷത്തെ നിർമ്മാതാവിന്റെ വാറന്റി.

For technical assistance, troubleshooting, or any questions regarding your ELRO product, please contact ELRO customer support. They offer excellent technical support via phone and email in multiple languages, including English.

Please refer to the ELRO official website or the ELRO Home+ App for the most up-to-date contact information and additional support resources.
