Salter 9192 BK3R

Salter 9192 BK3R Curve Bluetooth Smart Electronic Scale

ഉപയോക്തൃ നിർദ്ദേശ മാനുവൽ

ആമുഖം

This manual provides essential instructions for the safe and effective use of your Salter 9192 BK3R Curve Bluetooth Smart Electronic Scale. Please read this manual thoroughly before using the device and retain it for future reference.

The Salter 9192 BK3R Curve Bluetooth Smart Electronic Scale is designed to measure weight, body fat, body water, muscle mass, bone mass, Body Mass Index (BMI), and Basal Metabolic Rate (BMR). It features an easy-to-read LCD screen, memory for up to 8 users, and specialized modes for athletes and children. Data can be tracked and managed via the intuitive Salter Health (MiBody) application on your smartphone.

സുരക്ഷാ വിവരങ്ങൾ

  • Always place the scale on a firm, flat surface. Uneven surfaces can affect accuracy.
  • Do not use on wet or slippery floors.
  • Do not immerse the scale in water or use chemical cleaning agents. Wipe with a damp തുണി.
  • This scale is not intended for medical diagnosis or treatment. Consult a healthcare professional for any health concerns.
  • Individuals with pacemakers or other internal medical devices should not use this scale as it uses Bio-electrical Impedance Analysis (BIA).
  • Pregnant women should use the scale for weight measurement only, as BIA readings may not be accurate.
  • ഉപയോഗിക്കാത്ത സമയത്ത് കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.

സജ്ജമാക്കുക

1. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

  1. സ്കെയിലിൻ്റെ അടിഭാഗത്ത് ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കണ്ടെത്തുക.
  2. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ തുറക്കുക.
  3. ശരിയായ പോളാരിറ്റി (+/-) ഉറപ്പാക്കിക്കൊണ്ട് 3 x AAA ബാറ്ററികൾ ഇടുക.
  4. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ സുരക്ഷിതമായി അടയ്ക്കുക.

Close-up of the Salter 9192 BK3R scale's large LCD display, showing '0.0 KG' and buttons to switch between metric (KG) and imperial (ST/LB) units. എ വിശദമായി view of the Salter 9192 BK3R scale's large, easy-to-read LCD display, indicating the current unit as kilograms (KG) and showing the control buttons for switching between metric and imperial measurements (KG, ST/LB). This image shows the display where battery status might be indicated.

2. ആപ്പ് ഡൗൺലോഡും ജോടിയാക്കലും

  1. Download the "Salter Health" (or "MiBody") app from your smartphone's app store (Apple App Store or Google Play Store).
  2. നിങ്ങളുടെ സ്മാർട്ട്ഫോണിൽ ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
  3. Open the Salter Health app and follow the on-screen instructions to create your user profile.
  4. The app will guide you through the pairing process with your scale. This typically involves stepping on the scale or pressing a button on the scale to activate Bluetooth.
  5. Once paired, your profile information (age, height, gender) will be synced to the scale, and the scale will be ready for use.

Infographic showing app features: Sync data with Apple Health, Set Personal Goals, Share Challenges, Automatic Weigh-in Reminder, Share Profile, Export Data, with a scale and smartphone. An infographic detailing the Salter Health App's features, including data synchronization with Apple Health, setting personal goals, sharing challenges, automatic weigh-in reminders, profile sharing, and data export capabilities. The image also shows the scale and a smartphone displaying the app.

Image promoting the Salter Health App with a person using a smartphone and a dumbbell on the floor. An image highlighting the Salter Health App, showing a person interacting with a smartphone, with a dumbbell in the foreground, suggesting fitness tracking.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

ഒരു അളവ് എടുക്കൽ

  1. Place the scale on a hard, flat, and stable surface.
  2. Gently tap the center of the scale with your foot to turn it on. The display will show "0.0 kg" (or your selected unit).
  3. Ensure the Salter Health app is open on your smartphone and Bluetooth is active for automatic data transfer.
  4. Step onto the scale barefoot, standing still with your weight evenly distributed.
  5. The scale will display your weight, then cycle through other measurements such as body fat, body water, muscle mass, bone mass, BMI, and BMR.
  6. Your measurements will automatically sync to the Salter Health app.

A foot stepping onto the Salter 9192 BK3R scale, highlighting its toughened glass platform and instant weight reading feature. ഒരു ക്ലോസപ്പ് view of a foot stepping onto the Salter 9192 BK3R scale, emphasizing its durable toughened glass platform and the 'Step on for instant weight reading' functionality.

Switching Units (KG/ST/LB)

The unit conversion button is located on the underside of the scale. Press this button to cycle between kilograms (KG), stones (ST), and pounds (LB).

Athlete Mode and Child Mode

These modes can be activated within the Salter Health app during profile setup or editing. Athlete Mode is designed for individuals who engage in intense physical activity, while Child Mode provides appropriate measurements for younger users.

Infographic showing various health metrics tracked by the Salter scale: Weight, Body Water, Body Fat, Bone Mass, Athlete Mode, Body Mass Index, Basal Metabolic Rate, Muscle Mass, 8 Users, Child Mode. An infographic illustrating the comprehensive health metrics measured by the Salter 9192 BK3R scale, including weight, body water, body fat, bone mass, BMI, BMR, and muscle mass, along with features like Athlete Mode, Child Mode, and support for 8 users.

Using the Salter Health App

The app allows you to:

  • View your measurement history and progress over time.
  • Set personal health goals.
  • Share your profile or challenge friends/family (Linked Accounts, Groups).
  • Export your data in PDF or CSV formats.
  • Receive automatic weigh-in reminders.
  • Sync data with other health platforms like Apple Health.

Screenshots of the Salter Health App showing Dashboard, Linked Accounts, and Data Export features. Screenshots from the Salter Health App demonstrating the user dashboard for tracking progress, the ability to link accounts for sharing data, and options to export data in PDF or CSV formats.

Screenshots of the Salter Health App showing Dashboard, detailed Metrics, and Groups features. Screenshots from the Salter Health App illustrating the dashboard for overall progress, detailed metrics view with historical data, and the 'Groups' feature for shared challenges.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ

പരസ്യം ഉപയോഗിച്ച് സ്കെയിൽ ഉപരിതലം തുടയ്ക്കുകamp cloth and mild detergent if necessary. Do not use abrasive cleaners or immerse the scale in water. Ensure the scale is dry before storage or next use.

സംഭരണം

സ്കെയിൽ തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക, നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും ഉയർന്ന താപനിലയിൽ നിന്നും അകറ്റി നിർത്തുക. ഉപയോഗിക്കാത്തപ്പോൾ ഭാരമുള്ള വസ്തുക്കൾ സ്കെയിലിൽ വയ്ക്കുന്നത് ഒഴിവാക്കുക.

Salter 9192 BK3R Curve Bluetooth Smart Electronic Scale stored vertically on a shelf in a white bathroom cabinet. The Salter 9192 BK3R Curve Bluetooth Smart Electronic Scale is shown stored upright on a white shelf inside a bathroom cabinet, demonstrating its compact storage.

ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ

When the battery indicator appears on the display, replace all 3 AAA batteries with new ones. Dispose of old batteries responsibly.

ട്രബിൾഷൂട്ടിംഗ്

പ്രശ്നം സാധ്യമായ കാരണം പരിഹാരം
കൃത്യമല്ലാത്തതോ പൊരുത്തമില്ലാത്തതോ ആയ വായനകൾ Scale not on a firm, flat surface; scale moved between readings; user not standing still; low battery. Ensure scale is on a hard, flat floor. Do not move the scale. Stand still with weight evenly distributed. Replace batteries if low. Take measurements at the same time each day for consistency.
"Error" message on display Scale overload (exceeds 150 kg); improper use; internal error. Ensure weight is within the maximum capacity (150 kg). Step off and then back on the scale correctly. If the error persists, remove batteries for 10 seconds and reinsert.
ബ്ലൂടൂത്ത് കണക്ഷൻ പരാജയം Bluetooth not enabled on smartphone; app not open; scale not activated; interference. Ensure Bluetooth is on. Open the Salter Health app. Tap the scale to activate it. Move closer to the scale. Try restarting your phone or the app.
No body composition readings (fat, water, muscle, bone) User is wearing socks/shoes; profile not set up correctly in app; scale not recognizing user. Step on the scale barefoot. Ensure your profile (age, height, gender) is accurately entered in the Salter Health app. Ensure you are selecting your user profile on the scale if it doesn't auto-detect.

സ്പെസിഫിക്കേഷനുകൾ

  • ബ്രാൻഡ്: ഉപ്പുവെള്ളം
  • മോഡൽ നമ്പർ: 9192 BK3R
  • നിറം: കറുപ്പ്
  • അളവുകൾ (L x W x H): 30.6 സെ.മീ x 33.6 സെ.മീ x 3 സെ.മീ
  • പരമാവധി ഭാരം ശേഷി: 150 kg (330 lb / 23 st 8 lb)
  • അളക്കൽ കൃത്യത: 100 ഗ്രാം
  • ശക്തി: 3 x AAA ബാറ്ററികൾ (ഉൾപ്പെട്ടിരിക്കുന്നു)
  • ഡിസ്പ്ലേ തരം: എൽസിഡി
  • പ്ലാറ്റ്‌ഫോം മെറ്റീരിയൽ: ടഫൻഡ് ഗ്ലാസ്
  • പ്രത്യേക സവിശേഷതകൾ: Measures Weight, Body Fat, Body Water, Muscle Mass, Bone Mass, BMI, BMR; 8 User Memory; Athlete Mode; Child Mode; Bluetooth Connectivity.
  • ഇനത്തിൻ്റെ ഭാരം: 1.88 കി.ഗ്രാം

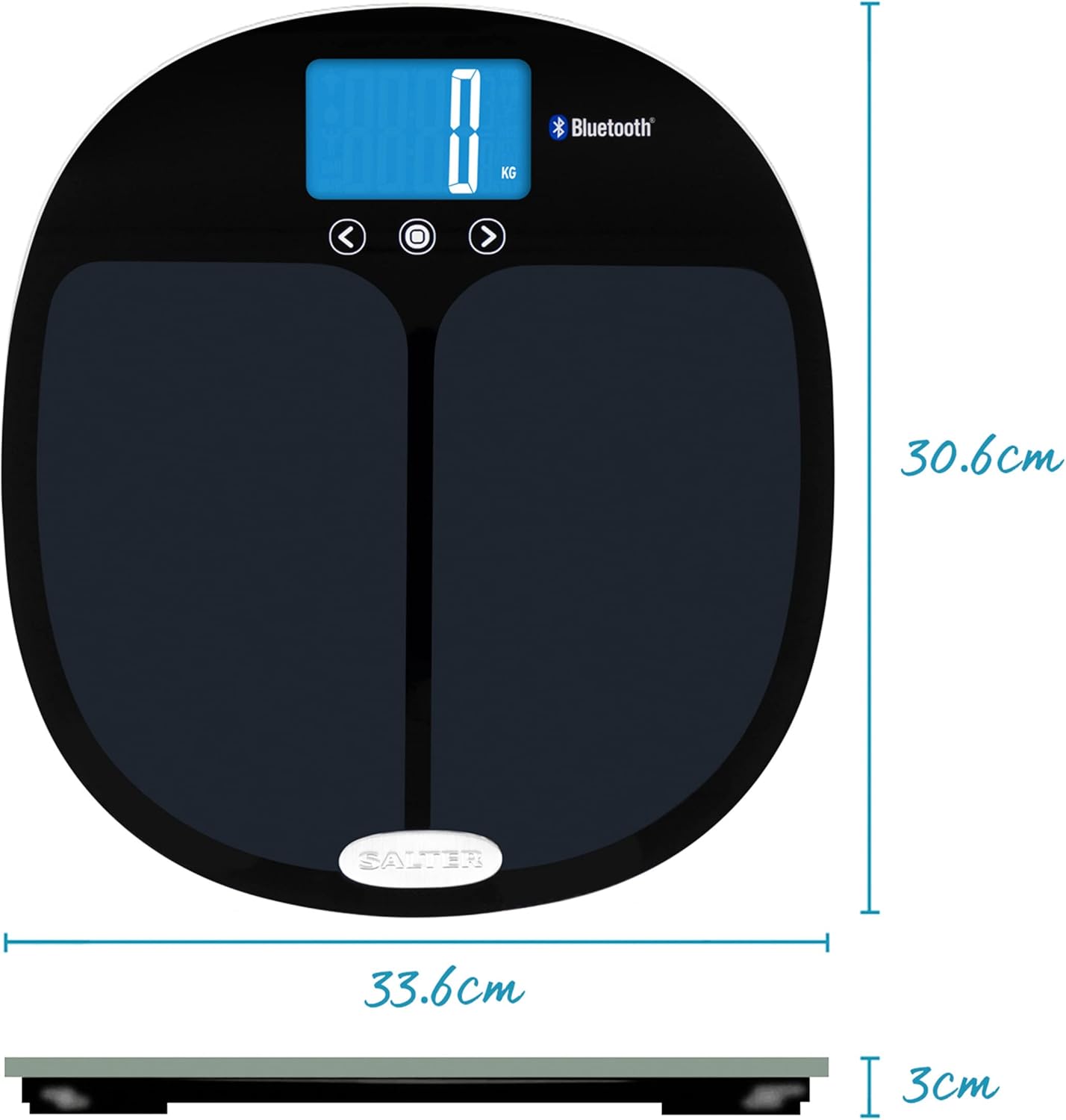

Diagram showing the dimensions of the Salter 9192 BK3R scale: 33.6cm width, 30.6cm length, 3cm height. A technical diagram illustrating the physical dimensions of the Salter 9192 BK3R scale, with measurements of 33.6 cm in width, 30.6 cm in length, and 3 cm in height.

വാറൻ്റിയും പിന്തുണയും

വാറൻ്റി വിവരങ്ങൾ

Specific warranty details for your Salter 9192 BK3R Curve Bluetooth Smart Electronic Scale are typically provided with your purchase documentation or can be found on the official Salter webസൈറ്റ്. സമഗ്ര വാറന്റി നിബന്ധനകൾക്കും വ്യവസ്ഥകൾക്കും ദയവായി ഈ ഉറവിടങ്ങൾ പരിശോധിക്കുക.

ഉപഭോക്തൃ പിന്തുണ

For further assistance, technical support, or inquiries regarding your scale, please visit the official Salter website or contact their customer service department. Contact information can usually be found on the product packaging or the Salter webസൈറ്റ്.
